13 Game-Changing Jigs For Every Woodworker’s Shop

In the world of woodworking, precision is paramount. Achieving perfectly straight cuts, flawlessly plumb holes, and precisely square assemblies can transform a good project into a great one. The secret weapon for many seasoned woodworkers? Jigs. These ingenious shop-made tools are designed to guide your hand and machinery, ensuring repeatable accuracy and significantly enhancing safety and efficiency. While making them requires an initial investment of time, the return is immeasurable, as these durable jigs will serve you faithfully for years, becoming indispensable fixtures in your workshop. Here, we unveil 13 essential woodworking jigs that every dedicated craftsman should consider building.

Custom Drill Press Table for Woodworking Precision

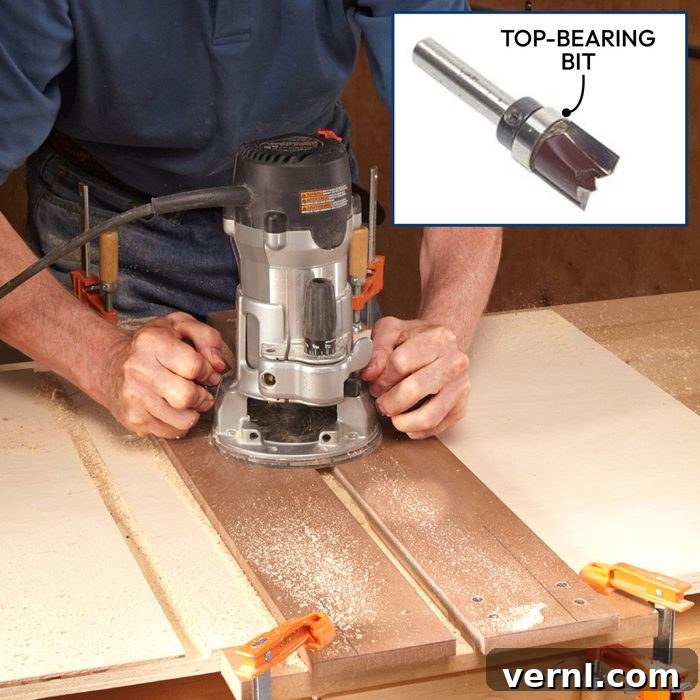

Precision Jig for Routing Dadoes: Perfect Plywood Joinery

When constructing cabinets, shelving units, or any project requiring robust internal structures, dadoes are the go-to joint for ensuring shelves and partitions are precisely spaced and strongly supported. The critical challenge in creating a strong dado joint lies in achieving a perfect fit: the width of the dado must exactly match the thickness of the plywood. This can be surprisingly difficult, as “nominal” 3/4-inch plywood rarely measures precisely 3/4 inch; it’s often 1/32 inch or more undersized. This ingenious routing jig completely eliminates this frustrating variable, allowing you to rout perfect-fitting dadoes for any piece of 3/4-inch plywood, regardless of its actual thickness, guaranteeing superior joint strength.

This jig is designed to be used in conjunction with a special top-bearing trim router bit. This specific bit typically measures 1/2 inch wide and 1/2 inch long, featuring a bearing mounted just above the cutter. Crucially, this bearing is flush with the bit’s cutting edges. The dado routing jig itself consists of two long, parallel guides meticulously crafted from 1/2-inch MDF. The magic happens during the routing process: you ride the bearing of your router bit along one guide for the initial pass, then make a second, return pass, riding the bearing along the second guide. The precise distance between these two guides is what dictates the final width of your dado, ensuring it perfectly matches your plywood’s actual thickness.

Setting up these guides for an exact fit is remarkably straightforward. One guide is permanently fixed to the jig’s 3/4-inch cross members, providing a stable anchor. The other guide, however, is loose and fully adjustable. To calibrate the jig, take two small offcuts of the exact plywood you’ll be using for your project. Place these pieces snugly against the fixed guide. Then, slide the adjustable guide firmly against these two plywood pieces and secure it in place by clamping it to the cross members. The jig is now perfectly calibrated! This method guarantees custom-fit dadoes that eliminate unsightly gaps and maximize joint integrity, making your cabinet construction more professional and durable.

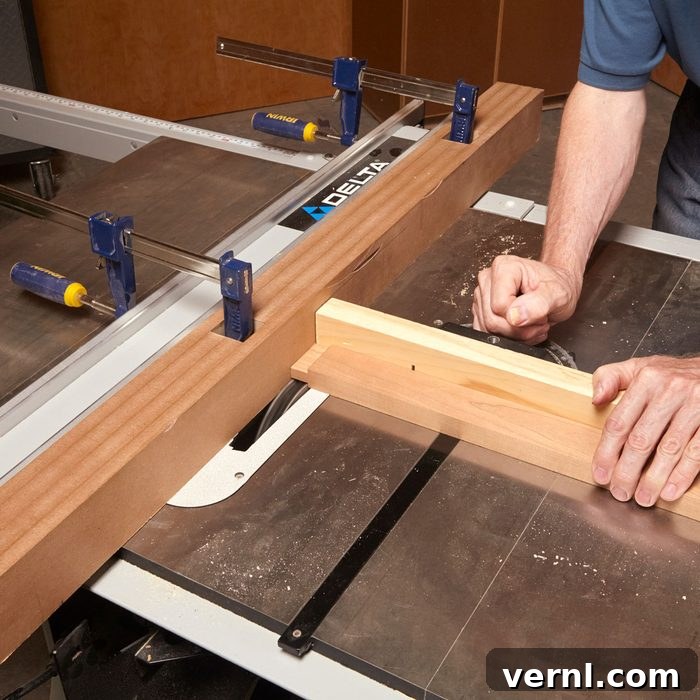

Essential Sacrificial Table Saw Fence for Safety and Precision

There are countless situations in woodworking where you need to adjust your table saw’s fence to sit extremely close to, or even over, the blade. Whether you’re cutting rabbets, tenons, or grooves, working this close to the blade with your primary fence poses a significant risk. Accidentally cutting into your saw’s permanent fence would not only cause costly damage but could also compromise its accuracy for future cuts, making it a truly undesirable event. This is where a sacrificial table saw fence becomes an absolutely indispensable workshop jig, providing both protection and versatility.

This sacrificial fence is built for durability and repeated use, typically constructed from four thicknesses of 1/2-inch MDF glued together. Alternatively, 3/4-inch plywood would also perform admirably, offering similar strength and stability. A crucial design element involves cutting the middle pieces of the fence into thirds before assembly. This clever modification creates strategically placed holes or recesses that prevent the heads of your clamps from obstructing the workpiece during a cut. These openings ensure that the clamps are always below the cutting plane, allowing you to utilize the full height of the sacrificial fence without interference.

The true genius of this system lies in its longevity and ease of replacement. You can utilize all four sides of this robust fence before it eventually wears out from repeated cuts. And when it does, crafting a new one is a straightforward and inexpensive process, ensuring you always have a fresh, undamaged surface ready for precise operations. By incorporating this sacrificial fence into your table saw setup, you not only protect your valuable primary fence but also significantly enhance the safety and versatility of your woodworking operations, allowing you to tackle more complex cuts with confidence and precision.

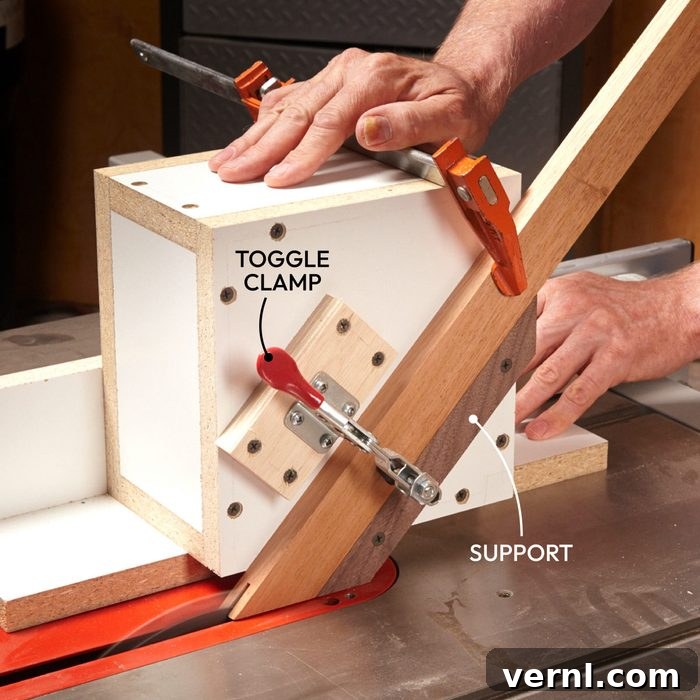

Table Saw Guide Box: Unmatched Stability for Vertical Cuts

Machining boards on a table saw typically involves resting them flat against the table or fence. However, there are numerous precision woodworking tasks that require standing boards on end to make a cut. This can be incredibly challenging with a standard table saw fence, which often lacks the height and stability needed to properly support a vertically oriented workpiece, leading to unstable setups and inaccurate cuts. This simple yet highly effective table saw guide box jig is designed precisely for these scenarios, providing unparalleled stability for perfectly straight vertical cuts every time.

This sturdy box is commonly constructed from melamine, measuring approximately 8 inches square and 5-1/2 inches deep. Melamine is an excellent choice due to its smooth, low-friction surface and dimensional stability. For added convenience and portability, the box can be screwed to two optional runners, typically 12 inches long, which slide smoothly in your table saw’s miter slots. This ensures the jig tracks perfectly straight with the blade.

Consider the task of cutting slots into the ends of picture frame parts to join them with splines (thin pieces of solid wood). Attempting this with only the table saw’s fence would be precarious and likely result in inconsistent cuts because the fence simply isn’t tall enough to provide adequate support. With this guide box, your workpiece is held firmly, guaranteeing an absolutely straight and consistent cut. The picture frame piece is supported by a customizable block that’s screwed inside the box. Need to support pieces at a different angle, for example, 90 degrees for cutting tenons? Simply remove the 45-degree support block and screw in another one designed for that specific angle. To maximize both safety and precision, always clamp your workpiece securely to the box. For holding the lower end of a frame piece, a toggle clamp is often ideal, as it’s difficult to maneuver a regular clamp into that position due to the table saw’s fence interfering. This guide box makes otherwise difficult vertical cuts safe, easy, and incredibly accurate.

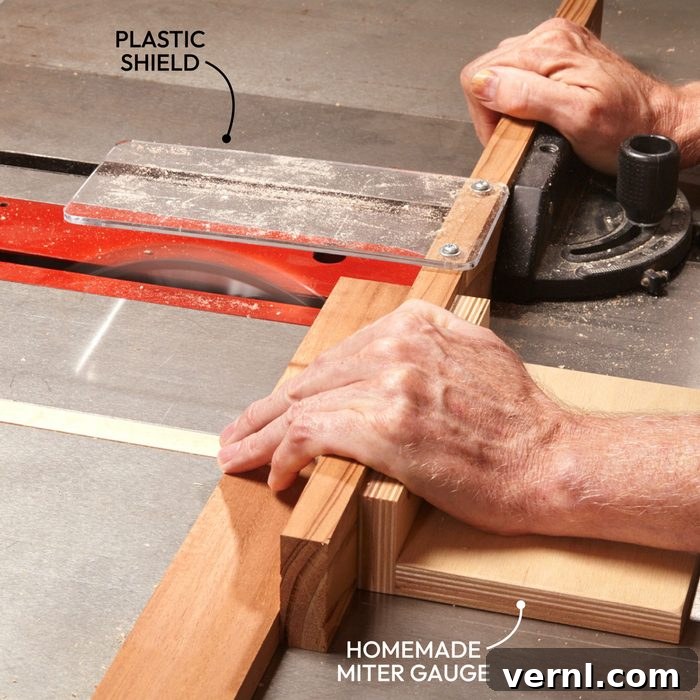

No-Wiggle Table Saw Crosscuts: The Double Miter Gauge Solution

Achieving a perfectly straight and square crosscut on a table saw is fundamental to quality woodworking. However, many standard miter gauges suffer from a common flaw: a slight wiggle or play within the saw’s miter slot. Even a minuscule amount of movement can translate into noticeable inaccuracy, leading to frustratingly crooked crosscuts. This seemingly small imperfection can undermine the precision of your entire project. Fortunately, there’s a simple yet incredibly effective woodworking jig solution to this widespread problem: using two miter gauges connected by a custom fence.

While purchasing an extra miter gauge can be a modest investment, you can reduce the cost to zero by crafting a second one yourself. Begin by gluing two pieces of Baltic birch plywood together to form a sturdy L-shaped body, which will serve as the core of your DIY miter gauge. The critical component is the bar that fits into your saw’s miter slot. Carefully cut this bar to fit snugly, eliminating any side-to-side play. Excellent material choices for this bar include a dense piece of maple or 1/4-inch tempered hardboard, both known for their stability and durability. Glue the bar to the L-shaped body using spring clamps, which allow for easy adjustments. This adjustability is key: ensure the bar is precisely 90 degrees to the body before the glue fully sets. Once dry, reinforce the joint with screws for added strength.

It’s important to note that with this dual-miter-gauge setup, you likely won’t be able to use your table saw’s standard blade guard. Therefore, an essential safety addition is a clear plastic shield attached to the custom fence. This shield serves two vital purposes: it acts as a visual and physical reminder to keep your fingers safely away from the spinning blade, and it effectively keeps sawdust out of your eyes, improving visibility and comfort during operation. By eliminating miter gauge wiggle, this jig empowers you to make consistently accurate, splinter-free crosscuts, elevating the quality and precision of all your woodworking projects.

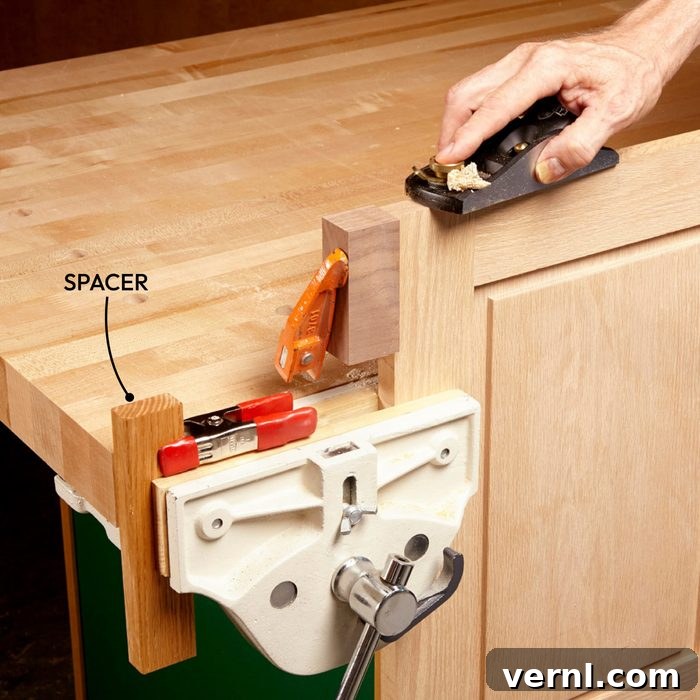

Boost Your Vise’s Holding Power: The Simple Spacer Trick

Have you ever experienced the frustration of clamping a workpiece in your workbench vise, only to find it slips, rotates, or pivots when you apply pressure during planing, chiseling, or sanding? This common issue often occurs because, despite their robust appearance, many vises (even high-quality ones) don’t maintain perfectly parallel jaws when tightened, especially when clamping a workpiece using only one side. This phenomenon, known as “racking,” causes the board to be pinched along a single edge rather than evenly gripped across its entire surface, leading to instability and potential inaccuracies in your work.

The solution to this widespread problem is remarkably simple and requires no modifications to your vise itself. All you need is a spacer placed on the opposite side of the vise from your workpiece. The key is that this spacer should be approximately the same thickness as the workpiece you are clamping. A readily available scrap offcut from your project often works perfectly. By placing this spacer, you effectively equalize the pressure across the vise’s jaws, forcing them to remain parallel as you tighten. This even distribution of clamping force ensures a secure, non-slip grip on your workpiece, eliminating the frustrating movement caused by racking.

To make the process even more convenient, you can drive a small screw into one end of your spacer or simply pinch it with a spring clamp. This small trick prevents the spacer from falling out or shifting as you tighten the vise, allowing you to focus on securing your workpiece without having to simultaneously hold the spacer in place. This simple yet highly effective woodworking jig — essentially just a piece of scrap wood — dramatically boosts your vise’s holding power, providing a stable foundation for more precise and confident hand tool work and other benchtop operations.

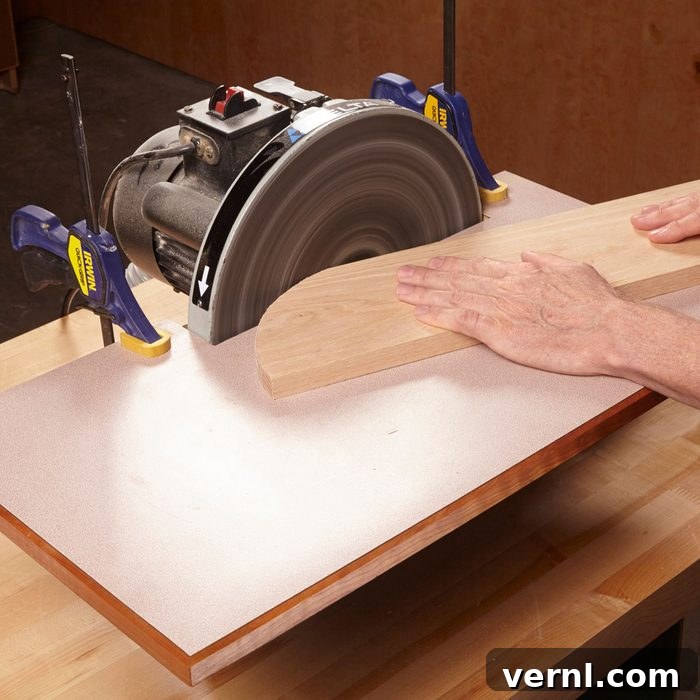

Extra-Large Sander Table for Enhanced Support and Finish

Benchtop disc sanders are invaluable tools for shaping, beveling, and smoothing workpiece edges and ends. However, a common limitation of many stock benchtop models is their relatively small tables. These diminutive work surfaces often fail to provide adequate support for larger workpieces, leading to instability, inconsistent sanding angles, and reduced control, particularly when working with broader panels or longer stock. The solution is straightforward and highly effective: create an extra-large custom sander table and securely clamp it to the original table, significantly expanding your work area and improving overall sanding precision.

While you might initially consider this extra-large table as an accessory to be attached only when required for specific projects, many woodworkers find that once they install it, they rarely (if ever) remove it. The benefits of increased support and stability quickly become apparent across a wide range of sanding tasks. This expanded surface allows you to safely and accurately sand larger components, ensure flatter edges, and achieve more consistent angles with greater ease and control, drastically improving the quality of your finished work.

The level of complexity for this jig is entirely up to you. While the example image might showcase a fancier, more elaborate construction, a simple, flat piece of melamine or even good quality plywood would suffice perfectly. The key is to create a stable, flat extension that increases the practical work area of your sander. Melamine is often preferred for its smooth, low-friction surface, which allows workpieces to glide effortlessly across it. By adding this extra-large sander table, you transform a limited benchtop tool into a more versatile and capable machine, making accurate sanding less of a chore and more of a pleasure.

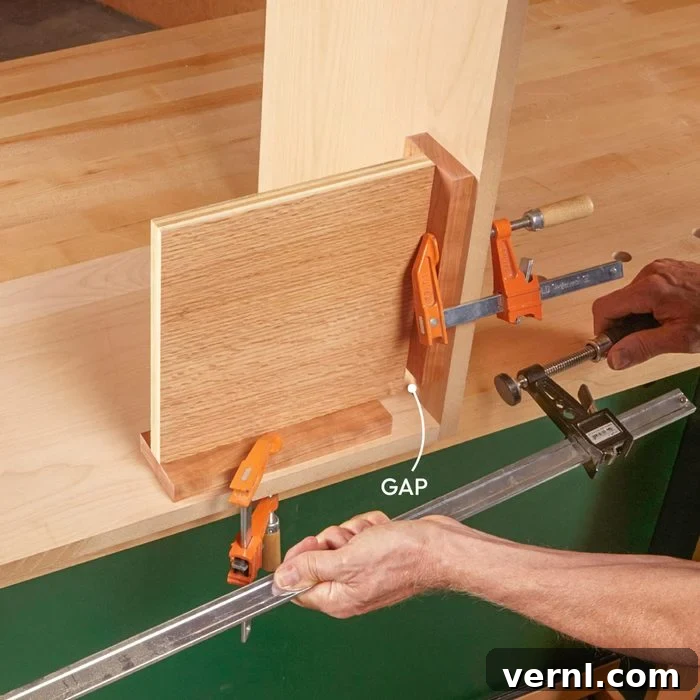

Essential Squaring Blocks for Perfect Case Construction

In woodworking, an out-of-square cabinet or case is a fundamental flaw that can plague an entire project, much like building a house on an uneven foundation. If your case isn’t perfectly square, you’ll face endless difficulties with subsequent steps: doors won’t hang correctly, drawers will bind, and shelves will be visibly skewed. Ensuring 90-degree corners in your casework is absolutely critical for successful joinery and overall project integrity. This is precisely where a pair of simple yet highly effective “squaring blocks” become an indispensable jig for your workshop, guaranteeing perfect right angles during the crucial glue-up and clamping stages.

When you’re ready to glue and clamp up a cabinet case, these squaring blocks act as external guides that force your assembly into perfect squareness. The process is simple: clamp the squaring blocks firmly to the corners of your case before applying the final tightening pressure to your main clamps. This ensures that as the glue sets, the case is held precisely at 90 degrees, eliminating any twisting or racking that might otherwise occur.

Constructing these squaring blocks is remarkably easy. Start by cutting a piece of plywood to approximately 8 inches square. The absolute most critical step here is to ensure that the inside corner of this plywood piece is truly 90 degrees; meticulously test it with a reliable combination square. Any deviation here will be transferred to your case. Next, attach two “lips” to adjacent sides of the block. These lips, typically made from 3/4-inch x 2-3/4-inch x 7-inch stock, are screwed to the block and serve as the clamping surfaces that hold the block to your case. An important design detail is to leave a small gap at the inside corner of the block where the two lips meet. This gap is specifically designed to allow any excess glue that squeezes out of your joint to escape without interfering with the block’s ability to pull the corner perfectly square. These humble squaring blocks are essential for achieving professional-grade casework with minimal fuss.

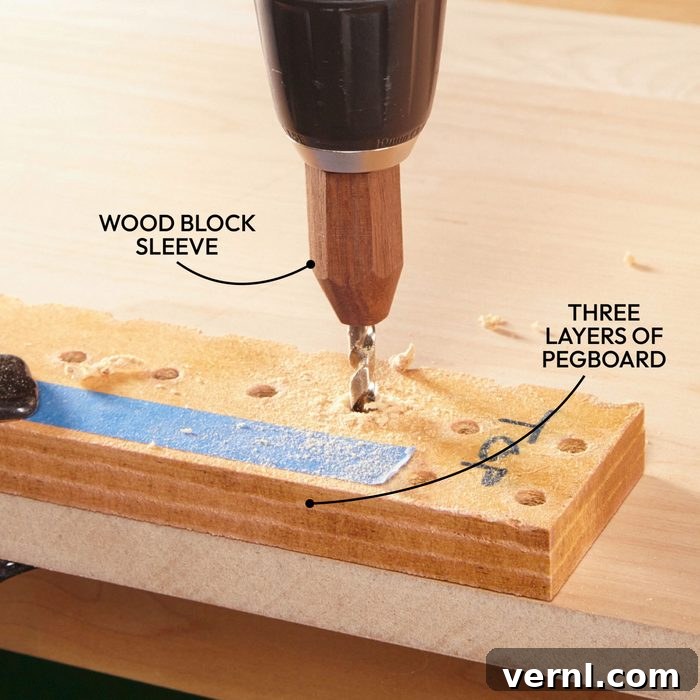

Three-Layer Hole Drilling Spacer: Durable and Accurate Shelf Pin Holes

Creating evenly spaced and perfectly aligned holes for shelf pins is a common task in cabinet and shelving construction. While the trick of using a piece of pegboard as a drilling guide is well-known, this innovative take on the concept significantly enhances both durability and accuracy. Instead of a single flimsy layer, this woodworking jig is constructed from three laminated layers of pegboard. This added thickness provides several distinct advantages that elevate it above simpler alternatives.

Firstly, the triple-layer construction dramatically increases the lifespan of your jig. Single layers of pegboard, especially with repeated use, tend to wear out quickly. The holes can become elongated or “oval,” compromising the precision of your drilling. A thicker jig resists this wear much more effectively, ensuring the holes remain perfectly round and accurately spaced for many projects to come. Secondly, and perhaps even more critically for precision, the additional thickness of the jig provides superior guidance for your drill bit. It acts as a longer sleeve, helping to keep your drill perfectly perpendicular to the panel surface. This prevents the drill bit from wandering or tilting, which is a common cause of uneven or angled shelf pin holes, leading to wobbly shelves.

To prevent accidental drilling into the wrong holes, a simple practical tip is to tape over the holes you don’t intend to use for a particular project. This minimizes “dumb mistakes” and keeps your focus on the correct drilling pattern. For controlling the depth of your holes, a wood block slid onto your drill bit and secured with a hose clamp or tape works effectively as a stop collar. Now, for the ingenious part: how do you ensure the three layers of pegboard are perfectly aligned when gluing them together? It’s surprisingly simple. Insert a couple of 1/4-inch machine bolts through opposite ends of the stack-up, then add washers and nuts. As you tighten the nuts, they will naturally pull the pegboard layers into perfect alignment, holding them securely while the glue dries. After the glue has fully cured, you can trim the edges of the jig for a clean, finished appearance. This robust three-layer pegboard jig is a must-have for consistent, professional-grade shelf pin holes.

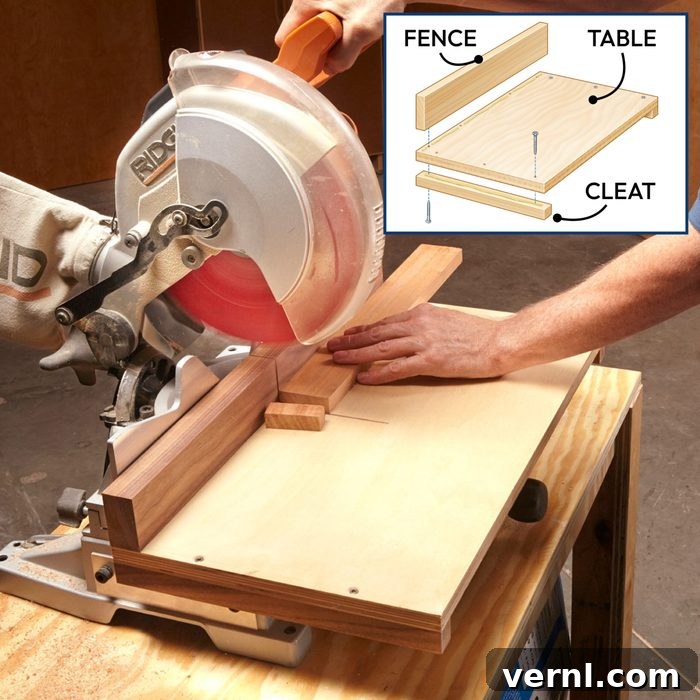

Accurate Miter Saw Cuts: The Zero-Clearance Sled

While a miter saw is an excellent tool for making quick and repeatable angled cuts, achieving absolute precision, especially on short pieces, can sometimes be challenging. Tear-out (splintering along the cut line) is also a common issue, particularly with delicate materials. This custom-built Baltic birch table, designed to be clamped to your miter saw, acts as an essential woodworking jig, delivering unparalleled accuracy and significantly reducing tear-out for flawless cuts every time. It’s particularly useful when you need to cut multiple short pieces to an exact, identical length.

The core feature of this jig is its zero-clearance design, applied to both the table and its fence. The slot in the table’s fence shows you precisely where the blade will make its cut. This means you can simply mark your workpiece with a pencil and align that mark perfectly with the slot, guaranteeing a cut exactly where you intend it. The “zero-clearance” aspect means there’s virtually no gap on either side of the blade as it passes through the fence and the table. This tight fit against the workpiece provides critical support to the wood fibers, almost entirely eliminating splintered edges and reducing tear-out to an absolute minimum, even on delicate veneered plywood or cross-grain cuts.

When constructing this miter saw jig, the fence is initially crafted as one long, continuous piece of wood. Cleats are then screwed to the underside of the table’s ends; these cleats lock the table securely in place against your miter saw’s fence. After the table and fence are assembled and clamped onto the saw, the crucial step is to carefully lower the saw blade through the fence and table to create the zero-clearance slot. A critical design detail to remember is that the custom table must be wider than your miter saw’s turntable. The uncut portions of the table on either side of the blade are what hold the entire jig together and allow for its secure clamping. This zero-clearance miter saw jig transforms your saw into a precision cutting station, ensuring professional-grade results on all your crosscutting tasks.

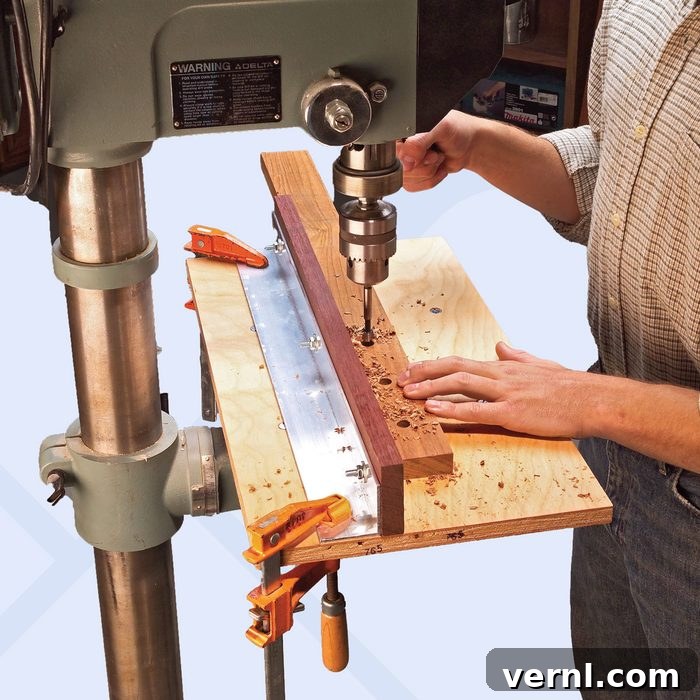

Adjustable Fence for Enhanced Drill Press Versatility

While a drill press is inherently designed for accuracy, its utility for woodworking projects can be significantly expanded by adding a simple yet highly effective adjustable fence. This essential upgrade transforms your standard drill press into a much more versatile and user-friendly machine, especially for tasks requiring precise hole placement and repeatable results. An adjustable fence is particularly indispensable when you need to drill rows of precisely spaced holes, such as for shelf pins, dowel joinery, or repetitive pattern drilling.

Beyond repetitive tasks, this fence simplifies boring holes in small workpieces. Holding small items by hand while drilling can be notoriously difficult, leading to inaccurate holes and, more importantly, posing a significant safety risk as your fingers are in close proximity to the spinning bit. With a fence, you can simply clamp the small workpiece securely to the fence at any desired angle and proceed with drilling, eliminating the struggle of trying to hold it steady. This not only ensures greater accuracy but also dramatically improves workshop safety by keeping your hands well clear of the drilling action.

1. **Mount the Base:** Begin by attaching a 2-foot x 1-foot scrap of plywood or particleboard to the existing metal drill press table. Use countersunk 1/4-inch flat-head machine screws, fender washers, and nuts for this attachment. The fender washers are crucial here, as they effectively span the slots in the metal table, providing a broad contact area for secure fastening. Ensure the screws are countersunk so their heads are flush with the surface, providing an unobstructed workspace.
2. **Construct the Fence:** Create the fence itself from a sturdy 2-foot x 4-inch x 1-inch board. This board will be bolted to a 2-foot piece of 3-inch x 1/8-inch aluminum angle iron (a 4-foot length of which is typically available for around $10 at most home centers). Again, remember to countersink the holes in the wooden board before bolting it to the angle iron. This ensures a smooth, snag-free surface. The angle iron provides a rigid base that allows the fence to be easily clamped to the base board, enabling precise adjustments for various drilling tasks. This adjustable drill press fence jig is a game-changer for enhancing the functionality and safety of your drill press.

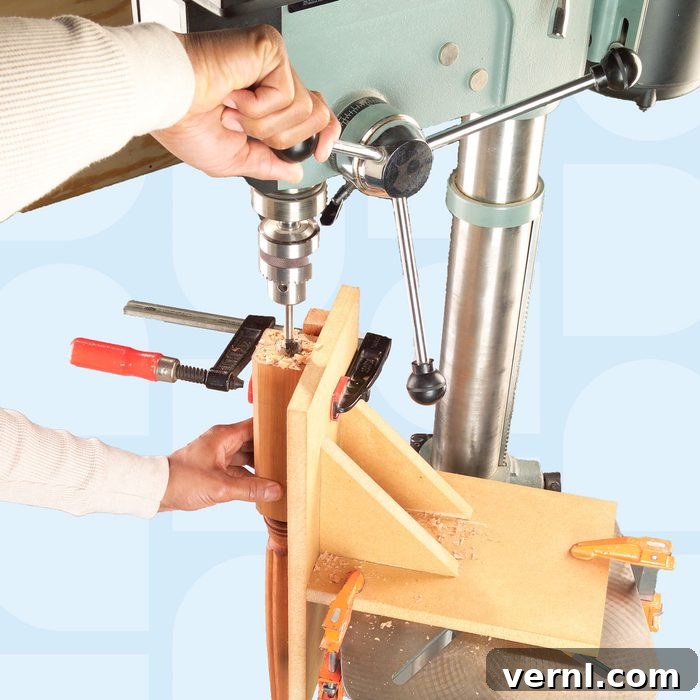

Vertical Drilling Jig: Perfect Centered Deep Holes Every Time

Attempting to drill a perfectly straight and precisely centered deep hole into the end of a board with a handheld drill is an exercise in futility for most woodworkers. Even with a steady hand, drill bits tend to wander, especially when starting the hole, leading to off-center or angled bores. This inaccuracy can compromise the strength and aesthetics of crucial joinery, such as when inserting dowels or creating mortises. However, by combining the precision of a drill press with a dedicated vertical drilling jig, this seemingly impossible task becomes not only doable but remarkably simple and consistently accurate.

This robust woodworking jig is constructed from two 8-inch x 12-inch pieces of 3/4-inch plywood or medium-density fiberboard (MDF). The construction is straightforward: simply screw the two pieces together to form a “T” shape. To enhance its rigidity and ensure it remains perfectly perpendicular, reinforce the jig with a couple of triangular gussets or braces. This creates a stable platform that securely holds your workpiece in a vertical orientation, ready for precise drilling.

To utilize this vertical drilling jig, first clamp the jig itself securely to your drill press table. Next, clamp your workpiece firmly to the face of the jig. To accurately locate the exact center of your board’s end, draw an “X” across the corners of the end grain. The intersection of these lines will mark the precise center for your drill bit. The alignment process then involves adjusting the height of your drill press table and pivoting it until the drill bit perfectly aligns with the center mark on your workpiece. This might require a few minor tweaks, but once everything is lined up, drilling a perfectly straight, centered deep hole is an absolute cinch. This clever trick works flawlessly for both rectangular and square boards, opening up new possibilities for joinery and construction. Explore other incredible drill press jigs to further enhance your workshop capabilities.

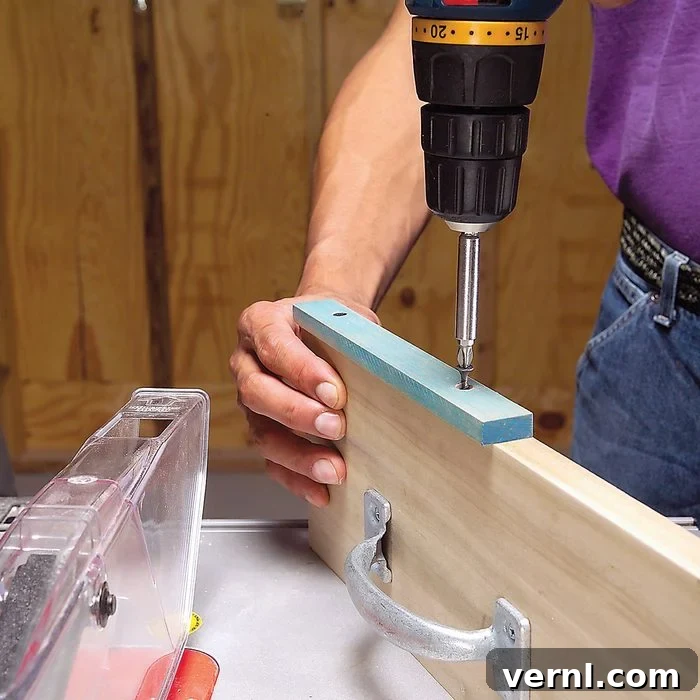

Cut Narrow Strips with a Sliding Jig: Safety and Repeatability

Cutting multiple identical narrow strips on a table saw, perhaps for intricate inlays, delicate trim, or shelf edging, can be one of the more challenging and potentially hazardous operations. Traditionally, this might involve repeated adjustments of the fence, frequent removal and reinstallation of the blade guard, and bringing your hands dangerously close to the spinning blade, especially for very thin rips. This innovative sliding jig provides a brilliant solution, enabling you to cut a series of identical narrow strips safely, efficiently, and with perfect repeatability, all without ever needing to adjust your table saw fence or remove the blade guard.

The core concept of this jig is to create a precisely guided, horizontal push stick that acts as its own reference. To make the jig, start with a 4-foot 1×6 board. To the end of this board, attach a 5-inch-long strip of wood. The critical detail here is that this attached strip must be approximately 1/16 inch narrower than the desired width of the rip cut you intend to make. Essentially, you’re creating a stepped surface on the end of your 1×6. This stepped design guides your workpiece, which is held against the shorter strip, ensuring the exact same amount of material is removed with each pass.

Using the jig is incredibly simple and safe. Position your table saw fence so that the jig rides snugly against it. Then, place your main stock board against the shorter, attached strip of the jig. With your hands safely away from the blade, simply push the entire jig (with the workpiece) through the saw. The jig keeps your hands well clear of the blade”s path, and because the jig itself dictates the cut width, you can rip as many pieces as you need without ever having to move the table saw fence. For even better control and comfort, consider adding a sturdy handle near the end of the jig. This allows you to apply consistent pressure and smoothly guide the jig through the saw, making the process of cutting narrow strips both safer and significantly more precise. This sliding jig is a testament to how a simple design can profoundly enhance both the safety and efficiency of your workshop operations.
