DIY Table Saw Tapering Jig: Your Guide to Accurate Angled Cuts

Mastering woodworking often requires making angled cuts with precision. A table saw tapering jig is an invaluable tool for achieving this accuracy. This guide provides a detailed, easy-to-follow plan for building your own tapering jig. This DIY project is perfect for both beginner and experienced woodworkers looking to improve their cutting capabilities. This jig enables you to create perfectly tapered parts for a variety of projects, from furniture making to decorative woodworking.

Why Build a Tapering Jig?

While you can attempt angled cuts freehand, the results are often inaccurate and inconsistent. A tapering jig ensures that your cuts are straight, consistent, and repeatable. It gives you the control and stability needed to safely and accurately cut tapered pieces. Using a jig eliminates the guesswork and potential for errors. This is crucial for projects where precision is paramount, as even slight inaccuracies can ruin your work.

Materials You’ll Need

The beauty of this project lies in its simplicity. You’ll need readily available materials, often found at your local hardware store. Here’s a comprehensive list of what you’ll need to construct your own table saw tapering jig:

Two Boards: 30 inches long, 2-1/2 inches wide. Choose straight, clear lumber for accuracy. Pine or plywood are excellent choices.
Butt Hinge: 2-inch size. This will form the pivot point of your jig.

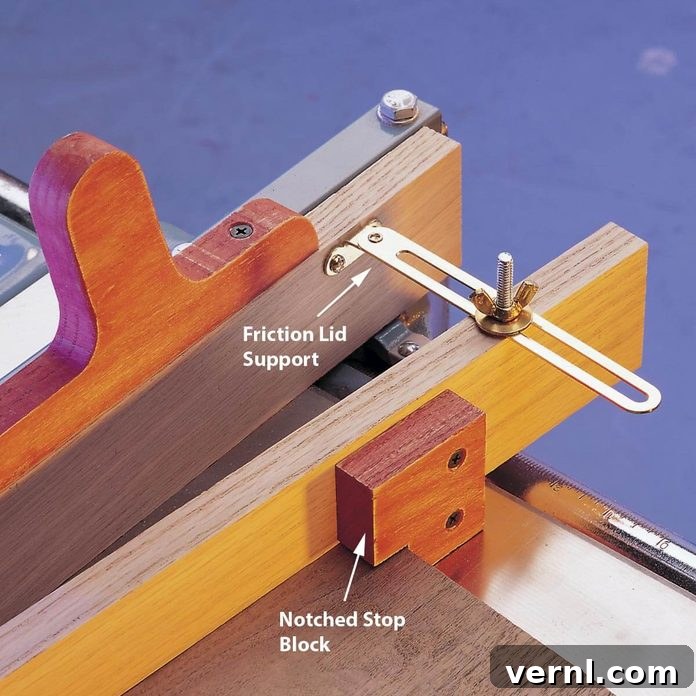

Friction Lid Support: You can often find these at your local hardware store. These help hold the tapered angle.
Hanger Bolt: 1/4-inch diameter. This is used in conjunction with the friction lid support.
Wing Nut: This is used to secure the chosen angle on your tapering jig.
Wood Handle: This makes pushing the jig much easier and safer.
Stop Block: A small piece of wood to hold your workpiece securely.
Screws: Various sizes to secure the components together.

Step-by-Step Construction Guide

Follow these steps to build your own table saw tapering jig. Each step is clearly explained to help you complete the project with confidence.

Step 1: Preparing the Base

Cut two pieces of wood to 30 inches in length and 2-1/2 inches in width. Ensure the edges are square and smooth. This will form the main body of your tapering jig. Accurate cuts at this stage are essential for overall accuracy.

Step 2: Attaching the Hinge

Attach the 2-inch butt hinge to one end of the two boards. The hinge allows the two boards to pivot, forming the adjustable angle. Ensure the hinge is centered and properly aligned. Use appropriate screws to secure the hinge firmly. The hinge forms a critical pivot point; ensure it moves smoothly.

Step 3: Installing the Friction Lid Support and Angle Adjustment Mechanism

On the opposite end of the jig (from the hinge), install the friction lid support. Carefully attach the friction lid support. Next, drill a hole through one of the boards and insert the 1/4-inch hanger bolt, ensuring that the bolt will interface with the friction lid support. The hanger bolt, in conjunction with the wing nut, allows you to adjust and lock the angle.

Step 4: Adding a Handle

Attach a wood handle to the end of the jig opposite the hinge. This provides a comfortable grip and allows you to push the jig safely and easily through the table saw. The handle should be securely fastened to prevent it from coming loose during operation.

Step 5: Attaching the Stop Block

Screw on a notched stop block to the jig. The position of the stop block can be adjusted depending on the workpiece. This stop block is essential for holding and pushing the workpiece securely against the saw blade. This ensures consistent cuts and prevents the workpiece from shifting during the cut. Position it at a suitable distance from the blade to prevent kickback.

How to Use Your New Tapering Jig

Once your jig is built, the process of making angled cuts becomes straightforward. Here’s a step-by-step guide on how to use it safely and effectively:

Set the Angle: Loosen the wing nut and adjust the angle of the jig using the friction lid support. Use a protractor or angle finder to set the precise angle you need. Tighten the wing nut to lock the angle in place.
Position the Workpiece: Place your workpiece on the jig, ensuring it is flush against the stop block.
Secure the Workpiece: Make sure the workpiece is held firmly in place against the stop block. This is critical for safety and accuracy.

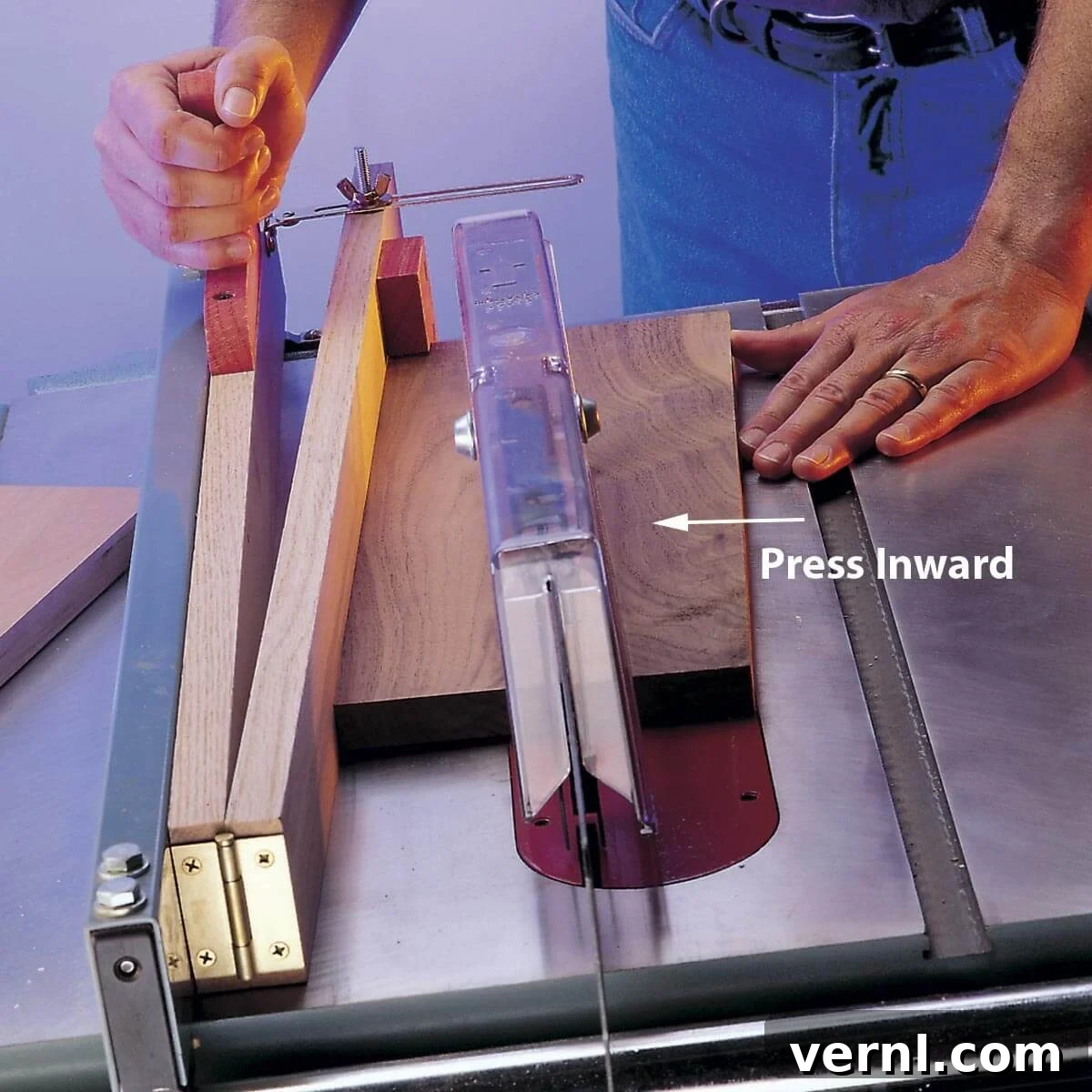

Make the Cut: With the jig and workpiece in position, carefully feed the jig through the table saw blade. Maintain a consistent feed rate to avoid burning or uneven cuts.
Repeat as Needed: Repeat the process for all required cuts, ensuring consistency in your results.

Safety First

Safety should always be your top priority when working with power tools. Always wear safety glasses to protect your eyes from flying debris. Use a push stick or push block to keep your hands away from the saw blade. Never remove the guard from your table saw. Always turn off the saw and let the blade come to a complete stop before making any adjustments or removing the workpiece. Regularly inspect your jig for any signs of wear or damage. Replace any components that are damaged or worn out.

Tips for Success

Here are some additional tips to help you get the most out of your table saw tapering jig:

Use Quality Materials: Choose straight, clear lumber to ensure accurate cuts.
Precise Measurements: Measure and cut your materials accurately.
Smooth Movements: Feed the jig through the saw smoothly and steadily.
Practice Makes Perfect: Practice on scrap wood before cutting your final project pieces.
Regular Maintenance: Keep your jig clean and lubricated for optimal performance.

Conclusion

Building a table saw tapering jig is a rewarding woodworking project that significantly enhances your ability to create precise angled cuts. By following the steps outlined in this guide, you can build a reliable jig that will serve you well in countless woodworking projects. With this new tool in your workshop, you’ll be able to create stunning tapered designs with ease and accuracy. Enjoy the process of crafting and creating!
