More than a century has passed since the Niagara Falls power station harnessed the force of water to generate alternating current, marking the dawn of a new era. Since that pivotal moment, the United States and, subsequently, the entire world have been fundamentally reshaped by the vast, intricate network we know as the electric grid. Across every developed nation, the landscape is dotted with towering structures supporting high-voltage transmission lines and an extensive web of power poles that meticulously distribute electricity to homes, businesses, and industries. Each region operates under the purview of its own dedicated power company, tasked with the monumental responsibility of maintaining and repairing this indispensable infrastructure.
However, within the confines of each individual home lies a distinct and equally vital electrical system. When issues arise within this personal domain, the responsibility for rectification typically shifts from the utility company to the homeowner. To navigate these situations effectively, homeowners must possess a clear understanding of the demarcation line where the power company’s jurisdiction concludes and their own begins. Equally crucial is a foundational grasp of how electricity safely enters the home and subsequently permeates through its various circuits, powering our daily lives.
Electricity is undeniably a marvel of modern engineering, yet the internal workings of residential electrical systems can often appear dauntingly complex. Explanations regarding their operation frequently become entangled in technical jargon, making them inaccessible to the average individual. This comprehensive guide aims to demystify the residential electrical system, offering an accessible explanation from the perspective of a builder rather than a specialized electrician, ensuring clarity and simplicity at every turn.
The Indispensable Role of the Line Transformer
In developed nations, the vast majority of electrical grids (excluding a growing number of solar power generators) are predominantly fueled by massive turbines propelled by steam, water, or wind. These powerful turbines are engineered to produce alternating current (AC) – a type of electrical current that periodically reverses direction. In North America, this reversal occurs 60 times per second, a frequency standardized at 60 Hertz (60 Hz). This generated electricity is then channeled through an extensive network of transmission lines, robustly supported by towering pylons and a multitude of power poles, spanning vast distances across the country.
To conceptualize voltage, imagine it as the inherent “force” or “pressure” that actively propels electricity through a conductor, such as a wire. For the efficient and cost-effective transmission of electricity over vast distances, this voltage must be extraordinarily high, often reaching several hundred thousand volts. While ideal for long-range transport, such immense voltage is inherently impractical and dangerously excessive for direct use in homes or businesses. This is precisely where the line transformer plays its critical role. Mounted prominently on power poles or nestled within discreet green boxes underground, these transformers are specifically designed to “step down” or significantly decrease this incredibly high voltage to a safe and usable level.
If you observe a typical overhead power pole in a residential area, you’ll almost certainly spot a large, cylindrical metal enclosure near the top. This is the ubiquitous line transformer. Its primary function is to reduce the incoming high voltage to approximately 120/240 volts, the standardized configuration for residential use in North America. This dual-voltage system effectively caters to the diverse power requirements of household appliances and systems. While 120/240 volts is standard for single and two-family homes, commercial and industrial establishments often necessitate entirely different, higher voltage configurations to power their heavier machinery and larger electrical loads.
Master electrician John Williamson notes that in many contemporary urban and suburban areas, the local utility distribution system has been strategically buried underground. In these instances, the critical utility transformers are housed within the familiar pad-mounted green boxes that blend into the landscape of residential neighborhoods. Williamson emphasizes the often-overlooked dedication of regional power grid operators: “These operators work tirelessly and silently around the clock to ensure that the voltage and the critical 60-Hz frequency of the grid remain stable and consistent. This unwavering reliability is something we all too often take for granted, yet it is the bedrock of our modern electrified lives.”
From the Transformer to the Meter: The Service Entrance

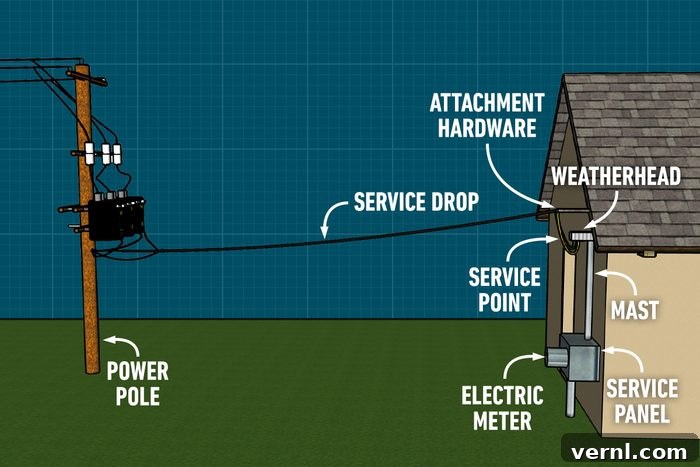

The journey of electricity from the utility grid to your home begins with what is known as the “service drop.” In a typical overhead installation, this connection consists of three insulated wires running from the line transformer on the utility pole directly to your house. These three wires are fundamentally composed of two “hot” wires and one “neutral” wire. When measured between the two hot wires, the voltage is precisely 240 volts. Conversely, measuring the voltage between the neutral wire and each individual hot wire will yield 120 volts. This specific configuration of two hot wires and a neutral wire is crucial for supplying both 120V circuits (for standard outlets and lighting) and 240V circuits (for major appliances like ovens or clothes dryers) within the home. Identical three-wire configurations are also utilized in underground service installations, ensuring consistent power delivery regardless of the physical routing.
Upon reaching the house, these service-entrance wires first pass through a specialized component called the “weather head.” This fixture, typically a length of conduit firmly attached to the roofline or siding, is distinguished by its goose-necked opening. Its ingenious design serves a critical purpose: to prevent rain, snow, and other environmental elements from entering the conduit and potentially compromising the electrical connections. After safely navigating the weather head, the service-entrance wires proceed to their next essential destination: the electric meter. This device is almost invariably mounted on the exterior side of the house, usually positioned directly beneath the weather head, making it accessible for utility readings and maintenance.
Inside the electric meter, the service-entrance wires connect to designated “Line terminals.” These terminals facilitate the continuous monitoring of electricity flow into the house, meticulously tracking consumption. The vast majority of meters installed today are sophisticated smart meters. These advanced devices automatically relay real-time energy consumption data directly to the power company via integrated wireless radio signals. This technological leap has revolutionized utility operations, rendering the traditional practice of utility meter readers physically visiting every home obsolete. While the actual glass watt-hour meter itself remains the property of the power company, the meter socket enclosure and all subsequent components of the premises’ electrical system that branch out from it, are definitively the responsibility and property of the homeowner.
From the Meter to the Service Panel: The Heart of Home Distribution
Following their passage through the electric meter, the service-entrance wires exit via the “Load terminals,” positioned on the opposite side of the meter from the incoming Line terminals. From this point, these critical wires embark on their final journey to the home’s main service panel, the central nervous system of the entire residential electrical system. Before reaching the interior of the house, these wires typically penetrate an exterior wall. At this entry point, it is common to find a junction box or a conduit fitting, often equipped with a removable cover, securely attached to the side of the house. This provides a protected and accessible point for connections or inspections.
Furthermore, in homes constructed or extensively renovated in accordance with modern safety standards, these wires may pass through an exterior service disconnect switch. While this component has been a mandatory requirement under the National Electrical Code (NEC) as of 2023, older homes may not possess this feature. John Williamson, a master electrician, elaborates on the importance of this safety innovation: “The NEC now explicitly requires an exterior emergency disconnect switch, primarily for the safety of first responders. However, a strategically placed exterior Service Disconnect can fulfill two crucial code requirements simultaneously: it functions both as an Emergency Disconnect and the primary Service Disconnect for the property. This allows emergency personnel, such as firefighters, to quickly and safely de-energize the entire house from outside before making entry, significantly reducing risks during emergencies.”
The main service panel itself is invariably located indoors, typically in a utility-friendly space such as a basement, a dedicated utility room, or a garage. The service-entrance wires enter the panel enclosure, usually from either the top or bottom. Inside, each incoming hot wire connects to a main circuit breaker. From this main breaker, the power is then distributed to robust copper or alloy “bus bars,” which are specifically designed to accept and mate with individual circuit breakers. The various circuit breakers, which control individual circuits throughout the house, are then simply “plugged onto” these bus bars, forming a secure and conductive connection.
The MAIN breaker, often prominently labeled as such, also serves a crucial dual purpose as the primary disconnect for homes constructed prior to the 2023 NEC changes. Its fundamental design dictates that it will automatically “trip open” and consequently cut off power to the entire house if the total electrical current load exceeds its designated amperage rating, thereby preventing overheating and potential electrical fires. For new residential construction, the NEC mandates a minimum service rating of 100 amps for a dwelling unit, ensuring sufficient capacity for modern electrical demands. However, larger homes, particularly those equipped with numerous high-power appliances or extensive electrical systems, may necessitate a more robust 200-amp service, or even greater capacity, to adequately and safely meet their energy requirements.
Inside the Panel: Understanding the Distribution Network

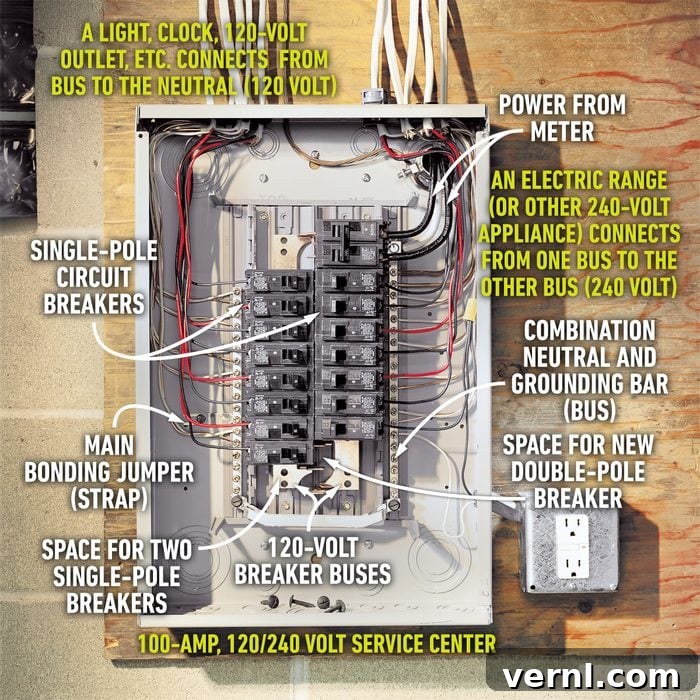

Delving deeper into the main service panel, you’ll find its core components for distributing electricity. Central to this are two robust copper or alloy conductor bars, aptly known as the “hot bus bars.” These bars are continuously energized, and the voltage measured directly between them is a potent 240 volts. In addition to these hot bus bars, the panel houses two other critically important terminal bars: the neutral bar and the equipment grounding bar, each serving distinct and essential safety functions.
The Neutral Terminal Bar: Completing the Circuit
The neutral terminal bar is typically distinctively nickel-plated, presenting a silver coloration that clearly differentiates it visually from the gleaming copper of the hot bus bars. This bar serves as the essential termination point for all white neutral wires originating from the 120-volt branch circuits distributed throughout the home. Functionally, the neutral terminal bar is directly connected back to the utility transformer via a dedicated white neutral service-entrance wire. This continuous, low-resistance path is absolutely vital because it provides the return route for electricity. It allows current, having flowed through a hot bus bar, a circuit breaker, and then through a household appliance or light fixture, to complete its circuit back to the transformer. Without this complete loop, electricity cannot flow, and devices will not operate. The neutral wire carries current under normal operating conditions, playing a crucial role in balancing the electrical load.
The Equipment Grounding Bar: Your Safety Net
Most modern electrical panels are equipped with an additional terminal bar specifically dedicated to equipment grounding. This bar is directly and robustly connected to the earth itself, often through one or more “grounding electrodes.” The most common method involves a ground rod, typically an 8-foot-long copper-clad steel rod, which is physically pounded into the ground just outside the home, establishing a direct connection to the earth. However, the National Electrical Code (NEC) offers several acceptable alternatives for these grounding electrodes. These can include connections to underground municipal metallic water service pipes that supply the house, or, in newer construction, to the reinforcing steel (rebar) embedded within the home’s concrete footings, leveraging the earth’s conductive properties for safety.
Every branch circuit cable within the home contains a dedicated bare copper or green-insulated equipment grounding wire. This critical wire connects directly to the equipment grounding terminal bar within the main panel. The fundamental purpose of this grounding conductor is to provide a direct, exceptionally low-resistance path for any “ground-fault current” – essentially, stray electricity that has unintentionally come into contact with a metal enclosure or conduit – to safely return to the electrical panel. When such a fault occurs, this robust grounding path allows a massive surge of current to flow instantaneously, causing either a fuse to blow or, more commonly, a circuit breaker to “trip.” This rapid interruption of power prevents dangerous electrical shocks and reduces the risk of electrical fires. The grounding conductor runs continuously throughout the entire circuit, meticulously connecting to every receptacle, light switch, light fixture, and every metallic electrical box in the system, ensuring comprehensive protection.
Circuit Breakers and Branch Circuits: The Guardians of Your Home
All the various circuit wires that supply power to the myriad electrical devices within your home—such as lights, wall receptacles, and dedicated appliances—all originate from the main service panel. While there are specific exceptions, the typical wiring configuration for a branch circuit cable includes a white wire, which connects to the neutral bar; a bare copper or green-insulated ground wire, which connects to the grounding bar; and one or two “hot” wires (commonly black and/or red), depending on whether the circuit is designed to operate at 120 volts or 240 volts.
Crucially, the hot wire for each individual branch circuit does not connect directly to the main hot bus bar. Instead, it connects to a dedicated circuit breaker. This ingenious safety device is engineered to automatically “trip” and cut off the flow of power to that specific circuit the moment the electrical current draw exceeds its predetermined amperage rating. This mechanism prevents wires from overheating, which could otherwise lead to dangerous electrical fires. Single-pole breakers, which are used to control 120-volt circuits (typical for standard outlets and lighting), are most commonly rated for either 15 or 20 amps. Each single-pole breaker simply snaps securely into a designated slot within the panel, establishing an automatic connection to one of the two hot bus bars. For appliances requiring higher power, such as electric stoves, clothes dryers, or central air conditioning units, two-pole breakers are employed. These breakers are designed to span and make contact with both hot bus bars simultaneously, providing the necessary 240 volts for heavy-duty applications.
For safety and aesthetic reasons, all the complex internal panel wiring and bus bars are concealed behind a hinged metal door. Beneath this door, and securely screwed onto the front of the panel, is a “dead-front cover.” This cover is meticulously designed to leave only the toggles of the individual circuit breakers exposed, allowing for manual operation (turning circuits on or off) while completely preventing accidental contact with any live electrical components inside the panel. The robust metal enclosure of the service panel itself is specifically engineered to contain any accidental arcing or sparking that might occur due to electrical faults, thereby enhancing safety. Furthermore, it acts as a physical barrier, deterring individuals from inadvertently touching dangerous live parts. To ensure easy identification and facilitate troubleshooting, the inside of the panel door or the dead-front cover typically features a clearly labeled panel index or legend, indicating precisely which circuit in the house each breaker controls. This thoughtful organization is paramount for both safety and efficient maintenance of the home’s electrical system.
