Comprehensive Guide to Fire Blocking and Draft Stopping for Enhanced Home Safety

Ensuring the safety of your home and loved ones is paramount, and a critical, often overlooked, aspect of home construction and renovation is fire blocking and draft stopping. While code requirements for these measures are primarily associated with new construction, their application extends significantly to remodeling projects, basement finishing, additions, or even when simply running new pipes or wires through existing structures. Understanding and implementing proper fire blocking techniques can dramatically slow the spread of flames, smoke, and toxic gases, providing invaluable time for escape and reducing potential damage. This expert guide will walk you through the most common applications, materials, and principles to help you apply these vital safety measures to your own project. For broader insights into preventing home fires, explore our dedicated resource on how to prevent home fires.

Understanding the Threat: The Role of Wall and Ceiling Cavities in Fire Spread

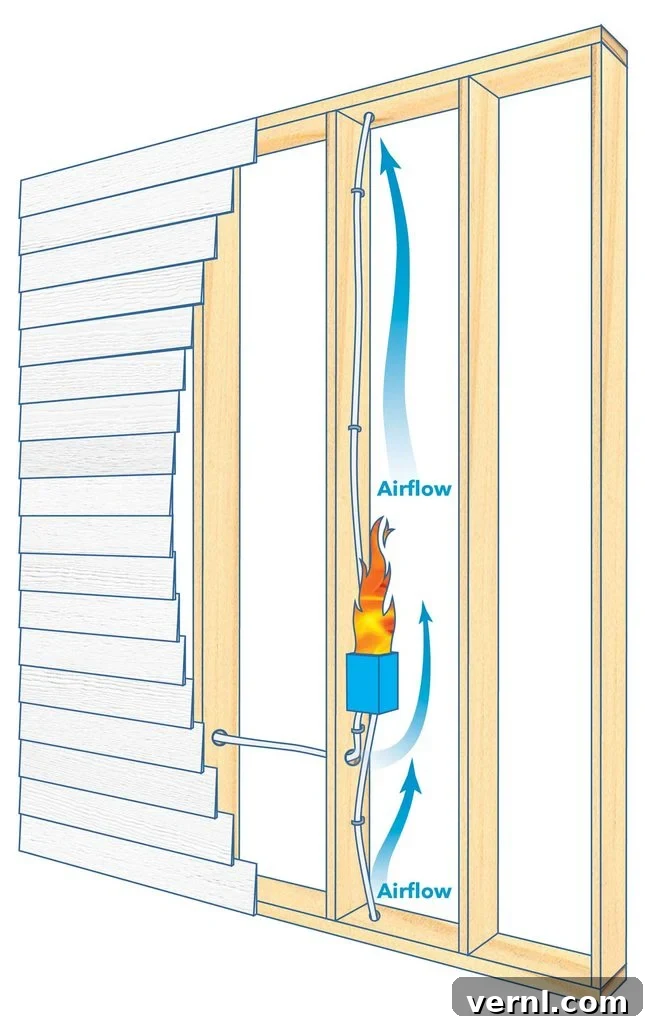

Concealed spaces within your home’s walls, ceilings, floors, and attics can inadvertently become superhighways for fire. These hidden cavities, designed for structural support and utility routing, also create open pathways that allow flames, hot gases, and smoke to spread rapidly and unimpeded from one area to another. This phenomenon is often referred to as the “chimney effect,” where heated air and gases rise quickly through vertical shafts, accelerating the fire’s growth and spread throughout the structure.

Beyond the direct threat of flames, these open cavities also allow a constant supply of airflow, which acts as fuel, intensifying the fire. More alarmingly, these pathways enable the swift distribution of smoke and highly toxic gases, which are often the primary cause of fatalities in home fires, long before flames reach occupants. Sealing these gaps and compartmentalizing these concealed spaces is the fundamental objective of fire blocking and draft stopping. By interrupting these pathways, we can significantly slow or even halt the vertical and horizontal movement of dangerous fire elements, thereby buying precious time for occupants to evacuate safely and for emergency services to respond effectively.

What is Fire Blocking?

Fire blocking is a passive fire protection measure designed to impede the vertical movement of flames, smoke, and hot gases within concealed spaces of a building. It acts as a barrier, effectively sealing off these vertical pathways, such as stud cavities in walls, spaces between floor joists, and open soffits. The primary goal is to prevent fire from rapidly extending from one floor to another or from a wall cavity into an attic space. By slowing down this vertical spread, fire blocking buys critical time, limits the size of the fire, and reduces the potential for structural collapse, making it an essential component of comprehensive home fire safety.

What is Draft Stopping?

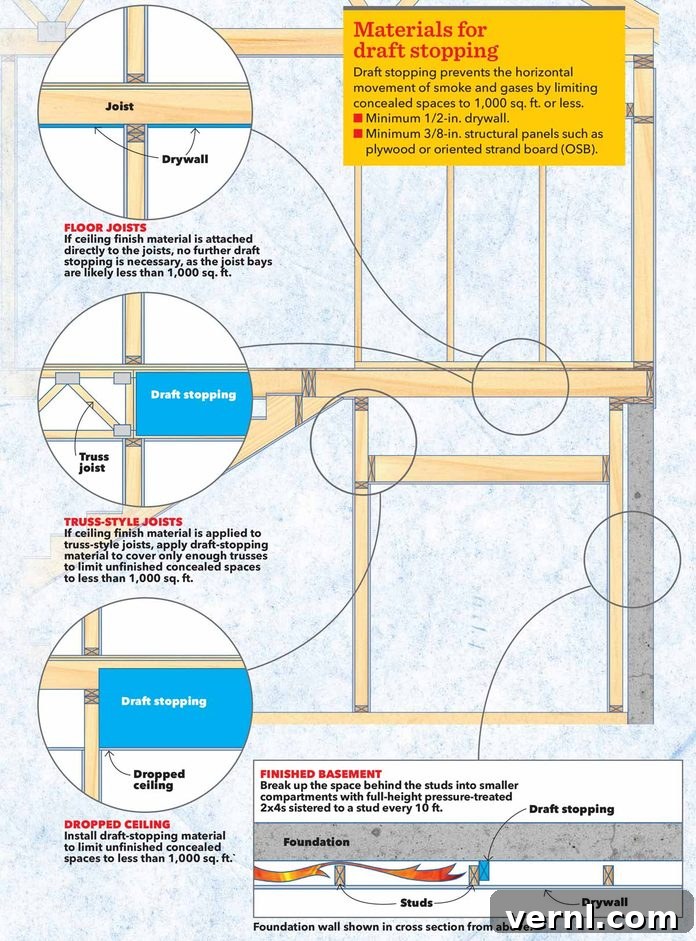

While fire blocking primarily addresses vertical fire spread, draft stopping focuses on the horizontal movement of fire, smoke, and gases within larger concealed spaces. This typically includes expansive areas like attics, dropped ceilings, or large floor joist bays. Draft stopping aims to compartmentalize these larger horizontal areas into smaller sections, typically no more than 1,000 square feet (or as specified by local codes), to prevent fire from sweeping across an entire floor or attic space horizontally. By creating these subdivisions, draft stopping limits the area over which a fire can quickly spread, similar to how firewalls work but on a smaller, concealed scale. It’s a vital measure for containing fires and allowing more time for intervention.

The Critical Importance of Fire Blocking and Draft Stopping

The statistics on home fires paint a stark picture: According to the National Fire Protection Association (NFPA), fire departments in the United States respond to hundreds of thousands of home structure fires each year. Between 2011 and 2015 alone, an average of seven people died in home fires every single day. These figures underscore the profound and ongoing threat that residential fires pose to life and property. Fire blocking and draft stopping are not merely building code formalities; they are life-saving measures that contribute significantly to occupant safety and structural integrity.

Beyond the devastating impact of direct flame exposure, it’s crucial to recognize that smoke and toxic gases are often the deadliest elements of a fire. They can spread silently and rapidly through concealed cavities, incapacitating occupants long before flames become visible. By containing smoke and gases, fire blocking and draft stopping provide vital minutes—minutes that can mean the difference between life and death, allowing occupants to escape and emergency responders to arrive and control the situation before it escalates catastrophically.

Furthermore, these measures offer substantial property protection. By confining a fire to a smaller area and slowing its progression, they limit the overall damage to the structure, potentially saving significant repair costs and preserving more of the homeowner’s investment. For firefighters, effectively implemented fire blocking and draft stopping make their job safer and more manageable, helping them to locate and extinguish the fire more efficiently. Ultimately, prioritizing these safety components in your home’s construction or renovation creates a more resilient and protective living environment.

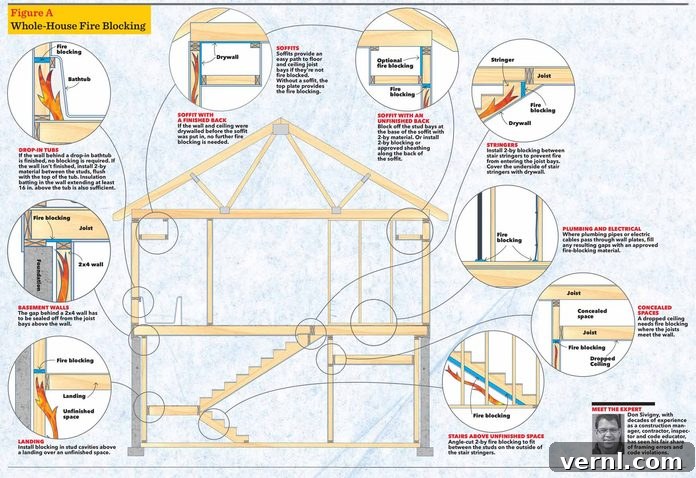

Key Locations for Implementing Fire Blocking and Draft Stopping

Understanding where to implement fire blocking and draft stopping is crucial for effective fire safety. These measures are strategically placed to interrupt the most common pathways for fire spread within a building’s concealed spaces.

Vertical Concealed Spaces (Fire Blocking):

Wall Cavities: Fire blocking is required in stud wall cavities at every floor level (the top and bottom plates of the wall framing) and vertically, typically at maximum intervals of 10 feet. This prevents fire from traveling unimpeded from the basement to the attic within a single wall.
Stairwells: Open stairwells can act as natural chimneys, drawing fire and smoke upwards through multiple floors. Fire blocking around the perimeter of the stairwell enclosure is essential to seal off wall cavities and prevent vertical fire spread from bypassing the enclosure.
Soffits and Furring: Any concealed space created by a soffit (e.g., above kitchen cabinets or around ductwork) or furring (strips of wood or metal used to build out a wall or ceiling) must be fire blocked where it connects to larger wall or ceiling cavities.
Around Flues, Chimneys, and Fireplaces: Gaps around masonry chimneys, metal flues, and fireplace enclosures that penetrate floors or ceilings must be sealed with appropriate fire-rated materials to prevent fire from spreading into adjacent concealed spaces.
Penetrations for Pipes, Wires, and Ducts: Whenever utilities like plumbing pipes, electrical wires, or HVAC ducts pass through a floor, ceiling, or fire-rated wall, the annular space (the gap around the penetration) must be fire blocked to maintain the integrity of the fire barrier.
Concealed Spaces Formed by Cantilevered Floors: Where a floor extends beyond the supporting wall, creating a concealed space below, fire blocking is necessary at the juncture with the main structure to prevent fire spread into the floor or wall cavities.

Horizontal Concealed Spaces (Draft Stopping):

Attic Spaces: Large attic spaces, especially those without internal walls, must be subdivided with draft stopping. These barriers compartmentalize the attic into smaller areas, typically not exceeding 1,000 square feet (check local codes), to limit the horizontal spread of fire across the entire roof structure.
Dropped Ceilings/Suspended Ceilings: In buildings with extensive dropped ceiling spaces, particularly in commercial or multi-family residences, draft stopping is crucial to break up these large horizontal plenums and prevent fire from quickly traveling across wide areas above the finished ceiling.
Floor Joist Spaces: In buildings with large floor areas, the spaces between floor joists can also facilitate horizontal fire spread. Draft stopping can be required to compartmentalize these areas, similar to attics, especially over open-concept living spaces or basements.

Approved Materials for Effective Fire Blocking and Draft Stopping

One of the advantages of implementing fire blocking and draft stopping is that the approved materials are often common building materials readily available and familiar to contractors and DIY enthusiasts. The key is to use them correctly and in the specified thicknesses or configurations to create an effective fire barrier. Here are the most common and approved materials:

Lumber (2-by, or 1-1/2 in. thick): Standard dimensional lumber, such as 2x4s or 2x6s, is a primary material for fire blocking. It must be at least 1-1/2 inches thick to meet code requirements when installed horizontally or vertically to fill cavity openings.
Two Layers of 1-by Lumber: As an alternative to 2-by lumber, two layers of 1-by (3/4-inch thick) lumber can be used, provided they are securely fastened together to achieve the required 1-1/2 inch minimum thickness.
One Layer of 3/4-in. Plywood with 3/4-in. Plywood Covering Any Seams: Plywood, when at least 3/4-inch thick, is an effective fire blocking material. It’s crucial that any seams in the plywood (e.g., where two pieces meet to fill a larger gap) are covered by another layer of 3/4-inch plywood to maintain a continuous barrier.
One Layer of 3/4-in. Particleboard with 3/4-in. Particleboard Covering Any Seams: Similar to plywood, 3/4-inch particleboard can be used, with the same requirement for covering seams to ensure an uninterrupted barrier.
1/2-in. Drywall (Gypsum Board): Standard 1/2-inch thick drywall (gypsum board) is a common and effective fire blocking material due to its fire-resistant core. It’s often used to cap off wall cavities or seal penetrations.
1/4-in. Cement Board: Cement board, known for its moisture resistance and excellent fire-resistant properties, can be used for fire blocking in thicknesses of 1/4-inch or greater.
Batts or Blankets of Mineral Wool or Fiberglass Insulation Secured in Place: Specific types of insulation can serve as fire blocking, particularly mineral wool (rock wool) and certain fiberglass products. These must be specifically rated for fire blocking applications and tightly secured to completely fill the cavity, preventing any air gaps.
Cellulose Insulation Installed as Tested for the Specific Application: Cellulose insulation, when properly installed according to tested assemblies and manufacturer specifications, can also be approved for certain fire blocking applications. This often involves specific densities and methods of installation.
Approved Spray Foams and Caulks: For sealing smaller gaps, cracks, and around penetrations, specific fire-rated spray foams and caulks are approved. These products expand to fill voids and form an airtight, fire-resistant seal. It is critical to use products explicitly labeled as “fire-rated” or “fire block” for these applications.

When selecting materials, always refer to local building codes and the manufacturer’s instructions to ensure compliance and proper installation techniques for maximum effectiveness.

Adhering to Building Codes and Regulations

Building codes, such as the International Residential Code (IRC) and the International Building Code (IBC), are the bedrock of safe construction practices. These codes establish minimum requirements for fire blocking and draft stopping, specifying where they must be installed, what materials are acceptable, and how they should be applied. Adhering to these codes is not merely a legal obligation; it is a fundamental commitment to safety.

Local jurisdictions often adopt these international codes with amendments, so it’s paramount to consult your local building department before starting any project. They can provide specific guidance, clarify requirements, and inform you about necessary permits and inspections. Proper permitting and inspection processes ensure that fire safety measures are installed correctly and meet all regulatory standards, protecting not only your family but also potentially increasing your home’s resale value and insurability.

DIY or Professional: Making the Right Choice

For homeowners tackling renovation projects, the question often arises: can fire blocking be a DIY task? For simpler applications, such as filling a single wall cavity during a minor remodeling project, an experienced DIYer familiar with basic construction principles and code requirements might be able to handle it. The installation of standard lumber, drywall, or approved caulk in easily accessible areas can be straightforward.

However, for more extensive renovations, additions, or projects involving complex structural changes or numerous penetrations, hiring a qualified professional is highly recommended. Fire blocking and draft stopping require a thorough understanding of fire dynamics, building codes, and proper installation techniques. Professionals can ensure that all concealed spaces are adequately addressed, the correct materials are used for each specific application, and all work complies with local regulations, ultimately providing peace of mind that your home is genuinely protected.

Proactive Fire Safety: Beyond Blocking

While fire blocking and draft stopping are essential passive fire protection measures, they are just one component of a comprehensive home fire safety strategy. A truly safe home integrates active fire safety systems and practices. This includes having working smoke detectors installed on every level of your home, inside and outside sleeping areas, and regularly testing them. Carbon monoxide detectors are also crucial. Furthermore, developing and practicing a family fire escape plan, ensuring clear exit routes, and having easily accessible fire extinguishers are vital steps that every homeowner should take.

Remember, fire blocking buys you time, but an effective escape plan and early warning systems are what ultimately save lives. For more detailed information and practical tips on creating a fire-safe environment, we encourage you to consult our expert guide on how to prevent home fires, which covers a wide range of preventive measures and best practices.

Conclusion: A Foundation of Safety

In conclusion, fire blocking and draft stopping are indispensable elements of modern construction and remodeling, playing a critical role in safeguarding homes and lives. These simple yet highly effective measures work by interrupting the hidden pathways that fires exploit to spread rapidly, thereby containing flames, smoke, and toxic gases. By understanding the problem of concealed wall and ceiling cavities, identifying key installation locations, and utilizing approved materials, homeowners and builders can significantly enhance a building’s fire resilience.

Whether you are embarking on a new construction project, undertaking a significant renovation, or simply making minor structural changes, prioritizing fire blocking and draft stopping is a wise investment in safety. It provides precious minutes for evacuation, reduces property damage, and ensures compliance with vital building codes. Don’t underestimate the power of these passive fire protection strategies; they form a fundamental layer of defense, creating a more secure and safe environment for everyone who lives within your home.
