Mastering Beam Splicing: A Comprehensive Guide to Strengthening Structures

Beam splicing is a fundamental technique in construction, involving the strategic joining of two or more individual beam sections to form a single, longer, and continuous structural member. This vital process, executed through meticulously designed connections like bolts, welds, or specialized plates, is indispensable across various construction materials—be it robust steel, versatile timber, or resilient concrete. Its primary purpose extends beyond merely increasing span length; it is crucial for efficiently transferring structural loads, optimizing material handling, and significantly enhancing the overall stability and integrity of any built environment.

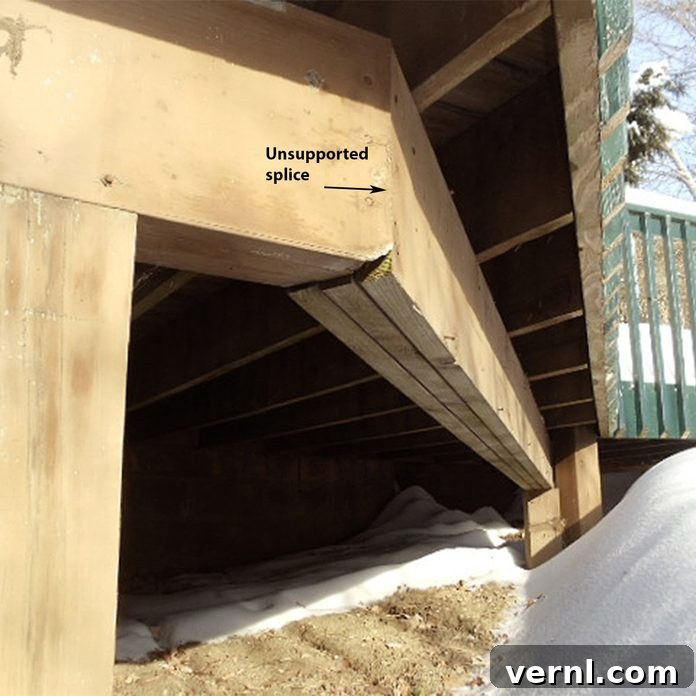

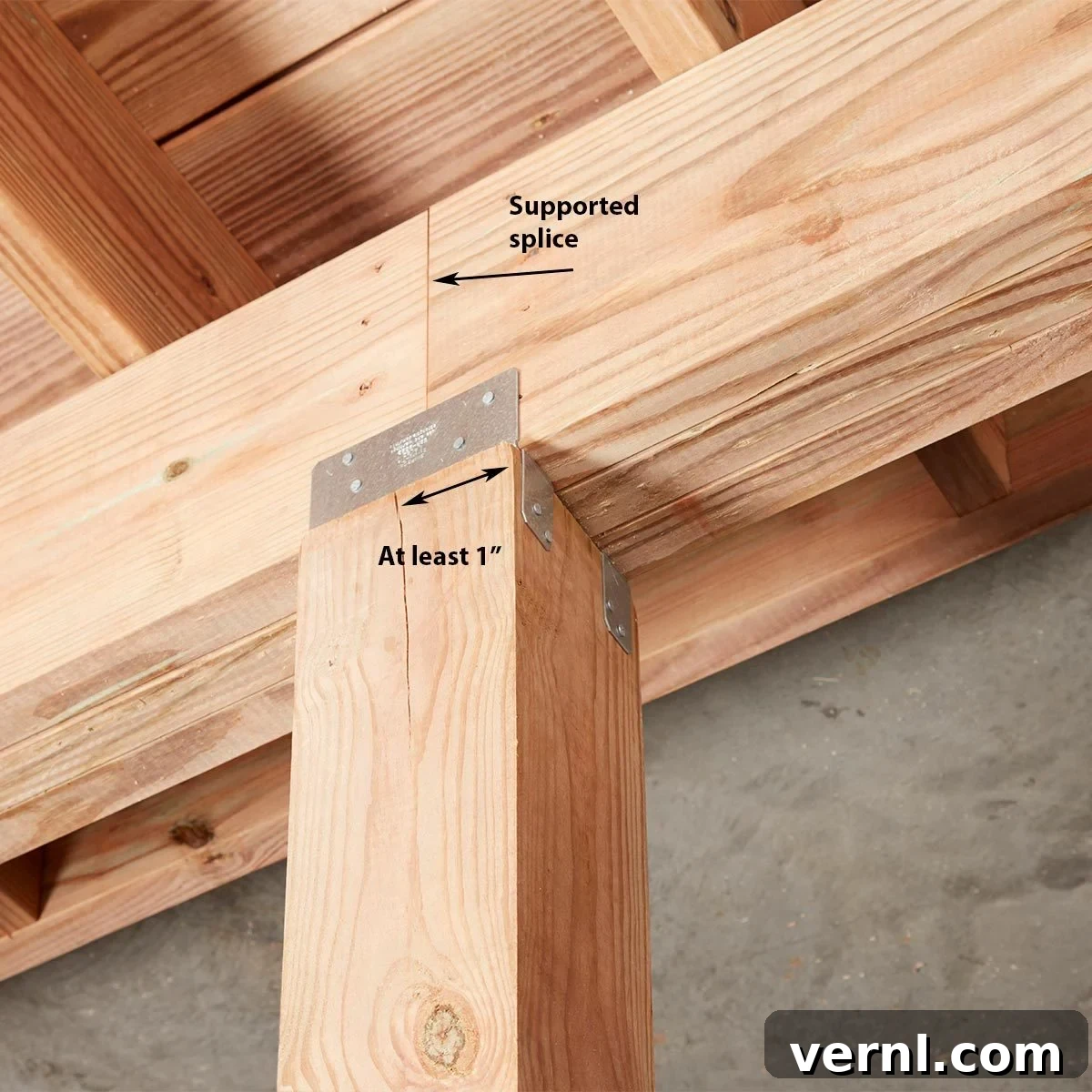

For any beam splice to perform reliably and safely, it must be adequately supported. This typically involves resting the spliced beam on a robust post or a dedicated structural column. Critically, this supporting element must, in turn, be anchored to a footing engineered to meet or exceed all local building code requirements. Furthermore, the connection between the beams and their supporting post or column should be secured with an approved metal connector, ensuring a rigid and lasting bond. As a general rule of thumb, beams should have at least one inch of solid wood bearing surface over posts to guarantee proper load transfer and prevent localized crushing.

Understanding the intricacies of beam splicing is essential for anyone involved in construction, from engineers designing complex structures to contractors executing on-site installations. This guide delves into why splicing is necessary, the tools and materials required, a step-by-step methodology for safe execution, and common pitfalls to avoid.

Why Beam Splicing is Indispensable in Modern Construction

The necessity of beam splicing arises from a combination of structural, logistical, and design considerations that are inherent in contemporary building practices. Far from being a mere convenience, splicing offers a multitude of advantages that make it a cornerstone of efficient and safe construction.

Enhanced Structural Performance and Load Management

One of the foremost reasons for employing beam splicing is its ability to significantly improve the structural performance of a building. When executed correctly, a spliced beam can support loads more effectively and exhibit greater strength compared to a single, un-spliced beam of equivalent length. This is particularly advantageous when the required span length exceeds the commercially available dimensions of a single structural member. By connecting two or more beams, engineers can achieve the desired distance and load-bearing capacity, ensuring that the structure can safely withstand both dead (permanent) and live (variable) loads over its intended lifespan.

Logistical Efficiency and Ease of Installation

From a logistical standpoint, splicing makes beams considerably more manageable throughout the construction process. Transporting and maneuvering extremely long, heavy beams can be a formidable challenge, often requiring specialized equipment and extensive site preparation. By breaking down a long span into shorter, more manageable sections, contractors can simplify loading, transportation, and on-site installation. This not only reduces the complexity and cost associated with moving oversized components but also enhances safety for workers, mitigating risks associated with handling cumbersome materials. The modular nature of spliced beams allows for greater flexibility in project scheduling and site logistics, especially in confined urban environments or sites with limited access.

Unlocking Design Flexibility and Architectural Innovation

Beam splicing empowers architects and structural engineers to push the boundaries of design, enabling the creation of more intricate and aesthetically ambitious structures without compromising on strength or safety. This technique is pivotal in realizing complex architectural visions such as expansive atriums, dramatic vaulted ceilings, elegant curved roofs, and innovative suspended structures. By joining beam sections, designers can achieve non-standard geometries and unique forms that would be impractical or impossible with single, monolithic beams. Furthermore, beam sections can often be modified or customized on-site, providing invaluable flexibility to adapt to unforeseen conditions or to achieve highly specialized structural configurations tailored to unique project requirements.

Cost-Effectiveness and Material Optimization

Beyond structural and logistical benefits, beam splicing can also lead to significant cost savings. By utilizing shorter, more readily available beam sections, construction companies can often reduce material procurement costs and minimize waste. The ability to transport smaller components also translates into lower shipping expenses. In some cases, splicing allows for the use of more economical material combinations, such as connecting timber beams with steel plates, optimizing the overall material cost while meeting structural demands. This strategic approach to material use and handling underscores the economic advantages of incorporating beam splicing into project plans.

Essential Tools and Materials for an Effective Beam Splice

Executing a precise and secure beam splice necessitates a specific array of tools for cutting, drilling, and fastening, alongside carefully selected materials. The exact equipment may vary slightly depending on the beam material (wood, steel, or concrete), but the core principles remain consistent.

Key Tools for Accurate Beam Splicing

Wrenches: Indispensable for securing bolts and nuts according to specified torque values, ensuring a tight and reliable connection in bolted splices. Different types (e.g., impact wrenches, torque wrenches) are used for varying levels of precision and force.
Welding Machines: Critical for creating strong, permanent, and monolithic joints between steel beam sections. Various welding techniques, such as MIG, TIG, or stick welding, may be employed depending on the specific steel properties and design requirements.
Drill Machines: Essential for accurately drilling bolt holes in all types of beams—steel, wood, or concrete. High-precision drills, often with magnetic bases for steel, ensure perfect alignment and proper fit for fasteners. Specialized bits are required for each material.
Measuring Tapes and Laser Levels: Fundamental for achieving precise alignment and correct splice placement. Laser levels provide unparalleled accuracy for ensuring beams are perfectly plumb and level across the splice point, critical for preventing stress concentrations.
Cranes and Lifting Equipment: For handling the substantial weight of beam sections, especially in large-scale steel or concrete construction. Cranes lift and hold beams in position during the splicing process, facilitating safe and accurate alignment.
Clamps: A must-have for temporarily securing beam sections and splice plates in their correct positions before permanent fastening (bolting or welding) occurs. This ensures stability and prevents movement during critical connection phases.
Safety Equipment: Paramount for worker protection. This includes, but is not limited to, heavy-duty gloves, welding masks (for arc protection), hard hats, safety glasses, hearing protection, and harnesses when working at height.
Grinding and Cutting Tools: Utilized for preparing beam edges, ensuring a clean fit, and removing any imperfections. Angle grinders, plasma cutters, or specialized saws are used to trim and bevel beam ends for optimal splice connection.

Essential Materials for Wood and Steel Beam Splicing

Splice Plates: Typically flat steel plates designed to bridge the gap between beam sections and distribute loads. They are absolutely critical in steel beam splices to maintain structural integrity and are also used in engineered timber connections.
High-Strength Bolts and Nuts: The backbone of bolted connections, these fasteners are engineered to withstand significant shear and tensile forces. Proper selection of bolt grade and diameter is crucial, especially when learning how to splice wood beams effectively with steel plates.
Welding Rods or Electrodes: Consumable materials used in welding to create the molten pool that forms the permanent link between steel beam sections. The choice of rod depends on the type of steel and desired weld properties.
Grout or Epoxy: Primarily used in concrete beam splices to fill any voids or gaps, ensuring a monolithic connection and transferring compressive and tensile forces efficiently across the splice.
Shims: Thin, wedge-shaped plates made of various materials (steel, plastic) used to fine-tune the alignment and level of beam heights, compensating for minor fabrication or erection tolerances.
Protective Coatings: Essential for safeguarding the spliced area, particularly in steel structures. These include anti-corrosion paints, primers, and sometimes fireproof coatings, which extend the lifespan and resilience of the connection.
Timber Connectors (for wood beams): Specialized metal plates, hangers, or lag screws designed specifically for wood-to-wood or wood-to-steel connections in timber beam splices, ensuring robust load transfer.

Step-by-Step Guide to Splicing Beams Safely and Effectively

Beam splicing is a highly skilled operation demanding meticulous precision, stringent safety protocols, and adherence to established engineering standards. While the general process outlined below provides a comprehensive framework, specific adjustments will be necessary based on the material (wood, steel, concrete) and the type of splice connection (bolted, welded, or hybrid) being implemented.

Step 1: Thorough Assessment of Load and Structural Requirements

The initial and most critical step involves a detailed engineering assessment. Begin by calculating all anticipated loads, encompassing bending moment, shear force, and axial force, that the spliced beam will experience throughout its service life. This analysis must also consider dynamic loads, environmental factors, and deflection limits – the maximum permissible amount of bending under load. Based on these calculations, the construction conditions, specific load types, and budget constraints, select the most appropriate beam splicing method: bolted, welded, or a hybrid connection combining both. Subsequently, compile comprehensive splice design drawings. These drawings must specify critical details such as splice plate dimensions, material grades, precise bolt arrangement (number, diameter, spacing, edge distances), and detailed weld requirements (type, size, length, and quality standards). It is imperative to have these designs rigorously reviewed and approved by the structural engineering team and relevant authorities, incorporating any feedback to ensure compliance and optimal performance.

Step 2: Precision Preparation and Cutting of Beam Sections

Once the design is finalized, the focus shifts to preparing the beam ends to ensure they are perfectly suited for splicing. This often involves precision milling of the beam ends to achieve smooth, flat, and perpendicular splicing surfaces. For steel beams, bevelling may be required to facilitate full-penetration welds. Concurrently, fabricate the splice plates precisely according to the specified dimensions, material properties, and design specifications. Utilizing high-precision equipment, such as CNC drilling machines for steel, is crucial for creating all bolt holes with extreme accuracy. Pay meticulous attention to the exact placement and diameter of each hole, as even minor deviations can lead to misalignment, stress concentrations, and compromised structural integrity. For wood beams, end cuts must be square and true, and any necessary mortises or tenons precisely cut.

Step 3: Meticulous Alignment of Beam Sections and Splice Plates

With beam ends and splice plates prepared, carefully position the beam sections end-to-end. Achieving perfect alignment is paramount. Employ robust clamps to secure the beams in place, and utilize precise leveling tools—such as spirit levels, optical levels, or advanced laser calibration equipment—to ensure the beams are perfectly aligned in all three dimensions (horizontal, vertical, and rotational). Before proceeding, perform a thorough final check of the splice plates, bolt holes, and, if applicable, weld bevels, ensuring everything matches the design specifications. Carefully mark and precisely drill any remaining holes that could not be pre-drilled, always adhering to measurements to maintain safe beam splice practices throughout this critical alignment phase.

Step 4: Executing the Connections with Precision

This step involves making the permanent connections that form the splice. Depending on the design, you will either insert bolts and tighten them to the specified torque values, or execute welds around the plate edges as per the detailed welding procedures. Often, a hybrid approach is employed: pre-tighten bolts to draw the sections together and then follow with welding to create a continuous, monolithic connection. When bolting, ensure that bolts are inserted and tightened in the correct sequence—often a star or spiral pattern—to evenly distribute clamping forces and prevent localized stresses. Adherence to specified torque values, often measured with a torque wrench, is vital for achieving the intended connection strength. For welding, ensure proper penetration, bead size, and defect-free welds by following qualified welding procedures and utilizing certified welders.

Step 5: Rigorous Inspection and Comprehensive Testing of the Splice

Before considering the splice complete, a rigorous inspection and testing phase is indispensable to verify its quality and adherence to design criteria. For concrete splices, meticulously inspect for any gaps or voids and fill them with appropriate grout or epoxy to ensure full load transfer. In a steel beam splice, confirm that all high-precision bolt holes align perfectly and that bolts are properly tightened to prevent misalignment or stress concentrations. Visually inspect all welds for defects such as cracks, porosity, or undercut, ensuring that welding quality meets or exceeds specified standards. The entire splice assembly must be verified against all structural design criteria for alignment, bolt tension, and weld integrity. For critical connections, non-destructive testing (NDT) methods like ultrasonic testing (UT) or magnetic particle inspection (MPI) can be employed to detect internal cracks or defects in welds that are not visible to the naked eye. This ensures the splice is structurally sound and ready to carry its intended loads.

Step 6: Cleaning, Finishing Touches, and Ongoing Maintenance

Upon successful inspection, the area around the splice should be thoroughly cleaned, removing any debris, welding slag, or excess material. Apply any specified protective coatings, such as anti-corrosion paints or primers, particularly important for steel structures exposed to environmental elements, to enhance durability and longevity. If required by fire safety codes, apply fireproof coatings to the splice area. Finally, establish a schedule for periodic inspections, especially for outdoor or heavily load-bearing structures. Regular monitoring for signs of corrosion, fatigue, bolt loosening, or cracking is crucial for ensuring the long-term safety and performance of the spliced beam connection.

Common Mistakes to Avoid When Splicing Beams

Working with structural beams demands extreme accuracy and comprehensive technical expertise to guarantee the strength, safety, and longevity of the entire structure. Even minor errors in beam splicing can lead to catastrophic failures. Recognizing and actively preventing these frequent mistakes through diligent planning and strict adherence to safe beam splice practices is paramount.

Overlooking Critical Load Calculations and Deflection Limits

One of the most dangerous oversights is neglecting a thorough analysis of all loads the spliced beam will bear. This includes both permanent (dead) loads, such as the weight of the structure itself, and transient (live) loads, which can vary, like occupants, furniture, snow, or wind. Equally critical is accounting for deflection limits—the maximum amount of bending or deformation allowed under these loads. Failing to accurately calculate these parameters can result in undersized beams that either buckle prematurely or exhibit excessive deflection, leading to structural instability, cosmetic damage to finishes, and a compromised sense of safety for occupants. Proper engineering analysis ensures the splice is designed to manage peak stresses without exceeding allowable deformations.

Improper Alignment of Beam Ends

Precision alignment is non-negotiable in beam splicing. If beam ends are not perfectly aligned—horizontally, vertically, and rotationally—it can lead to a multitude of problems. Misalignment introduces uneven load distribution across the splice, creating localized stress concentrations that weaken the connection. This structural vulnerability can manifest as premature material fatigue, bolt shearing, or weld failure. Such errors not only jeopardize the structural integrity but also pose significant safety hazards. Adhering to precise measurement techniques and using appropriate alignment tools are critical for maintaining the intended structural performance.

Inappropriate Bolt Spacing or Undersized Holes

In bolted connections, errors in bolt spacing, bolt diameter, or hole sizing can severely compromise the efficacy of the beam splice. Inaccurate bolt spacing can lead to an uneven transfer of shear and tensile forces, creating areas of high stress around certain bolts while others remain underutilized. Undersized holes can make it difficult to insert bolts, leading to damage during installation, while oversized holes reduce the bearing area, allowing bolts to shift and creating play that can weaken the connection. Both scenarios can incapacitate the beam connection, resulting in premature material failure (e.g., tear-out in wood, net section fracture in steel) or bolt shearing. A meticulously planned bolt arrangement, with correctly sized holes and appropriate edge distances, is essential for ensuring the splice can effectively transfer the applied loads.

Splicing in High-Stress Zones

Placing a beam splice in a high-stress zone is a fundamental design flaw that significantly increases the risk of failure. High-stress zones typically occur at points of maximum bending moment or maximum shear force, such as near column connections, at mid-span for uniformly loaded beams, or at the fixed end of cantilever beams (structural elements supported at one end and projecting freely). Splicing in these critical areas concentrates existing stresses at the connection point, which is inherently a weaker point than the continuous beam. This can lead to localized failure, especially under dynamic or cyclic loading. To prevent this, splices should ideally be located in regions of minimal stress, such as near points of zero bending moment or minimal shear. If a splice must be in a higher-stress region, the splice length and connection capacity must be significantly increased and meticulously engineered to compensate for the elevated demands.

Inadequate Cleaning, Protection, and Maintenance

The long-term strength and longevity of beam connections are heavily dependent on proper cleaning during installation and consistent maintenance thereafter. Failure to thoroughly clean splice areas—removing rust, mill scale, grease, or welding slag—before applying protective coatings or making connections can compromise the adhesion of coatings and the effectiveness of welds or bolted surfaces. Post-installation, inadequate monitoring and maintenance, particularly for structures exposed to aggressive environments or heavy loads, can lead to serious issues. Corrosion, moisture ingress, or environmental degradation can weaken the splice over time, leading to unstable joints, reduced load capacity, and ultimately, structural failure. Regular inspections, reapplication of protective coatings, and timely repairs are crucial for preserving the splice’s integrity.

Inaccurate Beam Spacing for Floor or Roof Systems

While not strictly about the splice connection itself, incorrect beam spacing within a wider structural system (like a floor or roof) can indirectly impact spliced beams and the overall stability. Failing to measure and maintain proper beam spacing can lead to uneven load distribution across the entire system. If beams are spaced too far apart, the unsupported span of the decking or flooring material increases, potentially causing excessive deflection, bounce, or even failure of the floor/roof system. Conversely, spacing beams too closely can lead to unnecessary material waste and increased costs without significant structural benefit. Proper spacing ensures that each beam, including any spliced sections, carries its intended share of the load efficiently and safely, contributing to the overall stability and rigidity of the structure.

Frequently Asked Questions (FAQ) About Beam Splicing

What is the best way to splice a wooden beam?

The “best” way to splice a wooden beam largely depends on the specific application, the magnitude and type of loads, and the design aesthetic. Common and effective methods include scarf joints, mortise and tenon joints, finger joints, and connections using steel plates with through bolts or lag screws. For optimal strength and stability, it is crucial to place splices away from areas of maximum stress (e.g., mid-span for bending, near supports for shear). Scarf joints, which involve overlapping and tapering beam ends, are often preferred for their ability to distribute bending stresses effectively, while steel plate connections provide robust shear and tension resistance, especially for heavier loads. Always ensure that fasteners (bolts, lag screws) are adequately sized and spaced according to engineering specifications and local building codes.

How do you calculate the load capacity for a spliced beam?

Calculating the load capacity for a spliced beam is a complex engineering task that requires a thorough understanding of structural mechanics and material properties. It involves considering three primary factors: the bending capacity of the beam sections, the shear capacity of the beam sections, and most importantly, the capacity of the splice connection itself (whether bolted, welded, or glued). Engineers begin by calculating the bending moment and shear forces at critical points along the beam and at the splice location. Then, they analyze the capacity of the splice components—the splice plates, bolts, welds, or adhesives—to resist these forces. This involves evaluating shear strength of bolts, tensile and compressive strength of splice plates, and the integrity of welds. Capacity limits are determined based on the material’s yield and ultimate strengths, and a safety factor is applied. All calculations must adhere to relevant building codes (e.g., AISC for steel, NDS for timber) and design considerations, ensuring the splice can safely transfer all anticipated loads without failure or excessive deformation.

Can I splice a beam without professional engineering guidance?

No, it is strongly recommended to never splice a load-bearing beam without professional engineering guidance and approval. Beam splicing directly impacts the structural integrity and safety of an entire building. Miscalculations or improper installation can lead to catastrophic failure. A qualified structural engineer will perform the necessary load calculations, design the splice connection, specify materials, and ensure compliance with all local building codes. Attempting to splice a beam without expert oversight is a serious safety risk and may invalidate insurance or lead to legal liabilities.

What are the advantages of a welded splice versus a bolted splice in steel beams?

Both welded and bolted splices are common in steel construction, each with distinct advantages. Welded splices typically create a more monolithic, continuous connection, which can be advantageous for aesthetics (less visible) and certain structural behaviors, particularly for tension members or fatigue-prone applications. They often result in a lighter connection as they don’t require splice plates to the same extent as bolted connections. However, welding requires highly skilled labor, controlled conditions, and extensive quality control (e.g., NDT). Bolted splices, on the other hand, are generally easier and quicker to install on-site, require less specialized labor than welding, and are more forgiving of minor misalignments during erection. They also allow for easier disassembly or modification in the future. However, bolted connections can be heavier due to splice plates and may require larger connection areas. The choice often depends on project-specific requirements, cost, site conditions, and structural performance criteria.
