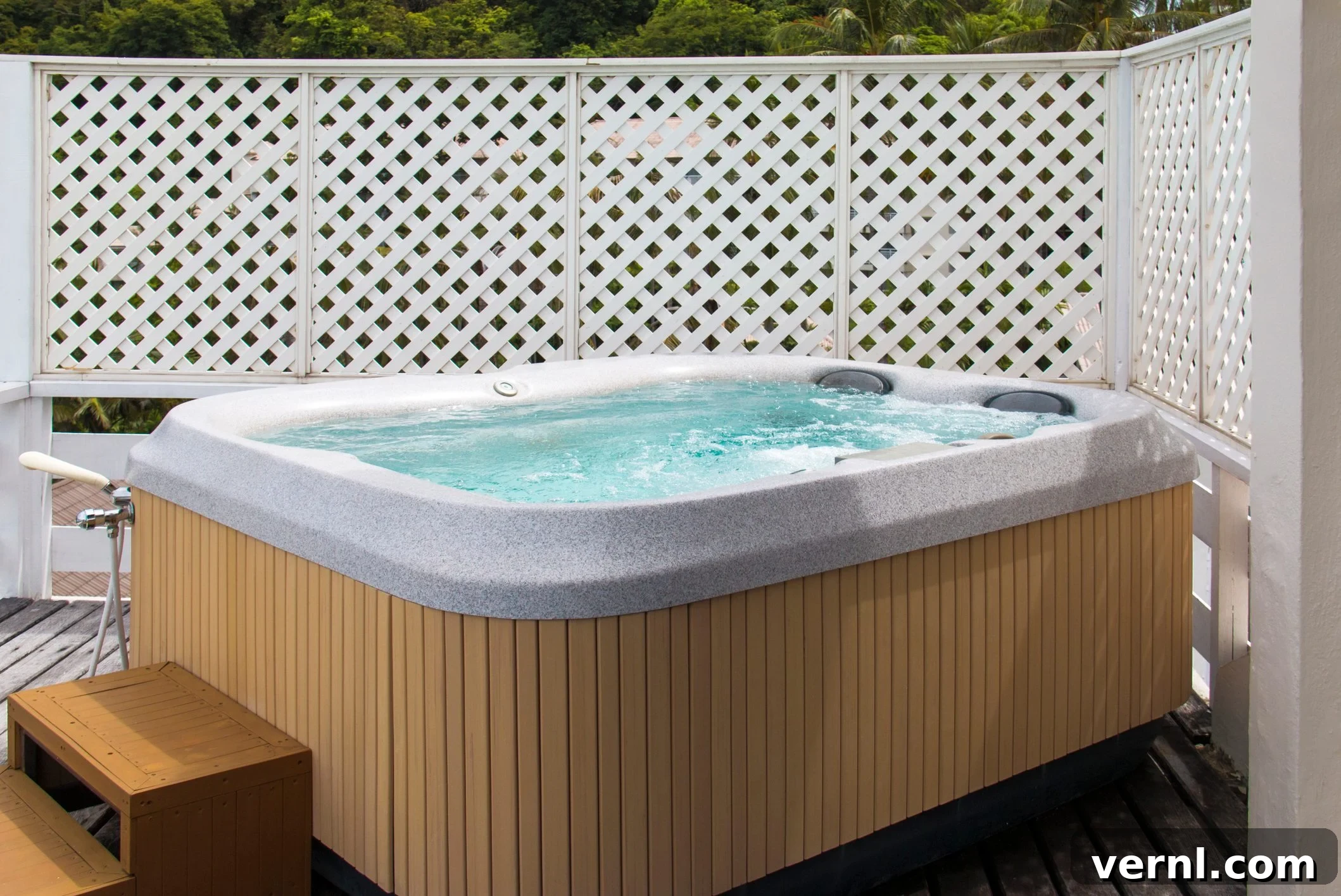

Transforming your backyard into a personal oasis is a dream for many homeowners, and few additions elevate outdoor living quite like an outdoor hot tub. Imagine unwinding under the stars, soothing tired muscles, and enjoying year-round relaxation right at home. While the allure is undeniable, installing a hot tub is a significant project that extends beyond just placement and leveling. A crucial, often complex, step is ensuring your outdoor hot tub is correctly wired. This comprehensive guide will walk you through the essential considerations, tools, materials, and steps to safely and effectively wire your outdoor spa, helping you maximize enjoyment while adhering to critical safety standards.
For those considering an indoor hot tub, rest assured, we also offer detailed guidance on indoor hot tub wiring. However, regardless of the location, electrical work demands meticulous attention to detail and a strong understanding of safety protocols. If you’re not entirely confident in your electrical skills, consulting a licensed professional is always the safest approach.
Preparing for Your Outdoor Hot Tub Wiring Project: Critical Considerations
Before you even think about connecting wires, thorough planning is paramount. Neglecting these initial steps can lead to safety hazards, costly reworks, or non-compliance with local codes. Here’s what you need to consider carefully:
Understanding Your Hot Tub Type
The world of outdoor hot tubs, often referred to as spas, is diverse. The National Electrical Code (NEC) outlines specific regulations that vary based on the type of unit you’re installing. This guide primarily focuses on **self-contained hot tubs**. These are factory-assembled units where the tub vessel, powerful water pumps, efficient water heaters, and sophisticated control equipment are all housed entirely within the hot tub’s skirting. They are designed for above-ground installation and should feature a clear label confirming their approval for outdoor, above-ground use. Distinguishing your hot tub type is the first step in ensuring you follow the correct wiring guidelines.
Prioritizing Hot Tub Safety Certification
When investing in a hot tub or spa, its safety certification is non-negotiable. Always verify that your chosen unit is certified and labeled by a nationally recognized testing laboratory (NRTL). Reputable organizations include Underwriters Laboratories (UL), Intertek (ETL), CSA Group (CSA), MET Laboratories (MET), and other accredited product evaluation and certification bodies. These certifications indicate that the hot tub has undergone rigorous testing and meets stringent safety standards, providing crucial peace of mind for you and your family.
Strategic Hot Tub Location and Clearances
The placement of your hot tub significantly impacts both safety and enjoyment. To prevent electrical hazards, all receptacle outlets, lighting fixtures, and other electrical apparatus must be positioned safely out of reach of individuals inside the tub. Moreover, self-contained hot tubs are designed with a removable panel to provide access to the main electrical control panel, water pumps, and other vital equipment. It is imperative to ensure there is a minimum of 36 inches (approximately 3 feet) of permanent, unobstructed working space directly in front of this access panel. This clearance is essential for the safety of anyone performing maintenance or servicing the tub. Critically, no overhead power lines, communication cables, or any other type of overhead wiring are permitted to pass directly above the hot tub. This rule eliminates the risk of accidental contact or falling debris compromising electrical safety.
Assessing Your Home’s Electrical Capacity
Hot tubs are power-hungry appliances, primarily due to their robust water heaters and powerful pumps. This substantial electrical demand typically necessitates a dedicated branch circuit, usually rated at 120/240 volts and drawing anywhere from 30 to 50 amperes, or even higher for larger units. A dedicated circuit ensures the hot tub has its own direct power supply from your main electrical panel, preventing overloads that can occur when sharing circuits with other household appliances. Before purchasing your hot tub, review its specific electrical requirements and confirm that your home’s existing electrical service can adequately support the additional load without requiring a costly service upgrade.
Planning the Electrical Connection Method
Understanding how your hot tub will connect to your home’s power supply is a vital planning step. Self-contained hot tubs generally offer a few connection types:
- Cord-Connected: Some smaller 120V hot tubs come with a factory-installed power cord designed to plug into a dedicated, GFCI-protected 120V outlet. These are often referred to as “plug-and-play” models.
- Convertible: Many hot tubs arrive from the factory with a power-supply cord but can be field-converted for a permanent, hardwired connection. This offers flexibility depending on your installation preference and electrical setup.
- Permanently Wired (Hardwired): Larger 240V hot tubs almost always require a permanent, hardwired connection directly into a dedicated circuit. If your hot tub will be permanently wired, you may be able to pre-install a significant portion of the wiring before the hot tub itself is delivered, streamlining the final installation process.
Your chosen connection method will dictate the specific wiring components and installation procedures required.
Permits and Inspections: Your Safety Net
Whether you choose to undertake the wiring yourself or wisely hire a licensed electrical contractor, your local building inspection office will almost certainly require permits and subsequent inspections. Obtaining the necessary permits is not merely a bureaucratic hurdle; it’s a critical safety measure that ensures your electrical installation adheres to all local and national building codes. An electrical inspection conducted by a qualified municipal inspector is arguably the most affordable and effective insurance you can acquire against potential hazards, liability, and costly future repairs. Skipping this step can lead to significant safety risks, potential fines, issues with insurance coverage, and difficulties when selling your home. Always prioritize getting the proper permits and inspections.
Gathering Your Arsenal: Essential Tools and Materials
A smooth and efficient installation relies heavily on having all the right tools and materials ready before you begin. This preparation saves valuable time, prevents frustrating delays, and ensures you have everything needed to complete the job safely and correctly.
Necessary Tools for the Job
Prepare your toolkit with these essential items:
- Personal Protective Equipment (PPE): Always wear hearing protection, safety glasses, sturdy work gloves, and robust footwear. Safety is paramount when working with electricity and power tools.
- Measuring and Marking Tools: A combination square, wood folding ruler, and measuring tape are crucial for accurate measurements and precise layouts.
- Digging Tools: Depending on your trenching needs, a garden shovel, drain shovel, trench shovel, and a pick mattock will be indispensable for excavating the required conduit path.
- Drilling and Cutting Equipment: A powerful cordless drill, accompanied by an assortment of drill bits, driver bits, and appropriate hole-saw bits, will be needed for various penetrations. A hacksaw is useful for cutting conduit or other materials.
- Striking Tools: A hammer will be needed for fastening and other general tasks.
- Electrical Pliers: Electrician’s diagonal cutting pliers and side-cutting pliers are essential for cutting and stripping wires, while tongue-and-groove pipe pliers (Channellocks) are useful for tightening conduit fittings.
- Testing Devices: A digital multimeter is crucial for accurately measuring voltage, current, and continuity. A noncontact voltage sniffer provides a quick and safe way to detect the presence of live voltage without direct contact.
- General Hand Tools: An assortment of screwdrivers (Phillips and flathead), a torpedo level for ensuring straight installations, a utility knife for various cutting tasks, and specialized wire strippers matched to your wire gauges will complete your toolset.
Crucial Materials for a Safe Connection
The nameplate on your hot tub is your ultimate reference for its voltage and amperage requirements. These specifications directly dictate the appropriate size and type of circuit breakers, electrical cables, wires, conduits, and other electrical components you’ll need. Your existing main service panel will also influence the type and style of the feeder circuit breaker. Always consult local electrical codes and the manufacturer’s instructions for specific material requirements. Before you start, gather these materials:
- Outdoor Hot Tub Maintenance Disconnect Switch: This critical safety device must include factory-installed Ground-Fault Circuit-Interrupter (GFCI) protection. The GFCI is a life-saving device designed to quickly cut power if it detects a ground fault, preventing severe electrical shock, especially critical around water.
- Four-Wire Type SER (Service-Entrance, Round) Aluminum Cable: This cable typically contains two “hot” current-carrying conductors, one neutral conductor, and one equipment grounding wire. Ensure the gauge is appropriate for your hot tub’s amperage requirements.
- Two-Pole, 240-Volt Feeder Breaker: This breaker, designed for your main service panel, will provide dedicated power to the hot tub circuit and must be sized according to the hot tub’s amperage.
- One-Inch Schedule 80 PVC Conduit and Fittings: Schedule 80 PVC is a heavy-duty, rigid conduit suitable for outdoor and direct-burial applications, offering superior protection for your wires.
- #6 AWG Copper Insulated Wire (Black, Red, White, and Green): These individual insulated copper wires will be pulled through the conduit. The colors typically represent: black (hot), red (hot), white (neutral), and green (ground). Always verify the correct gauge based on your hot tub’s specifications and local code.
Outdoor Hot Tub Wiring Checklist: A Step-by-Step Guide
Follow this detailed checklist to guide you through the wiring process, ensuring each step is completed safely and correctly:
- Gather All Necessary Materials and Tools: As outlined above, ensure every item is on hand before beginning any work to avoid interruptions and maintain focus.
- Turn Off the MAIN Breaker: Locate your home’s main electrical service panel and, using extreme caution, switch off the MAIN breaker. This action completely de-energizes your home’s entire electrical system, making it safe to work inside the panel.
- Prepare for Service Panel Access: Don your safety glasses, work gloves, and sturdy footwear. Carefully remove the cover from your service panel. Be aware that even with the MAIN breaker off, there are still live wires.
- DANGER! Exercise Extreme Caution: The incoming wires from the electric utility meter (the service entrance conductors) will ALWAYS remain energized (hot), even with your home’s main breaker turned off. DO NOT touch these wires under any circumstances. Maintain a safe distance and be acutely aware of their presence.
- Install the Hot Tub Feeder Circuit Breaker: Within the service panel, identify a suitable vacant space on the bus bar for your new two-pole, 240-volt feeder circuit breaker. Securely snap or bolt the breaker into place, ensuring it is properly seated and connected to the bus bar.
- Install the Type SER Cable to the Exterior: From the newly installed hot tub feeder circuit breaker, carefully route the Type SER aluminum service-entrance cable from the service panel through an appropriate opening to the exterior wall of your home. Ensure any holes created are properly sealed after cable installation to prevent water intrusion.
- Connect and Mount the Disconnect Switch: Connect the Type SER cable to the back side of the hot tub disconnect switch enclosure. Securely mount the disconnect switch to the exterior wall in an accessible location, as specified by code (within sight of the hot tub, at least 5 feet away but not more than 50 feet). Crucially, apply a weather-tight caulk around the entire disconnect switch enclosure to seal out rain, snow, and moisture.
- Run Schedule 80 PVC Conduit to the Hot Tub: From the hot tub disconnect switch, install and run the Schedule 80 PVC conduit directly to the hot tub location. Ensure the conduit is properly trenched and buried at the depth required by local codes (typically 18 inches for PVC conduit). Use appropriate fittings and PVC cement to create a continuous, watertight path.
- Insert Insulated Copper Wires into Conduit: Carefully pull the four individual insulated copper wires (#6 AWG black, red, white, and green) through the entire length of the Schedule 80 PVC conduit, from the disconnect switch to the hot tub.
- Terminate Wires at Both Ends: Once the wires are pulled, carefully terminate them at both ends: inside the hot tub’s control box and inside the hot tub disconnect switch. Ensure all connections are tight, secure, and made to the correct terminals (hot to hot, neutral to neutral, ground to ground). Pay close attention to the wiring diagram provided by the hot tub manufacturer and the disconnect switch instructions. For more detailed information on wiring disconnects, refer to resources on disconnect switches.
- Energize the Circuit (Initial Power Up): After all wiring has been meticulously terminated, checked for tightness, and you are absolutely confident that the wiring is safe to be energized, proceed with caution. First, turn on the feeder circuit breaker at the main service panel. Next, activate the GFCI circuit breaker located within the hot tub disconnect switch.
- Verify Voltages and Test Hot Tub: Using your digital multimeter, carefully test for proper voltages at the hot tub’s control panel. Confirm that you have the correct voltage (e.g., 240V between hot leads, 120V between each hot lead and neutral). If all voltage readings are correct and within acceptable ranges, carefully proceed to test the hot tub’s functionality according to the manufacturer’s instructions.
Crucial Outdoor Hot Tub Wiring Reminders and Safety Protocols
Throughout your hot tub wiring project, keep these critical reminders at the forefront to ensure safety, compliance, and longevity:
- Adhere to All Instructions: Always prioritize and meticulously follow both the National Electrical Code (NEC) guidelines AND the specific installation instructions provided by your hot tub manufacturer. Discrepancies should be clarified with an electrician or local inspector.
- Mandatory Maintenance Disconnect Switch: A dedicated maintenance disconnecting means (switch) is legally required. This switch allows service personnel to completely de-energize the hot tub for repairs or maintenance, ensuring their safety.
- Disconnect Switch Placement: The maintenance disconnecting means must be readily accessible, clearly within sight of the hot tub, and positioned at least five feet horizontally from the inside walls of the hot tub. This placement ensures quick and safe power cutoff in an emergency.
- Four-Wire Branch Circuit: Self-contained outdoor hot tubs typically demand a four-wire branch circuit, which includes two “hot” current-carrying conductors, a dedicated neutral conductor, and a separate equipment grounding conductor. This configuration ensures proper power delivery and crucial safety grounding.
- Essential GFCI Protection: Hot tubs absolutely require Ground-Fault Circuit-Interrupter (GFCI) protection. This device is designed to detect even small imbalances in electrical current, indicating a potential ground fault, and will trip the circuit instantly to prevent severe electrical shock, especially vital in wet environments.
- Copper Wire Requirement: Always consult the manufacturer’s installation instructions to confirm if copper wire is specifically required for the connection to the hot tub control panel. It is crucial to note that aluminum wiring is generally NOT permitted for this application due to its propensity for expansion and contraction, which can lead to loose connections and fire hazards.
- Required GFCI Receptacle for Maintenance: At least one general-purpose 15- or 20-ampere GFCI-protected receptacle outlet must be provided for maintenance purposes. This outlet must be located no less than six feet and no more than 20 feet from the inside wall of the tub, ensuring convenient yet safe access.
- Clearance for Other Receptacles: Any other receptacles in the hot tub area must be positioned at least six feet, measured horizontally, from the inside walls of the tub to prevent accidental contact while using the hot tub.
- Universal GFCI Protection for Nearby Receptacles: ALL 120-volt receptacles located within 20 feet (measured horizontally) of the inside walls of the hot tub must be GFCI protected. This extends critical safety to any power outlets within the proximity of the spa.
- Overhead Lighting and Fan Clearances: Light fixtures, lighting outlets, and ceiling-suspended paddle fans located directly over the hot tub or within five feet (measured horizontally) of its inside walls must be installed at a minimum height of 12 feet above the maximum water level. This prevents objects from falling into the tub or individuals from contacting electrical components.
- Light Switch Placement: Light switches must be installed at least five feet, measured horizontally, from the inside walls of the hot tub to minimize the risk of electrical shock while operating them.
Frequently Asked Questions About Hot Tub Wiring
What should I do if I’m unsure about any aspect of the wiring process?
Never guess when it comes to electrical work, especially with a high-power appliance like a hot tub that combines electricity and water. The consequences of incorrect wiring can be severe and include permanent damage to your hot tub’s components, dangerous short circuits, electrical fires, and serious personal injury or electrocution. If you have any doubts, questions, or feel uncomfortable at any point, immediately stop work and call a qualified, licensed electrician or a professional hot tub installer. Investing in professional expertise is an investment in your safety and the longevity of your hot tub.
Do I need to bury the wiring that connects to the hot tub?
Yes, the National Electrical Code (NEC) generally requires direct-burial wiring for 120/240-volt circuits feeding hot tubs. When enclosed in Schedule 80 PVC conduit, the wiring typically needs to be buried at a minimum depth of 18 inches below grade. If you were to use rigid metal conduit (RMC), the burial depth might be reduced to six inches. However, there can be exceptions. If you plan to run the cable underneath an existing deck, you might be able to leave it above-ground, provided the cable is securely enclosed within a protective conduit and the space under the deck remains accessible for inspection and service. Before making any assumptions or deviations, it is absolutely essential to check with your local building department. Local codes can vary, and what’s permissible in one area might not be in another.
What is a GFCI and why is it so important for hot tubs?
GFCI stands for Ground-Fault Circuit-Interrupter. It’s a critical safety device designed to protect people from severe electric shock. A GFCI constantly monitors the electrical current flowing through a circuit. If it detects even a small imbalance in current (meaning some electricity is “leaking” out of the circuit, potentially through a person or water), it will quickly trip and cut off the power, often in as little as 1/40th of a second. For hot tubs, where water and electricity are in close proximity, GFCI protection is not just recommended, it’s legally mandated by the NEC. It provides a crucial layer of defense against accidental electrocution, making your hot tub environment significantly safer.
Can I use an extension cord to power my outdoor hot tub?
Absolutely NOT. Using an extension cord to power a hot tub is extremely dangerous and a violation of electrical codes. Hot tubs draw a substantial amount of current, and standard extension cords are not designed to handle such high loads for prolonged periods. This can lead to overheating, melted insulation, electrical fires, and severe shock hazards. Always ensure your hot tub is connected to a dedicated, properly wired, and GFCI-protected circuit as outlined in the manufacturer’s instructions and local electrical codes.
How far should my hot tub be from my house?
While there isn’t a single, universal distance requirement from the house for all hot tubs, several factors influence ideal placement. Electrically, the disconnect switch must be within sight of the tub and at least 5 feet away. Practically, consider accessibility for maintenance, privacy, and aesthetic integration with your home and yard. Placing it too far might make plumbing and electrical runs more expensive, while placing it too close might reduce privacy or interfere with other outdoor activities. Always consult local zoning and building codes, as some municipalities may have specific setback requirements for structures or water features.
Sources and Further Information
- National Fire Protection Association: NFPA 70: National Electrical Code; (2025 Edition Recommended)
- Occupational Safety and Health Administration: Current List of Nationally Recognized Testing Laboratories (NRTLs); (2025)
