Unlocking Your Home’s Past: A Comprehensive Guide to Finding and Interpreting Blueprints

Imagine purchasing a home and receiving a precious bonus: its original blueprints. This was my fortunate experience when I acquired a 1958 mid-century modern gem in Sarasota, Florida. From its second owner, I inherited not just a house, but a window into its creation – the meticulously drawn plans of its architect. It was through these documents that I uncovered the home’s historical significance; it was a design by Tim Seibert, a pioneering figure and one of the esteemed founders of the Sarasota School of Architecture.

Holding Seibert’s hand-drawn blueprints was a captivating experience. They revealed the initial vision and the subsequent alterations—some beneficial, some less so—made by previous occupants over decades. When it was time to sell the house, I carefully transferred the blueprints to the new owner, a gesture made with a mix of pride and a touch of wistfulness. This situation, particularly for an older home, was undoubtedly unusual and incredibly lucky; the preservation and transfer of these vital documents through each sale is a rare occurrence.

For most homeowners, the quest for their original building plans can be a more challenging endeavor. Yet, whether you’re embarking on an ambitious renovation project, seeking crucial details for repairs, or simply driven by a deep curiosity about your property’s origins, there are effective strategies to uncover these foundational documents. Envision the empowerment that comes from possessing a detailed map of your home’s structure, including its foundation, intricate piping, and complex electrical systems—such knowledge can transform daunting renovation dreams into tangible, achievable realities.

What Exactly Are House Blueprints?

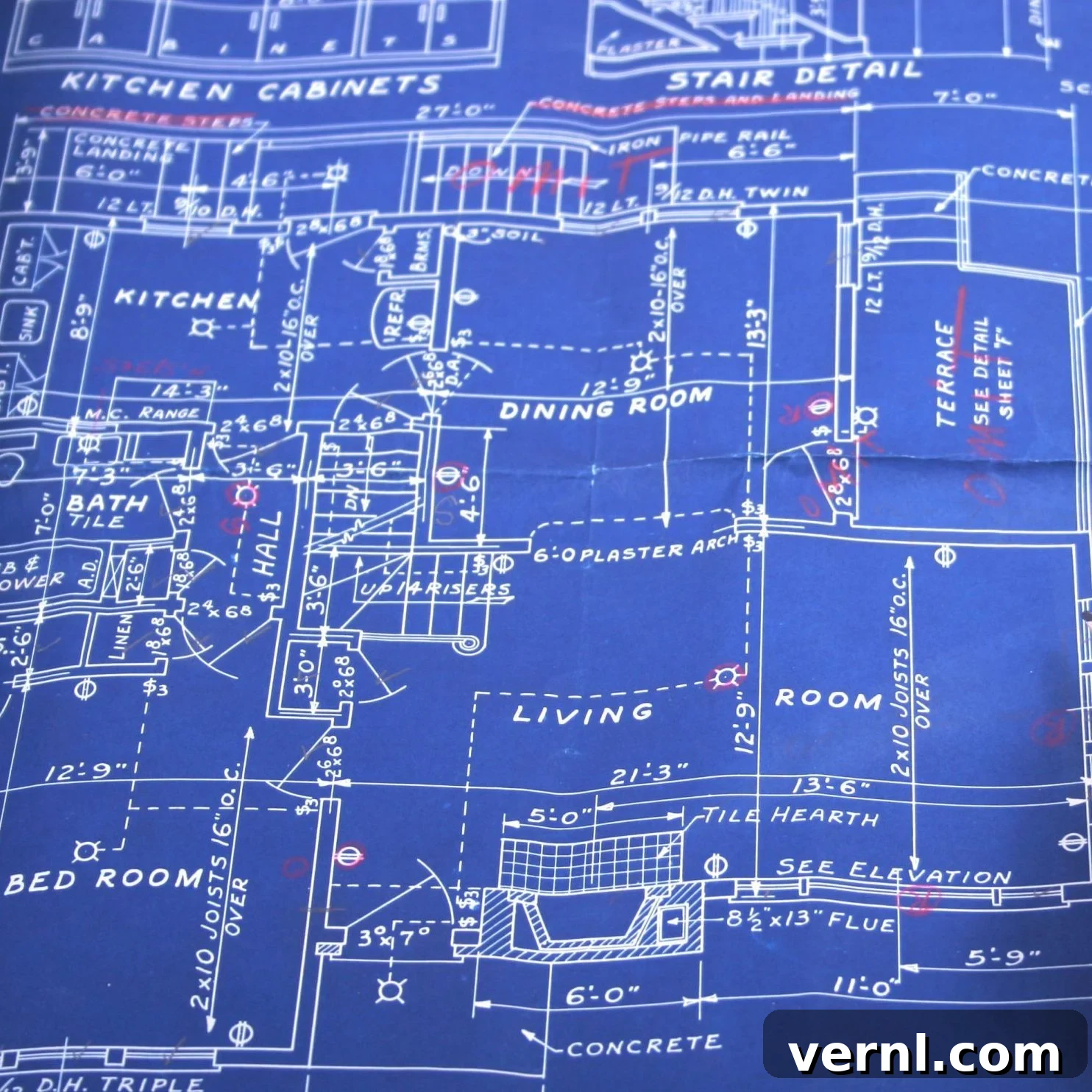

House blueprints are essentially the master plan of a building, illustrating its design as it was initially conceived and constructed. Historically, these architectural plans were elaborate technical drawings meticulously crafted by an architect or their dedicated assistants, often at a drafting desk. The term “blueprint” itself originated from the cyanotype process used to copy these originals, which produced distinctive blue-colored duplicates with white lines.

These comprehensive plans typically encompass a range of detailed views and information:

Floor Plans: Top-down views of each level, showing room layouts, dimensions, door and window placements, and the overall flow of the interior space.
Elevations: Exterior views of each side of the house, illustrating façade treatments, rooflines, window styles, and overall aesthetic design.
Sections: Cut-through views of the house that reveal internal structures, wall composition, ceiling heights, and relationships between different levels.
Details: Close-up drawings of specific construction elements, such as intricate joinery, unique building components, or custom features.
Structural Elements: Information about load-bearing walls, beams, columns, and foundation specifications.
Electrical Layouts: Diagrams showing the placement of outlets, switches, light fixtures, and electrical panels.
Plumbing Systems: Schematics detailing the routing of water supply lines, drainage pipes, and the location of fixtures like sinks, toilets, and showers.
Room Dimensions and Specifications: Precise measurements for all rooms, as well as notes on materials, finishes, and specific building codes.

While the term “blueprint” persists today, the methodology has evolved dramatically. Modern architectural plans are predominantly created using computer-aided design (CAD) software. These digital designs are then printed on large-format plotter paper. Although still commonly referred to as blueprints, they are rarely blue anymore, typically appearing as black or grayscale lines on white paper.

Why Home Blueprints Are Indispensable for Every Homeowner

“The most common reason to obtain drawings of your home would be for use in renovations, additions, or repairs,” explains Aren Saltiel, a highly experienced architect based in Truckee, California. “The structure of a building is often hidden inside the walls, so it can be extremely helpful to know what is there before you open anything up.” Beyond immediate project needs, blueprints offer a wealth of advantages for informed homeownership.

Essential for Renovation and Addition Projects

Undertaking any significant home improvement project without the original plans is like navigating a maze blindfolded. Blueprints provide a comprehensive overview of your home’s infrastructure, allowing you to anticipate challenges, plan effectively, and avoid costly surprises. Knowing the exact location of load-bearing walls, plumbing lines, and electrical conduits is crucial for safety and efficiency. This foundational knowledge helps your architect, designer, or contractor develop new plans with precision, saving considerable time and expense during the design and construction phases. Blueprints can also assist in accurate material estimation, ensuring you purchase the right quantities and types of supplies, thus minimizing waste and budget overruns.

Navigating Permits and Uncovering Past Work

As Saltiel notes, most renovation projects require a permit from your local municipality. To secure these permits, you’ll need to submit new drawings detailing the proposed work. Having the original blueprints as a starting point vastly simplifies this process. Your design professionals can build upon existing accurate data rather than having to measure and draw everything from scratch. This not only streamlines the permit application but also helps ensure compliance with current building codes.

Moreover, blueprints can be instrumental in “uncovering illegal renovations,” as Saltiel puts it. By comparing the original plans with the current state of your home, you can identify any modifications that were made without proper permits. This knowledge is vital, as unpermitted work can lead to significant issues, including fines, difficulties in selling your home, or even structural deficiencies. For instance, you might find it impossible to get a permit to convert a garage into living space if that garage was illegally constructed or modified, a scenario that played out with my Sarasota home.

Verifying Property Details for Sale or Defects

If you’re planning to sell your home, accurate documentation is paramount. Original blueprints are invaluable for verifying the “legal” square footage, a critical factor for property valuation and sales agreements. Potential buyers and appraisers rely on precise measurements, and blueprints offer an undeniable source of truth. In the case of a newly built home, blueprints serve as your “receipts” or contractual evidence. If you discover defects or shortcomings related to the construction, these plans clearly delineate what the builder was contractually obligated to deliver versus what was actually completed, providing crucial documentation for any legal recourse or warranty claims.

Preserving Your Home’s Architectural Legacy

Beyond practical applications, blueprints hold immense value for historical preservation. For homes of architectural significance, like my Tim Seibert-designed residence, these documents are a direct link to the creative vision of the architect. They offer insights into period-specific design philosophies, construction techniques, and material choices. Preserving and understanding these plans contributes to maintaining the integrity and historical narrative of the property, enhancing its cultural and aesthetic value for future generations.

Where to Begin Your Search for Your Home’s Blueprints

The journey to acquire your home’s blueprints can range from a simple online search to a detailed investigation worthy of Sherlock Holmes, particularly for older properties. Here are the most effective avenues for your quest to get building plans:

Your Local Building Department or Archives

“Most local jurisdictions keep the records of past permits, so you should start by contacting your local building department,” advises Saltiel. This is often the most reliable source for finding house blueprint archives.

Online Search: Many cities and counties have digitized their property records, including permits and associated plans. Begin by visiting your local government’s website and navigating to sections dedicated to property information, permit applications, or planning divisions. You might be able to search by address or parcel number.
Formal Records Request: If documents aren’t available online, you can typically submit a formal records request. This often involves an online form or an email submission. Be precise with your request: include the full property address and parcel number (a unique identifying code for your land, essential for pinpointing your property among thousands). Clearly state that you are seeking original architectural plans or blueprints related to past building permits. Be prepared for potential retrieval or copying fees.
In-Person Visit: For smaller communities or very old records that predate digital archiving, an in-person visit to the city or county records office may be necessary. Archives may be stored physically and require manual retrieval. Again, inquire about and expect potential copying fees.

Pro Tip: When engaging with local authorities, professionalism and clarity are key. Have your property address and parcel number readily available. Explain your request clearly and politely. Understand that retrieving older records can be a time-consuming process, so patience is essential.

Connecting with the Original Architect or Builder

“If you know who the original architect or builder was, contact them,” suggests Saltiel. “If you’re lucky, and the building is modern enough, you might even be able to obtain digital Autocad (or similar) files.”

The success of this approach heavily depends on the age of your home and the longevity of the firm. Established architectural firms often retain archives of their projects. Builders, however, present a more varied scenario. For example, the housing boom of the early 2000s in Florida saw numerous construction companies emerge, only for many to fold during the 2008 housing crash, taking their records with them. If your home was built by a reputable builder who is still in business, it is definitely worth reaching out to them.

Tracing Previous Owners and Neighbors

If the original architect or builder is untraceable, consider finding the home’s original owner. County or local records can often help you identify past property owners. A polite inquiry to a former owner might reveal if they retained any original blueprints or can at least guide you in the right direction.

You can also reach out to the real estate agent who facilitated your home purchase. Even if they don’t have the plans, they might be willing to act as an intermediary to contact the previous owner on your behalf, respecting privacy while pursuing your request.

In planned communities where homeowners often select from a limited number of floor plans, your neighbors can be an invaluable resource. Seek out a neighbor with a similar home model or, ideally, someone who has resided in the community since its inception. Even if they don’t possess blueprints themselves, they might provide crucial clues, such as the names of the original architect, builder, or developer, which can then be used to further your search.

Leveraging Real Estate Professionals and Home Inspectors

While less common, some real estate agencies, particularly those specializing in historical homes or specific neighborhoods, might have access to property records or even blueprint copies for homes they’ve frequently dealt with. Similarly, professional home inspectors or appraisers, especially those who have worked on your specific property or similar ones in the area, sometimes keep or know how to access detailed property information, including original plans. It’s always worth a polite inquiry.

When Blueprints Are Missing: Alternatives and Solutions

“If you hit a dead end,” says Saltiel, “new drawings can be created by measuring the current conditions of your home.” This alternative, while effective, can be a significant undertaking.

Engaging a licensed architect or engineer to create “as-built” drawings involves a professional visiting your home, taking precise measurements, and then drafting new plans that accurately reflect the existing structure. This service can cost anywhere from hundreds to several thousands of dollars, depending on the home’s size and complexity. Modern advancements like 3D laser scanning can expedite the measurement process and produce highly detailed digital blueprints. It’s important to remember that these new drawings will depict your house as it currently stands, not necessarily as it was originally constructed, which might still leave some historical questions unanswered.

Deciphering Your Home’s Blueprints: A Practical Guide

Once you’ve successfully tracked down the blueprints for your house, the next step is to understand and interpret them. These technical drawings utilize a specialized visual language of symbols, lines, abbreviations, and scales.

Understanding the Language of Architectural Drawings

Find the Legend or Key: Always begin by locating the legend or key on the plans. This section explicitly defines the specific symbols, line types, and abbreviations used throughout that particular set of drawings. Note that legends can vary between different architectural firms or eras.
Recognizing Common Symbols: You’ll encounter numerous standard markings. Walls are typically shown as double lines, often with patterns indicating material (e.g., cross-hatching for concrete, parallel lines for wood studs). Doors are usually depicted as a line with an arc, illustrating the direction and path of their swing. Windows are represented by various line configurations within a wall. Other common symbols include staircases, electrical outlets (circles with lines), light fixtures, plumbing fixtures (sinks, toilets, showers), and built-in elements.
Understanding Scale: Architectural plans are drawn to scale, meaning a small measurement on paper corresponds to a much larger actual distance in reality (e.g., 1/4 inch on the drawing equals 1 foot in the building). Look for the scale notation on each drawing sheet, as it can differ between plans (e.g., floor plans might be 1/4″ = 1′-0″ while detailed sections might be 1″ = 1′-0″). An architect’s scale ruler is an essential tool for accurately converting these measurements.
Reading Dimension Lines: These lines, often terminated with ticks, arrows, or dots, indicate specific measurements between two points, providing exact lengths, widths, and heights of various elements or spaces.
Finding Annotations and Callouts: Pay close attention to notes, labels, and callouts (often appearing as circles, hexagons, or squares containing numbers or letters). These direct you to additional detailed drawings, schedules (like window, door, or finish schedules), or specifications found elsewhere in the blueprint set, providing more in-depth information.

Navigating Incomplete or Damaged Plans

What if your search for where to get building plans yields only partial or deteriorated drawings?

Focus on Clear Sections: While old architectural drawings are incredibly valuable, they can sometimes be incomplete, faded, or difficult to decipher. Concentrate your efforts on the sections that remain clear and legible—typically the main floor layout and exterior wall placements. For aspects like electrical or plumbing, which are frequently updated over time, exercise caution and don’t rely exclusively on potentially outdated historical documents if current conditions are critical.
Verify On-Site: Always treat older plans as a foundational reference. It is absolutely essential to physically verify critical structural information—such as the exact positions of walls (especially potentially load-bearing walls), openings, and major utility lines—on-site before initiating any demolition or construction work. Many homeowners overlook this crucial step, leading to costly errors.
Professional Assessment: If getting old house blueprints results in documents with significant gaps, or if you feel uncertain about interpreting them for your specific project, consult with a licensed architect, structural engineer, or qualified contractor. These professionals possess the expertise to help complete missing information, assess the existing structure’s integrity, and develop accurate, updated drawings required for your home renovation project and permit applications.

Safeguarding Your Valuable Architectural Documents

Once you’ve gone through the effort of finding or commissioning your blueprints, protecting this invaluable resource is paramount!

Physical Storage: Store physical copies flat rather than folded, in a temperature-controlled and moisture-free environment. This prevents deterioration, creasing, and brittleness. Large flat-file storage drawers or protective archival tubes are ideal options. Avoid direct sunlight or areas prone to humidity fluctuations like basements or attics.
Digital Backups: Strongly consider having high-resolution digital scans created. Store these electronic files securely using multiple methods, such as cloud storage and external backup drives. This ensures you always have access to your personal house blueprint archives, even if the physical copies are damaged or lost.

Frequently Asked Questions About House Blueprints

How can I get blueprints for my house for free?

Your most promising and often free option when researching how to find house plans is to explore your local building department’s website. Many municipalities offer complimentary access or affordable downloads of digitized property records, including blueprints for past permits. Reaching out to the original homeowner (if you can trace them) or discovering a neighbor with an identical house model in a planned community might also provide free alternatives. When these cost-free approaches don’t yield results, acquiring plans typically involves paying for record retrieval services or commissioning new measured drawings from a professional.

What if my house blueprints are missing or incomplete?

There’s no need for immediate concern! When getting old house blueprints yields incomplete results, utilize whatever portions you’ve managed to find as your foundational reference. Concentrate on confirming essential structural components through direct on-site examination. For missing information critical to a renovation project (such as precise plumbing layouts or the exact location of load-bearing walls), you will likely need a professional assessment. An architect, engineer, or qualified contractor can create accurate new “as-built” drawings of the current conditions for the relevant areas, ensuring your project proceeds safely and correctly.

Can I access house blueprints through public records?

In many cases, yes. When researching where to get building plans, remember that construction permits and their accompanying plans filed with your city or county building department are generally considered public information. However, the specific access policies, any associated costs, and the availability of older or digitized records within these house blueprint archives can vary considerably between different local governments. Your best starting point is always to visit your municipality’s official website or directly contact their building department or records office for guidance.

Do I need blueprints for home renovation projects?

It largely depends on the project’s scope and complexity. For simple cosmetic updates like repainting a room or changing light fixtures, blueprints are usually not necessary. However, for any work involving structural modifications (e.g., removing or adding walls, building extensions), major electrical system changes, significant plumbing overhauls, or anything that requires a building permit, you will almost certainly need precise blueprints for your house. These are essential for both permit submission and as a critical guide for construction.

Even for smaller projects around the house, having these plans readily available can save you from costly and dangerous surprises—like accidentally striking a hidden water pipe or electrical wire during a minor wall alteration. Furthermore, when you’re discussing work with contractors, detailed drawings ensure everyone is on the same page about exactly what needs to be done and where, minimizing misunderstandings and ensuring accurate bids.
