Troubleshooting and Fixing Your Car Horn: A Comprehensive Guide to Automotive Safety

The car horn, an often-underestimated component of your vehicle, plays a pivotal role in road safety. It’s your instant voice on the road, crucial for alerting other drivers to your presence, preventing potential collisions, or simply signaling when a traffic light turns green. Most drivers rarely give their horn a second thought—until they urgently need it and it fails to respond. A non-functional horn isn’t just an annoyance; it’s a significant safety hazard that can compromise your ability to react in critical situations and, in many jurisdictions, can even cause your vehicle to fail mandatory safety inspections.

Due to its typical mounting position, often situated between the front grille and the radiator, your car’s horn is constantly exposed to the harsh realities of the road. Rain, dirt, debris, and particularly corrosive road salt spray can take their toll. Prolonged exposure allows these elements to penetrate the horn’s internal mechanisms, potentially shorting out its coil and silencing it permanently. However, environmental wear is only one potential cause of failure. Other issues, ranging from a faulty switch within your steering wheel, a broken “clock spring” (a vital component that maintains electrical connections in the steering column), a malfunctioning horn relay, or a severed or shorted wire somewhere along the electrical pathway, can also render your horn inoperative.

This comprehensive, step-by-step guide is designed to empower you with the knowledge and confidence to diagnose and fix your car horn. By systematically checking each potential failure point, you can often identify and resolve the problem yourself, saving time and money, and most importantly, restoring a critical safety feature to your vehicle.

Understanding Your Car Horn System: Key Components

Before you begin troubleshooting, it’s beneficial to understand how the car horn system functions. Knowing the role of each component will help you interpret your diagnostic findings more effectively. When you press your horn button, a series of electrical events occur:

• Horn Button/Switch: This is the initial point of contact, located on your steering wheel. When pressed, it sends a low-current signal.
• Clock Spring: Positioned behind the steering wheel, this device consists of a coiled ribbon cable. Its purpose is to maintain continuous electrical connections (for the horn, airbag, and other steering wheel controls) as the steering wheel rotates.
• Horn Relay: Acting as an electromagnetic switch, the relay receives the low-current signal from the horn button. In response, it closes a separate circuit, allowing a much larger current directly from the battery to flow to the horn unit. This design protects the delicate horn switch from high amperage.
• Fuse: An essential safety component, the horn fuse is designed to melt and break the circuit if an excessive electrical current flows through it. This prevents damage to the wiring and other more expensive components.
• Horn Unit: This is the physical device that produces the sound. Typically, it contains an electromagnetic coil that vibrates a diaphragm, creating the familiar loud tone.
• Wiring Harness: The network of electrical wires that connects all these components, transmitting power and control signals throughout the system.

A fault in any one of these components or their connections can lead to a silent horn. Our troubleshooting approach will systematically guide you through checking each of these possible points of failure.

Step 1: Initial Inspection of the Horn Unit and Its Connections

Often, the simplest solution is the right one. Before delving into more complex electrical tests, begin by performing a thorough visual inspection of the horn unit itself and its immediate wiring connections. This preliminary step can frequently reveal the problem without requiring advanced tools or extensive effort.

Safety Precautions:

Always prioritize safety. Ensure your vehicle’s ignition is turned off. For added security, especially when working with electrical components or disconnecting wires, consider disconnecting the negative terminal of your car battery. This prevents accidental shorts and unexpected activation of electrical systems.

Locating Your Horn:

Open your vehicle’s hood. Car horns are generally located in the front of the engine bay. Common spots include behind the front grille, near the radiator, or sometimes within the fender wells. Your vehicle might have one or two horns, depending on its design. Once you’ve located the horn(s), meticulously inspect the visible wiring and the electrical terminals directly connected to the horn unit. Pay close attention to the following:

• Visible Damage: Check for any signs of physical damage to the horn unit itself, such as cracks, dents, or corrosion. Inspect the wires for fraying, cuts, or insulation damage, which could be caused by wear, heat, or even rodent activity.
• Loose Connections: Ensure that the wire terminals are tightly and securely attached to the horn’s lugs. Loose connections are a common cause of intermittent or complete horn failure, as they prevent a consistent electrical flow.
• Corrosion Buildup: Due to their exposure to moisture and road contaminants, horn terminals are highly susceptible to corrosion. Look for any white, green, or powdery residue on the metal contacts. Corrosion acts as an electrical insulator, effectively blocking the current from reaching the horn.

Cleaning and Reconnecting Terminals:

If your inspection reveals loose or corroded connections, this is your first repair opportunity. Carefully disconnect the wires from the horn terminals. Using a small wire brush, fine-grit sandpaper, or a specialized electrical contact cleaner, thoroughly clean both the wire terminals and the horn’s metal lugs until they appear bright and free of any debris or oxidation. This ensures maximum electrical conductivity. Once clean, securely reattach the wires, making sure they are snug and cannot be easily pulled off. A gentle tug can confirm their tightness.

After cleaning and reconnecting, return to your vehicle and attempt to honk the horn. If you hear a faint clicking sound but no actual horn blast, this often indicates that power is reaching the horn unit, but its internal mechanism may be faulty, or there’s a problem with its ground connection. If you hear no sound whatsoever, the problem likely resides further upstream in the electrical circuit.

Step 2: Troubleshooting the Electrical Pathway – Fuses and Direct Power Test

If the initial visual inspection and cleaning of connections didn’t resolve the problem, the next crucial step is to investigate the electrical circuit, beginning with the fuse. Fuses are intentionally designed as a weak link in the circuit; they sacrifice themselves by blowing to protect more expensive and vital components from damage due to electrical surges or short circuits. A blown fuse is a very common cause of an electrical component failure.

Locating and Inspecting the Fuse Box:

Your vehicle typically houses at least one fuse box, and sometimes two or more. Common locations include under the hood (often near the battery or a strut tower), inside the passenger cabin (under the dashboard, behind a kick panel, or in the glove compartment), or even in the trunk. Consult your car’s owner’s manual to precisely locate the fuse box(es) and identify the specific fuse designated for the horn (it will usually be labeled “Horn,” “HORN,” or with a horn symbol).

Open the fuse box cover. Before singling out the horn fuse, take a moment to visually inspect the overall condition of the fuses and the fuse box itself. Look for any widespread signs of charring, melted plastic, or any burning odors. If you observe any of these symptoms, it could signal a more significant underlying electrical issue that might require professional intervention, as something caused a dangerous level of overcurrent.

Checking the Horn Fuse:

Once you’ve located the horn fuse as indicated in your owner’s manual, carefully remove it using a fuse puller (which is often conveniently clipped inside the fuse box lid) or a pair of small needle-nose pliers. Hold the removed fuse up to a light source and scrutinize its small metal filament. A healthy fuse will have an intact, continuous wire running between its two prongs. A blown fuse will clearly show a broken, melted, or vaporized filament. Some blown fuses may also exhibit discoloration or blackening within the plastic body.

• If the fuse is blown: Replace it immediately with a new fuse of the exact same amperage rating. Never substitute a fuse with a higher amperage rating, as this bypasses the safety design and can lead to severe electrical damage, wiring fires, or damage to other components if a short circuit is present. After installing the new fuse, try the horn. If it works, congratulations! If the new fuse blows immediately upon activation, it strongly indicates a short circuit somewhere in the horn’s wiring, necessitating further, more detailed diagnosis.
• If the fuse is intact: This means the horn’s circuit breaker is good, and power should theoretically be able to pass through this point. Now, we need to determine if power is actually reaching the horn unit.

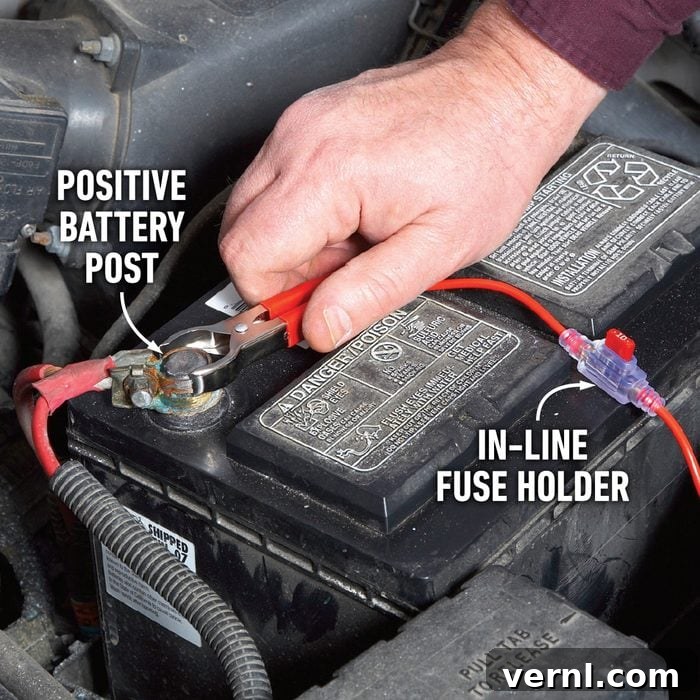

Testing with a Fused Jumper Wire (Direct Power Test):

To definitively determine if the horn unit itself is functional, bypassing the vehicle’s complex internal wiring, relay, and clock spring, you can use a homemade fused jumper wire. This method safely applies direct battery power to the horn unit.

A simple fused jumper wire is constructed from two battery clips (or robust alligator clips) securely attached to each end of a length of 14- or 16-gauge electrical wire. Crucially, an in-line fuse holder (containing a fuse of the same amperage rating as your car’s horn fuse, typically between 10-20 amps) must be spliced into the middle of this wire. This inline fuse acts as an essential safety net during your test, protecting against accidental shorts.

Procedure for Testing:

1. Ensure the vehicle’s original horn wires are disconnected from the horn unit.
2. Attach one end of your fused jumper wire to the positive (+) terminal of your car battery.
3. Carefully touch the alligator clip on the other end of the jumper wire to the positive terminal of the horn unit.
4. Next, connect a separate, unfused wire from the negative (-) terminal of your car battery to the ground terminal of the horn unit (which is often the horn’s mounting bracket or a dedicated ground wire).

Interpreting the Results:

• If the horn sounds loud and clear: This is excellent news! It confirms that the horn unit itself is fully functional. The problem lies elsewhere in the vehicle’s original electrical system – specifically, the wiring, the horn relay, the clock spring, or the horn button.
• If the horn makes a clicking sound but does not produce a full blare: This symptom typically points to an insufficient or poor ground connection for the horn. It means the horn is receiving power, but the electrical circuit isn’t complete or strong enough due to poor grounding.
• If there is absolutely no sound at all: This usually indicates that the horn unit itself is faulty internally and will need to be replaced.

Addressing Poor Ground Connections:

If your horn only clicks with direct power, a poor ground connection is a likely culprit. A robust ground is absolutely critical for any electrical component to function correctly. The horn unit typically grounds itself through its metal mounting bracket to the vehicle’s chassis, or it may have a dedicated ground wire. Locate the horn’s ground connection point to the vehicle’s frame. Disconnect it and thoroughly clean both the cable terminal and the chassis contact point using a wire brush or sandpaper to remove any rust, dirt, or grime. Reconnect it securely, ensuring a clean metal-to-metal contact. Then, try powering the horn again. If the horn still only clicks and doesn’t sound, the internal components of the horn unit are likely failing, and the horn will need to be replaced.

Step 3: Investigating the Control Circuit – The Horn Relay and Beyond

If your car horn works perfectly when directly powered by a jumper wire and the fuse is intact, this definitively tells us the problem is not with the horn unit itself or its immediate power/ground connections. Instead, the issue lies “upstream” in the control circuit – this includes the horn relay, the clock spring, the horn button, or the intricate wiring connecting these components.

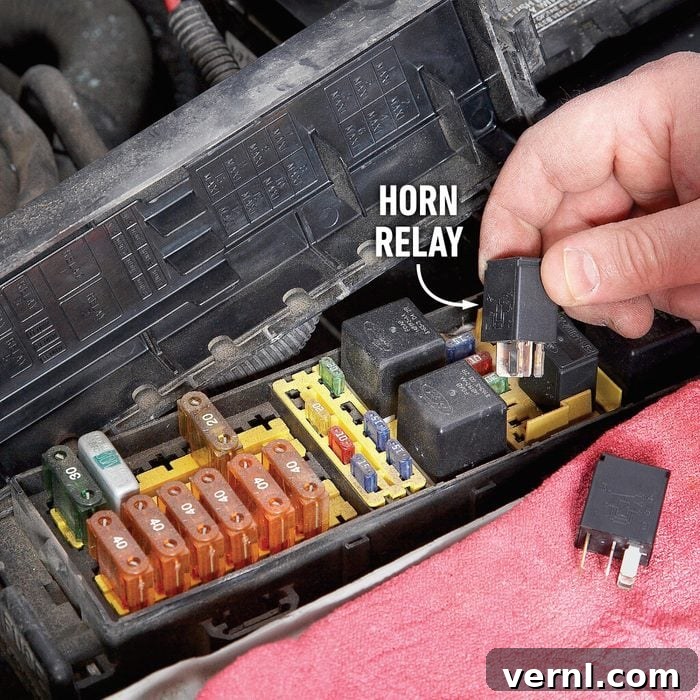

Checking the Horn Relay:

The horn relay is a very common point of failure and is relatively straightforward to test. As previously explained, the relay functions as an electromagnetic switch. It uses a small, low-current signal from your horn button to activate a higher-current circuit, which then sends sufficient power directly to the horn unit. This design protects the more delicate horn button switch from carrying the full electrical load required by the horn.

Consult your vehicle’s owner’s manual to accurately locate the horn relay within your car’s fuse/relay box (it’s often found in the same box as the fuses, or sometimes in a separate relay box). Relays generally share a similar appearance. A quick and effective test is to temporarily swap the horn relay with an identical relay from a non-essential circuit within your vehicle (e.g., the relay for the fog lights, windshield wipers, or another accessory circuit that uses the same type of relay), provided you know that relay is currently working. Ensure the replacement relay has the exact same part number and specifications to avoid damaging other systems.

• If swapping the relay makes the horn work: This clearly indicates that the original horn relay was faulty and needs to be replaced with a new one.
• If swapping the relay does not resolve the issue: The relay itself is likely not the problem, and you will need to continue diagnosing further down the control circuit.

Examining the Horn Button and Clock Spring:

If you’ve confirmed that the fuse is good, the relay is functioning (or has been ruled out), and the horn unit works when directly powered, the remaining culprits are typically the horn button itself or the clock spring located within the steering column. These components are generally more complex to diagnose and repair. Their repair often requires specialized tools, a deeper understanding of automotive electrical systems, and frequently involves working in close proximity to airbag systems, which demands extreme caution.

• Horn Button: The physical button on your steering wheel can fail internally. Over time, the contacts inside the button can wear out or corrode, preventing it from sending the necessary signal to the horn relay.
• Clock Spring: This ingenious device allows your steering wheel to turn freely while maintaining continuous electrical connections for crucial systems like the horn, airbag, cruise control, and other steering wheel-mounted controls. The internal ribbon cable can become brittle or break over years of use and steering wheel rotations, leading to intermittent or complete loss of function for these components. A faulty clock spring often presents with other symptoms in addition to horn failure, such as a persistent airbag warning light or problems with other steering wheel controls.

Diagnosing and replacing a faulty horn button or a broken clock spring can be an intricate and potentially hazardous task, especially given their connection to the airbag system. If you have followed all the preceding troubleshooting steps and find yourself at this point, and you are not entirely comfortable with advanced automotive electrical work or working near airbag components, it is highly recommended that you take your vehicle to a professional mechanic you trust. They possess the specialized expertise, diagnostic equipment, and safety protocols to correctly identify and safely rectify these more involved issues.

Wiring Harness Inspection:

In some specific scenarios, particularly if the problem is intermittent, has occurred after an accident, or if other electrical issues are present, a break or short circuit within the main wiring harness between the steering column, relay, and horn unit might be the underlying cause. Tracing these wires can be a time-consuming and challenging task, often requiring detailed wiring diagrams for your specific vehicle and the use of a multimeter for continuity and voltage checks. Again, if this level of intricate diagnosis falls outside your comfort zone or skill set, entrusting your vehicle to a professional mechanic is the safest and most efficient course of action.

Conclusion: Prioritizing Safety on the Road

A fully functional car horn is not merely a convenience; it is an indispensable safety device for effective communication on the road. While a silent horn can be a source of frustration, many common causes of failure can be effectively diagnosed and remedied with basic tools and a logical, systematic approach. By diligently following these troubleshooting steps – from conducting an initial visual inspection of the horn’s connections and terminals, inspecting and replacing a potentially blown fuse, to testing the horn with direct power, and finally examining the horn relay – you can often pinpoint and resolve the underlying problem yourself.

However, it is crucial to remember that modern automotive electrical systems can be complex and, at times, dangerous if mishandled. If, after meticulously following these comprehensive troubleshooting steps, your car horn continues to refuse cooperation, or if you encounter any issues that seem to exceed your technical expertise, do not hesitate to seek the assistance of a qualified and reliable professional mechanic. Prioritizing your personal safety, the safety of others on the road, and the overall longevity and health of your vehicle should always be your foremost concern.
