Rebuilding a Murphy Bed Closet in a Charles Moore Sea Ranch Condo

A few years ago I received a call from clients who owned an original Sea Ranch condominium designed by architect Charles Moore. They wanted a twin Murphy bed closet rebuilt to hold a full-size bed while preserving the original footprint and staying true to Moore’s design intent. The constraints were clear: no expanding into adjacent spaces, maintain the exterior lines and interior proportions, and keep the character of the original millwork intact.

The existing closet used 2×4 framing and was never intended to support the increased load and hardware of a full-size Murphy bed. After removing the old framing and panels, I replaced the sides with structural 3/4-inch plywood to create a stiffer, more durable cabinet shell. Even with thicker plywood, I was concerned about long-term structural integrity because Murphy bed mechanisms introduce concentrated loads at hinge points and at the base where doors bear on the floor. To address those concerns I designed a series of reinforcements that would strengthen the cabinet without altering its visible profile.

Reinforcement Strategy

My reinforcement strategy focused on three objectives: distribute load evenly, prevent racking, and provide secure substrate for hardware. The main elements I added were:

• Plywood floor and toe-kick: A 3/4-inch plywood floor panel was installed inside the cabinet to create a robust bearing surface. A recessed toe-kick helped tie the cabinet to the room floor and concealed the mechanical fasteners, improving durability and appearance.
• 2×4 bracing: Strategic 2×4 blocking and bracing were placed where the bed hardware and hinges would attach. These blocks provide solid material for lag screws and through-bolts instead of relying solely on thin cabinet side panels.
• Header box for lighting: I built a small header box above the bed cavity to hide wiring and a low-profile light. Concealing the lighting in its own boxed header kept the lines of the cabinet clean and preserved the original aesthetic.

Hardware and Load Transfers

To further reduce stress on the cabinet sides and transfer weight to the floor, I used black powder-coated aluminum L-brackets along the bottom of the cabinet. These brackets anchor the base to the cabinet sides and provide an unobtrusive reinforcement that resists shear and uplift. In addition, I fitted felt feet to the doors so when the bed is folded down the doors make direct contact with the plywood floor rather than hanging on the sidewall. This simple detail shifts most of the vertical load to the floor, alleviating creep or sag in the jambs and preventing premature wear on the side panels.

Hinge attachment required special attention. I glued solid wood edging to the exposed edges of the doors and to the inner faces of the closet sides. The solid wood trim creates a dense, screw-friendly surface for the brass screws that secure heavy piano hinges. By using glued hardwood edges rather than driving screws into plywood end grain or thin veneer, the fasteners achieve greater holding power and longevity.

Materials and Finish

The condo receives a lot of direct sunlight, which accelerates fading and degrades finishes over time. To protect the newly assembled panels, I applied Osmo UV-Protection Oil to all exposed wood surfaces prior to final installation. This oil penetrates and stabilizes the wood while providing UV resistance without creating a plasticky film. The result is a warm, natural finish that blends seamlessly with the existing Douglas fir millwork throughout the house.

Because the goal was to maintain the original design language, I matched grain direction, trim profiles, and surface tone as closely as possible. The powder-coated L-brackets and concealed lighting keep the hardware discreet so the overall look remains faithful to the condominium’s architectural character.

Installation and Final Adjustments

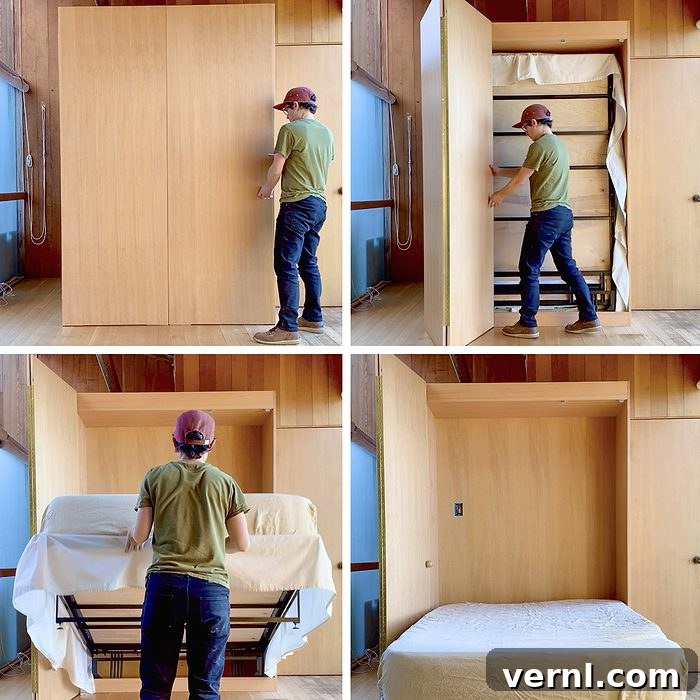

Installation required careful measurement and staged assembly. After setting the cabinet into the existing opening and securing the reinforced base, I installed the piano hinges and tested the bed operation several times, checking for binding, even contact of the felt feet, and smooth release of the mechanism. Small adjustments to hinge placement and shimming behind the piano hinge allowed precise alignment without altering the visible proportions of the cabinet.

The finished project achieved the clients’ goals: a full-size Murphy bed that fits within the original footprint, operates reliably, and respects Charles Moore’s original aesthetic. The combination of plywood structure, strategic blocking, discreet metal brackets, and a protective finish resulted in a durable, attractive solution that will perform well under the conditions of high sun exposure and regular use.

If you’re working on a similar retrofit, focus on transferring loads to the floor where possible, using solid blocking for hardware, and protecting exposed wood from UV. These steps go a long way toward ensuring a long-lasting, respectful update to an architecturally significant interior.
