Mastering Sump Pump Installation

A sump pump is an indispensable device for maintaining a dry and healthy basement, acting as your home’s first line of defense against water intrusion. It becomes absolutely critical if your basement floor was constructed at or below the natural water table, making it highly susceptible to groundwater seepage and potential flooding. Understanding the fundamental role of a sump pump is the first step toward safeguarding your most valuable asset: your home.

While the concept of installing a sump pump might seem daunting, the process is quite straightforward for a diligent DIY enthusiast, requiring careful planning and execution. Before diving into the installation, it’s beneficial to be aware of the different types of sump pumps available on the market: submersible, pedestal, battery-operated, and water-powered. Each type offers distinct advantages, but for reliability and efficiency, submersible sump pumps are often the preferred choice for homeowners.

From extensive experience, submersible sump pumps are generally considered the most substantial investment upfront, but they consistently prove to be the most robust and dependable option. Their design allows them to operate quietly beneath the basement floor, submersed in water within the sump pit, making them less obtrusive and more efficient in handling significant water volumes. I have personally witnessed these resilient units performing flawlessly for decades without a single failure, a testament to their durability. For this comprehensive guide, we will specifically focus on the proven techniques for installing submersible sump pumps, ensuring your basement remains dry for years to come.

Essential Tools and Materials for a Successful Sump Pump Installation

Embarking on a sump pump installation project requires the right set of tools and materials to ensure efficiency, safety, and a professional finish. Gathering everything you need beforehand will streamline the process and prevent unnecessary delays. Here’s a detailed list of what you’ll need, along with a brief explanation of why each item is crucial:

Rotary hammer with long 3-in.-dia. and 1-in. bits: This powerful tool is essential for drilling through the tough concrete of your basement floor and the exterior wall. The 1-inch bit creates the initial series of holes for breaking the slab, while the 3-inch bit is for creating the discharge pipe openings through the wall.
Sledgehammer: Once the concrete slab is weakened by drilling, the sledgehammer is used to effectively break up the concrete into manageable pieces, making removal easier.
Shovel: After the concrete is removed, a sturdy shovel will be necessary to dig out the soil beneath, creating the pit for your sump tank.
Hand saw: A simple hand saw is perfect for cutting PVC pipes to the precise lengths required for the discharge lines and internal plumbing connections.
Safety glasses: Absolutely paramount for eye protection, especially when using a rotary hammer, sledgehammer, or working with concrete and PVC. Concrete dust and flying debris can cause serious injury.
Hearing protection: The rotary hammer and sledgehammer can generate significant noise levels. Earplugs or earmuffs are crucial to protect your hearing during the drilling and breaking phases.
Trowel: Used for smoothly applying and finishing the quick-set concrete around the newly installed sump tank, ensuring a level and neat transition with the existing floor.
Permanent felt-tip pen: Ideal for accurately marking the outline of your sump pit on the concrete floor, ensuring precise drilling.
Several five-gallon buckets: These are indispensable for hauling away broken concrete pieces, excavated soil, and for mixing concrete.
One 120-volt submersible sump pump with float switch: This is your primary pump. For areas with moderate moisture, a 1/2-horsepower (hp) pump is usually sufficient. For basements prone to heavy flooding or located in high-water table areas, a 3/4-hp pump provides extra power and peace of mind. The integrated float switch automatically activates the pump when water levels rise.
Battery-powered backup sump pump with float switch: A crucial secondary defense, this pump ensures your basement stays dry even during power outages. Like the main pump, choose 1/2-hp for moderate conditions and 3/4-hp for heavy flooding areas. Its float switch should be set to activate at a higher water level than the main pump, serving as an emergency fallback.
Plastic sump tank (18-in.-dia. by 24-in. deep is standard): This durable plastic basin collects the groundwater before the sump pump activates to discharge it. The standard size fits most residential needs.
Multiple lengths of 2-in. PVC pipe with 90-degree elbows and straight couplers: These components form the discharge lines that carry water away from your basement. Having various lengths and fittings allows for custom routing around obstacles and through the wall to the exterior discharge point.
Can of spray foam: Used to seal the gaps around the discharge pipes where they exit through the basement wall, preventing drafts, pests, and moisture from entering.
Quick-set concrete (mortar): This fast-drying concrete mix is used to permanently secure the sump tank in place and create a smooth, finished surface around it.
PVC cement: Essential for creating strong, watertight bonds between all PVC pipe sections and fittings, preventing leaks in your discharge system.
3/4-in. gravel: This provides a stable, permeable base and backfill for the sump tank, allowing water to drain into the pit efficiently and helping to stabilize the tank.

Strategic Location Selection and Pump Choices

The success of your sump pump system heavily relies on careful planning regarding its location, both inside and outside your home. A well-chosen location maximizes efficiency and ensures proper water discharge, preventing future issues. This phase is crucial and requires a thoughtful approach to environmental factors and home layout.

Scope out the land around your house: Begin by thoroughly inspecting the exterior perimeter of your home. Your objective is to identify an area where the natural grade of the land slopes distinctly downward and away from your home’s foundation. This natural slope is vital for effective gravity-fed drainage of the discharged water, ensuring it moves far away from your basement. Crucially, ensure this discharge point will not direct water into a neighboring yard or directly onto public property, which could lead to disputes or legal issues. Make a clear note of which exterior wall of your house borders this optimal low-lying discharge area.
In your basement, locate the corresponding wall: Once you’ve identified the best exterior discharge point and its adjacent wall, move into your basement. Pinpoint the interior section of that same wall. This will be the general area where your sump pump system will be installed, minimizing the length of the discharge pipe run and simplifying the installation.
Place your plastic sump tank strategically: Carefully position your plastic sump tank on the basement floor in a spot that offers a balance of convenience and functionality. It should be relatively close to the wall identified in the previous step, ideally about six inches from it, to facilitate drilling the discharge holes. Furthermore, it’s absolutely essential to place it near an existing Ground Fault Circuit Interrupter (GFCI) electrical outlet. This ensures a safe and compliant power source for your pump, as GFCI outlets protect against electrical shock, which is critical in a wet basement environment.
Trace a precise circle on the basement floor: With your sump tank in its proposed final position, take a permanent felt-tip pen and carefully trace a perfect circle on the basement floor around the base of the tank. This initial mark will serve as a guide for the actual pit opening. Be meticulous to ensure an accurate outline.
Create a second, larger mark for the concrete cut: Now, temporarily move the sump tank to one side. Using your felt-tip pen again, make a second mark on the floor that is approximately six inches larger in diameter than the first circle you just traced. This larger outline represents the actual perimeter of the concrete slab you will be removing. To optimize space and integrate it neatly, elongate this second mark on the wall side so it butts up directly against the basement wall. This will form a unique, long oval shape with one end appearing “cut off” by the wall. This design allows enough space for the sump tank itself, proper gravel backfill, and the subsequent concrete patch, while keeping the installation as close to the wall as possible.

Precise Excavation: Digging Out the Sump Hole

This is arguably the most physically demanding part of the installation process, requiring precision and adherence to safety protocols. Breaking through your basement’s concrete slab and excavating the earth beneath creates the vital space for your sump tank.

Drill a series of holes through your basement floor foundation slab: Don your safety glasses and hearing protection – these are non-negotiable. With your rotary hammer fitted with the 1-inch-diameter bit, begin drilling a continuous series of holes through your concrete basement floor slab. Follow the perimeter of the larger, oval-shaped line you traced earlier with your felt-tip pen. The goal here is to create a perforated line that effectively weakens the concrete along your desired cut. Maintain consistent spacing between holes, ensuring they are close enough to allow the concrete to break cleanly.
Continue drilling through the floor slab: Do not rush this step. Systematically work your way around the entire marked perimeter, continuing to drill until you have completely replaced your traced line with a continuous sequence of side-by-side holes. This complete perforation is key to a successful and controlled concrete removal.
Break the concrete with a sledgehammer: Once the drilling is complete, put your safety gear back on (if you’ve taken a break). Take your sledgehammer and carefully, yet firmly, strike the concrete within your border of drilled holes. The perforations should allow the concrete to crack and break into more manageable pieces. Focus on breaking it into sizes that you can easily lift and handle. Remove these broken concrete pieces carefully, using your five-gallon buckets to transport them. It’s crucial to dispose of these materials responsibly at a certified landfill or a concrete recycling station. Do not simply discard them in household waste.
Excavate the underlying soil: After all the concrete is successfully removed from the hole, you will be left with exposed soil beneath. Now, switch to your shovel and begin digging out this soil. The objective is to create a hole that is large and deep enough to comfortably accommodate your plastic sump tank. Ensure you excavate an additional six inches of space on the bottom and around the sides of where the sump tank will sit. This extra space is critical for accommodating the gravel bed, which provides proper drainage and stability for the tank.

Secure Installation of the Sump Tank

With the hole successfully excavated, the next step involves positioning and securing the sump tank. This phase ensures the tank is stable, properly oriented, and ready to collect water efficiently.

Line the bottom of your hole with gravel: Once the excavation is complete and the hole is at its full depth, pour approximately six inches of 3/4-inch gravel into the bottom. Use a shovel or your hands (wearing gloves) to spread the gravel evenly, creating a level and stable base. This gravel layer serves multiple purposes: it prevents the sump tank from settling into the soil over time, provides a permeable layer for water to easily enter the pit, and helps with overall drainage.
Place your sump tank into the hole: Carefully lower your plastic sump tank into the prepared hole, resting it squarely on the gravel bed. Double-check its position to ensure it is level and stable. The top edge of the sump tank should be flush with, or ideally just slightly above, the surface of the surrounding existing basement floor slab. This slight elevation prevents surface water from directly entering the pit, which is usually handled by perimeter drain tile systems, but also ensures a smooth transition when the concrete is patched.
Fill in the space around the tank with more gravel: With the sump tank properly seated, begin backfilling the annular space (the gap) around the tank with more 3/4-inch gravel. Pour the gravel slowly and evenly, tamping it down gently as you go to ensure it settles compactly around the tank. Continue filling until the hole is almost completely full, leaving an inch or two of empty space at the very top. This remaining empty space is reserved for the quick-set concrete or mortar that will permanently seal and finish the installation.
Mix and trowel quick-set concrete: Prepare a small batch of quick-set concrete according to the manufacturer’s instructions. Consistency is key here; you want it workable but not too runny. Carefully trowel this fresh concrete mixture over the graveled area around the sump tank, filling the remaining void. Your goal is to create a smooth, seamless continuation of the surrounding basement floor slab. Work diligently to achieve a neat, professional finish, ensuring no edges or lips where water could collect. This concrete patch will lock the sump tank firmly in place and create a clean, finished look.
Allow the concrete to fully harden: Patience is vital. Refer to the quick-set concrete manufacturer’s guidelines for curing times. Resist the urge to disturb the area prematurely. Allowing the concrete to fully harden and cure ensures maximum strength and durability for your sump pump installation.

Implementing the Discharge Pipes: Exterior Connections

The discharge pipes are the arteries of your sump pump system, responsible for safely channeling water away from your home. This section details their installation through the basement wall to the exterior discharge point.

Drill the main discharge hole through your basement wall: Return to the exterior of your house. With your rotary hammer and the larger 3-inch-diameter bit, carefully drill a hole through your basement wall. This hole should be positioned as close as possible to the interior location of your sump pump tank, ensuring a direct and efficient pipe run. Aim to drill this hole one to two inches above the exterior ground level. This elevation prevents snow or standing water from backing up into the pipe. Always wear your safety glasses and hearing protection during this high-impact task. This hole will be exclusively for the discharge line of your main sump pump.
Drill a second identical hole for the backup pump: About one foot to the left or right of the first hole (depending on which direction keeps it closer to the interior sump pit), drill a second identical 3-inch-diameter hole through the basement wall. This separate hole is dedicated to the discharge line of your backup sump pump. Having two distinct discharge points ensures that if one line becomes obstructed, the other can still function, providing critical redundancy. Maintain the same height above ground level as the first hole.
Thread PVC pipe lengths through each hole: Take a length of 2-inch PVC pipe and carefully thread it through each of the newly drilled holes in the basement wall. Ensure the pipes extend several inches into the basement and protrude sufficiently from the exterior wall. On the exterior side, use 90-degree elbow fittings and straight couplers as necessary to extend the pipes to the previously identified low-lying spot away from your home. It’s crucial to ensure the exterior discharge lines maintain a consistent downward slope, allowing gravity to assist in moving water away from the foundation. Secure all connections with PVC cement to prevent leaks.
Verify pipe protrusion from the basement wall: Double-check that both PVC pipes protrude several inches from your basement wall, both on the interior and exterior sides. The interior protrusion allows ample space for connecting to the pumps, while the exterior protrusion ensures water is discharged sufficiently clear of the foundation.

Integrating the Main and Backup Pumps into the Sump Tank

This critical step involves installing the heart of your waterproofing system: the main and backup sump pumps, along with their internal plumbing. Proper setup ensures reliable operation and a crucial layer of redundancy.

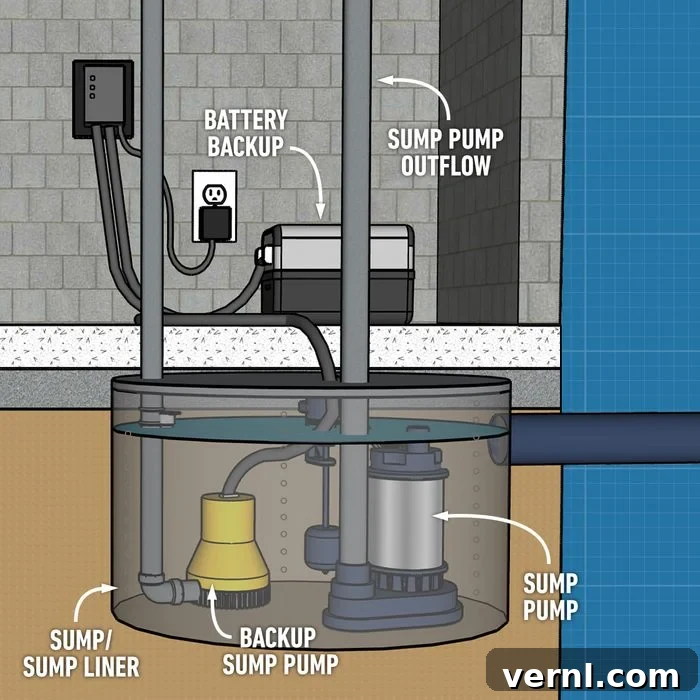

Place your main and backup sump pumps into the bottom of the sump tank: Carefully lower both your main submersible sump pump and the battery-operated backup pump into the bottom of the newly installed sump tank. Given that battery-powered backup pumps are generally more compact, they should fit comfortably alongside the main pump within the standard 18-inch diameter sump tank. Arrange them so their float switches have ample room to move freely without obstruction.
Position the backup pump’s float switch strategically: This is a vital redundancy measure. Position your battery-powered backup pump so that its float switch is several inches higher than the float switch of the main pump. The intention here is clear: you only want the battery-powered backup pump to activate if the primary pump fails to keep up with the water, or if there’s a power outage that renders the main pump inoperable. This staggered activation ensures the backup pump conserves its battery power for genuine emergency situations.
Connect pumps to discharge lines using PVC cement and fittings: Using PVC cement, securely join 2-inch PVC elbow fittings to short lengths of PVC pipe. You will need to cut these pipe segments to precise lengths with your hand saw, customizing them to connect seamlessly from your pumps to the factory-made holes in the sump tank lid. These connections form the initial upward path of the discharged water. Ensure all connections are tight and thoroughly cemented to prevent any leaks.
Extend pipes to the wall connections: Add more lengths of 2-inch PVC pipe and additional fittings (straight couplers or elbows) as needed. Bond these together using PVC cement, extending the internal discharge pipes from the sump tank towards the basement wall where you previously drilled the discharge holes. Aim for a clean, vertical, and sturdy pipe run.
Join internal and external pipes: Utilize 90-degree elbows and PVC cement to connect the two vertical pipes rising from the sump tank to the corresponding discharge pipes that are already threaded through the basement wall. Before making the final connections, cut the vertical pipes to the exact length required to create a tight and secure joint. Ensure the connection points are robust and leak-proof.

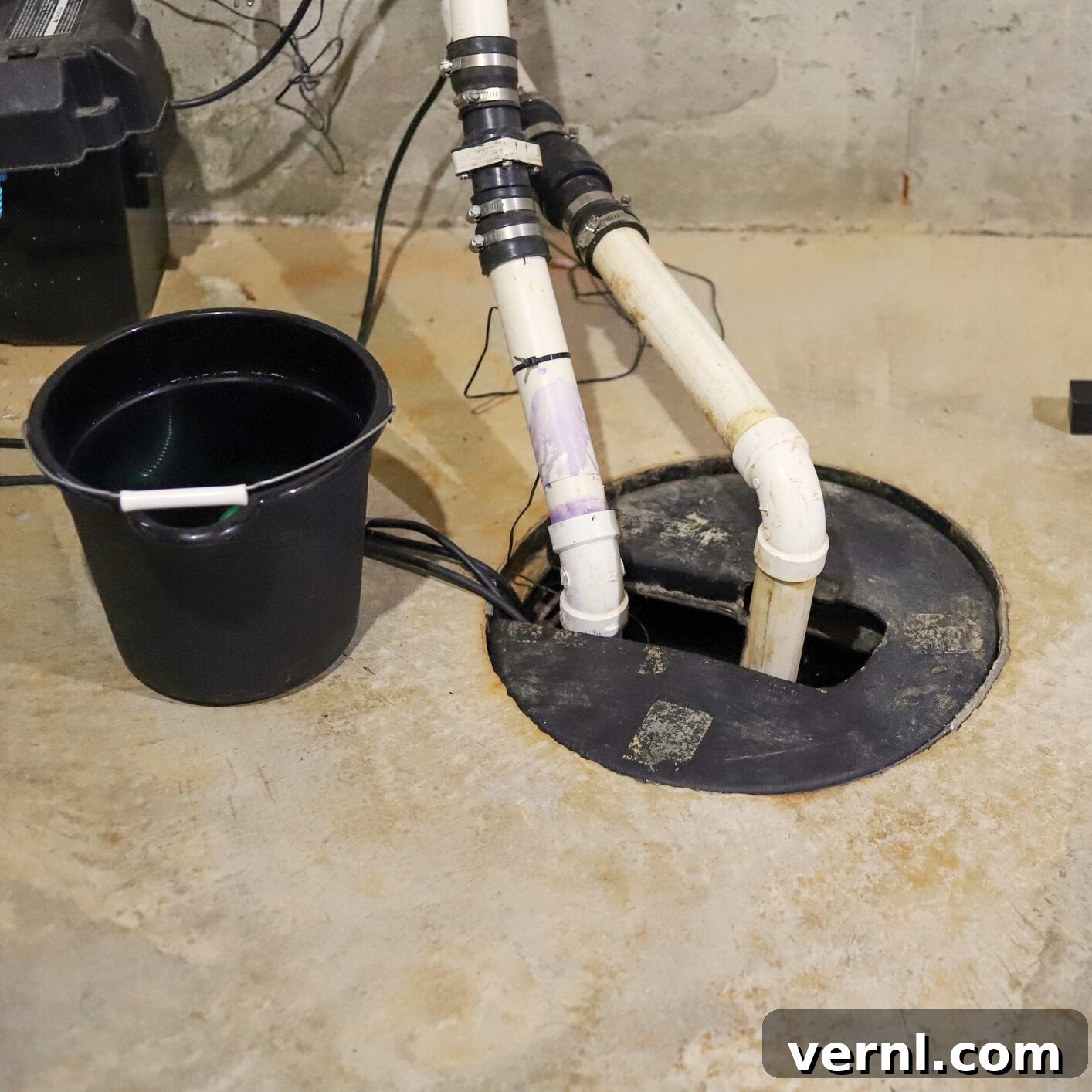

Test your pumps: Before sealing everything up, it’s crucial to test your newly installed system. If water hasn’t naturally collected in your sump tank, pour several five-gallon buckets of water into it until the water level rises to activate the float switches. Plug in your main pump first (if it’s not already plugged into the GFCI outlet) and observe its operation. It should turn on, pump the water out, and then shut off as the water level drops. For the battery-operated backup pump, you’re primarily plugging in its charger. However, you should also manually lift its float switch to ensure it activates and discharges water correctly. This verifies its operational readiness.
Power up both pumps for continuous protection: After confirming both pumps function properly, ensure they are both fully connected. The main pump should be plugged directly into the GFCI outlet. The battery for your backup pump should be connected to its charger, and the charger itself plugged into a GFCI outlet. This setup ensures that your backup pump’s battery is continuously charged and ready to take over at a moment’s notice, providing uninterrupted basement protection.

Finalizing the Installation: Sealing the Discharge Holes

The last step in the installation process is to properly seal the holes in your basement wall. This seemingly small detail is critical for preventing drafts, pests, and moisture from entering your home through the pipe openings.

Inject spray foam into the wall holes: Once all the discharge pipes are securely in place and tested, take your can of expanding spray foam. Carefully and thoroughly inject the foam into all the gaps and voids around the discharge pipes where they pass through your basement wall. Ensure complete coverage to create an airtight and watertight seal. The foam will expand to fill irregular spaces, providing excellent insulation and a barrier against external elements.
Allow the foam to fully harden: After injecting the spray foam, allow it ample time to expand and fully harden according to the product manufacturer’s instructions. This usually takes several hours. Once cured, the foam will create a rigid, permanent seal, completing your professional sump pump installation and securing your basement against water intrusion and other environmental factors. Regularly inspect the discharge area for blockages and ensure the pumps are functioning optimally to maintain a dry and protected basement for years to come.
