When you consider most standard measurements, an increase in number usually signifies an increase in size. For instance, pipe sizes expand with larger diameters, and lumber dimensions grow with higher numbers. Yet, a peculiar inversion occurs with electrical wire: a higher gauge number corresponds to a thinner wire. This seemingly counter-intuitive system is not arbitrary but rather a direct reflection of the historical and ongoing manufacturing process.
For centuries, artisans and manufacturers have produced wire by drawing a metal rod through a series of successively smaller conical openings, known as dies. Each pass through a smaller die reduces the wire’s diameter, gradually thinning it. The gauge number historically represented the number of times the wire had been drawn through these dies to achieve its final thickness. While modern manufacturing is highly automated, the fundamental principle remains the same, explaining why a higher gauge number still signifies a wire that has undergone more drawing processes, resulting in a smaller diameter and a thinner conductor.
Wire gauge is an indispensable parameter across a multitude of trades and applications, from intricate jewelry making where precise dimensions are critical, to large-scale construction projects requiring robust electrical infrastructure. Its importance becomes absolutely paramount when wires are tasked with carrying electrical current. The ability of a wire to safely conduct electricity without overheating is directly proportional to its cross-sectional area. Larger-diameter wires, which correspond to smaller gauge numbers, possess greater cross-sectional areas, allowing them to conduct significantly larger currents with minimal resistance and heat generation. Conversely, these thicker wires are less flexible and generally more costly to produce and install.
Understanding this relationship is crucial for electricians and DIY enthusiasts alike. Using an undersized wire for a given electrical load can lead to dangerous overheating, potential insulation damage, and even fire. It can also cause undesirable voltage drops, which reduce the efficiency and lifespan of connected appliances and equipment. To mitigate these risks and ensure safety, regulatory bodies establish clear guidelines. The National Electrical Code (NEC), for example, provides comprehensive current limits for commonly used wire gauges, helping professionals and homeowners select the appropriate wire for every application. These crucial standards, vital for safeguarding electrical installations, are often highlighted in resources like checklists provided by experts such as master electrician John Williamson, the retired chief electrical inspector for the Minnesota Department of Labor and Industry.
Types of Wire Gauge Systems
The establishment of standardized wire gauge systems was a monumental step in ensuring consistency and interoperability within industries. Imagine the chaos if a “12-gauge” wire in one region differed significantly from a “12-gauge” wire elsewhere. This standardization, which began with jewelers and artisans in the Middle Ages utilizing uniform draw plates (or dies), remains equally vital for global electrical and manufacturing sectors today. These systems guarantee that a specified gauge wire purchased from any supplier adheres to precise dimensional specifications, facilitating reliable and safe designs.
While the underlying principle of wire drawing is universal, various standardized systems have evolved globally. Among the most prominent are: the British Standard Wire Gauge (SWG), which is still prevalent in the United Kingdom and some British Overseas Territories; the Society of Automotive Engineers (SAE) system, predominantly used in automotive applications and typically measures wire dimensions in millimeters; and the American Wire Gauge (AWG) system. The AWG system, which uses Imperial units (inches), is the most widely adopted standard across North America for electrical conductors. Introduced in 1857 by Joseph Brown and Lucius Sharpe, it is also frequently referred to as the Brown & Sharp (or B & S) system, a testament to its originators.
How Does the AWG System Work?
The AWG system meticulously defines 44 standard wire sizes, ranging from the largest, 0000 (often denoted as 4/0 or “four aught”), down to the very fine 40-gauge. Each AWG number, such as 12-gauge (also expressed as 12 AWG or #12), correlates not only to the conceptual “number of dies used” in the historical manufacturing context but, more importantly, to a precisely defined wire diameter. Both the diameter and the critical cross-sectional area of an AWG wire must conform to stringent industry standards. This precise adherence ensures that the wire can safely and efficiently carry its designated electrical load without risk of overheating or excessive voltage drop.
A fascinating mathematical relationship underpins the AWG system, making it incredibly consistent and predictable. This relationship is based on a specific ratio between defined diameters within the standard. Understanding these rules simplifies gauge conversions and clarifies the impact of wire size on electrical performance:
- Cross-sectional Area: One of the most critical relationships for electrical applications is how the cross-sectional area (measured in square inches or circular mils) changes. For every three steps a gauge decreases (meaning the wire gets thicker), the cross-sectional area of the wire roughly doubles. For instance, a 15-gauge wire boasts approximately twice the cross-sectional area of an 18-gauge wire. This implies that two 18-gauge wires would collectively offer a similar current-carrying capacity to a single 15-gauge wire. (It’s worth noting that 15-gauge wire is uncommon in standard home electrical installations.)
- Diameter: The relationship with wire diameter is also precise. Doubling or halving the wire’s diameter (measured in inches) corresponds to a change of exactly six gauge steps. For example, an 8-gauge wire has twice the diameter of a 14-gauge wire. This might seem like a small change, but doubling the diameter of a wire actually increases its cross-sectional area by a factor of four, dramatically improving its current-carrying capability.

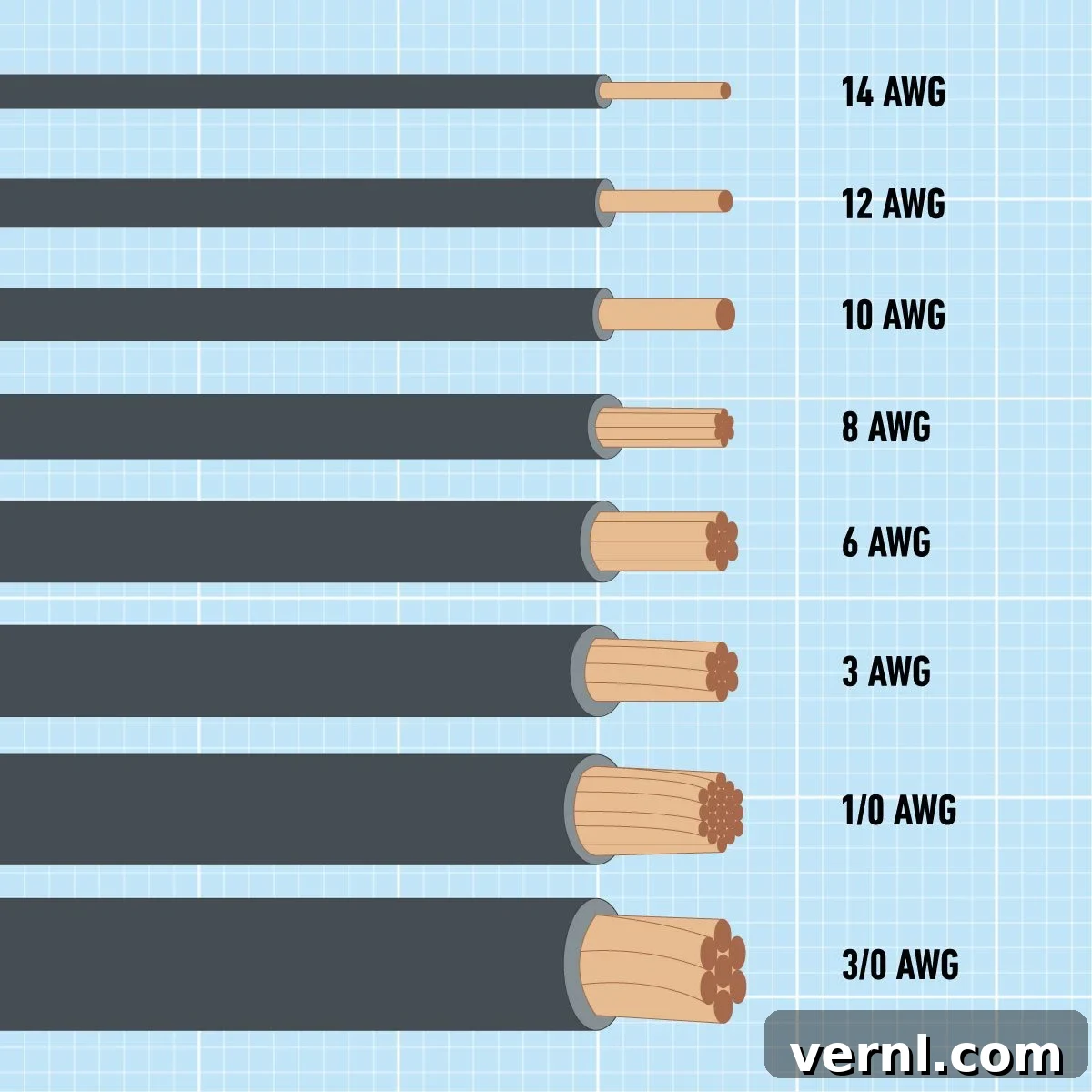

The largest standard AWG wire is #0000, commonly referred to as 4/0 and pronounced “four aught.” This robust conductor has a significant diameter of 0.46 inches. As the gauge number increases, the wire diameter decreases. So, the next smaller size after 4/0 is 3/0, followed by 2/0, then 1/0. After 1/0, the numbers transition to positive integers, with #1, #2, #3, and so on, continuing the trend of decreasing wire size as the number increases. Theoretically, there’s no limit to the number of possible gauges as long as they adhere to the established mathematical ratio; however, the standard AWG table typically lists gauges from 4/0 down to 56 AWG, covering an immense range of applications.
For conductors that are even larger than the 4/0 AWG size, the AWG system is typically superseded by a different measurement unit: circular mils. At this point, these extremely large conductors are no longer referred to by an AWG gauge number but by their cross-sectional area in circular mils, signifying their massive current-carrying capacity required for major industrial or utility applications.
Historically, the gauge numbers began at 1/0 and increased sequentially with decreasing wire size, reaching as high as 40 AWG, which represented the thinnest available wire at the time. However, advancements in manufacturing have allowed for the production of even thicker wires than 1/0. Consequently, for these extremely large conductors, the gauge number now increases in the opposite direction. For example, 2/0 wire is thicker than 1/0 wire, 3/0 is thicker than 2/0, and 4/0 wire, with its 0.46-inch diameter, stands as the thickest standard AWG size available.
Purchasing Electrical Wire
When purchasing electrical wires, it’s essential to understand that the AWG number refers solely to the metallic conductor itself, not including the thickness of its insulation. All electrical wires designed for household or commercial use must be encased in a durable plastic or rubber coating for safety, providing crucial protection against electrical shock and short circuits. For most electrical applications, you will require two or more conductors, which are typically sold bundled together within a protective outer jacket, forming what is known as a cable. The cable jacket usually displays the wire gauge followed by the number of insulated conductors it contains (which does not count the bare or green-insulated ground conductor). For instance, a label of “14/2 cable” indicates a cable containing two insulated 14-gauge wires plus a ground wire.
Electrical wires are commonly available in two primary forms: solid and stranded. Solid wire consists of a single, solid piece of metal conductor for a given gauge. It is generally more rigid, less flexible, and better suited for applications where the wire will not be moved frequently, such as within walls. Stranded wire, on the other hand, is composed of numerous smaller-gauge wires twisted or braided together to form a larger conductor of a specific overall gauge. Due to the inherent small air gaps between the individual strands, a stranded wire of a particular gauge will typically have a slightly larger overall diameter than a solid wire of the exact same gauge. However, its primary advantage lies in its superior flexibility, making it ideal for applications requiring frequent movement, such as extension cords, appliance cords, or automotive wiring.
When purchasing stranded wire, the cable jacket will often provide detailed stranding information alongside the AWG gauge. This information typically specifies the overall gauge of the conductor, followed by the number of individual strands and the gauge of each strand. For example, a label reading “16 AWG 26/30 wire” signifies a 16-gauge conductor that is made up of 26 individual strands, with each strand being a 30-gauge wire. Understanding these specifications is vital for selecting the correct wire type for its intended application, balancing flexibility, current capacity, and ease of installation.
Wire Gauge in Electrical Work
For anyone undertaking DIY electrical wiring projects or engaging in professional electrical installations, selecting the correct wire gauge is not merely a matter of compliance but a critical safety imperative. Improper wire sizing, specifically using wire that is too thin for the anticipated electrical load, can have severe consequences. These include dangerous overheating of the wire, which can lead to insulation degradation, short circuits, and a significant risk of electrical fires. Additionally, undersized wires can cause noticeable voltage drops across the circuit, leading to diminished performance, inefficiency, and premature failure of connected appliances and electronic equipment. While a range of gauges from 4 to 18 AWG are commonly encountered in residential wiring, 18-gauge wire is generally reserved for very low-voltage lighting and small appliances due to its limited current-carrying capacity.
Here are some common applications and their corresponding recommended wire gauges, based on typical current draw and NEC guidelines:
- 4-gauge (AWG): This heavy-duty wire is typically specified for high-amperage, 240-volt circuits. Common applications include large electric furnaces, central air conditioning units, and other major HVAC equipment that can draw up to 60 amps.
- 6-gauge (AWG): Used for dedicated 240-volt circuits supplying major kitchen appliances such as electric stoves, ranges, and cooktops. These appliances often draw substantial current, typically ranging from 40 to 50 amps.
- 8-gauge (AWG): Suitable for 240-volt appliances that require between 30 and 40 amps. Examples include smaller electric water heaters or dedicated circuits for power-hungry shop tools.
- 10-gauge (AWG): Commonly used for 240-volt circuits for electric clothes dryers, standard water heaters, and larger window or central air conditioning units drawing up to 30 amps.
- 12-gauge (AWG): A very common size for 120-volt general-purpose circuits in kitchens, bathrooms, and outdoor receptacles, as well as for smaller 120-volt air conditioners. These circuits are typically protected by 20-amp circuit breakers.
- 14-gauge (AWG): The standard for 120-volt general household lighting circuits and receptacle circuits that draw a maximum of 15 amps. This is widely used for light fixtures, lamp circuits, and other low-to-moderate demand loads.
- 16-gauge (AWG): Primarily used for light-duty 120-volt extension cords and appliance cords that draw a maximum of 13 amps. It’s not typically used for permanent installed wiring.
- 18-gauge (AWG): Reserved for very low-voltage applications, such as landscape lighting systems, lamp cords, or specialized appliance cords drawing a maximum of 10 amps. It has limited use in standard residential electrical installations.
Beyond the common power wiring applications, higher-gauge (thinner) wires are extensively used for various specialized low-voltage applications. For instance, when connecting a room thermostat to the low-voltage transformer of an HVAC unit, you will typically use 18- or even 20-gauge wire. Similar gauges are also appropriate for wiring most standard doorbells. For modern network communications within a home, such as Ethernet connections, even finer wires are employed. Category 5e (Cat5e) cables often use 24-gauge conductors, while the current networking standard, Category 6 (Cat6) cable, typically encloses a bundle of four twisted pairs of 23-gauge conductors, each designed for high-speed data transmission rather than significant current flow.
Sources
- ASTM.org: “Standard Specification for Standard Nominal Diameters and Cross-Sectional Areas of AWG Sizes of Solid Round Wires Used as Electrical Conductors”
