Unlock Precision: Build Your Own DIY Circular Saw Guide System for Perfect Cuts
Are you tired of wavy cuts and inconsistent measurements when working with your circular saw? Do you dream of making cuts with the precision and speed of a table saw, but without the bulky footprint or hefty price tag? Look no further! This comprehensive guide will walk you through creating two essential circular saw guides that will revolutionize your woodworking projects. Designed for accuracy, these DIY jigs empower you to achieve cabinet-quality results, whether you’re ripping long boards or making perfectly square crosscuts.
Building these two indispensable saw guides is a surprisingly quick and easy project. In just two to three hours, you can construct both from a single, readily available sheet of MDF or plywood. Our detailed instructions ensure that your guides will produce cuts so accurate, they’ll rival those made on a professional table saw. Forget the frustration of wrestling large sheets of material; with these custom guides, precision is at your fingertips, making every cut confident and clean.
Why a DIY Circular Saw Guide is Essential for Every Woodworker
For many DIY enthusiasts and seasoned woodworkers alike, the circular saw is a foundational tool. Its portability and versatility make it indispensable for tasks ranging from breaking down sheet goods to cutting dimensional lumber. However, achieving consistently straight and square cuts freehand can be a significant challenge, often leading to wasted material and compromised project quality. This is where a well-built circular saw guide system becomes a game-changer.
The Challenge of Freehand Cutting
Without a reliable guide, maintaining a perfectly straight line with a circular saw requires immense concentration and a steady hand. Even a slight deviation can result in an unsightly wavy edge or an inaccurate dimension, which can throw off an entire project, especially when building furniture or cabinets. These DIY guides eliminate human error, providing a rock-solid reference point for your saw.
The Table Saw Alternative: Precision Without the Footprint
While a table saw is the gold standard for many woodworking tasks, it’s not always practical. They are expensive, require significant space, and can be cumbersome to maneuver, especially when handling large sheets of plywood or MDF. Our DIY circular saw guides offer an excellent, cost-effective, and space-saving alternative. They allow you to achieve similar levels of accuracy for rip cuts and crosscuts, making them perfect for smaller shops, garages, or even on-site work where a table saw isn’t feasible.
Unmatched Accuracy and Efficiency for Every Project
Once custom-fitted to your specific circular saw, these guides simplify the cutting process dramatically. You’ll no longer need to spend time precisely measuring the offset from your cut line to the saw blade’s edge. Instead, you simply align the guide’s edge directly with your desired cut line, clamp it down, and make your cut. This streamlines your workflow, saves time, and significantly boosts the accuracy of every project, from shelving units to intricate cabinet components.
Materials and Tools: Gearing Up for Your Build
Preparation is key to any successful DIY project. Having all your materials and tools laid out before you begin will save you valuable time and prevent frustrating interruptions. For these two guides, you’ll find that the material list is minimal, cost-effective, and easily sourced.
Choosing the Right Materials: Why MDF?
You can acquire all the necessary parts for both guides from a single 4 x 8-ft. sheet of 1/2-in. MDF (Medium-Density Fiberboard). We specifically recommend MDF for these clamp-and-cut edge guides due to several distinct advantages:
- Inexpensive: MDF is a budget-friendly material, making this project accessible to everyone.
- Stable: It’s known for its dimensional stability, meaning it resists warping and twisting, which is crucial for maintaining straight and square edges on your guides over time.
- Readily Available: You can find 1/2-inch MDF sheets at nearly any home center or lumberyard.
- Smooth Surface: Its smooth, consistent surface allows your circular saw base to glide effortlessly, ensuring clean and consistent cuts.
Important Note on MDF Dust: Cutting MDF generates a significant amount of fine dust. Always wear a high-quality dust mask (N95 or better) to protect your lungs. If cutting indoors, open windows and use a fan for ventilation. Consider performing cuts outdoors if possible.
Inspecting Your MDF Sheet: Since you’ll be relying on the factory edges of the MDF as reference points for your guides, carefully inspect the sheet before purchase. Ensure the edges are perfectly straight, without any dings, dents, or damage. Handle the sheet with care during transport to avoid compromising these critical edges. If transporting a full 4×8 sheet is challenging, ask the lumberyard to rip it into two 2×8-ft. pieces, which are much easier to manage.
Required Materials for this Project:
- 1/2-in. x 4 x 8-ft. MDF sheet
- Wood glue (high-quality wood adhesive)
- Three No. 8 x 7/8-in. round head screws
- One 1/4-in. washer
Essential Tools for a Smooth Build:
Having the right tools on hand will make this DIY project a breeze. Most of these are common items found in any woodworking or DIY toolkit:
- Circular saw (your primary cutting tool)
- Clamps (essential for securing guides during use and assembly)
- Cordless drill (for pre-drilling and driving screws)
- Drill bit set (various sizes, including 1/8-in. and 3/8-in.)
- Dust mask (critical for MDF safety)
- Framing square (for checking and ensuring perfect 90-degree angles)
- Safety glasses (always protect your eyes)
- Straightedge (a long ruler or a trusted factory edge for marking lines)
Project Overview: What You’ll Be Building
This project yields two distinct yet equally valuable circular saw guides, each designed for a specific type of precision cut. Understanding their individual purposes will help you appreciate their utility in your workshop.
The Versatile Straightedge Guide: Master Your Rip Cuts
This straightedge guide is your go-to solution for breaking down large sheets of material quickly and accurately. It’s the perfect rip cut circular saw guide, allowing you to make perfectly straight cuts up to 8 ft. long with ease. Whether you’re ripping shelves, cabinet parts, or other long components from a 4 x 8-ft. sheet of plywood or MDF, this guide ensures clean, cabinet-quality edges. Even if you own a table saw, you’ll often find it much easier and safer to use this circular saw guide than to wrestle a cumbersome, full sheet of plywood through your stationary saw. Its design is customized to your specific circular saw, allowing you to simply align the edge of the guide with your desired cutting marks, clamp it down, and achieve a flawless, straight rip.

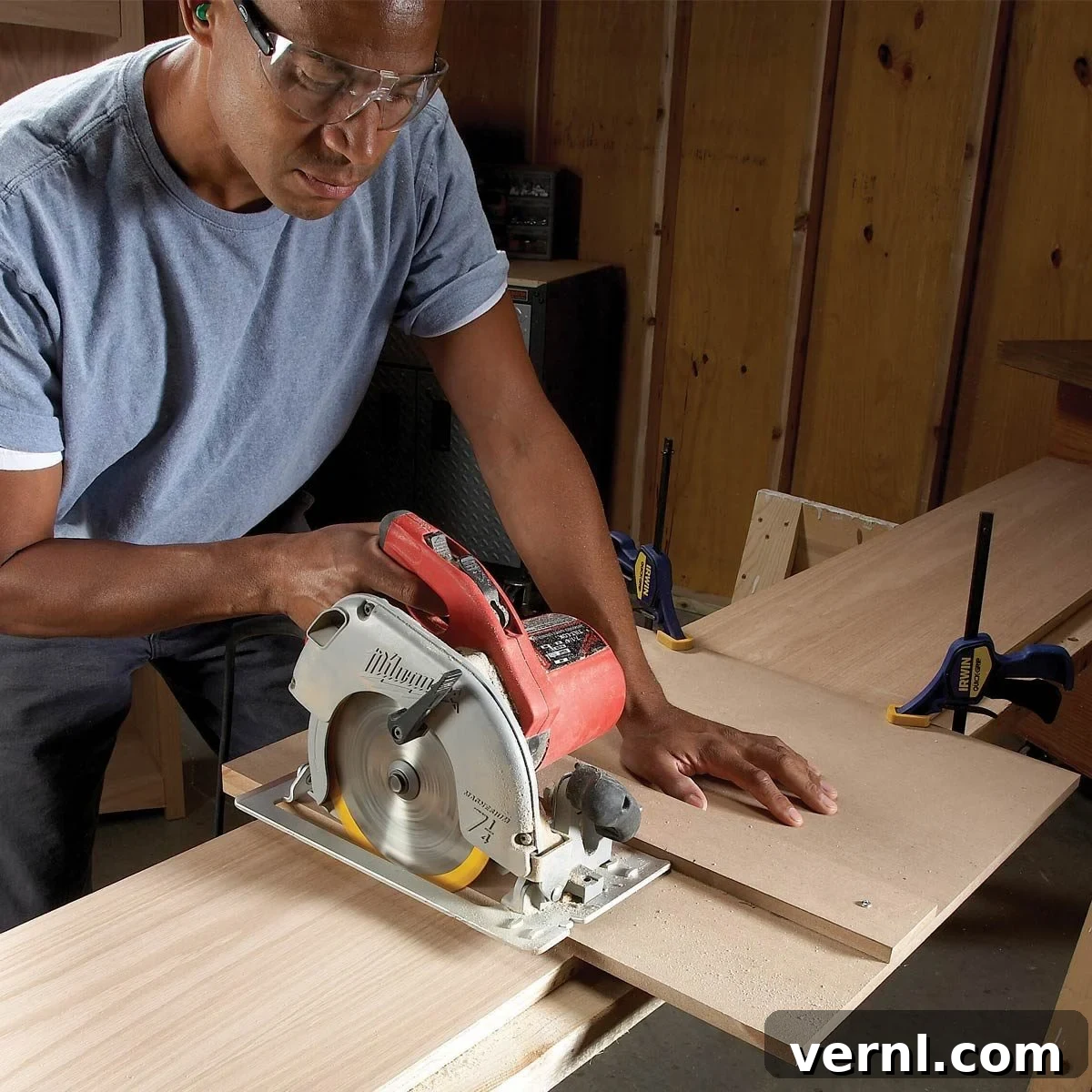

The Indispensable Crosscut Guide: Achieve Flawless Square Cuts
For precise right-angle cuts, this crosscut guide is an absolute must-have accessory. Build this handy tool in about an hour, and it will immediately become your best friend for achieving perfectly square crosscuts on shelves, cabinet rails, or any board up to 18 inches wide. Like its straightedge counterpart, this guide is customized to your saw’s dimensions, meaning you simply align its edge with your cut line, secure it with clamps, and run your saw along the fence. The result? Flawlessly square cuts every single time, making your assemblies tighter and more professional.
Step-by-Step Guide: Crafting Your Straightedge Circular Saw Guide
Say goodbye to wavy cuts forever with this incredibly easy-to-build straightedge guide. The construction process is straightforward, but precision in alignment is paramount. Follow these steps carefully to ensure your guide delivers perfect straight cuts for years to come.
Preparing Your MDF Sheet for the Straightedge Guide
The foundation of your straightedge guide begins with your 4×8 MDF sheet.
First, draw a straight line approximately 6 inches in from one of the long factory edges of your MDF sheet. This line doesn’t need to be perfectly precise, as it serves as an initial cutting reference.
Using your circular saw, make a cut along this line. This will create a 6-inch wide strip from your MDF sheet. This strip will become the “fence” of your straightedge guide, which your circular saw will run against during use.
The Critical Fence Alignment: Ensuring Perfect Straightness (Photo 1)
The success of your straightedge guide hinges on having a perfectly straight fence. This step is crucial for achieving truly straight cuts.
Flip the 6-inch strip (the fence) over onto the remaining larger section of your MDF sheet. Carefully align one of the saw-cut edges of the fence strip with a corresponding saw-cut edge of the larger MDF piece. The goal here is to use the two freshly cut edges to create a perfectly straight reference. Clamp the fence firmly in this position.
Once clamped, use a fine-tipped pencil or marking knife to draw a thin, precise line along the *factory edge* of the fence strip where it meets the larger MDF piece. This line will be your guide for gluing, ensuring the fence remains perfectly straight.
Now, flip the fence strip over once more, returning it to its original orientation. Apply a generous, even layer of wood glue to the surface of the fence that will face down and contact the larger MDF base.
Carefully align the factory edge of the fence with the pencil line you just drew on the base. It’s essential to be precise here. Allow the fence to hang over one end of the guide by approximately 2 inches (refer to Figure A for visual guidance). This overhang should be at the end where you typically start your circular saw cuts. This slight extension helps the saw get a stable, straight start before it fully engages with the workpiece, preventing any initial wobbles.
Firmly clamp the fence to the base along its entire length, ensuring it stays perfectly aligned with your pencil line. As you clamp, be mindful not to push the fence off the line. Allow the glue to set for at least 20 minutes, or according to the glue manufacturer’s instructions, to ensure a strong bond. Overnight curing is even better if time allows.

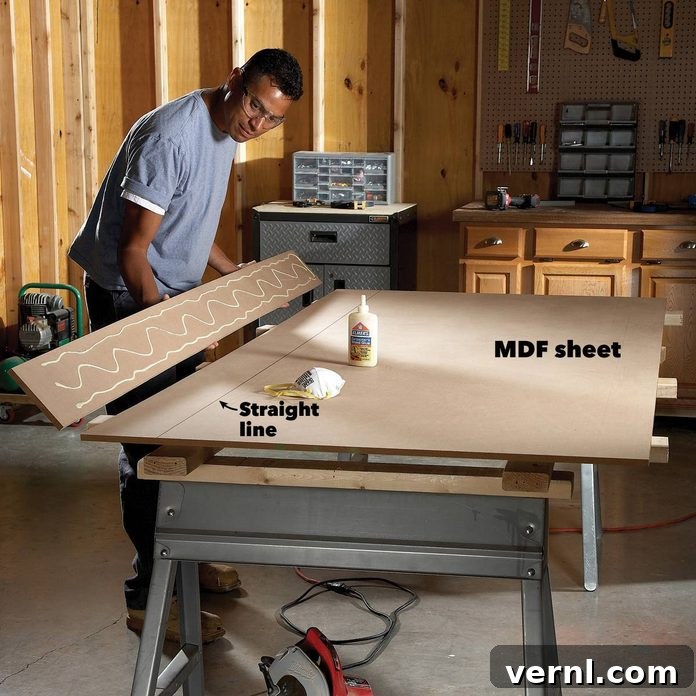

Photo 1: Glue the Fence – Apply wood glue to the fence strip and carefully align its factory edge with the pencil line on the base. Clamp firmly, ensuring no misalignment during the gluing process.
Customizing Your Guide to Your Saw’s Kerf (Photo 2 & Figure A)
This next step is where your guide becomes truly custom-fitted to your circular saw. It allows you to use the edge of the guide as your exact cut line, eliminating the need for measuring your saw’s offset.
Once the glue has fully cured and the fence is securely attached, it’s time to trim the base of the guide. Place your circular saw on the guide, with the saw’s base plate resting flat on the MDF and the blade side snug against the newly glued fence.
Carefully run your circular saw along the fence, making a cut that will trim the excess material from the base of the guide. This cut essentially creates the exact edge that your saw blade will follow, making the guide ‘zero clearance’ to your saw.

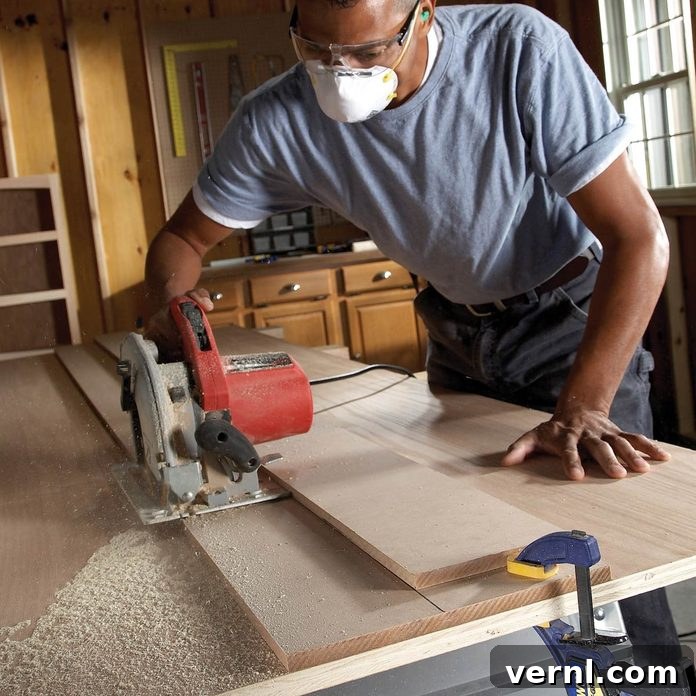

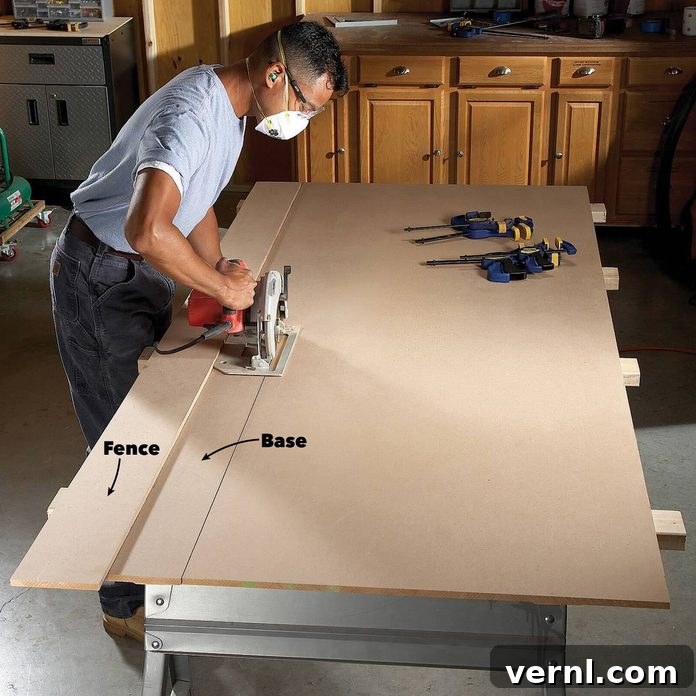

Photo 2: Cut the Guide – With the fence firmly glued, run your circular saw along it to trim the base. This step customizes the guide to your saw, creating a precise cutting edge.
Now you have a straightedge guide that will give you perfectly straight cuts up to 8 ft. long! The trimmed edge of the guide is now exactly where your saw blade will cut. To use the guide, simply align this trimmed edge with your pencil mark on the workpiece, clamp it down, and make your cut.
Figure A: Straightedge Guide Details
This diagram illustrates the assembly of your straightedge guide, emphasizing the fence and base configuration.
Glue the fence securely to the base. Once dry, run your circular saw against the fence to precisely trim the guide’s base. The factory edge of the MDF is utilized for the fence to ensure maximum straightness. When you’re ready to make a cut, simply clamp the guide to your material, ensuring the newly cut edge of the guide aligns perfectly with your desired cut line. This method guarantees accurate, straight rips every time.

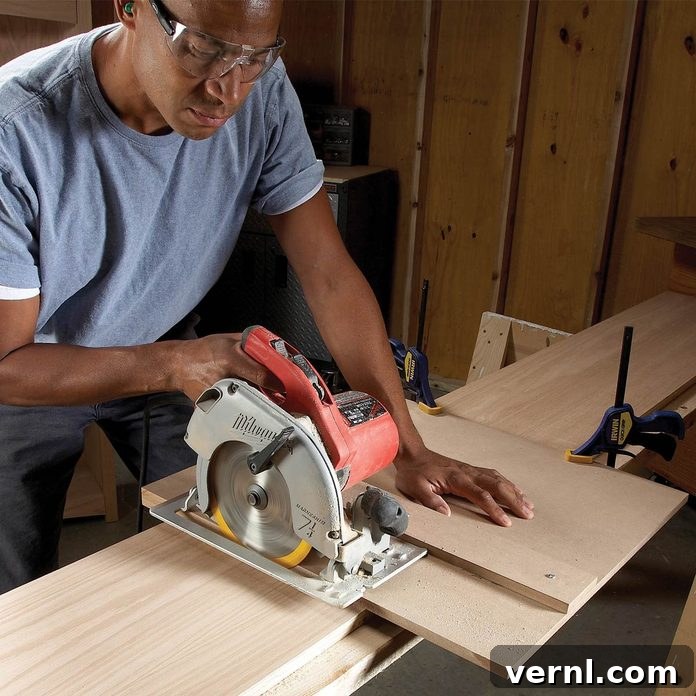

Mastering Right Angles: Building Your Crosscut Circular Saw Guide
Precision right-angle cuts are fundamental to quality woodworking, especially when building projects like cabinets, drawers, or frames. This crosscut guide will allow you to make perfectly square crosscuts quickly and consistently on pieces up to 18 inches wide. Like the straightedge guide, it’s customized to your specific saw, enabling you to align its edge directly with your cutting mark, clamp it, and achieve flawless 90-degree cuts.
Initial Cuts for the Crosscut Guide Components
Begin by carefully cutting a 22-inch by 22-inch square from a corner of your remaining MDF sheet. This square will form the primary base of your crosscut guide.
Next, from another remaining factory edge of the MDF sheet, cut a 3-inch-wide strip. This strip should be long enough to yield two 22-inch-long pieces. Cut this strip into two separate 3-inch x 22-inch pieces. These pieces will serve as the fence and the adjustable stop for your crosscut guide.
On one of the 3-inch x 22-inch pieces (this will be your adjustable stop), drill a 1/8-inch hole at one end and a larger 3/8-inch hole at the other end. The 1/8-inch hole will accommodate a screw that acts as a pivot point (“swivel” screw), while the 3/8-inch hole will allow for slight adjustments (“adjustment” screw) to achieve a perfect 90-degree angle.
Assembling the Adjustable Stop: The Key to Precision (Photo 3 & Figure B)
Photos 1 and 2 (from the straightedge guide) previously demonstrated general gluing and cutting. For the crosscut guide, the critical steps involve attaching the fence and calibrating the adjustable stop. Here’s how to proceed:
Take the 22-inch square base and one of the 3-inch x 22-inch strips (this will be your fence). Align the factory edge of this fence piece along one edge of the base, similar to how you glued the fence for the straightedge guide. Use wood glue and clamps to securely attach it, ensuring it’s perfectly straight and flush with the edge of the base. Once dry, use your circular saw to trim the base, creating a zero-clearance edge specific to your saw, just as you did for the straightedge guide.
Now, take the other 3-inch x 22-inch strip (the one with the two drilled holes) and position it underneath the base. This piece is your adjustable stop. Align the edge of this stop with what will be the bottom edge of your base (opposite the fence you just glued and trimmed). Secure it initially with the “swivel” screw (through the 1/8-inch hole) and the “adjustment” screw (through the 3/8-inch hole) into the bottom of the base. Use the 1/4-inch washer under the head of the “swivel” screw to allow for smooth rotation, but don’t tighten it completely yet.
The most critical step in building this guide is ensuring that the adjustable stop is at an exact 90-degree angle to the fence. This is where precision and calibration come into play.

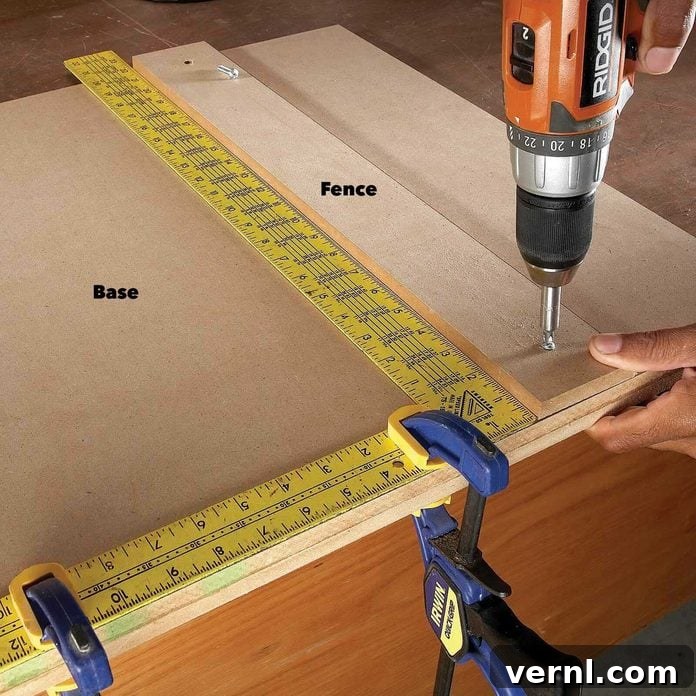

Photo 3: Align the Fence – Securely screw the fence to the base. Use a reliable framing square to align the fence precisely at 90 degrees to the bottom edge of the base before driving in the final screws. This ensures perfect perpendicularity.
Calibrating for Perfect 90-Degree Angles
Now for the fine-tuning. This process ensures your crosscut guide delivers perfectly square results.
First, secure the fence to the base with wood glue and additional screws for maximum rigidity. While the glue is setting, use a trusted framing square. Align the framing square with the bottom edge of the base and clamp it firmly in place. Then, align the fence precisely with the square before driving in additional screws to attach it permanently to the base. This establishes the initial squareness of the fence relative to the base.
Next, it’s time to calibrate the adjustable stop. Start by making a test cut on a scrap piece of wood using your newly assembled crosscut guide. Don’t worry if it’s not perfectly square yet.
After the test cut, use your framing square to check the cut for squareness. If the cut isn’t perfectly square (which is likely on the first try), loosen the “adjustment” screw slightly. Gently nudge the adjustable stop a tiny bit in the direction needed to correct the angle. Before re-tightening the screw, make a small, faint reference mark on the base next to the stop. This will help you gauge how much you’re moving it with each adjustment.
Retighten the adjustment screw, make another test cut on a fresh section of your scrap material, and re-check with the framing square. Repeat this process of loosening, nudging, marking, and testing until your guide consistently delivers perfectly square cuts. This iterative process, though seemingly tedious, is essential for a highly accurate jig.
Once you’ve achieved consistent, perfect 90-degree cuts, drive an additional screw through the adjustable stop into the base, right next to the adjustment screw. This extra screw will lock the stop permanently into its calibrated position, preventing it from shifting during future use.

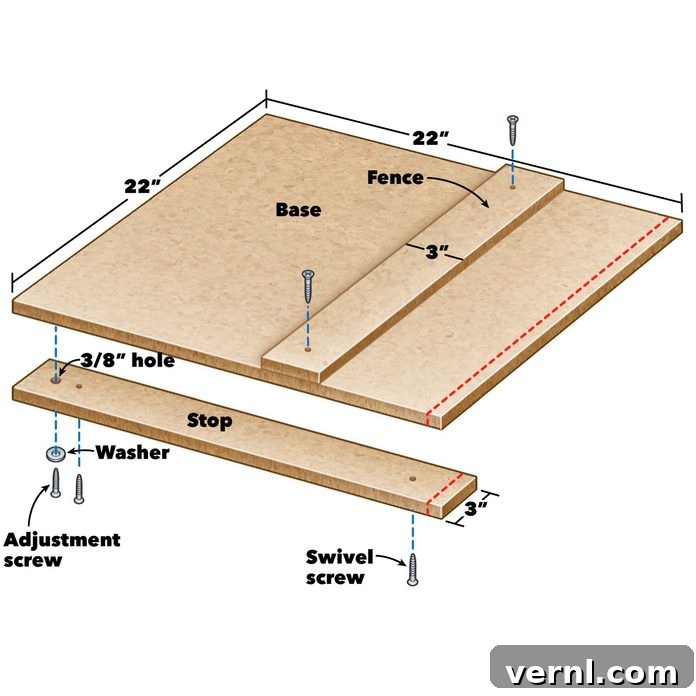

Figure B: Crosscut Guide Diagram
This illustration provides a detailed view of the crosscut guide’s construction, highlighting the adjustable stop mechanism. The key is to precisely adjust the position of the stop underneath the base until the fence guide is perfectly aligned at 90 degrees to the cutting edge created by your saw. This adjustable design ensures maximum accuracy for every crosscut. For more advanced tips on securing your work, explore some secret clamping hacks from woodworkers.
Tips for Maximizing Accuracy and Longevity
Building your DIY circular saw guides is the first step; using them effectively and maintaining them properly will ensure they serve you well for many projects to come. Here are some pro tips to enhance accuracy and extend the lifespan of your new jigs.
Secure Clamping Techniques
The effectiveness of your guides relies heavily on how securely they are clamped to your workpiece. Any movement during a cut will compromise accuracy. Always use at least two clamps for the straightedge guide (one at each end) and at least two for the crosscut guide. Ensure the clamps are tight but not so overtightened that they damage your workpiece or distort the guide. Position clamps to be out of the path of the saw blade and clear of your hands during operation.
Maintaining Your Guides
MDF is durable, but proper care will extend the life of your guides:
- Storage: Store your guides flat or hanging vertically to prevent warping. Avoid leaning them against walls for extended periods.
- Cleanliness: Regularly wipe down your guides to remove dust and sawdust. This ensures the saw slides smoothly and prevents buildup that could affect accuracy.
- Edge Protection: While robust, the cutting edge of your guides (the one created by your saw) can chip or get damaged if handled roughly. Treat them with care.
- Re-calibration: If you notice your cuts are no longer perfectly straight or square, it’s possible the guides have shifted or been damaged. Re-check their accuracy with a framing square and re-calibrate the crosscut guide if necessary.
Safety First: Best Practices for Circular Saw Use
Even with guides, circular saws are powerful tools that require respect:
- Personal Protective Equipment (PPE): Always wear safety glasses, hearing protection, and a dust mask.
- Sharp Blade: Use a sharp, clean blade appropriate for your material. A dull blade can bind, overheat, and produce rough cuts.
- Stable Workpiece: Ensure your workpiece is fully supported and stable. Don’t cut material that’s just hanging off the edge of a workbench.
- Proper Stance: Maintain a balanced stance and keep both hands on the saw (if appropriate for your saw and cut) or one hand firmly on the handle while the other stabilizes the saw’s body, maintaining control throughout the cut.
- Allow Blade to Reach Full Speed: Always allow the saw blade to reach its full RPM before engaging it with the material.
- Clear Cut Line: Ensure the path of the saw blade and the guide is clear of clamps, cords, and your hands.
Conclusion: Empower Your Woodworking with DIY Precision
By investing a few hours and a minimal amount of material, you’ve now equipped your workshop with a powerful duo of precision cutting tools. These DIY circular saw guides transform your standard circular saw into a high-accuracy cutting machine, capable of producing results that often surpass what’s achievable with freehand techniques or even dedicated table saws for specific tasks. From flawlessly straight rip cuts on large sheet goods to perfectly square crosscuts for joinery, these homemade jigs will elevate the quality and efficiency of all your woodworking projects.
Embrace the satisfaction of building your own tools and the confidence that comes with consistently accurate cuts. With these guides in hand, you’re not just making cuts; you’re crafting precision, one perfect edge at a time. Happy woodworking!
