Mastering Your Multimeter: A Comprehensive Guide to Essential Symbols and Functions

In the expansive realm of electricity, understanding how to measure its fundamental properties is not just a scientific pursuit but a practical necessity. From the earliest days of electrical experimentation to today’s sophisticated electronics, the ability to gauge electric current, voltage, and resistance has been paramount. What began with separate, cumbersome devices like galvanometers for current and voltmeters for voltage, evolved into a single, indispensable tool: the multimeter.

The journey from rudimentary electrical testers to modern multimeters is a fascinating one. Imagine the early 20th century, where lab technicians juggled multiple instruments to derive a complete picture of an electrical circuit. This changed dramatically in 1920 with the groundbreaking invention by British postal engineer Donald Macadie. He introduced the AVOmeter, a revolutionary device that could simultaneously measure Amps (A), Volts (V), and Ohms (O) – thus consolidating three crucial measurements into one portable unit. This innovation quickly transformed the work of electricians and technicians, making field diagnostics significantly more efficient.

Fast forward to the present, and today’s multimeters stand as direct descendants of the AVOmeter, albeit with vastly enhanced capabilities. While retaining the core functions of measuring voltage, current, and resistance, modern multimeters are far more sophisticated, offering a suite of additional tests. Depending on the model and its intended use, a contemporary multimeter can diagnose issues with diodes and capacitors, differentiate between alternating current (AC) and direct current (DC), and even measure the temperature of wires. The key to unlocking these powerful features lies in deciphering the array of symbols arranged around the device’s central dial – a language that, once understood, empowers anyone to perform essential electrical diagnostics.

For homeowners venturing into DIY electrical work, the sheer number of symbols on an advanced multimeter can seem daunting. Fortunately, multimeters designed for general home use or basic electronics are typically less complex than those found in professional electronics supply outlets. However, even these simplified versions present a learning curve. This comprehensive guide aims to demystify the essential electrical terms and symbols you’ll encounter on a standard multimeter, providing clear explanations and practical context for each function. By mastering these symbols, you’ll gain the confidence to safely and effectively troubleshoot common electrical issues around your home, ensuring both functionality and safety.

Understanding Multimeter Symbols: Your Gateway to Electrical Diagnostics

The dial of a multimeter is essentially its control panel, adorned with a variety of symbols that represent different measurement modes and ranges. Learning to interpret these symbols is the first critical step towards utilizing your multimeter effectively. Each symbol is a shorthand for a specific electrical property, enabling you to quickly switch between functions and obtain accurate readings.

Voltage Measurement: Illuminating Electrical Potential

Voltage, often described as electrical potential difference, is the “pressure” that pushes electrons through a circuit. Multimeters are adept at measuring both direct current (DC) voltage, typically found in batteries and electronic devices, and alternating current (AC) voltage, which powers our homes and businesses through wall outlets. This dual capability necessitates distinct symbols to avoid confusion and ensure accurate measurement.

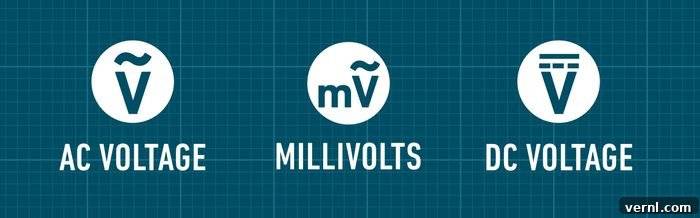

Multimeters can measure voltage across a wide range, from tiny millivolts to hundreds of volts. The choice of AC or DC voltage setting is crucial; selecting the wrong mode can lead to inaccurate readings or, in extreme cases, damage to the meter or the circuit being tested. Modern multimeters clearly distinguish these modes, often with subtle but important graphic cues.

• “V” with a wavy line over it (

  Current, measured in ampères or amps (A), represents the rate of electron flow through a circuit. It’s a measure of how much electricity is actually moving. Measuring current is different from measuring voltage; it requires the multimeter to be placed in series with the circuit, effectively becoming a part of the path the current travels. This means you must break the circuit to insert the meter, which also carries specific safety considerations.

  Just like voltage, current can be either AC or DC, and your multimeter will have distinct settings for each. Understanding current is vital for diagnosing overloaded circuits, checking the health of fuses, or determining the power draw of an appliance.

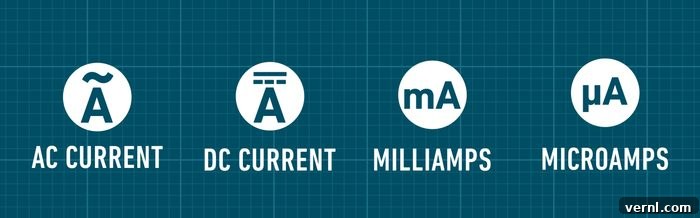

  • “A” with a wavy line over it (

    Resistance is the opposition to the flow of electric current in a circuit. Measured in ohms, resistance is a fundamental property that dictates how much current will flow for a given voltage. A multimeter measures resistance by sending a small, known current through the component or circuit and then measuring the resulting voltage drop. Using Ohm’s Law (V=IR), it calculates the resistance. Unlike voltage and current, resistance doesn’t distinguish between AC and DC; a resistor impedes current flow regardless of its direction.

    Understanding resistance helps identify faulty components, check the integrity of wires, and verify the values of resistors in electronic projects. On multimeters with manual range selection, you might need to choose the appropriate scale for optimal readings.

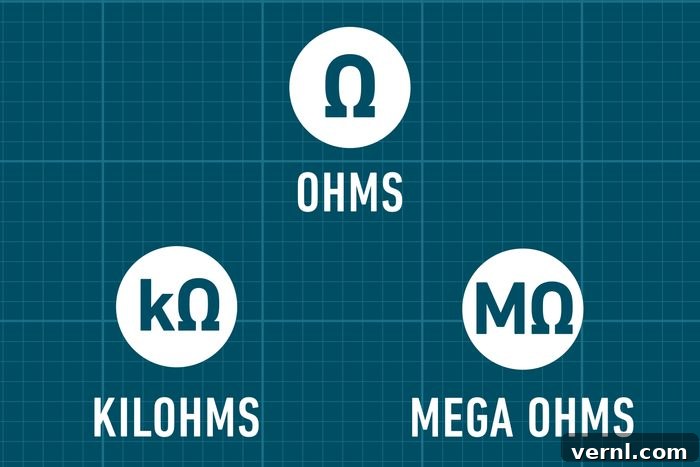

    • Ω = Ohms. The basic unit of electrical resistance. Use this setting to measure the resistance of wires, heating elements, light bulbs (when off), and resistors. A low ohm reading indicates less resistance, while a high reading indicates more.
    • kΩ = Kilohms. One thousand ohms. This range is used for components with moderate resistance values, which are common in many electronic circuits.
    • MΩ = Mega ohms. One million ohms. This range is for very high resistance values, often used to test insulation, verify open circuits, or check for leakage paths.

    Continuity Test: Is the Path Complete?

    The continuity test is arguably one of the most frequently used functions for DIYers using a multimeter. It’s designed to quickly determine if an electrical path exists between two points – essentially, if a circuit is “continuous” or “broken.” When you select the continuity setting, the meter measures resistance, but with a simplified output. There are primarily two outcomes:

    • Open Circuit (No Continuity): The circuit is broken, meaning there’s an infinite or very high resistance. The meter will typically display “OL” (Over Limit) or “1” (indicating an open circuit), and no sound will be produced.
    • Closed Circuit (Continuity): The circuit is intact, meaning there is a very low resistance (ideally 0 ohms or close to it). In this case, many multimeters emit an audible beep, providing instant feedback without needing to look at the display. This is incredibly useful for quickly checking fuses, light bulbs, switches, or identifying breaks in wires.

    The symbol for continuity on the dial settings often resembles a series of left-facing brackets of increasing size, similar to a sideways wireless reception symbol. This intuitive icon signifies the meter’s ability to “hear” a connection.

    Diode, Capacitance, and Temperature Tests: Advanced Diagnostics for Home and Hobby



    While core voltage, current, and resistance measurements are essential for any electrical work, many modern multimeters offer specialized functions that delve deeper into circuit diagnostics. These tests, though more commonly used by electronics technicians, can be incredibly valuable for homeowners tackling more complex repairs or hobbyists building electronic projects.

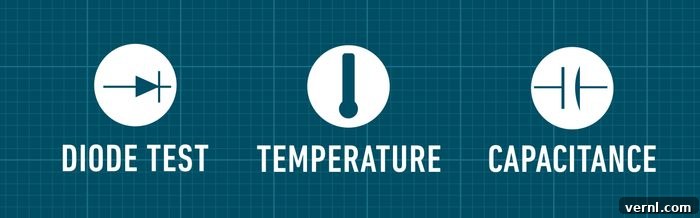

    • The diode test function is represented by an arrow pointing towards the center of a plus sign (electronic devices that temporarily store electrical charge, acting like tiny, fast-acting batteries. This function measures a capacitor’s capacitance (its ability to store charge), helping determine if it’s functioning correctly or has degraded over time. Faulty capacitors are a common cause of failure in power supplies and electronic circuits.
      • The temperature function is universally denoted by a thermometer symbol (circuit wires, motors, transformers, or even room temperature. Overheating wires or components can indicate an overload or a fault, making temperature measurement a crucial diagnostic tool for safety and preventative maintenance.

      Mastering the Interface: Jacks and Buttons for Precision and Safety



      Beyond the symbols on the dial, a multimeter’s functionality is also governed by its input jacks and control buttons. Each multimeter comes equipped with two test leads – one black and one red – which are essential for making electrical contact with the circuit. Correctly plugging these leads into the appropriate jacks is not just about getting an accurate reading; it’s critically important for your safety and to prevent damage to the meter itself. Incorrect lead placement, especially when measuring current, can lead to blown fuses within the multimeter or even more serious hazards.

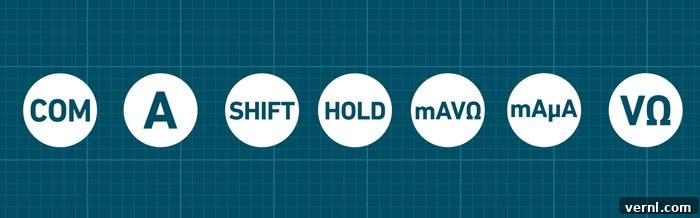

      • COM (Common): This is the ground or reference jack, almost always colored black. The black test lead is *always* plugged into the COM jack, regardless of the measurement you are taking. It serves as the negative connection point for all measurements.
      • A (Amps): This jack is specifically for measuring high currents, typically up to 10 amps (though some meters may go higher). If you are measuring a large current, the red lead goes into this jack. It’s crucial to remember that this jack is fused to protect the meter from excessive current. Always start with the highest current range if you are unsure of the expected value.
      • mAVΩ: On multimeters with only three jacks, this is the versatile jack where the red lead goes for nearly all other measurements. This includes sensitive current measurements (milliamps and microamps), voltage measurements (AC and DC), resistance, continuity, and often temperature. It combines multiple functions to save space.
      • mAµA: If your multimeter has four jacks, this dedicated jack is for sensitive current measurements – specifically milliamps (mA) and microamps (µA). It’s typically fused at a lower rating than the ‘A’ jack, making it suitable for delicate electronic work where high current could damage components. The red lead plugs in here for low-current readings.
      • VΩ: On four-jack multimeters, this is the dedicated jack for all voltage (AC and DC), resistance, continuity, diode, and capacitance measurements. It keeps these measurements separate from current measurements, simplifying the lead placement for common tests.

      Above the display, you’ll typically find a few buttons that offer additional control over the multimeter’s functions:

      • Shift (or Function/Select): To maximize functionality without cluttering the dial, manufacturers often assign two functions to a single dial position. The primary function is usually printed clearly, while a secondary function (often marked in a different color, like yellow) can be accessed by pressing the Shift button. This button allows you to toggle between related measurement types, such as AC and DC voltage on the same V setting, or between frequency and duty cycle.
      • Hold: Pressing this button will “freeze” the current reading on the display. This is incredibly useful when taking measurements in awkward or dimly lit locations where it’s difficult to read the display directly. You can remove the probes from the circuit, and the reading will remain on the screen for later reference or to record.

      Manual vs. Auto Range Multimeters: Choosing Your Convenience

      One of the significant advancements in multimeter technology has been the shift from manual ranging to auto-ranging capabilities. This distinction impacts how you interact with your device and the ease of obtaining accurate measurements.

      Older analog multimeters, with their characteristic needle and multiple scales, always required manual range selection. If the user set the meter to a very large range for a small measurement, the needle would barely move, making it impossible to read. Conversely, setting a small range for a large voltage or current could cause the needle to “peg” at its maximum, potentially damaging the meter and providing no useful data. Users had to estimate the expected value and select the most appropriate range to get a precise reading.

      The introduction of digital multimeters with LED or LCD displays in the 1970s marked a significant leap. While many early digital models still retained manual range settings, the trend has increasingly moved towards auto-ranging multimeters. An auto-ranging multimeter automatically detects the quantity being measured and selects the most appropriate range. This eliminates the guesswork and the need to manually adjust the dial for different ranges, simplifying operation considerably, especially for beginners or those working in varied environments.

      Auto-range multimeters offer several advantages:

      • Ease of Use: No need to know the approximate value before testing. The meter does the work for you.
      • Faster Measurements: Quick identification of the correct range leads to quicker readings.
      • Reduced Error: Minimizes human error associated with incorrect range selection.
      • Increased Functionality: Since many dial positions are freed up by eliminating range selection, auto-range multimeters can often incorporate more specialized functions, making them versatile tools.

      However, manual range multimeters still have their place. Some experienced technicians prefer them for certain applications where they need to force a specific range for diagnostic purposes, or for quicker successive measurements within a known range without the brief delay of auto-ranging. For the average homeowner, though, an auto-ranging multimeter generally offers the best balance of simplicity, safety, and functionality.

      Important Note: Regardless of your multimeter’s type, always retain the owner’s manual for future reference. It contains specific details about your model’s functions, safety warnings, and troubleshooting tips. To ensure the longevity and accuracy of your investment, keep both the manual and the multimeter clean and dry, ideally stored in a protective container like a quart- or gallon-size plastic zip-top freezer storage bag.

      Safety First: Essential Practices for Multimeter Use

      Working with electricity always carries inherent risks, and using a multimeter is no exception. While multimeters are designed to be safe, improper use can lead to injury or equipment damage. Always prioritize safety when performing electrical measurements:

      • Assume Circuits Are Live: Never assume a circuit is dead. Always test for voltage first, even if you believe the power is off.
      • Use Proper Personal Protective Equipment (PPE): Wear safety glasses and insulated gloves, especially when working with higher voltages.
      • Check Your Leads: Always inspect test leads for frayed wires, cracked insulation, or damaged probe tips before use. Replace them if they show any signs of wear.
      • Select the Correct Function and Range: Before connecting your probes, set your multimeter to the correct measurement type (ACV, DCV, Amps, Ohms) and the appropriate range. If unsure, start with the highest range and work your way down.
      • Connect Leads Correctly: Always plug the black lead into the COM jack. For voltage and resistance, the red lead goes into the VΩ jack. For current, it goes into the A or mAµA jack. Never plug the red lead into the current jack when measuring voltage or resistance, as this can create a short circuit through the meter’s internal fuse.
      • Disconnect Power Before Current/Resistance Tests: To measure current, the circuit must be broken, and the meter inserted in series. To measure resistance or continuity, the circuit must be completely de-energized and isolated. Never attempt to measure resistance or continuity on a live circuit.
      • One Hand Rule: When working on live circuits, try to keep one hand in your pocket. This minimizes the chance of current flowing across your chest and through your heart if you accidentally touch two different potentials.
      • Know Your Meter’s Limits: Be aware of your multimeter’s maximum voltage and current ratings. Exceeding these limits can damage the meter and pose a safety risk.

      By adhering to these safety guidelines, you can ensure that your multimeter remains a valuable and safe tool for all your electrical diagnostic needs.
