Understanding Electrical Wiring Diagrams: A Beginner’s Guide

I remember the moment. As a second-year apprentice, when my foreman handed me a wiring diagram, a wave of panic washed over me. It was a jumble of boxes, seemingly random lines, and a lot of spaghetti-like squiggles. Square meatballs, as I remember them.

“Yep, I’ve seen these before,” I said, trying to sound confident. Knowing my limits, I quickly added, “But can you walk me through it?”

Fast forward three years, and I was wiring the lighting control system – a complex network of lights, switches, sensors, and relays – for a computerized tomography (CT) room in a major hospital. How did I go from a hesitant apprentice to a wiring diagram whiz? It took time and patience, often from my instructors. But you likely don’t have three years to master this skill; you probably have an electrical project waiting for you right now.

So, how do you read an electrical wiring diagram? And what exactly is it?

Let’s break it down together.

What is a Wiring Diagram?

A wiring diagram is a simplified visual representation of the wires (conductors) and components (devices, lights, motors, switches, sensors, and more) that make up an electrical circuit or system. They are essentially a roadmap for how electricity flows and how the various parts of a system connect.

Some wiring diagrams show the precise wire connections required for the system to function correctly. Others offer a more general graphical depiction of the electrical flow within a circuit. These diagrams can range in complexity, from a simple diagram for a single receptacle to complex diagrams for intricate systems like the lighting controls in a CT room.

For example, a receptacle wiring diagram might feature pictures or line drawings of the receptacle itself, along with the power supply wires. This diagram clearly indicates exactly where to connect the hot, neutral, and ground electrical wires on the receptacle.

More intricate systems, such as those found in a CT room, will have diagrams showing the system’s overall layout, plus more detailed diagrams for individual components, outlining how they connect and interact. These detailed diagrams are essential for understanding the complete electrical picture.

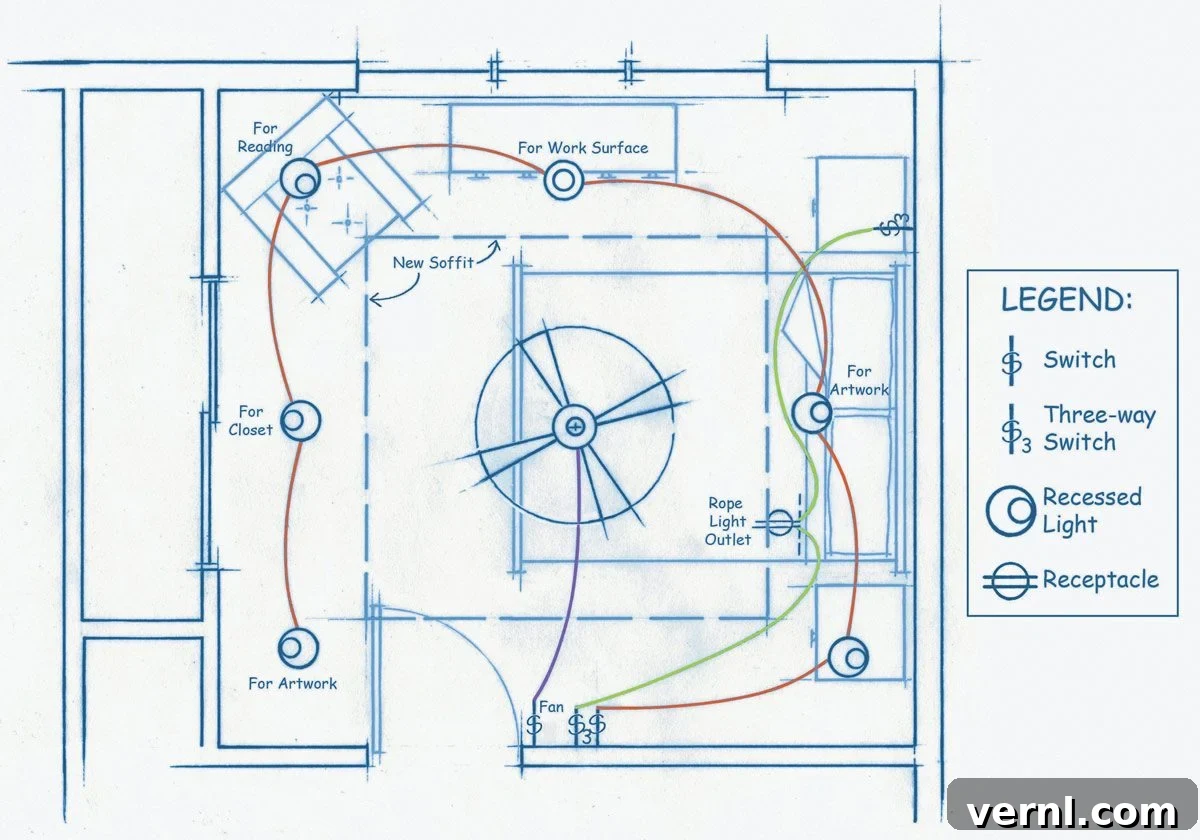

Wiring diagrams are often easier to interpret than written instructions, especially for those unfamiliar with electrical concepts. The key is to follow the lines, tracing the path from one component to another. “Here are a few tips for drawing your electrical plan.”

What Are Wiring Diagrams Used For?

Wiring diagrams are designed to condense complex electrical information into an easy-to-follow visual format. They are invaluable for two primary purposes: installing electrical devices and troubleshooting issues when a system isn’t functioning correctly.

Imagine you’re installing a motion sensor to control lights and your air conditioning. When you take the sensor out of the box, you might see six or more wires. Which wire goes where? Do they all connect, or do some go unused? A wiring diagram provides the answer, clearly illustrating how each wire should be connected to the appropriate components.

Wiring diagrams extend beyond just external components, such as connecting a motion sensor to power, lights, and HVAC equipment. They also apply to internal wiring, like the circuits inside a computer or washing machine. They are essential for understanding and maintaining the electrical systems that power our homes and businesses.

Wiring diagrams can also represent how electricity flows through a circuit. These diagrams show the power source, the voltage, the loads (like lights and equipment), and any components that affect the electricity flow, such as switches and fuses. These diagrams, called schematics, are often used by engineers and electrical professionals and can be part of a building’s blueprints.

How to Read a Wiring Diagram

Reading a wiring diagram is a skill that anyone can learn. Here are some key steps to follow:

1. Find a Reference Point: Start by identifying a known element. This could be the power supply, a light fixture, or a sensor you’re installing.
2. Locate Device Wires: Look at the picture of the device and identify the wires coming from it.
3. Trace the Lines: Follow the lines from the device to see where they terminate. The lines indicate the paths that the wires take. They might not all lead to the same place, and this is where the diagram’s clarity helps. For example, a motion sensor might have wires going to a transformer, as well as to HVAC equipment and lights.
4. Understand Connections: If you see a dot at the intersection of two or more lines, it signifies that the wires are connected (spliced) at that point.
5. Recognize Jumps: If a line “jumps” over another line in a half-moon shape or crosses another line without a dot, the wires are not connected. They are passing over each other.
6. Understand Terminology: Wiring diagrams use standard symbols and terms. A receptacle diagram might use terms such as “Line In” (the hot wire), “Neutral,” and “Ground.” It could also use color codes (“Black,” “White,” and “Green”). Another option could be labeling the wires “L1” (hot wire), “L2” (neutral), and a separate ground wire.
7. Make Accurate Connections: The most crucial aspect is to make the connections exactly as directed in the diagram. Any deviation can prevent the device from working correctly, or worse, can create a dangerous situation.
8. Understand Electrical Flow Diagrams: Diagrams showing electrical flow through a circuit use standardized symbols. Ground is often represented by a vertical line with three progressively shorter horizontal lines below it. Switches are typically represented by diagonal lines emanating from the line representing the electrical flow.
9. Follow the Circuit: To read these diagrams, start at the power source and follow the line through all the components of the system. This allows you to understand the complete electrical path.

Types of Wiring Diagrams

There are three primary types of wiring diagrams:

• Wiring Diagrams: These diagrams depict electrical devices as drawings or pictures connected by lines representing the wires. They provide detailed instructions on making specific electrical connections. This is the most common type for general electrical work.
• Pictorial Diagrams: These show how components are related to others within the same circuit but usually contain less specific information about the electrical connections. Pictorial diagrams can be helpful for visualizing the overall layout.
• Schematic Diagrams: These represent the flow of electricity through a circuit and its components using standardized symbols. They are often used by electricians and engineers.

Homeowners engaging in DIY electrical work will typically encounter basic wiring diagrams and pictorial diagrams, usually included in the instructions for electrical devices. “Schematics are for professionals to follow,” Cross says, “It takes years of experience and training.”

About the Expert

• Matt Cross is a licensed electrician in the State of Massachusetts. He has over ten years of industry experience in residential and commercial work.
