A robust 240-volt electrical service is the backbone for operating heavy-duty appliances essential to modern homes, such as electric ovens, central air conditioners, water heaters, and clothes dryers. When issues arise within your main electrical panel, these critical systems can experience significant disruptions, potentially leading to appliance damage, reduced efficiency, or even serious electrical hazards.
Ensuring the health of your 240-volt circuit breakers is paramount for both safety and performance. As Daniel Vasilevski, director of Bright Force Electrical, explains, “It is crucial to test your electrical panel regularly to confirm that each 240-volt breaker consistently supplies the proper voltage. Breakers are mechanical devices that can weaken or fail over time, and when they do, they may not reliably deliver the full 240 volts required by your appliances.” This inconsistency can stress appliances, shortening their lifespan and impacting their operation.
Beyond voltage delivery, testing your 240V circuit breaker panels also allows for a critical visual inspection. Todd Tripp, a home improvement expert with JustAnswer, emphasizes the importance of vigilance: “It’s vital to examine the panel for any loose wiring connected to individual breakers that could become compromised or broken. Additionally, a thorough visual check helps ensure there are no loose wires that could potentially arc or spark inside the panel, which is a serious fire risk.” Regular inspections and testing are preventative measures that protect your home and investments.
This comprehensive guide will walk you through everything you need to know about effectively testing and maintaining your 240V circuit breaker panel.
Understanding Your 240-Volt Electrical Service and What to Look For in the Breaker Box
Unless your home predates modern electrical infrastructure or has never received an electrical service upgrade, it almost certainly receives 240-volt service directly from the utility company into your main electrical panel. This foundational understanding is crucial for any homeowner looking to safely interact with their electrical system. While we delve into the core topic, it’s also a good opportunity to consider the hidden drains on your electricity, such as vampire energy from standby power, which can cause many appliances to consume electricity 24/7, even when seemingly off.
How Your Main Electrical Panel Works

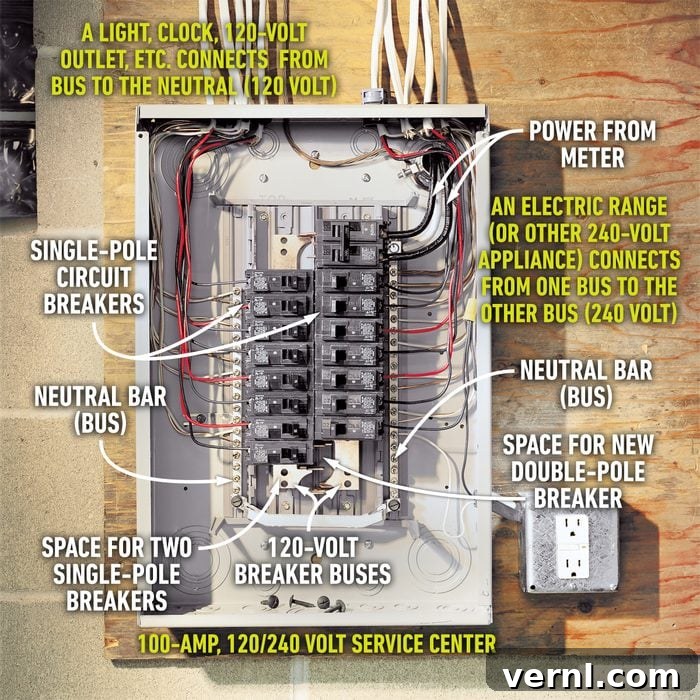

At its core, nearly every main electrical panel receives power through two 120-volt “hot” wires and one neutral wire from the utility company. These hot wires are crucial as each feeds one of the two main copper vertical bus bars (often referred to as “legs”) inside the service panel. This configuration explains why you typically observe two distinct columns of circuit breakers (or fuses in older systems) when you open your main service panel door.
Standard 120-volt circuits, which power the majority of your household devices from lighting fixtures to small appliances like vacuum cleaners, draw power from just one of these two bus bars. A common 15- or 20-amp single-pole circuit breaker operates by clipping onto a single bus bar. From there, the circuit’s hot (typically red or black insulated) feed wire is securely clamped to the circuit breaker. Meanwhile, the neutral (white insulated) wire and the bare copper ground wire are terminated at the common neutral/ground bar, completing the circuit’s safety and operational path.
The Mechanism of 240-Volt Circuits
The method for achieving a 240-volt circuit is elegantly simple and ingenious. Instead of drawing from a single bus bar, a “double-pole” circuit breaker is specifically designed to simultaneously clip into both 120-volt bus bars. By tapping into both hot legs, the voltage supplied to the circuit is effectively doubled, providing the necessary power for high-demand appliances. This is why 240-volt circuits require two hot wires (usually red and black), a neutral wire, and a ground wire at their 240-volt outlet to safely and efficiently deliver electricity to the appliance.
Preparing for New 240-Volt Appliances: Amperage and Space Considerations
Before installing a new 240-volt appliance, two primary considerations are paramount: whether your existing service panel has sufficient amperage capacity and if there’s physical space for an additional double-pole breaker. Neglecting these steps can lead to safety hazards or costly retrofits.
Do You Have Enough Amperage Capacity in the Service Panel for a New 240-Volt Appliance?
Service panels are rated for the maximum total amperage they can safely provide to a home. For instance, a 60-amp panel, often found in older homes, is designed to handle a cumulative current draw of up to 60 amps. When contemplating a new 240-volt appliance, such as an electric range that might demand 40 amps, the panel must be robust enough to manage the existing electrical demand of your entire home plus the added load of the new appliance without exceeding its total amperage rating. This isn’t as simple as merely summing the amperages of all existing circuit breakers; it involves a more complex electrical load calculation that considers diversity factors and continuous loads.
The electrician you hire for the installation will be able to perform a precise load calculation to determine if your panel can safely accommodate the new appliance. Most modern home electrical panels are designed with sufficient overhead for additional appliances. However, if your existing panel’s capacity is insufficient, there are viable solutions. Typically, if you have available physical spaces for new breakers, you’ll likely have no issues adding a range circuit, especially if your home doesn’t already have several other power-hungry 240-volt appliances like air conditioners, electric water heaters, or electric dryers constantly running. It’s also wise to consider aesthetic solutions for covering an electrical panel if it’s in a visible area.
Is There Physical Space in the Service Panel for Another Double-Pole 240-Volt Breaker?

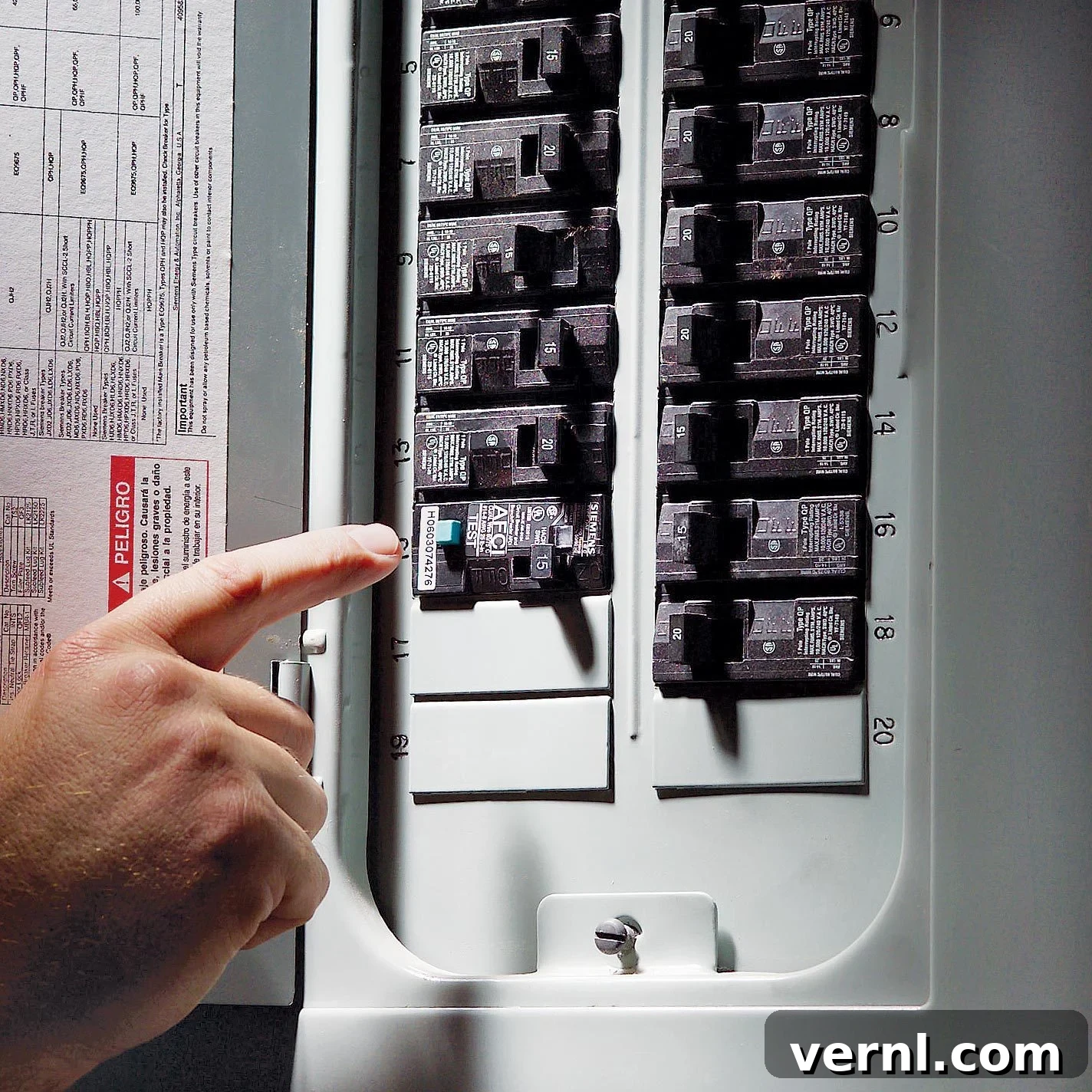

Beyond amperage, the physical layout of your panel is critical. A double-pole 240-volt breaker requires two adjacent, vertically stacked spaces within the panel. If your panel appears full or the available spaces are not directly above each other, existing single-pole breakers can often be carefully repositioned to create the necessary adjacent arrangement. This usually involves temporarily removing and reinserting breakers into new slots, a task best performed by a qualified individual.
For homes with older fuse panels or circuit breaker panels that are completely full, an electrician can add a subpanel to manage the extra 240-volt circuit. A subpanel acts as a secondary, smaller electrical panel that receives its power from the main panel, effectively creating additional spaces for new circuits. Adding a subpanel is generally a cost-effective solution, with pricing dependent on the amount of labor involved and the condition of your existing main service panel.
However, if your home operates on an outdated fused panel system, investing in a subpanel might not be the most prudent long-term solution. In such cases, a more beneficial upgrade would involve replacing the main home electrical panel entirely with a modern circuit breaker panel. This offers ample room for future expansion and greater safety features. While installing a larger main panel with increased amperage capacity can be significantly more expensive than adding a subpanel, it often includes bringing the home’s entire electrical system up to current local or national electric code requirements, representing a substantial but worthwhile long-term investment in your home’s safety and functionality.
Essential Tools and Safety Protocols for Testing a 240-Volt Breaker Panel
Working inside an electrical panel demands utmost caution and the right equipment. Prioritizing safety is non-negotiable when dealing with live electricity. Always ensure the area is dry, well-lit, and free from distractions. Never attempt this if you are not confident in your abilities or lack the proper safety gear.
What Tools Are Required to Test a 240-Volt Breaker Panel?
The cornerstone of any electrical testing procedure is accurate measurement. For this, the most important tool is a digital multimeter (DMM), an versatile device capable of measuring voltage (volts), current (amperes), and resistance (ohms).
“When testing a 240-volt panel, the multimeter is indispensable for determining whether a breaker or circuit is receiving and delivering the correct voltage,” states Daniel Vasilevski. “It functions by precisely measuring the electrical potential difference between two specific points, providing you with an accurate and reliable reading essential for diagnostics.”
Vasilevski also strongly recommends employing a non-contact voltage tester. This handy device offers a quick and easy way to detect the presence of live voltage without direct contact, simply by sensing the electrical field around a conductor. “It’s a critical initial safety step before any direct contact is made with wiring inside the panel, confirming whether the system is live and posing a potential shock hazard,” he adds.
Beyond these crucial testers, a robust toolkit for electrical panel work should include: an insulated screwdriver (for safely removing the panel cover), insulated gloves (rated for electrical work), safety glasses (to protect against sparks or debris), and a reliable flashlight (for illuminating dark panel interiors). Additionally, advanced tools like a thermal scanner, often referred to as a FLIR camera, can be incredibly helpful. These devices can detect hot spots within the panel that might indicate loose connections, overloaded circuits, or failing components before they become visibly apparent or cause a breakdown.
Todd Tripp reiterates the overarching need for caution: “Great care and extreme caution must be exercised when removing the cover of your circuit breaker panel and subsequently testing the voltage to the double-pole breakers and the main supply lines. Electricity can be deadly, and safety should always be your top priority.”
Recognizing the Warning Signs of a Failing 240-Volt Breaker
Timely identification of a faulty 240-volt breaker can prevent significant appliance damage, electrical fires, and safety risks. Being aware of the common indicators can help you take action before a minor issue escalates into a major problem.
One of the most overt and frequent signs of a compromised breaker is when the breaker trips repeatedly, even under normal operating conditions or when supporting an appliance well within its rated capacity. Other critical indicators of a potential problem include: inconsistent voltage delivery to the appliance, a complete absence of voltage from the breaker, the breaker tripping seemingly without an active load, difficulty in switching the breaker on or off, a “spongy” or soft feeling when attempting to reset it, flickering or surging in appliances and lighting connected to the circuit, and any visible physical damage to the breaker itself or its surrounding area within the panel.
Daniel Vasilevski highlights some particularly alarming visual and olfactory cues: “If you observe discoloration on the breaker or inside the panel, a melted appearance, or, critically, a burning smell emanating from the panel, these are undeniable red flags. Such signs unequivocally suggest that the breaker has either severely overheated or is arcing – an electrical discharge that can generate intense heat. These conditions pose an immediate and serious fire hazard, requiring urgent professional attention.”
Docia Boylen, owner of Handyman Connection of Golden, adds, “When a breaker fails to reset after tripping, or if it immediately trips again as soon as you attempt to reset it, these are strong indications of a bad breaker or an underlying wiring fault. In such scenarios, using your digital multimeter (DMM) to check for electricity output from the breaker can confirm whether it’s functioning correctly or if it has indeed failed.” If any of these signs appear, it’s crucial to consult a qualified electrician promptly.
Expert Insights for Home Electrical System Maintenance
Maintaining a safe and efficient electrical system is an ongoing responsibility for every homeowner. Understanding the nuances of your electrical panel and acting quickly when issues arise can prevent costly repairs and dangerous situations. Regular inspections and adherence to safety guidelines are not just recommendations; they are essential practices for peace of mind.
Remember, while this guide provides valuable information, certain electrical tasks are best left to licensed professionals. When in doubt, always consult with an experienced electrician to ensure the safety and integrity of your home’s electrical infrastructure.
FAQ
What tools are required to test a 240-volt breaker panel?
The most important tool is a digital multimeter (DMM), essential for measuring voltage, current, and resistance. Daniel Vasilevski, director of Bright Force Electrical, explains, “In a 240-volt panel, the multimeter is used to determine whether a breaker or circuit is receiving the correct voltage. It works by measuring the electrical potential between two points and provides you with a precise reading.” Additionally, a non-contact voltage tester is highly recommended as a first safety step to detect the presence of live voltage. Other essential tools include an insulated screwdriver, insulated gloves, safety glasses, and a flashlight. A thermal scanner (like a FLIR device) can also be beneficial for identifying hot spots.
What are the signs of a bad 240-volt breaker?
One of the most obvious indicators is a breaker that trips repeatedly. Other significant signs include inconsistent voltage output, a complete lack of voltage, tripping without an apparent load, difficulty in switching the breaker on or off (feeling “spongy”), flickering or surging from connected appliances and lighting, and any visible physical damage to the breaker. Daniel Vasilevski cautions, “If you see discoloration, a melted appearance, or even smell burning near the panel, this is a critical red flag. These signs indicate the breaker has overheated or is arcing, posing a serious fire hazard.” Docia Boylen, owner of Handyman Connection of Golden, adds that a breaker that won’t reset or immediately trips after being reset also suggests a faulty breaker. Using a digital multimeter can help confirm if the breaker is indeed outputting electricity.
About the Experts
- Daniel Vasilevski is the director and owner of Bright Force Electrical, bringing over a decade of extensive experience as a qualified electrician. His expertise lies in ensuring electrical safety and efficiency for residential and commercial clients.
- Todd Tripp is a highly respected general contractor and the founder of Trip Mills Builders in upstate South Carolina. He also serves as a trusted home improvement expert with JustAnswer, providing invaluable advice to homeowners.
- Docia Boylen is the proud owner of Handyman Connection of Golden, Colorado. Her commitment to excellence was recognized with several prestigious awards at the 2024 Handyman Connection Annual Conference.
