The National Electrical Code (NEC) serves as the bedrock for electrical safety, meticulously designed to safeguard both individuals and property from the inherent risks of electrical hazards and fires. For seasoned professionals like myself and Chris Lozano, a master electrician with Frontdoor Home Services, mastering the intricacies of electrical installations demands years of dedicated learning and hands-on experience. This same rigorous standard applies to homeowners embarking on DIY electrical projects; adherence to the NEC, along with any relevant local electrical and building codes, is not merely recommended but legally mandated.
Below, Chris Lozano and I will guide you through some of the most prevalent electrical code violations and common issues you might encounter when undertaking electrical work in your home. This list, while comprehensive, is not exhaustive. The NEC is a living document, undergoing updates every three years to reflect advancements in technology and safety practices. Therefore, it’s crucial to verify with your local electrical inspector which specific code cycle your jurisdiction currently follows. These requirements apply equally to new construction and repair projects, meaning there’s no immediate pressure to rectify every existing issue unless you’re undertaking modifications. However, for any complex or uncertain electrical tasks, the safest and most prudent course of action is always to consult a licensed and qualified electrician.
Understanding Your Electrical Panel: The Dangers of Mislabeled Breakers

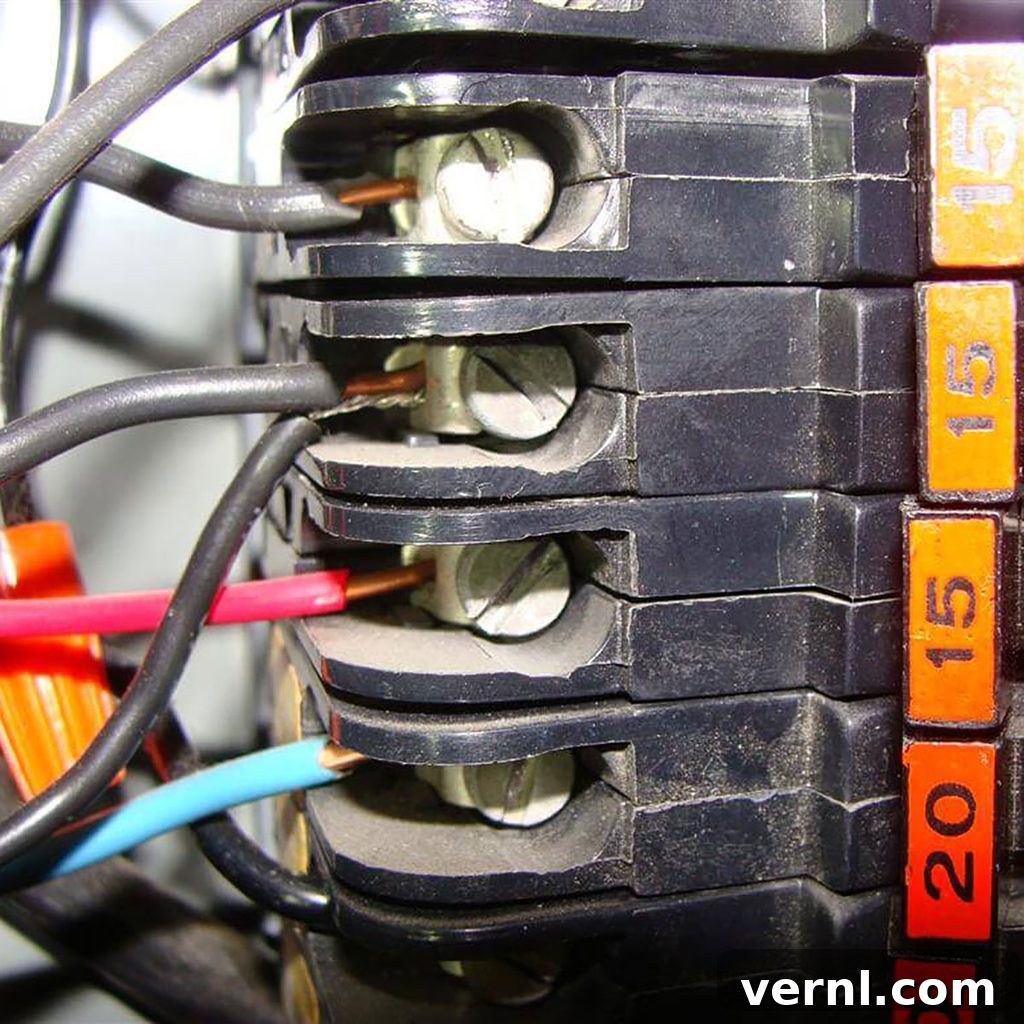

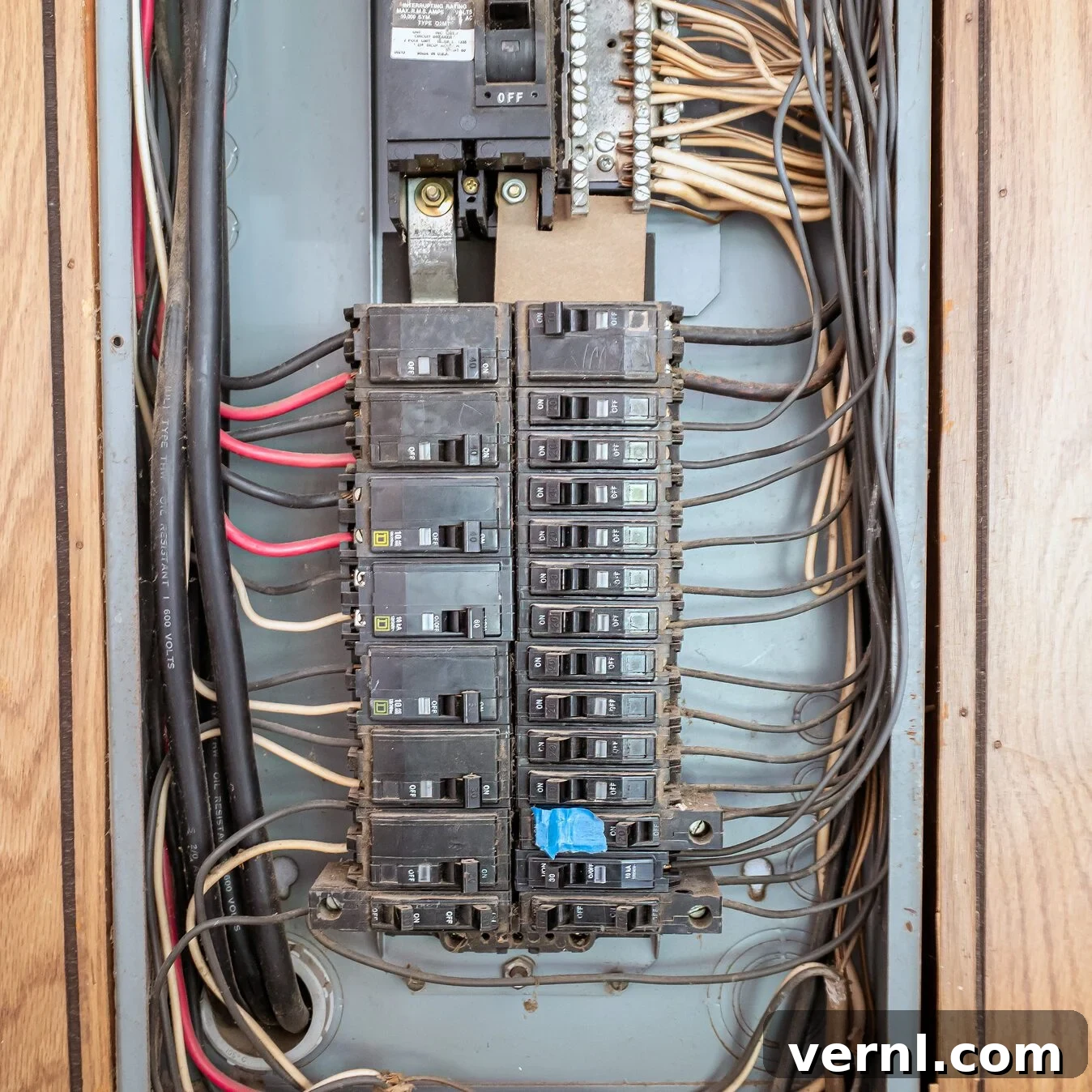

The National Electrical Code (NEC) unequivocally mandates that all circuit breakers must be clearly and legibly marked, providing an accurate description of the circuits they control. This requirement is fundamental for electrical safety and efficient troubleshooting. However, in many older homes, and even some newer ones, homeowners often find their breaker panels poorly labeled, if at all. This lack of clarity poses significant risks, particularly for DIY enthusiasts working on their electrical systems or in emergency situations where a specific circuit needs to be de-energized quickly.
Imagine attempting a minor electrical repair or needing to shut off power due to an unexpected electrical fault, only to be confronted with a panel full of ambiguous labels like “misc.” or “bedroom.” Such scenarios can lead to frustration, wasted time, and, more importantly, a heightened risk of electrical shock or injury because you might inadvertently work on a live circuit. Chris Lozano emphasizes that correcting a poorly labeled breaker box is a critical safety upgrade. The most straightforward method involves a two-person approach: one person systematically switches each breaker off, while the other identifies which lights or appliances lose power in each room. This systematic process allows for precise identification and accurate labeling.
For those working solo, alternative tools can be invaluable. A radio plugged into an outlet can instantly indicate when power is lost. More advanced tools like a circuit tracer or a receptacle tester can also help pinpoint circuits without needing a second person. Once identified, each circuit breaker should be clearly labeled directly on the panel. Alternatively, creating a comprehensive panel schedule and securely posting it inside or adjacent to the main electrical panel door ensures that vital information is always readily available. This simple step vastly improves the safety and usability of your home’s electrical system, adhering to NEC guidelines and providing invaluable peace of mind.
Crucial Protection: Ensuring Ground Fault Circuit Interrupters (GFCIs) are Present and Functional
If you’ve recently engaged in a real estate transaction, undergone a home inspection, or upgraded key areas like your kitchen, bathroom, or garage, you’ve likely encountered discussions about Ground Fault Circuit Interrupters (GFCIs). These essential safety devices are designed to protect individuals from severe electric shock by rapidly cutting power when they detect an imbalance in the electrical current, indicating a ground fault. The NEC has progressively expanded its requirements for GFCIs, making them mandatory in numerous locations throughout a home where water or moisture is typically present, such as bathrooms, kitchens, garages, unfinished basements, crawl spaces, and outdoor areas.
Given the evolving nature of GFCI requirements, many older homes often lack this critical protection in areas where the NEC currently mandates it. Bringing your circuits up to the latest code doesn’t necessarily mean replacing every single outlet with a GFCI receptacle. A more practical and cost-effective approach involves installing a single GFCI outlet at the beginning of a circuit, typically the first outlet after the electrical panel, and then “daisy-chaining” the rest of the standard grounding-type receptacles downstream. This configuration allows one GFCI device to protect multiple outlets on the same circuit. Another highly effective solution is to install a GFCI circuit breaker directly in your electrical panel, which offers whole-circuit ground fault protection for all outlets and devices on that specific circuit.
- Pro Tip for Troubleshooting GFCIs: If you suddenly lose power to receptacles in a bathroom, and you can’t identify the cause, remember to check for a tripped GFCI in another bathroom or even an unexpected location. The NEC allows for bathrooms to be wired together on a single circuit, and since one GFCI receptacle can protect an entire circuit, a tripped GFCI in an upstairs bathroom could easily be the culprit for a loss of power downstairs. Always check all GFCI outlets in interconnected spaces before assuming a more complex electrical issue.
The Power of Precision: The Necessity of Dedicated Circuits
Dreaming of a more spacious kitchen, perhaps by replacing that bulky countertop microwave with a sleek, space-saving over-the-range model? If you’re considering a DIY installation, it’s vital to resist the temptation to simply tap into an existing circuit. The NEC strictly mandates the use of a dedicated circuit, also known as an individual branch circuit, for many fixed-in-place appliances, especially those with significant power demands.
A built-in microwave/range hood combination, or any appliance “fixed in place” that intends to share a circuit with lighting or countertop receptacles, is subject to specific NEC guidelines. Such an appliance must not utilize more than 50% of the branch circuit’s rating. For most kitchen circuits, which are typically 20 amps, this means the appliance should draw no more than 10 amps. Even if you manage to find a smaller over-the-range microwave, staying below this 10-amp threshold can be challenging and often cuts it too close, risking frequent breaker trips and potential circuit damage.
Furthermore, if your new microwave is designed to be plugged into an outlet rather than hard-wired, the NEC explicitly requires a dedicated circuit, regardless of its amp draw. This is a critical safety measure to prevent overloading and ensure consistent power delivery. Finally, and perhaps most importantly, over-the-range microwave manufacturers almost universally specify the need for a dedicated circuit in their installation instructions. The NEC emphasizes that all electrical installations must strictly adhere to the listing and labeling instructions provided by the manufacturer. Ignoring these instructions not only creates a code violation but can also void warranties and, more critically, lead to unsafe operating conditions, including fire hazards or appliance malfunction.
Preventing Overload: Why Kitchen Circuits Have Special Rules
Perhaps you’re not keen on the complexities of DIYing a range hood and prefer to place your new microwave conveniently in a cabinet under the counter to free up precious countertop space. A common question arises: can you simply feed a new cabinet receptacle from an existing countertop receptacle directly above it? The answer, according to the National Electrical Code, is a resounding no.
Kitchens, along with adjoining areas such as pantries and dining rooms, are specifically designed with at least two 20-amp small appliance branch circuits. These circuits are intended to supply power exclusively to countertop receptacles, wall and floor receptacles, and often the refrigerator (though many homeowners opt to place their refrigerator on its own dedicated circuit for added reliability). The rationale behind this NEC requirement is rooted in preventing circuit overload. Everyone’s kitchen usage patterns differ, but the general principle is that these small appliance circuits are specifically reserved for portable, high-draw countertop appliances such as toasters, air fryers, coffee makers, blenders, and other similar devices that are used intermittently.
Introducing a new receptacle in a cabinet to power a “permanently plugged-in” appliance, like an under-counter microwave, directly conflicts with the intended use of these circuits. By adding a constant, significant load to a circuit designed for intermittent, portable appliances, you substantially increase the risk of overloading the circuit. An overloaded circuit can lead to frequently tripped breakers, damaged wiring, and, in severe cases, electrical fires. The NEC prioritizes safety by ensuring that these circuits retain sufficient capacity for their designated purpose, protecting your home from the hazards of excessive electrical demand.
The Hidden Dangers of Open Junction Boxes or No Boxes at All
Electrical safety experts like Chris Lozano frequently encounter a hazardous issue: open junction boxes or, even worse, electrical splices made entirely outside of an enclosure. The National Electrical Code strictly mandates that all electrical splices, connections, and conductor terminations must occur within an approved electrical box – specifically, a junction box or a device box (like those behind outlets or switches) – and that these boxes must always be covered. This requirement is not merely for aesthetics; it’s a critical fire prevention measure.
I recall an instance where I discovered several electrical splices dangling freely within a wall cavity, completely exposed and unprotected. This scenario is a grave code violation and a significant fire hazard. Wires can chafe against framing, insulation, or other materials, leading to short circuits. Furthermore, exposed connections are vulnerable to damage, dust accumulation, and even contact with pests, all of which can compromise electrical integrity and safety. My remedy involved installing an appropriate electrical box to enclose these splices safely before proceeding with the device installation.
Similarly, in a subsequent home, I found open junction boxes in the attic. While the splices themselves were properly made within the boxes, the lack of covers presented a clear safety hazard. Exposed wiring within a box can be accidentally touched, leading to shock. It also allows dust, debris, and pests to enter, potentially causing shorts or compromising insulation. The solution here was simple but crucial: adding “blanks,” which are solid covers designed for junction boxes without any openings. If you’re undertaking a DIY project and discover any open junction boxes or unsupported splices, addressing them by adding appropriate covers or installing a proper box is an essential step to bring your electrical system up to NEC safety requirements and protect your home from potential electrical incidents.
Permanent Solutions for Power: Avoiding Permanent Extension Cords
How often do you find yourself navigating a maze of extension cords stretched across your garage floor, especially when tackling a weekend project? Do these temporary power solutions seem to have become permanent fixtures, almost blending into the background? If so, your setup constitutes a significant National Electrical Code violation and a potential fire hazard. The NEC explicitly prohibits the use of extension cords as a substitute for permanent wiring.
Extension cords are designed for temporary use only, intended to provide power to portable appliances for a limited duration. They are not manufactured to withstand the same wear and tear, environmental conditions, or continuous load as permanent wiring. Over time, extension cords can degrade, their insulation can become brittle or cracked, and they can easily be damaged by foot traffic, vehicle movement, or exposure to oils and chemicals. This degradation dramatically increases the risk of short circuits, overheating, and electrical fires. For your next DIY project, instead of relying on a tangled web of temporary cords, consider installing new, permanent surface-mounted receptacles where you need power most.
When planning to add receptacles in your garage, it’s important to consider the types of loads you’ll be using. The NEC mandates that newly constructed garages must have at least one 20-amp circuit dedicated to receptacles, with at least one receptacle located in each vehicle bay, positioned no more than 5 1/2 feet above the floor. This ensures adequate power for common garage tools and equipment. Any additional circuits you install can be 15 amps or greater, depending on your anticipated electrical needs. Investing in proper, permanent wiring not only complies with code but also significantly enhances the safety, functionality, and convenience of your garage workspace.
Weatherproofing Your Power: The Importance of Correct Outdoor Receptacle Covers
Modern homes are typically equipped with at least two outdoor receptacles, strategically placed to power lawn tools, festive holiday lights, and various other outdoor electrical needs. (Older homes might have fewer, or even none, depending on their construction era.) These outdoor receptacles fall into two primary categories based on their exposure to the elements: “wet locations,” where they are directly subject to weather or water intrusion (like rain or irrigation spray), and “damp locations,” which are sheltered areas such as under porches, eaves, or covered patios.
The National Electrical Code provides distinct requirements for receptacle covers in these different environments to ensure safety and prolong the life of the electrical installation. For receptacles located in damp locations, the NEC requires the cover to be weatherproof *when nothing is plugged in*, meaning the receptacle must be protected from moisture when not in use. The cover should effectively seal the outlet face when closed. Conversely, in wet locations, the requirement is more stringent: the receptacle must remain weatherproof *even when a plug is inserted and in use*. These specialized wet-location covers are commonly known as “bubble covers” or “in-use” covers, characterized by their robust design that encapsulates the plug and cord connection. Notably, these “in-use” covers can also be utilized in damp locations, providing superior protection.
Upon moving into my current home, I quickly observed that the deck above provided insufficient protection from dripping rain for the lower porch receptacle, effectively placing it in a “wet location” despite being under an overhang. To rectify this code violation and enhance safety, I installed an in-use, weatherproof cover. This is an easy and impactful DIY project for any homeowner. As Chris Lozano correctly advises, “Weatherproof receptacle covers will go a long way in prolonging the life of the receptacle installation.” They prevent water infiltration, which can lead to corrosion, short circuits, and dangerous ground faults, ensuring your outdoor power access remains safe and reliable.
Access for Safety: The Necessity of Readily Accessible GFCIs
“Installing GFCIs in a location that is hard to find or access can create headaches for homeowners and electricians alike,” warns Chris Lozano. This seemingly minor issue can have significant implications, especially when a GFCI trips, cutting power to a circuit. A prime example of this inconvenient placement is a GFCI outlet tucked away behind a large appliance like a refrigerator. The NEC mandates GFCI protection for receptacles in kitchens and garages, among other areas. However, if the GFCI serving your refrigerator circuit trips, having to move a heavy appliance just to reset it becomes an unnecessary and often frustrating chore.
To mitigate such inconveniences and ensure prompt restoration of power, the NEC requires GFCIs to be installed in a readily accessible location. “Readily accessible” means that the device should be reachable quickly and safely without needing to climb ladders, fumble for keys, move heavy objects, or use special tools. It’s about ensuring that resetting a tripped GFCI is a simple, immediate action.
When direct access to a GFCI receptacle is impractical or difficult, such as for a garage door opener outlet located high on the ceiling, the NEC offers practical solutions. One effective method is to install a GFCI circuit breaker in the main electrical panel. This protects the entire circuit, and the reset button is conveniently located in an easily accessible panel. Another approach is to use a single GFCI receptacle at the beginning of a circuit to feed and protect other downstream standard receptacles. However, it’s crucial to remember that “A tripped GFCI can affect a whole circuit, creating a real issue,” as Lozano points out. Proper placement and accessibility are paramount for maintaining electrical safety and functionality throughout your home, preventing minor trips from becoming major inconveniences.
Modern Demands: The Requirement for a Neutral Conductor at the Switch
For many decades, traditional light switches functioned perfectly well without a neutral conductor. They simply interrupted the “hot” wire to control a light fixture, so the National Electrical Code did not require electricians or homeowners to bring a neutral wire into switch boxes. This historical wiring practice is common in countless older homes. However, the landscape of home automation and lighting control has dramatically shifted. Today’s smart switches and dimmers, equipped with sophisticated electronics, typically require a constant low-voltage power supply to operate their internal circuitry, even when the light is off. This continuous power draw is achieved through the presence of a neutral conductor.
Recognizing this technological evolution, the NEC now mandates that a neutral conductor must be present in most switch boxes. Alternatively, there must be a clear and accessible pathway to easily pull one later, such as through an installed conduit. This forward-thinking requirement ensures that homes are prepared for future smart home upgrades without extensive rewiring.
The challenge, however, is that most older homes are not wired with conduit, making it difficult and expensive to add a neutral wire after the fact. If you’re undertaking an electrical project, such as adding a new room or renovating, it is highly advisable to install a neutral wire in every new switch box, even if you don’t immediately plan to use it. This simple step future-proofs your wiring. If you’re looking to integrate smart switches into an existing older home that lacks neutral wires at the switch box, don’t despair; some innovative smart switch designs exist that are specifically engineered to operate without a neutral conductor. Always check the product specifications carefully to ensure compatibility and compliance.
Upgrading Safely: Properly Replacing Non-Grounding Receptacles
I once resided in a charming but very old house, typical of those featuring knob-and-tube wiring. This archaic wiring system comprises just two conductors: a hot wire and a neutral wire, conspicuously lacking what is now commonly called an “equipment grounding conductor” (EGC). An unfortunate common practice by previous homeowners, frustrated by the inability to plug in modern three-prong appliances, was to improperly replace the original two-slot, non-grounding type receptacles with three-slot, grounding-type ones. This seemingly innocent upgrade, however, constitutes a serious code violation and a significant safety risk.
Installing a three-prong receptacle where no ground wire exists creates a false sense of security. If a fault occurs, there is no path for the stray current to safely return to the electrical panel, leaving appliances and users vulnerable to shock. I was faced with three distinct options to rectify this dangerous situation and bring the system up to code:
- Install an Equipment Grounding Conductor (EGC) from the Service Panel: This is unequivocally the safest and most comprehensive solution. It involves running a dedicated ground wire from the main electrical service panel to every single outlet in the house. While this method provides the highest level of protection, it is also the most labor-intensive and, consequently, the most expensive option, often requiring significant demolition and rewiring.
- Reinstall Non-Grounding Receptacles: The cheapest and most straightforward option is to revert to the original two-slot, non-grounding receptacles. While this brings the system into compliance by accurately representing the wiring’s capability, it doesn’t solve the practical problem of plugging in modern three-prong devices and offers no additional shock protection.
- Install a Ground Fault Circuit Interrupter (GFCI) Receptacle: This was my chosen solution, striking a balance between safety, cost, and functionality. A GFCI receptacle provides crucial shock protection by detecting ground faults and quickly interrupting the circuit, even in the absence of a traditional equipment grounding conductor. It also allows for the safe connection of three-prong plugs.
If you opt for GFCIs in this scenario, the NEC mandates that you clearly label the front of the receptacle with the phrase: “No Equipment Ground.” (These essential stickers are typically included with the GFCI device.) Furthermore, if one GFCI is used to protect other downstream grounding-type receptacles on the same circuit (known as feed-through protection), those subsequent receptacles must also be labeled with both “No Equipment Ground” and “GFCI Protected.” These labels are vital for informing future occupants or electricians about the specific wiring conditions and safety measures in place.
Child Safety First: The Mandate for Tamper-Resistant Receptacles
In homes across the nation, child safety is a paramount concern, and the National Electrical Code plays a crucial role in addressing this. The NEC now requires tamper-resistant receptacles (TRRs) to be installed in virtually all locations throughout your home. These innovative receptacles feature spring-loaded shutters that cover the contact slots, preventing children from inserting foreign objects, such as hairpins or keys, into one slot and experiencing an electric shock. The shutters only open when a two-pronged or three-pronged plug is inserted simultaneously into both slots, ensuring safe operation for intended use.
It’s important to note that you are not required to rush out and replace every existing non-tamper-resistant receptacle in your home unless you are undertaking an electrical modification. The requirement for TRRs primarily applies to new construction and when existing receptacles are being replaced or added. Therefore, if you are adding a new room, renovating an area, or simply swapping out an old, worn-out receptacle, it is imperative that you purchase and install tamper-resistant ones. The only notable exception to this rule is if you happen to be replacing an existing two-slot, non-grounding receptacle with another of the exact same type, in which case a TRR may not be available or applicable. Prioritizing TRRs ensures a safer living environment for young children and complies with contemporary electrical safety standards.
Avoiding Overheating and Fire: The Rules of Overfilling Electrical Boxes
Electrical boxes serve a critical function as enclosures for wiring connections and devices. To ensure safety and prevent hazardous conditions, the National Electrical Code specifies stringent box fill requirements. These regulations dictate the maximum number of wires, devices, and wire connectors that can be safely housed within a specific size of junction box or device box. The primary purpose of these requirements is to minimize heat buildup, which can lead to damaged wire insulation and, ultimately, electrical fires.
If, during a DIY electrical project, you open an existing electrical box and discover that it is visibly packed with wires, often to the point where connections are strained or wires are bent sharply, this is a clear indication of an overfilled box and a code violation. The immediate solution is to replace it with a larger one that provides adequate cubic inch capacity for all its contents. Chris Lozano emphasizes the dangers of overfilling, stating, “Wire nuts and connections can come loose when trying to fit everything inside of the box.” Loose connections can create arcing, which generates intense heat and is a common cause of electrical fires. Furthermore, if you’re working with a metal electrical box, Lozano adds, “[wire] insulation can become damaged and leave wiring exposed” when wires are crammed too tightly. This exposes bare conductors, increasing the risk of short circuits and electric shock. Adhering to box fill requirements is a fundamental aspect of safe electrical practice, directly contributing to the fire safety of your home’s electrical system.
Temporary Joy, Permanent Danger: The Limits of Christmas Lights
Are you a true “Clark Griswold” when it comes to your annual Christmas light displays? The festive spirit often inspires elaborate DIY holiday decorations, with countless lights, sound effects, and inflatables adorning homes weeks before Thanksgiving. For some, this holiday cheer even extends into a year-round spectacle, with Valentine’s Day hearts, Halloween ghouls, and Fourth of July flags illuminating yards in every imaginable color and design. While the creativity is commendable, the National Electrical Code (NEC) has specific regulations regarding the duration of such “temporary installations,” primarily for safety reasons.
The NEC imposes a strict 90-day limit on the use of temporary installations, which includes most standard holiday lights. The rationale behind this rule is simple yet critical: typical big-box store holiday lights are not engineered for permanent outdoor exposure. They are designed for seasonal, temporary use and are often constructed with thinner wire insulation and less robust weatherproofing than permanent outdoor lighting. Prolonged exposure to sun, rain, snow, and temperature fluctuations causes the insulation to degrade, wires to become brittle, and connections to corrode. This degradation significantly increases the risk of short circuits, ground faults, and, ultimately, electrical fires. If you envision your yard being illuminated 365 days a year, celebrating every holiday and occasion, it is imperative to invest in permanent outdoor lighting fixtures and wiring. These products are specifically listed and designed for continuous outdoor use, built to withstand the elements and provide safe, long-term illumination, ensuring your festive spirit doesn’t compromise your home’s electrical safety.
About the Expert
Chris Lozano is a master electrician and a virtual electrical expert at Frontdoor. Frontdoor is an innovative home services app that connects homeowners with qualified, on-staff experts to help diagnose and solve a wide range of home maintenance issues, akin to a telehealth service for your home’s repair needs.
