The Indispensable Outfeed Support: Why Every Woodworker Needs One

In any woodworking shop, efficiency, accuracy, and safety are paramount. One of the most common hurdles woodworkers face, especially when working solo, is adequately supporting material as it exits stationary power tools. Without proper outfeed support, you risk:

• Reduced Accuracy: Unsteady material can lead to inconsistent cuts, causing frustration and wasted stock.
• Safety Hazards: Lack of support increases the risk of kickback, particularly on table saws, or losing control of the workpiece on other machines.
• Physical Strain: Constantly trying to balance long or heavy boards puts unnecessary strain on your body.
• Tool Damage: Forcing workpieces through without support can put undue stress on your tool’s motor and blades, potentially shortening its lifespan.

Commercial outfeed tables and roller stands are available, but they often come with limitations – fixed heights, bulky designs, or hefty price tags. This guide introduces a brilliant DIY solution: an adjustable outfeed roller jack that is not only highly effective but also incredibly simple and cost-efficient to build.

Introducing Your Next Essential Workshop Project: The DIY Adjustable Outfeed Roller Jack

Imagine a support system that you can fine-tune in mere seconds to precisely match the height of your table saw, planer, band saw, or jointer. A system so sturdy that it won’t budge even under significant load. This ingenious design utilizes readily available components to create an outfeed roller that offers supreme versatility and robust performance. Whether you’re ripping full sheets of plywood, dimensioning long lumber, or simply need an extra set of hands, this adjustable roller jack is your ultimate workshop ally.

Key Features and Benefits of Your DIY Outfeed Roller:

• Instant Height Adjustment: Thanks to the scissors jack mechanism, you can set the exact height needed for any tool.
• Exceptional Stability: Bolted securely to a heavy-duty sawhorse, this support unit is incredibly stable, minimizing wobbles and shifts.
• Versatility: Perfect for a wide range of stationary power tools, making it a multi-purpose asset in your shop.
• Cost-Effective: Built with common hardware store items, it’s significantly more affordable than many commercial alternatives.
• Space-Saving: The design allows for quick removal of the roller assembly from the sawhorse, freeing up your sawhorse for other tasks when not needed for outfeed.

Gather Your Materials: What You’ll Need

Building this robust outfeed roller jack requires just a few key components. Choosing heavy-duty versions of these items will ensure the longevity and stability of your completed project.

• A Sturdy Sawhorse: This forms the foundational base of your outfeed support. Opt for a heavy-duty model, preferably made of steel or robust timber, that can comfortably bear significant weight without flexing. The more stable your sawhorse, the more stable your outfeed roller will be.
• A Heavy-Duty Scissors Jack: This is the heart of the height adjustment mechanism. Look for a robust automotive-style scissors jack, typically rated for at least 1-ton capacity. These are designed to lift substantial weight and offer precise, controlled height changes. Ensure it comes with its standard handle for manual operation.
• A Bracketed Roller: This is the contact point for your workpieces. When purchasing, always aim for the longest roller available that fits your space and budget. A longer roller provides better support for wide panels like plywood and helps maintain control over longer boards. Look for rollers with sturdy brackets and smooth-running bearings for effortless material movement. Materials can range from steel to aluminum.
• Assorted Fasteners: You’ll need a selection of nuts, wing-nuts, bolts, and washers to securely attach the jack to the sawhorse and the roller to the jack.
  • Bolts: Choose large-diameter, high-tensile strength bolts for maximum security. Stainless steel or galvanized bolts are good options for rust resistance.
  • Nuts: Corresponding nuts for your chosen bolts.
  • Wing-Nuts: These are crucial for the sawhorse attachment. Wing-nuts allow for quick, tool-free removal and attachment of the jack assembly to the sawhorse, maximizing your workshop’s flexibility.
  • Washers: Use flat washers under bolt heads and nuts to distribute clamping pressure and prevent damage to your components. Lock washers can also be considered for added security against vibrations.

Building It Is a Snap: Step-by-Step Instructions

Constructing your adjustable outfeed roller jack is a straightforward process that can be completed in an afternoon. Follow these simple steps for a secure and functional build:

1. Prepare the Scissors Jack for Mounting:

   Using a metal-cutting drill bit and a powerful drill, create two mounting holes in both the base and the top plate of your scissors jack. It’s essential that these holes accommodate large-diameter bolts for maximum strength and stability. Start with a pilot hole and progressively increase the drill bit size until you reach the desired diameter. Ensure the holes are symmetrically placed to distribute the load evenly and provide a secure attachment point.

   Pro Tip: When drilling metal, use cutting oil to lubricate the bit and reduce heat, prolonging the life of your drill bits and making the process smoother.

2. Secure the Roller to the Scissors Jack:

   Align the brackets of your roller with the pre-drilled holes on the top plate of the scissors jack. Insert your large-diameter bolts through the roller brackets and the jack’s top plate. Secure them tightly with washers and nuts. Ensure the roller is centered and parallel with the jack’s lifting mechanism for optimal performance. Test the roller’s movement to ensure it spins freely without obstruction.

3. Attach the Jack Assembly to the Sawhorse:

   Position the jack (with the roller attached) onto the top of your sawhorse. Mark the locations for drilling holes on your sawhorse that correspond to the holes in the base of the scissors jack. Drill through the sawhorse using a drill bit appropriate for the material of your sawhorse (wood or metal) and the diameter of your bolts.

   Insert the bolts through the jack’s base and then through the sawhorse. On the underside of the sawhorse, place washers and then thread on the wing-nuts. Tighten the wing-nuts securely. The use of wing-nuts here is key – it allows for incredibly fast attachment and detachment of the entire roller assembly, freeing up your sawhorse for other tasks whenever your outfeed support isn’t required.

Once assembled, perform a quick stability check. Gently push and pull on the roller assembly to ensure there’s no excessive wobble. Confirm that the scissors jack raises and lowers smoothly, ready to take on your next woodworking challenge.

Optimize Your Outfeed Roller Jack for Peak Performance

While the basic build is incredibly effective, there are a few enhancements and considerations to make your adjustable outfeed roller even better and more versatile in your workshop.

The Quick Adjustment Hack: Faster Than Hand Cranking!

It’s easy to crank the jack up and down with its standard handle, but for even faster and less effortful adjustments, here’s a brilliant hack:

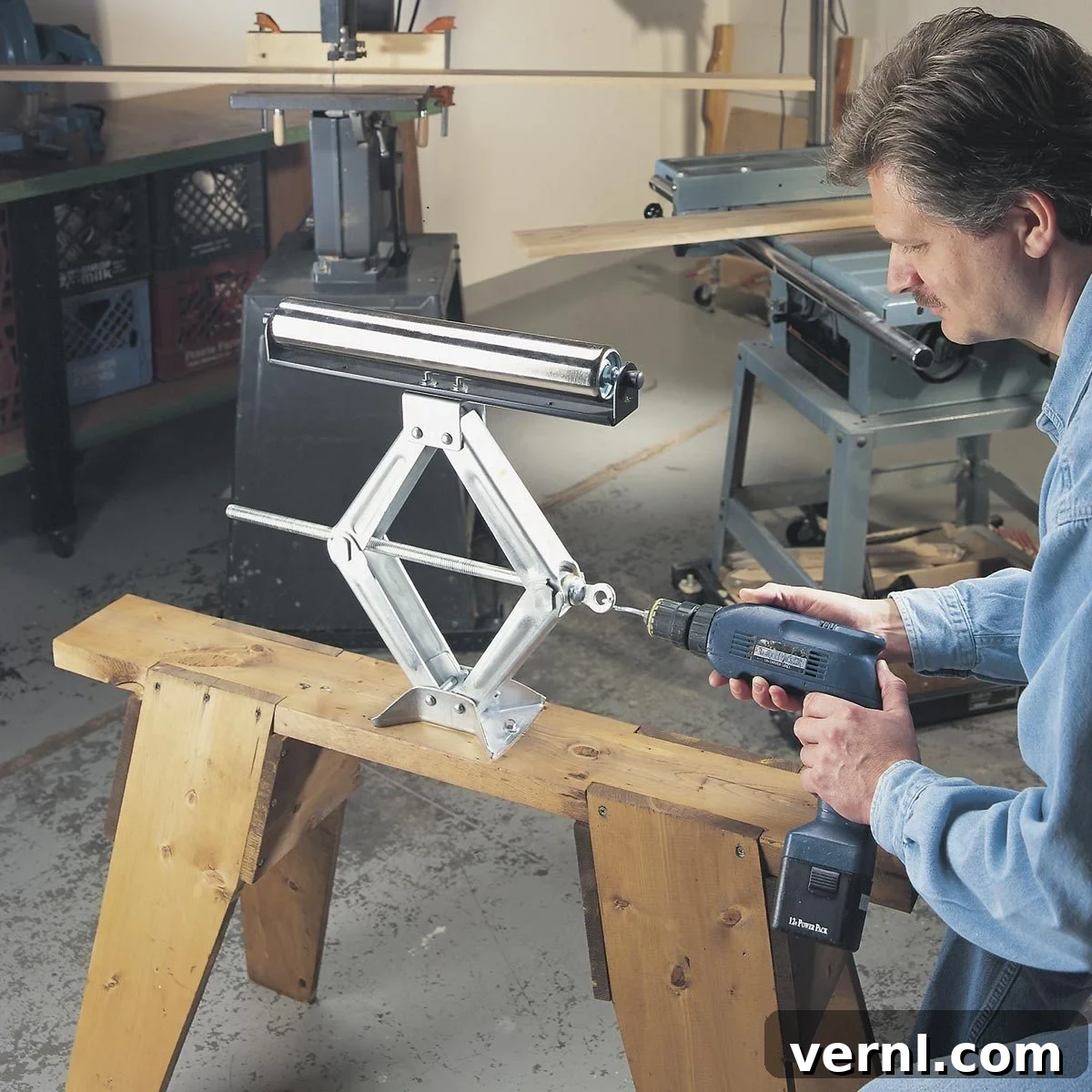

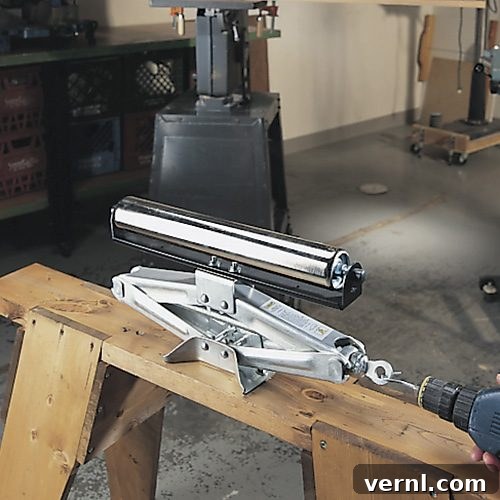

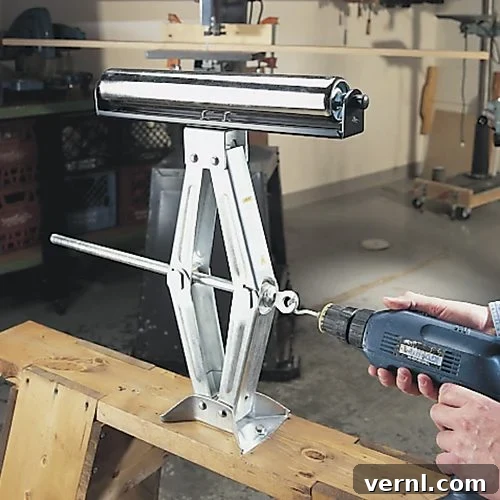

Chuck a screw hook (a sturdy one, like an eye bolt with the eye cut off to form a hook) into a portable drill. Insert the hook into the jack’s drive hole (the hole where the standard crank handle attaches). Now, simply run the drill in forward to raise the jack and in reverse to lower it. This makes height adjustments lightning-fast and requires minimal physical exertion. A huge thanks to reader Parkis Kennedy for rolling out this incredibly useful idea!

Maximizing Roller Length for Wide and Long Materials

As mentioned earlier, always buy the longest bracketed roller available that is practical for your shop. A longer roller is invaluable when processing wide boards, sheet goods like plywood or MDF, and extremely long pieces of lumber. It provides more contact points, distributing the load more effectively and preventing the workpiece from tilting or diving off the side prematurely. This leads to cleaner cuts and safer operations, especially when working alone.

Enhancing Mobility: Adding Casters

Consider adding lockable swivel casters to the legs of your sawhorse. This simple upgrade will transform your static outfeed support into a mobile unit, allowing you to easily reposition it around your shop to serve various tools or even use it as a mobile assembly table. Ensure the casters are heavy-duty and can be locked firmly to prevent unintended movement during use.

Storage and Maintenance

When not in use, you can quickly detach the roller and jack assembly from the sawhorse by unscrewing the wing-nuts. This allows for compact storage, freeing up your sawhorse for other tasks. Periodically check the roller bearings for smooth operation and lubricate the scissors jack mechanism to ensure it continues to operate effortlessly. Also, regularly inspect all bolts and nuts for tightness, retightening as necessary to maintain stability.

Beyond the Table Saw: Versatile Applications for Your Adjustable Outfeed Roller

While often associated with table saws, your new DIY adjustable outfeed roller jack is incredibly versatile and can enhance the use of many other stationary power tools in your workshop:

• Planers: Eliminate snipe by providing consistent support for boards as they exit the planer. This ensures a uniform thickness from end to end.
• Jointers: Keep long boards level and stable as they pass over the jointer bed, facilitating straighter edges and flatter faces.
• Band Saws: Offer critical support for resawing tall boards or cutting large, unwieldy shapes, maintaining control and improving cut quality.
• Miter Saws: Extend your miter saw’s support wings for cutting long trim pieces or lumber accurately and safely.
• Assembly Table: When not actively supporting a power tool, the adjustable height feature allows it to function as a temporary assembly table or an extra workbench surface for various tasks.
