How to Size and Replace Your Central AC Filter

Think of your central air conditioning system as the lungs of your home. Just like our lungs need clean air to function optimally, your AC system relies on a clean, efficient filter to circulate fresh, healthy air and maintain its peak performance. It might surprise you, but the leading cause of a central air conditioner breakdown isn’t a complex mechanical failure – it’s often something as simple as a dirty filter.

Clogged and dusty filters are silent culprits. They severely restrict airflow, forcing your system to work harder, which not only drives up energy bills but also leads to dirt accumulating on sensitive evaporator coils. Ultimately, this can culminate in motor strain and premature system failure. The single most impactful and cost-effective action you can take to keep your central air conditioner running efficiently and prolong its lifespan is to regularly replace your air filters.

Ready to unlock the secrets of superior indoor air quality and HVAC efficiency? Let’s dive into everything you need to know about central air filters!

Understanding Central Air Filters: More Than Just a Sieve

A central air conditioner filter is a crucial component, typically a rectangular panel made from various materials like spun fiberglass, pleated paper, or synthetic cloth, all encased in a sturdy cardboard frame. These filters are not merely rudimentary screens; they are sophisticated components designed to purify the air circulating throughout your home.

What They Do: A Dual Purpose

Improve Indoor Air Quality: Filters act as a barrier against a myriad of airborne contaminants. As air is drawn into your HVAC system, it’s forced through the filter material, which effectively traps particles such as pollen, pet dander, dust mites, mold spores, bacteria, and even some viruses. This significantly reduces the presence of allergens and irritants in your living space, contributing to a healthier environment, especially for those with allergies, asthma, or respiratory sensitivities.
Protect Your HVAC System: Beyond air purification, filters serve a vital protective role for your expensive heating, ventilation, and air conditioning (HVAC) equipment. They prevent the very same pollutants from building up on critical components like the evaporator coils and blower motor. A dirty coil reduces the system’s ability to cool efficiently, while a dust-laden motor can overheat and fail. Regular filter changes safeguard these components, ensuring your system operates efficiently and avoids costly repairs.

Evolution of Filter Technology

Historically, basic, one-inch-thick spun fiberglass filters were common in older systems due to their low cost and minimal airflow restriction. While they capture larger particles, their efficiency is limited. Newer central air conditioner models often utilize thicker, pleated filters, which offer a significantly larger surface area to trap finer particles without excessively impeding airflow. This evolution reflects a growing understanding of indoor air quality’s importance and the desire for more robust HVAC system protection.

Sizing Your Air Filter: A Precise Fit is Paramount

Getting the correct filter size is absolutely non-negotiable. An improperly sized filter, whether too large or too small, renders it virtually useless. If a filter doesn’t fit snugly, unfiltered air will simply bypass it through gaps, allowing contaminants to circulate freely through your home and accumulate within your HVAC system. This defeats the entire purpose of having a filter.

How to Determine the Right Size

Filters come in a vast array of sizes, so a little detective work might be required to ensure you purchase the perfect match:

Check Your Current Filter: The easiest method is to examine your existing filter. Most filters clearly display their dimensions printed on the cardboard frame, typically in the format of L x W x D (length, width, depth, or thickness).
Consult Your Manufacturer: If the size isn’t visible on the filter, check your air conditioner manufacturer’s website or, even better, your owner’s manual. These resources will provide the exact specifications for your unit.
Measure Manually: If all else fails, you can measure the filter yourself. Most filters round up their dimensions to the nearest whole inch. For example, if your filter measures 19-1/2 inches by 19-1/2 inches by 3/4 inch, you will typically need a 20-inch x 20-inch x 1-inch filter. Always measure carefully to avoid errors.
Measure the Slot/Vent: If you don’t have a filter to reference, measure the exact dimensions of the slot or return vent where the filter will be located. Be precise, measuring the interior opening rather than the outer frame.

Common Filter Locations

The placement of your central air filter can vary depending on your home’s HVAC system design. In some regions, especially in warmer climates, like areas experiencing extra-hot weather, you might have multiple return vents throughout the house, each with its own filter sized to fit. In other homes, a single main filter might be situated in a slot on the side, top, or bottom of your air handling unit. These units are typically found in utility closets, basements, or garages.

Decoding Filter Ratings, Costs, and Where to Buy

Navigating the world of air filters can be daunting with various ratings, types, and price points. Understanding these factors will help you make an informed decision that balances indoor air quality, system performance, and budget.

Where to Buy Air Filters

Central air filters are widely available, making them convenient to purchase. You can find them at:

Major home improvement stores (e.g., Home Depot, Lowe’s)
Large retailers (e.g., Walmart, Target)
Online marketplaces (e.g., Amazon, FilterBuy, and other specialized filter websites)
HVAC supply stores or directly from your HVAC technician

Understanding Air Filter Costs

Prices for air filters vary significantly based on their type, size, thickness, and performance rating. Generally, the higher the rating and efficiency, the more expensive the filter will be. Here’s a general price breakdown:

Basic Fiberglass Filters: These are the most economical, typically ranging from $4 to $8 per filter. They offer basic filtration for larger particles.
Pleated Filters (Higher-Rated): Offering better efficiency and particle capture, these filters usually cost between $12 to $30 each. Their pleated design provides more surface area for filtration.
Thicker, High-Efficiency Filters (5-inch or 6-inch): Designed for advanced filtration, these thicker filters can range from $30 to upwards of $70 per filter. They are often found in newer, high-performance HVAC systems.

Key Air Filter Rating Systems

To help consumers compare filter performance, several rating systems have been developed. Understanding these ratings is key to choosing the right filter for your needs.

MERV (Minimum Efficiency Reporting Value)

Developed by the American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE), MERV is the industry standard for measuring how effectively a filter removes particles from the air. The MERV rating scale ranges from 1 to 20, with higher numbers indicating greater filtration efficiency.

MERV 1-4 (Basic): These fiberglass filters capture larger particles like carpet fibers, dust mites, and pollen. They are the least efficient but offer the least airflow restriction.
MERV 5-8 (Good): Common for residential use, these pleated filters effectively trap mold spores, dust, pet dander, and some larger bacteria. A MERV 8 rating is often a great starting point for most homes, providing a good balance between air quality and airflow.
MERV 9-12 (Better): These filters capture finer particles, including Legionella, humidifier dust, lead dust, and auto emissions. They are suitable for homes with allergy sufferers or pets.
MERV 13-16 (Best): High-efficiency filters that can trap even smaller particles like bacteria, virus carriers, and most smoke. These are ideal for those with severe allergies, asthma, or compromised immune systems. However, systems designed for lower MERV filters may struggle with the increased airflow resistance, potentially straining the blower motor.
MERV 17-20 (Hospital Grade/HEPA-like): These are typically used in surgical suites, cleanrooms, and other environments requiring pristine air. They are generally too restrictive for standard residential HVAC systems.

Important Consideration: While a higher MERV rating means better filtration, it also means a denser filter. This increased density can make your heating, ventilation, and air conditioning (HVAC) system work harder to push air through, potentially decreasing energy efficiency and even damaging older or less powerful systems. Always consult your HVAC technician or owner’s manual for the maximum MERV rating recommended for your specific system to avoid excessive strain on the blower motor.

FPR (Filter Performance Rating)

The Home Depot developed its own rating system, FPR, for its brand of filters. FPR ranges from 1 to 10, with higher numbers indicating superior filtration performance. While useful for comparing filters within The Home Depot’s brand, it’s not universally comparable to MERV across different manufacturers.

MPR (Microparticle Performance Rating)

3M, a prominent filter manufacturer, uses its proprietary Microparticle Performance Rating (MPR) system. MPR measures a filter’s ability to capture airborne particles smaller than 1 micron. MPR ratings typically range from 300 to 2200, with higher numbers indicating better capture of microscopic particles. While MPR and MERV both measure filtration efficiency, they use different metrics, so direct conversion isn’t always straightforward. Generally, a higher MPR rating correlates with a higher MERV rating.

HEPA (High Efficiency Particulate Air)

HEPA filters are a gold standard in air purification, renowned for their ability to remove 99.97% of airborne particles 0.3 microns in size. This includes dust, pollen, mold, bacteria, and fine airborne particles. While incredibly effective, true HEPA filters are usually too dense and restrictive for most residential central HVAC systems. The existing ductwork and blower motor are typically not designed to handle the significant airflow resistance of a HEPA filter. Installing one can severely reduce airflow, damage your system, and lead to poor indoor comfort. For true HEPA-level filtration in a home, dedicated HEPA air purifiers or specially designed whole-house HEPA systems (often installed as a bypass system) are usually required.

How Often to Change Your Central Air Filter: A Crucial Schedule

Regular filter replacement is paramount for both indoor air quality and HVAC system longevity. The frequency at which you should change your central air filter is not a one-size-fits-all answer; it depends on several key factors:

Filter Type: Cheaper, basic fiberglass filters often need to be changed every 30 days. Higher-quality pleated filters can typically last 60 to 90 days.
Usage: How often you run your air conditioner plays a major role. During peak seasons, like summer when your air conditioner is working extra hard, or during allergy season, you might need to change them more frequently.
Occupants and Pets: Homes with pets, young children, or individuals suffering from allergies or asthma will benefit from more frequent filter changes (e.g., every 30-45 days). Pet dander and allergens accumulate rapidly.
Smokers in the Home: Tobacco smoke particles are extremely small and can quickly clog filters, necessitating more frequent changes.
Local Environment: If you live in a dusty area, near construction, or in a region prone to high pollen counts, your filters will get dirty faster.
Home Activity: Frequent cooking, burning candles, or renovations can also contribute to quicker filter accumulation.

As a general guideline, most households should aim to change their filters every 60-90 days. However, consider a monthly check, especially if any of the above factors apply to your home. If you have pets or allergies, consider changing them every 30-45 days.

Telltale Signs Your Filter Needs Changing

Your HVAC system often sends clear signals that its filter is struggling. Pay attention to these indicators:

Visible Dust: You notice an excessive buildup of dust on your return air vents, or dust accumulating more rapidly on furniture and surfaces around your home.
Reduced Airflow: The airflow from your supply vents feels weaker than usual, indicating that the system is struggling to pull air through a clogged filter.
Decreased Cooling/Heating Efficiency: Your AC system takes noticeably longer to cool or heat your house to the desired temperature, leading to increased energy consumption.
Increased Energy Bills: A clogged filter forces your HVAC system to work harder, directly translating to higher electricity or gas bills.
Unusual Noises: Your system sounds like it’s straining, groaning, or making a whistling noise upon start-up, a clear sign of restricted airflow.
Visible Filth: The filter itself appears visibly dirty, gray, or caked with dust and debris. If it looks filthy, it’s definitely time for a change!

Where to Locate Your Central Air Filter

Finding your central air filter is usually straightforward, but its exact location can vary based on your HVAC system’s model and installation. The most common places to check are:

In a Slot on the Return Air Duct: This is arguably the most prevalent location for residential central air conditioner filters. The return air duct is a large duct (or ducts) that pulls air from your home back into the central air handler for conditioning. You’ll typically find a dedicated slot or compartment on the side of this main return duct, often covered by a removable panel or grille. Look for an arrow indicating airflow direction on or near the slot.
Within the Air Handler or Furnace Unit: In many combined heating and cooling systems (furnaces and air handlers), the filter is housed directly inside the indoor unit itself. This unit is usually located in a basement, attic, utility closet, or garage. There will be an access panel or door on the front, side, or bottom of the unit that can be unlatched or unscrewed to reveal the filter slot.
Behind a Filter Grille in a Wall or Ceiling: Less common but still found in some homes, the filter might be integrated directly into a large return air grille in a wall or ceiling. This grille is designed to open, allowing you to easily access and replace the filter without disturbing the main HVAC unit. These grilles are typically larger than standard supply vents and will have visible latches or screws.

If you’re unsure, consult your HVAC system’s owner’s manual or look for clear markings or arrows on the system itself. When in doubt, a quick call to your HVAC technician can clarify the exact location.

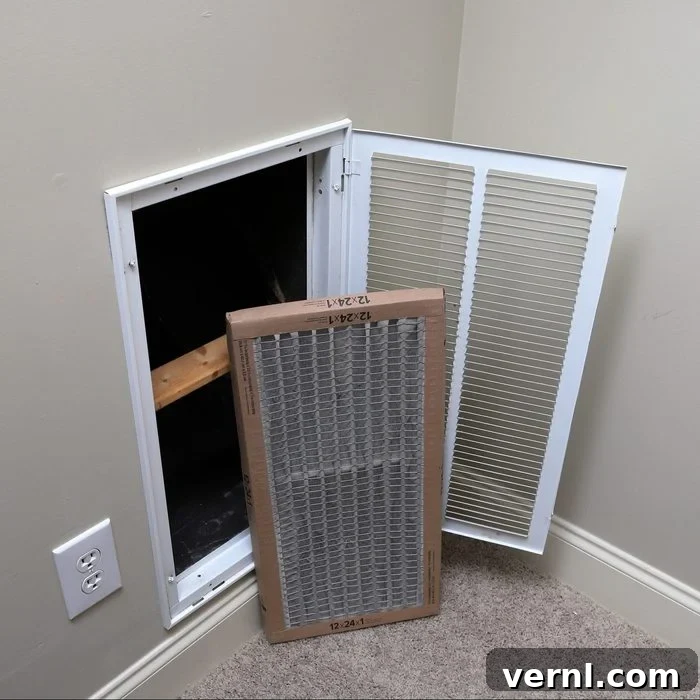

Step-by-Step Guide: How to Replace a Central Air Filter

Replacing your central air filter is one of the simplest yet most effective home maintenance tasks you can perform. It requires no special tools and typically takes just a few minutes. Follow these easy steps:

Turn Off Your HVAC System: Safety first! Before doing anything, always switch off your thermostat to prevent the system from accidentally turning on while you’re working near it. You can also turn off the power at the circuit breaker for added safety.
Locate Your Filter: As discussed, find the exact location of your air filter. This could be in a return air vent (on a wall or ceiling) or in a dedicated slot on or near your main HVAC air handler unit (often in a basement, attic, or utility closet).
Open the Access Point: If the filter is behind a return air grille, unhook the latches or loosen the screws to open the cover. If it’s in a slot on your unit, slide open the access panel or pull out the old filter directly.
Remove the Old Filter: Carefully slide out the old, dirty filter. Note its orientation – specifically, the direction of the airflow arrow. This is crucial for installing the new filter correctly. Dispose of the old filter responsibly.
Clean the Area (Optional but Recommended): Take a moment to wipe down the inside of the cover grille or the filter slot with a microfiber cloth to remove any accumulated dust and debris. This helps maintain a cleaner system.
Insert the New Filter: Unpack your new, correctly sized filter. Crucially, ensure the arrow printed on the filter’s frame points in the correct direction. This arrow indicates the direction of airflow, which should always be towards your furnace or air handler unit (or away from the return air duct, towards the inside of the system).
Secure the Access Point: Once the new filter is properly seated, close and latch the cover grille or slide the access panel back into place. Ensure it’s secure to prevent air bypass.
Restore Power and Test: Turn your HVAC system back on at the thermostat and circuit breaker. Allow the system to run for a few minutes and enjoy the benefits of improved airflow and cleaner air!

Pro Tip: Write the date of installation on the cardboard frame of the new filter with a marker. This makes it easy to track when your next replacement is due, helping you stay on schedule for optimal performance and air quality.
