Mastering Your Multimeter: The Essential DIY Guide to Electrical Troubleshooting

In the world of home maintenance and DIY projects, few tools are as versatile and indispensable as a multimeter. This powerful device is your window into the invisible forces of electricity, enabling you to diagnose a vast array of electrical problems that might otherwise require a costly professional. Whether you’re a seasoned DIYer or just starting to explore the basics of home repair, learning how to use a multimeter can save you time, money, and a lot of frustration.

This comprehensive guide will show you exactly how to wield this incredible tool for troubleshooting almost any type of electrical wiring or appliance around your home. Once you understand its core functions and how to apply them, you’ll be able to confidently test everything from the health of your power tool batteries and the integrity of dead electrical circuits to the sophisticated components of your automatic sprinkler system. We’ll break down complex concepts into simple, actionable steps, ensuring you gain the confidence to tackle a wide range of electrical diagnostic tasks safely and effectively.

What is a Multimeter and Why is it Essential for DIYers?

A multimeter, as its name suggests, is a multi-functional electronic measuring instrument that combines several measurement capabilities into one unit. Primarily, it’s used to measure voltage (volts), current (amperes), and resistance (ohms). Modern digital multimeters (DMMs) often include additional features like continuity testing, diode testing, capacitance, and frequency measurement, making them incredibly robust diagnostic tools.

For anyone engaged in home repairs, automotive maintenance, or hobby electronics, a multimeter is an essential purchase because it provides:

Unparalleled Diagnostic Capability: Pinpoint the exact source of an electrical fault, rather than guessing.
Enhanced Safety: Verify that circuits are de-energized before you touch them, dramatically reducing the risk of electric shock.
Cost Savings: Diagnose issues yourself and avoid calling an electrician for simple fixes.
Empowerment: Gain a deeper understanding of how electrical systems work, building your confidence for future projects.

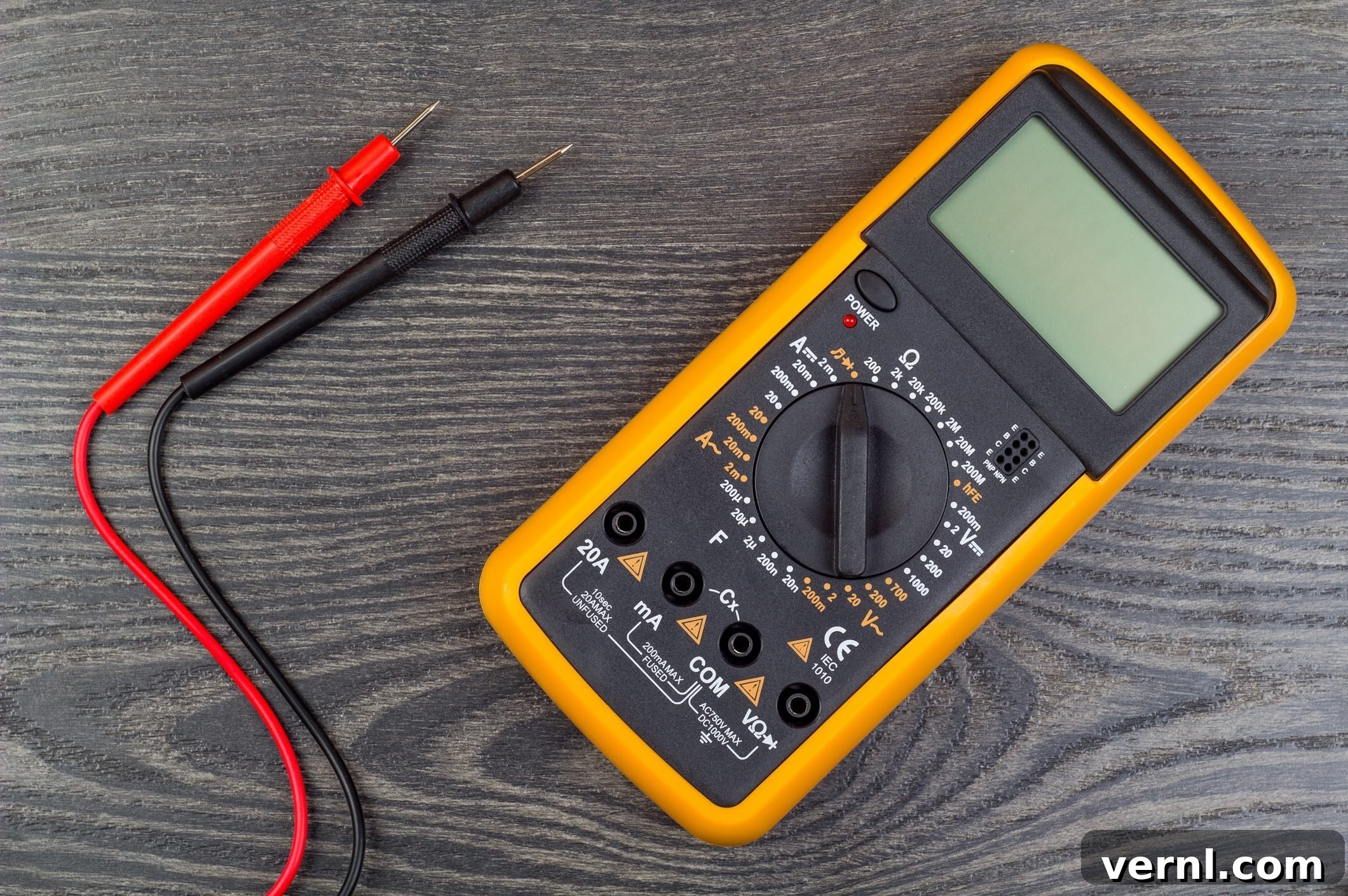

Understanding the Key Components of Your Multimeter

Before performing any tests, it’s crucial to familiarize yourself with the basic parts of your digital multimeter:

Display: This is where your measurement readings are shown. Most modern DMMs have clear, backlit LCD displays.
Rotary Switch (Function Dial): The central dial allows you to select the type of measurement you want to perform (e.g., AC Voltage, DC Voltage, Resistance, Continuity, Amperage) and often the measurement range.
Input Jacks: These are the ports where you plug in your test leads.
- COM (Common): This jack is almost always used for the black test lead. It represents the negative reference point.
- VΩmA: This jack is typically used for the red test lead when measuring voltage, resistance, or small currents (milliamperes).
- 10A (or 20A): This jack (if present) is for the red test lead when measuring larger currents (amperes). Using the correct jack is vital to prevent damaging the meter or blowing its internal fuse.
Test Leads: Usually a pair of insulated wires, one red and one black, with sharp metal probes at one end and banana plugs at the other for connecting to the meter.

Safety First: Essential Precautions When Working with Electricity

Working with electricity carries inherent risks. Always prioritize your safety by following these critical guidelines:

Always De-energize Circuits When Possible: Before performing resistance or continuity tests, or making repairs, always turn off the power at the circuit breaker or fuse box.
Verify Circuits are Dead: Use your multimeter to confirm that a circuit is truly de-energized before touching any wires or components.
Inspect Your Multimeter and Leads: Before each use, check your test leads for any cracks, fraying, or exposed wiring. Ensure the multimeter casing is intact. Damaged equipment can pose a serious shock hazard.
Use Proper Personal Protective Equipment (PPE): Wear safety glasses to protect your eyes from accidental sparks or arcs. Insulated gloves are also highly recommended, especially when working with live circuits.
Avoid “One-Handed” Operation: When probing live circuits, try to keep one hand in your pocket. This prevents a current path from forming across your chest and through your heart if you accidentally touch two live points.
Select the Correct Measurement Function and Range: Always ensure your multimeter is set to the appropriate function (e.g., AC Volts for outlets, DC Volts for batteries) and range (start with the highest range if you don’t know the approximate voltage) before taking a reading. Incorrect settings can damage the meter or give inaccurate readings.
Never Measure Current in Parallel: To measure current, the multimeter must be wired in series with the circuit, effectively becoming part of the circuit. Placing the probes across a live voltage source while in current mode will create a short circuit, blow the meter’s fuse, and potentially damage the meter or cause a fire.

Core Multimeter Functions and Step-by-Step Usage

1. Measuring AC and DC Voltage (Volts – V)

Voltage is the electrical “pressure” or potential difference that drives current. You’ll primarily measure DC voltage for batteries, automotive systems, and low-voltage electronics, and AC voltage for household outlets, appliances, and utility power.

How to Measure Voltage:

Lead Placement: Plug the black test lead into the “COM” jack and the red test lead into the “VΩmA” jack.
Function Selection: Turn the rotary dial to the appropriate voltage setting:
- V~ (AC Voltage): For household outlets, wall switches, and most appliances. (e.g., 120V or 230V).
- V– (DC Voltage): For batteries, car electrical systems, and electronic components. (e.g., 1.5V, 9V, 12V).
If your meter is not auto-ranging, select a range higher than the expected voltage (e.g., 200V for household AC, 20V for a 12V car battery).
Probe Application: Carefully touch the red probe to the “hot” or positive side of the circuit and the black probe to the “neutral,” “ground,” or negative side. For an outlet, insert probes into the slots.
Read Display: The voltage reading will appear on the display.

Common Applications: Checking if an electrical outlet is live, verifying battery charge levels, troubleshooting power supply units, ensuring proper voltage is reaching an appliance.

2. Measuring Resistance (Ohms – Ω)

Resistance is the opposition to the flow of electric current. Measuring resistance helps determine if a component or wire has a complete path for current (continuity), is broken (open circuit), or has an unintended low-resistance path (short circuit).

How to Measure Resistance:

De-energize First: Absolutely crucial! Always ensure the circuit or component you are testing is completely de-energized and disconnected from any power source. Measuring resistance on a live circuit will damage your multimeter.
Lead Placement: Black test lead into “COM,” red test lead into “VΩmA.”
Function Selection: Turn the rotary dial to the “Ω” (Ohms) symbol. If your meter isn’t auto-ranging, start with a mid-range setting and adjust if necessary.
Probe Application: Touch the probes across the component or the two points of the wire you wish to test.
Read Display:
- A stable numeric reading indicates the resistance value.
- “OL” (Over Load) or “1” (on some meters) typically means infinite resistance, indicating an open circuit (e.g., a broken wire or a blown fuse).
- A reading very close to 0 ohms indicates a good, continuous path with very little resistance (e.g., a good wire or fuse).

Common Applications: Testing light bulb filaments, checking appliance heating elements, verifying fuse integrity, troubleshooting switches, checking motor windings.

3. Continuity Test (Audible Beep Function)

The continuity test is a special type of resistance test designed for quick, audible checks of whether a complete electrical path exists between two points. It’s incredibly useful for verifying connections and finding breaks.

How to Perform a Continuity Test:

De-energize: As with resistance, ensure the circuit or component is completely de-energized.
Lead Placement: Black test lead into “COM,” red test lead into “VΩmA.”
Function Selection: Turn the rotary dial to the continuity symbol (often a sound wave icon, sometimes combined with the diode symbol).
Test the Meter: Touch the two probes together. The meter should emit a continuous beep, indicating that its leads are good and the function is working.
Probe Application: Touch the probes to the two points you want to check for continuity (e.g., each end of a wire).
Listen for Beep: If the meter beeps, there is a continuous electrical path. If there’s no beep, the circuit is open (broken).

Common Applications: Quickly identifying broken wires in extension cords, checking the connections in electrical cables, testing fuses, verifying switch operation.

4. Measuring Current (Amperes – A)

Current is the rate of electron flow through a circuit. Measuring current is often more involved and potentially hazardous than measuring voltage or resistance because it requires inserting the multimeter in series with the circuit, effectively breaking the circuit to measure the flow through it.

How to Measure Current:

De-energize Circuit: Turn off the power to the circuit you intend to measure.
Lead Placement (Crucial!): Plug the black test lead into “COM.” For the red test lead, you MUST select the correct amperage jack. Use the “mA” jack for small currents (milliamperes) or the “10A” (or 20A) jack for larger currents (amperes). Using the wrong jack or trying to measure high current on a low-current setting will blow the meter’s internal fuse.
Function Selection: Turn the rotary dial to “A~” (AC Amperes) or “A–” (DC Amperes). Choose an appropriate range (start high if unsure).
Break the Circuit: Physically disconnect one point in the circuit path where you want to measure current. For example, disconnect a wire from a load or power source.
Insert Meter in Series: Connect the red probe to the side of the circuit coming from the power source and the black probe to the side going to the load. The multimeter now completes the circuit.
Re-energize and Read: Carefully restore power to the circuit. The multimeter will display the current flowing through it.
De-energize and Reconnect: Turn off power, remove the multimeter, and reconnect the original circuit wiring before restoring power.

Warning: Never connect the multimeter in current mode directly across a voltage source (in parallel) as if you were measuring voltage. This will create a direct short circuit, likely blowing the meter’s fuse and potentially damaging the meter or power supply, or even causing a fire. For measuring AC current without breaking the circuit, a clamp meter is a safer and easier alternative.

Common Applications: Diagnosing parasitic battery drain in vehicles, measuring the power consumption of small electronics, balancing loads on multi-circuit systems.

Practical Troubleshooting Applications for Your Multimeter

1. Testing Batteries (Tool Batteries, Car Batteries, Household Batteries)

One of the most common and straightforward uses for your multimeter is checking the charge and health of various batteries.

Procedure:

Set your multimeter to DC Voltage (V–), and select a range suitable for the battery (e.g., 20V for a 12V car battery or a power tool battery, 2V for a 1.5V AA/AAA battery).
Touch the red probe to the positive (+) terminal of the battery and the black probe to the negative (-) terminal.
Observe the reading:
- A fresh AA/AAA battery should read approximately 1.5V to 1.6V. Below 1.3V, it’s considered discharged.
- A fully charged 12V car battery (engine off) should read around 12.6V to 12.8V. Below 12.4V suggests a need for charging.
- For power tool batteries, consult the manufacturer’s specifications, but generally, a 12V battery might read 10.8V to 12.0V, an 18V battery 16.2V to 18.0V, etc., depending on chemistry and charge state.

2. Diagnosing Dead Electrical Circuits and Outlets

If an outlet, light fixture, or appliance isn’t receiving power, your multimeter is invaluable for quickly determining if the issue is power-related or within the device itself.

Procedure:

Set your multimeter to AC Voltage (V~), selecting a range appropriate for your region (e.g., 200V or 750V for 120V/240V systems).
For an outlet: Carefully insert the red probe into the smaller “hot” slot and the black probe into the longer “neutral” slot. You should read approximately 120V (or 230V/240V).
Next, test between the hot slot (red probe) and the ground hole (black probe). You should get a similar voltage reading.
If either test shows 0V or a significantly lower reading, there’s no power reaching the outlet, indicating a tripped circuit breaker, a loose wire, or a faulty outlet.
For a switch: With power on and the switch in the “ON” position, measure the voltage across the two terminals. A reading of 0V indicates the switch is properly closing the circuit. A voltage reading (e.g., 120V) suggests the switch is open or faulty, preventing current flow. Always turn off power at the breaker before investigating wires behind the switch.

3. Troubleshooting Appliances and Wiring

A multimeter can help pinpoint faulty components within appliances, saving you from replacing an entire unit for a simple part failure.

Power Cords: If an appliance doesn’t turn on, test its power cord for breaks. Unplug the cord, then use the continuity test function. Touch one probe to a prong on the wall plug and the other probe to the corresponding wire connection inside the appliance (where the cord connects). Repeat for each wire. No continuity means a broken wire within the cord.
Fuses: Many appliances have internal fuses. If a device stops working, always check the fuse. After safely removing the fuse (ensure it’s completely disconnected from power), set your multimeter to continuity. Touch one probe to each end of the fuse. A good fuse will show continuity (and beep); a blown fuse will show “OL” or no beep.
Heating Elements: For appliances like toasters, ovens, or water heaters, heating elements have a specific resistance. With the appliance unplugged, set your multimeter to Ohms (Ω) and test across the element’s terminals. Compare your reading to the manufacturer’s specifications. An “OL” reading indicates a broken element.
Switches and Relays: Use the continuity test to check simple on/off switches. With the switch isolated and in the “on” position, it should show continuity. In the “off” position, it should show “OL” (open circuit).

4. Diagnosing Your Automatic Sprinkler System

A non-functioning sprinkler zone can often be traced back to a problem with the solenoid valve or the low-voltage wiring. Your multimeter is perfect for this task.

Procedure:

Test Controller Output Voltage: Set your multimeter to AC Voltage (V~), usually in the 20V to 40V range. Connect one probe to the “Common” terminal on your sprinkler controller and the other to the terminal for the specific zone that isn’t working. Manually activate that zone from the controller. You should read approximately 24-28VAC. If not, the controller or its internal transformer might be faulty.
Test Solenoid Resistance: Turn off the power to your sprinkler controller. Locate the valve solenoid for the problematic zone. Disconnect its two wires. Set your multimeter to Ohms (Ω). Touch one probe to each wire lead of the solenoid. A good solenoid typically has a resistance between 20-60 ohms (consult your solenoid’s specifications if available). An “OL” or infinite resistance indicates an open circuit (a bad solenoid coil). A very low reading (close to 0 ohms) could indicate a shorted solenoid.
Test for Wire Breaks: If the controller is outputting voltage and the solenoid tests good, the issue might be a broken wire running from the controller to the valve. Disconnect both ends of the suspect wire (at the controller and at the valve). Use the continuity test. Touch one probe to one end of the wire and the other probe to the other end. If there’s no continuity, the wire is broken and needs to be repaired or replaced.

Choosing the Right Multimeter for Your DIY Projects

For most home users and DIY enthusiasts, a good quality digital multimeter (DMM) with auto-ranging capabilities is the ideal choice. Here are some features to consider:

Auto-Ranging: This feature automatically selects the correct measurement range, making the multimeter much easier and safer to use, especially when dealing with unknown values.
True RMS: While not strictly necessary for basic tasks, True RMS (Root Mean Square) meters provide more accurate readings for non-sinusoidal AC waveforms, which are common in modern electronic devices.
Backlit Display: Very helpful for working in dimly lit areas like basements, crawl spaces, or behind appliances.
Safety Rating (CAT Rating): Look for meters rated CAT III or CAT IV. These ratings indicate the multimeter’s protection level against transient overvoltages, crucial for safely working with household electrical systems.
Min/Max Function: Allows you to capture the highest and lowest readings over a period, useful for intermittent problems.
Non-Contact Voltage (NCV) Detector: Some multimeters integrate an NCV detector, which can sense live voltage without physical contact, adding an extra layer of safety.

Reputable brands like Fluke, Klein Tools, and Sperry Instruments offer reliable and accurate multimeters suitable for both beginners and experienced users.

Caring for Your Multimeter for Longevity and Accuracy

To ensure your multimeter remains a reliable troubleshooting partner for years to come, follow these simple care and maintenance tips:

Store Properly: Keep your multimeter in a protective case or a dedicated compartment in your toolbox. This shields it from dust, moisture, and physical impacts that could damage its sensitive internal components.
Clean Regularly: Wipe down the casing and test leads with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the plastic or rubber insulation.
Inspect Test Leads: Periodically check your test leads for any signs of wear, such as cracks in the insulation, exposed wires, or bent probes. Damaged leads can give inaccurate readings and pose a safety risk. Replace them immediately if compromised.
Replace Battery Promptly: Most multimeters are powered by a 9V battery. If the display dims, flickers, or gives erratic readings, it’s likely time to replace the battery. Low battery can affect accuracy.
Respect Ratings: Never attempt to measure voltages or currents that exceed the maximum ratings specified on your multimeter. Overloading can blow internal fuses or permanently damage the device.

Conclusion: Empower Yourself with Electrical Knowledge

A multimeter is far more than just a piece of electronic equipment; it’s a tool that empowers you with critical information, transforming guesswork into confident diagnosis. By understanding the fundamental principles of voltage, resistance, and continuity, and by diligently applying the step-by-step instructions provided in this guide, you can unlock a new level of self-sufficiency in your home maintenance endeavors.

From quickly assessing the charge of your batteries to methodically troubleshooting a silent sprinkler system or a dead appliance, your multimeter will become an invaluable ally. Always remember that safety should be your absolute top priority when dealing with electricity. Take your time, double-check your settings, and verify circuits are de-energized whenever possible. Embrace the knowledge, equip yourself with this essential tool, and confidently tackle your next electrical challenge!
