Achieving Perfect Miter Joints: A Comprehensive Guide to DIY Clamping

In the world of woodworking, few joints offer the clean, continuous aesthetic appeal of a miter joint. Whether you’re crafting elegant picture frames, constructing sophisticated furniture, or installing meticulous trim, a perfectly executed miter joint signifies precision and craftsmanship. However, these 45-degree angle unions are notoriously challenging to clamp effectively, often leading to frustrating gaps, misalignment, and compromised strength. This comprehensive guide will walk you through the process of conquering miter joints by building your own highly effective custom clamp and mastering the techniques for flawless assembly.

What is a Miter Joint Clamp and Why Do You Need One?

A miter joint is formed when two pieces of wood are cut at opposing 45-degree angles, then joined together to create a 90-degree corner. This creates a visually appealing joint where the wood grain often appears to flow continuously around the corner, unlike butt joints where end grain is exposed. The challenge arises during the gluing and clamping phase. The angled surfaces tend to slip and slide under pressure, making it difficult to maintain perfect alignment and apply even, consistent clamping force.

This is where a miter joint clamp becomes indispensable. While various specialty clamps exist on the market, a simple, homemade miter joint clamp offers an incredibly effective and cost-efficient solution. Its primary purpose is to provide firm, localized pressure directly on the angled faces of the miter joint, preventing slippage and ensuring that the two pieces remain perfectly aligned as the glue sets. This specialized tool essentially transforms the tricky angled surfaces into parallel clamping surfaces, allowing standard bar clamps or C-clamps to apply pressure optimally.

Imagine trying to hold together the four corners of a picture frame, each cut at a precise 45 degrees, while simultaneously applying glue and attempting to keep them square. Without the right tools, this task can quickly become a test of patience and dexterity. A miter joint clamp simplifies this by providing a stable, reliable mechanism to hold the joint securely, freeing your hands to apply overall pressure and ensure squareness. Its design leverages the very geometry of the miter cut to your advantage, pushing the joint surfaces together for an incredibly tight and strong bond.

The Importance of Flawless Miter Joints in Woodworking

The success of many woodworking projects hinges on the quality of their miter joints. A poorly clamped miter joint can result in unsightly gaps, uneven surfaces, and a significantly weakened structure. Such flaws can detract from the aesthetic appeal of a custom-built picture frame, compromise the integrity of a box, or make architectural trim appear unprofessional.

Achieving a flawless miter joint is a hallmark of skilled craftsmanship. It speaks to attention to detail and a commitment to quality. The continuous grain pattern that a well-executed miter joint offers is aesthetically pleasing and often preferred for high-end furniture and decorative items. By utilizing a dedicated miter joint clamp, woodworkers can overcome the inherent difficulties of this joint, ensuring tight, strong, and visually impeccable results every time. This not only enhances the beauty and durability of the finished product but also boosts the woodworker’s confidence and efficiency in their craft.

Building Your Own Miter Joint Clamp: A Simple & Effective Solution

Why spend money on specialized clamps when you can craft your own highly effective miter joint clamps from a common piece of wood? This DIY project is straightforward, requires minimal tools, and yields a tool you’ll use repeatedly for countless projects. The design is clever: it converts the challenging 45-degree angle into a stable platform for standard clamps, ensuring even pressure across the joint. Let’s gather our materials and get started on creating this essential workshop aid.

Materials You’ll Need:

A straight, defect-free 1×4 (e.g., pine or poplar) – choose a piece that is flat and has no significant knots or warps. A length of about 18-24 inches will be sufficient to make several clamps.
Wood glue (for your projects, not for the clamp itself)
Ratcheting bar clamps or C-clamps (for your projects)

Tools Required:

Tape measure
Pencil
Miter saw, table saw, or jigsaw (as shown in the images)
Drill (corded or cordless)
1-inch diameter drill bit (Forstner bit or spade bit works well)
Safety glasses and hearing protection

Step-by-Step Construction Guide:

Step 1: Prepare Your Stock and Cut Initial Blocks

Begin with your 1×4 piece of wood. The length isn’t critical at this stage, but ensure it’s long enough to safely handle with your chosen saw. Measure and mark out sections for your individual clamp blocks. A good size for each block is approximately 3 to 4 inches in length. While you’ll eventually cut these blocks free, it’s often safer and easier to work on a slightly longer piece of stock initially. You can cut a single long strip, say 12-16 inches, and then work on that piece before separating the individual clamps.

Step 2: Mark and Drill the Relief Hole

On one of your marked block sections (or on the longer strip), locate the exact center. Use your tape measure and pencil to draw diagonal lines from corner to corner to find the precise midpoint. At this center point, drill a 1-inch diameter hole. This hole is a crucial design element. Its primary purpose is to prevent the clamp block from accidentally getting glued to your project. By creating a hollow space, you ensure that any excess glue squeeze-out from the miter joint has nowhere to adhere to the clamp itself. It also provides a slight relief point, allowing the clamping pressure to be focused on the edges of the joint.

Always use appropriate safety gear, including safety glasses, when operating power tools. If using a drill press, secure your workpiece firmly to prevent rotation.

Step 3: Cut the 45-Degree Angles

This is the most critical step for the clamp’s functionality. You need to cut two 45-degree angles tangent to the drilled hole. “Tangent” means the cut should just barely touch the edge of the hole. Imagine slicing off the corners of your block, with the cuts meeting at the center of the hole. These angled cuts create the specific geometry that allows the clamp to effectively press inward on your miter joint. Accuracy here is paramount for the clamp to function correctly.

Using a Table Saw: Set your blade to 45 degrees. Carefully guide your block through, ensuring the cut starts just at the edge of the drilled hole and extends to the outer edge of the block. Flip the block and repeat for the opposite side.
Using a Miter Saw: Set your miter saw to a 45-degree angle. Position the block so the blade just grazes the edge of the hole. Make the cut, then flip the block and repeat.

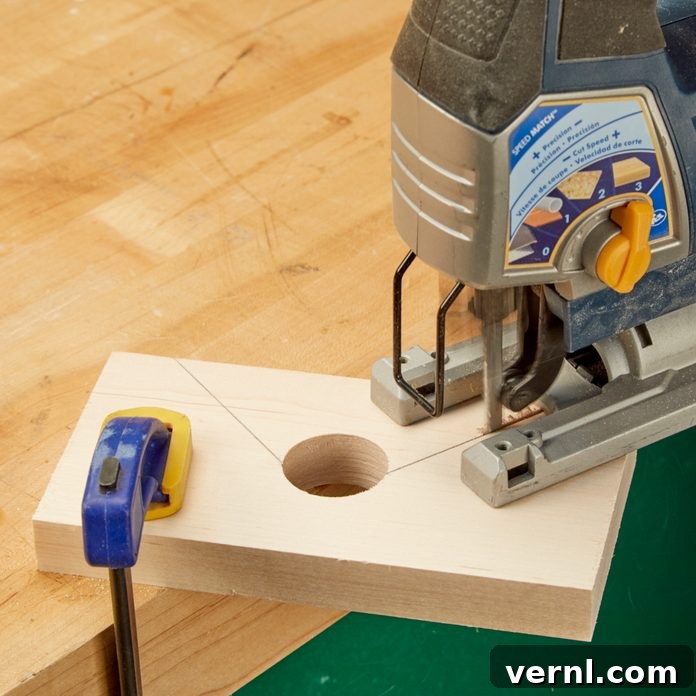

Using a Jigsaw (as shown): While more challenging to achieve perfect angles, a jigsaw can be used if you carefully follow a marked line. Scribe precise 45-degree lines from the edges of the drilled hole to the outer corners of the block before cutting.

The goal is to create a block with a diamond-like or pointed shape in the middle, where the two 45-degree surfaces will engage with your project’s miter joint.

Step 4: Cut the Blocks Free

Once you’ve made the 45-degree cuts for one clamp, carefully cut the individual clamp block free from the longer board. Repeat the entire process (marking, drilling, cutting 45-degree angles, and cutting free) to create as many miter joint clamps as your project requires. For a typical four-corner picture frame, you will need four of these custom clamps.

With these simple steps, you’ve now created a powerful, precision tool that will revolutionize how you approach miter joint assembly. These homemade clamps are incredibly versatile and can be adapted for various project sizes, making them an invaluable addition to any woodworker’s arsenal.

Mastering Miter Joint Assembly: Gluing and Clamping Techniques

Having built your custom miter joint clamps, the next step is to use them effectively to achieve rock-solid, perfectly aligned joints. The process involves careful application of glue, precise placement of your new clamps, and the strategic use of traditional clamping tools.

Here’s how to glue and clamp your miter joints with confidence:

Prepare Your Workpiece: Before applying any glue, always perform a dry fit of your mitered joint. This allows you to check for any gaps or misalignments that need addressing (e.g., slight sanding or recutting) before glue is involved. Ensure your pieces are clean and free of dust or debris.
Evenly Spread Wood Glue: Apply a moderate, even layer of quality wood glue (like PVA wood glue) across both 45-degree angled sections of your mitered joint. Use a small brush, roller, or even your finger to ensure full coverage without excessive pooling. The goal is to create a strong bond across the entire joint surface. Avoid applying too much glue, as excessive squeeze-out can be messy and make cleanup difficult, potentially interfering with your clamps.

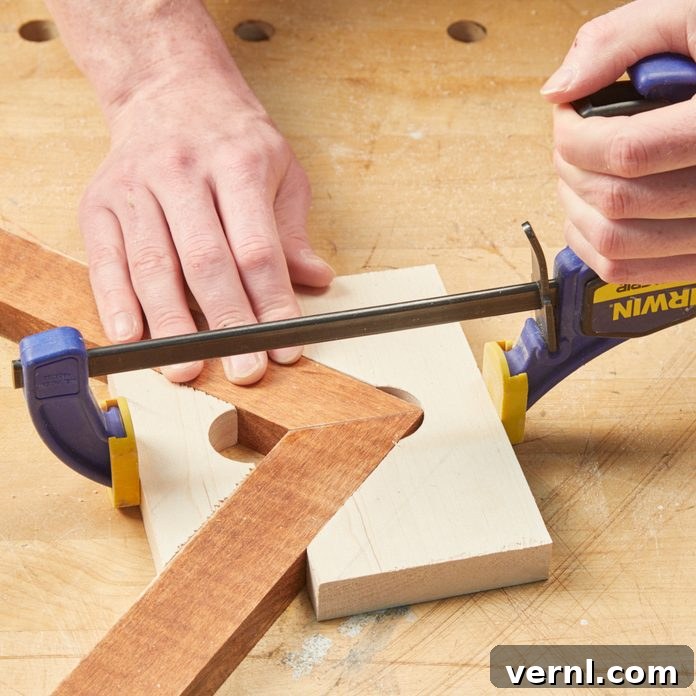

Position Your Miter Joint Clamp: Carefully bring the two mitered pieces together. Now, take one of your custom miter joint clamps. You will notice it has a larger side and a smaller, more pointed side where the 45-degree cuts meet. Position the clamp so that the larger, flatter side rests on the outside of the joint (the part facing away from the corner) and the smaller, pointed side fits snugly into the inside corner of the joint. This placement is crucial because it ensures that when pressure is applied, the clamp pushes the two mitered pieces inward, effectively tightening the joint and preventing any outward bowing or slippage.
Apply Pressure with Bar Clamps or C-Clamps: With your DIY miter joint clamp securely in place, use a standard ratcheting bar clamp or a C-clamp to squeeze it. Position your bar clamp so its jaws press against the outer face of your project and the outer face of your DIY miter clamp. As you tighten the bar clamp, the pressure will transfer through your DIY clamp, forcing the mitered surfaces together with incredible precision. Apply firm but not excessive pressure; you should see a small bead of glue squeeze out along the joint line, indicating good coverage and contact. For square frames, you’ll repeat this process for all four corners simultaneously, often using specialized band clamps or large bar clamps to hold the entire assembly together while the individual miter clamps provide targeted pressure at each corner.
Wait Until the Glue Dries Completely: Patience is paramount in this stage. Refer to your wood glue manufacturer’s recommendations for drying times. This can vary from 30 minutes for initial tack to several hours for full strength, and up to 24 hours for maximum cure. Rushing this step by removing clamps too early is a common mistake that can lead to joint failure. Ensure the project is stable and undisturbed during this crucial drying period.
Carefully Remove the Clamps: Once the glue has fully dried and cured, gently remove your ratcheting bar clamps or C-clamps, followed by your custom miter joint clamps. If any glue squeeze-out has adhered to your DIY clamp (despite the relief hole), carefully pry it away or gently scrape it with a chisel. You should now have a strong, seamless miter joint that is perfectly aligned.

Maximizing the Lifespan of Your DIY Miter Clamp

One of the great advantages of a homemade tool is its reusability and adaptability. Your DIY miter joint clamps are designed to be used over and over again on countless projects, but proper care is essential to ensure their longevity and continued effectiveness. The key to maximizing their lifespan lies in preventing glue buildup.

As you’ve learned, the central drilled hole helps mitigate glue adhesion, but accidental squeeze-out on the clamping surfaces can still occur. If glue dries on your clamp, it can do a few things:

Reduce Effectiveness: Dried glue can create an uneven surface, preventing the clamp from applying even pressure to your next joint.
Transfer to Projects: If glue residue remains, it can transfer to your next workpiece, potentially causing staining or adhesion issues that are difficult to sand out.
Damage to Clamp: Repeated buildup can make the clamp difficult to use or even damage its functional surfaces over time.

To prevent these issues, it’s a good practice to wipe down your miter joint clamps immediately after each use, before the glue has a chance to fully set. A damp cloth will usually suffice for water-based wood glues. For added protection and easier cleanup, consider applying a thin coat of paste wax or even covering the clamp’s active surfaces with painter’s tape before use. The wax creates a barrier that glue won’t stick to, and the tape can simply be peeled off after clamping. Store your clamps in a dry, accessible place in your workshop, ready for your next project.

Advanced Tips for Miter Joint Success

While the DIY miter joint clamp is a powerful tool, combining it with a few other techniques can elevate your miter joints from good to truly exceptional:

Pre-Sanding for Perfect Gaps: Before gluing, lightly sand the cut faces of your miter joints with a fine-grit sandpaper (e.g., 220-grit). This removes any small imperfections from the saw blade and creates a super-smooth surface, allowing for an even tighter, more invisible joint when clamped.
Reinforcement Methods: For joints requiring extra strength, consider incorporating reinforcement techniques after the initial glue-up. Options include miter splines (thin strips of wood inserted into slots cut across the joint), biscuits, or dowels. These mechanical fasteners significantly increase the joint’s resistance to racking and shear forces.
Test Fit Everything: As mentioned, a dry run is critical. But for complex assemblies with multiple miter joints, assemble the entire structure without glue first. This ensures all pieces fit together perfectly square and flush before you commit to glue. It’s much easier to make adjustments without the pressure of setting glue.
Controlled Environment: Wood glue cures best under specific conditions. Ensure your workshop environment is not excessively cold or humid, as this can extend drying times and potentially weaken the bond.

Conclusion

Mastering miter joints no longer needs to be a source of frustration. By investing a small amount of time and effort into building your own custom miter joint clamps, you equip yourself with an invaluable tool that ensures precision, strength, and aesthetic beauty in all your woodworking projects. From elegant picture frames to robust cabinetry, these DIY clamps, combined with sound gluing and clamping practices, will help you achieve seamless, professional-grade results every time. Embrace the satisfaction of crafting perfect miter joints and elevate your woodworking skills to the next level.
