As modern vehicles evolve, their engineering becomes increasingly sophisticated and compact. With engine compartments becoming more densely packed, automotive manufacturers often relocate essential components like the car battery to less conventional, yet more accessible, positions. This shift makes direct access to the battery challenging for routine checks or emergency jump-starts. To address this, many cars and trucks are equipped with remote battery terminals. These strategically placed connection points allow for easier and safer attachment of jumper cables, ensuring you’re never stranded due to an inaccessible battery.
This comprehensive guide will explain everything you need to know about remote battery terminals: where to find them, what they look like, how to maintain them, and most importantly, how to use them safely for jump-starting your vehicle. Understanding these crucial points can save you time, hassle, and potentially a costly service call.
Why Remote Battery Terminals Are Essential for Modern Vehicles
The rise of advanced vehicle designs, including front-wheel drive configurations, hybrid systems, and electric vehicles (which still often have a 12V auxiliary battery), has led to a major redesign of under-hood layouts. Space once dedicated to a centrally located battery is now occupied by complex engine components, emission control systems, and safety features. This necessitates moving the primary battery to areas like under the rear seat, in the trunk, or even under the fender well.
While relocating the battery optimizes weight distribution and frees up crucial engine bay space, it complicates emergency procedures like jump-starting. Remote battery terminals serve as a vital solution, extending the connection points to an easily reachable area, typically under the hood or in the trunk, making emergency power access simple and straightforward. They are designed to safely bypass the need to access the main battery directly, which can be particularly difficult in adverse weather conditions or in tight spaces.
Locating Your Remote Battery Terminals
Remote battery terminals are specifically designed to be easily identifiable and accessible, even though the main battery itself might be hidden. If your vehicle features these terminals, they are usually located in close proximity to each other, ensuring a convenient connection point for both positive (+) and negative (-) jumper cables. Common locations include:
- Under the Hood, Attached to the Firewall: This is a common placement for many vehicles. Look towards the back of the engine compartment, on the panel (often called the firewall) that separates the engine from the passenger cabin. The terminals might be mounted directly onto this sturdy metal panel.
- Under the Hood, Attached to a Strut Tower: Strut towers are prominent structures in the engine bay that support the vehicle’s suspension. Remote terminals can often be found bolted to these strong points, usually on the driver’s or passenger’s side.
- Near the Under-Hood Fuse Box or Relay Center: Modern cars often centralize electrical components. The remote terminals might be situated close to the main fuse box or relay center, which are typically easy to spot within the engine bay.
- In the Trunk or Frunk: For vehicles where the main battery is located in the trunk (common in many luxury cars, sedans, and some SUVs) or a “frunk” (front trunk, typically found in rear-engine vehicles or EVs), the remote terminals might be found inside these compartments. They are often behind removable plastic trim panels designed for easy access. You may need to gently pry these panels open to reveal the terminals.
- Behind a Removable Bumper Plug: In some rarer cases, particularly with certain European models or vehicles emphasizing sleek design, remote terminals might be concealed behind a small, removable plug in the front or rear bumper. This allows for discreet access without opening a hood or trunk.
The absolute best resource for pinpointing the exact location of your vehicle’s battery and remote terminals is your owner’s manual. It provides precise diagrams and instructions tailored to your specific make and model.
Identifying Remote Battery Terminals

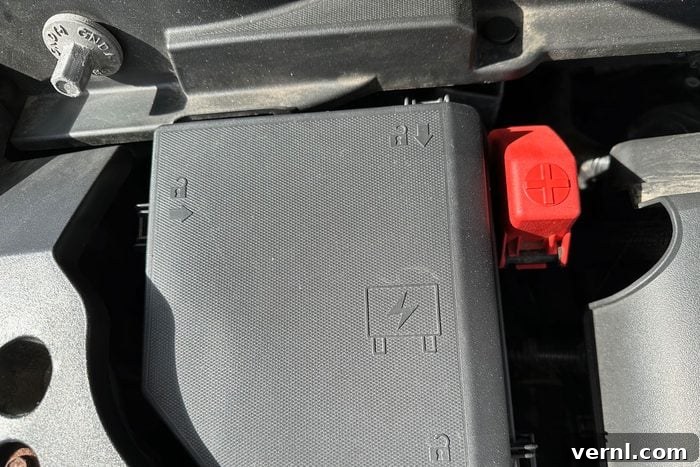

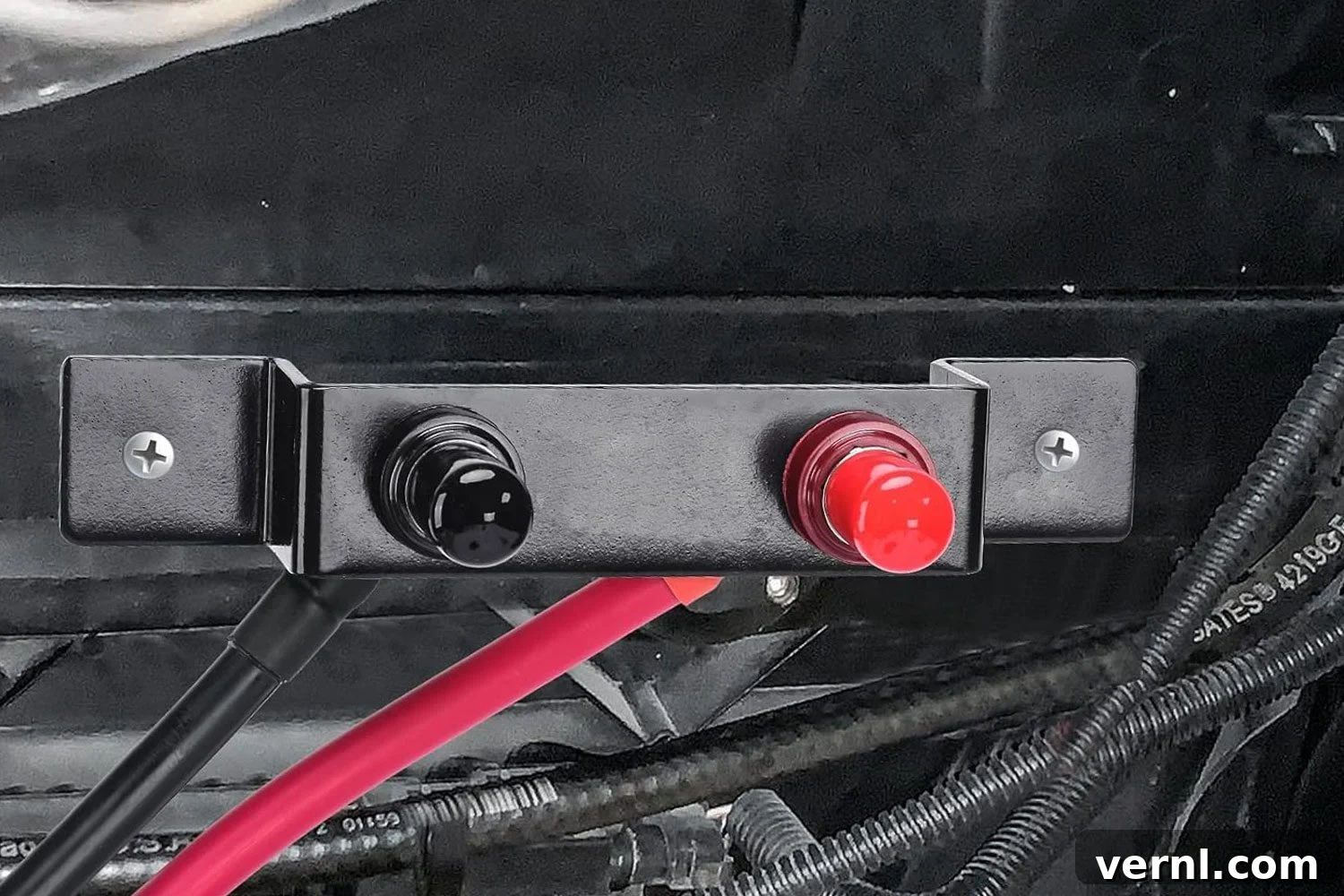

Remote battery terminals are engineered to resemble traditional battery terminals, albeit often with a more robust design to handle the high currents of a jump-start. They are designed for clarity and safety, making it easy to distinguish between positive and negative connections.
The Negative (-) Remote Terminal
The negative terminal will consistently feature the industry-standard negative (-) symbol. It may also include the letters “GRN” or “GND,” signifying “ground,” as the negative terminal is typically connected to the vehicle’s chassis or frame. These terminals often appear as a sturdy hex bolt with a thick, heavy-gauge wire attached, firmly screwed into a metal surface like a fender, firewall, or strut tower. They might also be a more substantial, six-sided bolt head with a wider base. While less common than for positive terminals, some negative terminals may also have a protective cover, often black or uncolored, to shield them from environmental elements.
The Positive (+) Remote Terminal
The positive remote battery terminal is invariably marked with a large, embossed positive (+) symbol. For critical safety, it is always encased in a bright red plastic cover. This red color and prominent symbol serve as an unmistakable visual cue, preventing accidental misconnection. It is paramount to remember: never connect jumper cables to any other exposed connectors or metallic parts on your vehicle, especially when dealing with the positive connection. Always ensure you are connecting directly to the designated positive remote terminal, indicated by the red cover and plus symbol.
The Importance of Regular Remote Battery Terminal Maintenance
While remote battery terminals are designed for minimal upkeep, they are not entirely maintenance-free. Incorporating a quick check of these terminals into your annual vehicle service or even a seasonal inspection can prevent issues down the line. Proper maintenance ensures reliable performance when you need them most, especially during an emergency jump-start.
Maintaining the Negative (-) Remote Terminal
- Check for Oxidation and Corrosion: Over time, exposed metal surfaces can oxidize or corrode, forming a powdery white or greenish-blue buildup. This corrosion significantly impedes electrical flow. If present, it’s essential to remove the terminal (if possible and safe to do so) and clean it thoroughly. Use a wire brush or fine-grit sandpaper to remove all traces of corrosion, restoring the shiny metallic surface. After cleaning, apply a dielectric grease or battery terminal protector to prevent future corrosion. Securely tighten the terminal when reinstalling.
- Inspect Fasteners and Wire Lugs: Vibrations from driving can loosen fasteners and wire lugs over time. Ensure all bolts and connections are tight and secure. Check the wire lugs for any signs of corrosion or fraying. Clean them in the same manner as you would a traditional battery cable connection. Loose or corroded connections can lead to intermittent power issues and even damage electrical components.
Maintaining the Positive (+) Remote Terminal
- Follow Negative Terminal Procedures: Perform the same checks for oxidation, corrosion, and loose fasteners as you would for the negative terminal. However, there’s a crucial additional safety step when working with the positive terminal:
- Before attempting to clean or service the positive remote terminal, always remove the negative (-) terminal directly from the main car battery (if accessible and safe to do so).
- Once removed, cover the disconnected negative terminal end with electrical tape or duct tape. This critical step eliminates the risk of accidental sparking or creating a short circuit while you are working on the positive terminal. Only after securing the negative connection should you proceed with inspecting and cleaning the positive remote terminal. Reconnect the main battery’s negative terminal only after all work on the positive remote terminal is complete and its cover is securely replaced.
How To Safely Connect Jumper Cables To Remote Battery Terminals
Jump-starting a vehicle using remote battery terminals is a common procedure, but it requires careful attention to safety and correct sequencing. Always prioritize safety to prevent injury or damage to your vehicle’s electrical system. For optimal safety, always use a high-quality set of jumper cables with thick gauge wire, or a spark-proof portable jump starter equipped with reverse polarity protection.
Caution: Always wear protective gloves and eye protection (safety glasses or goggles) when working with car batteries and jumper cables. Never attempt to jump-start a battery that appears frozen, cracked, or is leaking fluid, as it could explode. Avoid smoking or having open flames near batteries, as they can emit flammable hydrogen gas. If battery acid comes into contact with your skin or eyes, flush the affected area with plenty of water for at least 15 minutes and seek immediate medical attention.
Follow these meticulous steps when jump-starting a vehicle with a dead battery:
- Safely Position the Vehicles: Drive the helper vehicle close enough to the disabled vehicle so the jumper cables can reach both sets of terminals comfortably, but never let the vehicles touch. Contact between the vehicles could create an unintended short circuit. Place both vehicles’ transmissions in park (P) or neutral (N) and engage their parking brakes. Switch off all lights, radios, climate control, and other accessories in both vehicles to prevent electrical surges or damage. Ensure all battery terminals (both remote and main, if accessible) are clean and tightly connected.
- Connect the Positive (+) Clamps (Red):
- Take one red positive (+) jump starter or jumper cable clamp and securely attach it to the dead battery’s positive (+) remote battery terminal. Ensure a firm, clean connection.
- Next, attach the other end of the red positive (+) jumper cable to the positive (+) terminal of the helper vehicle’s good battery. Again, ensure a secure connection.
- Connect the Negative (-) Clamps (Black):
- Attach one black negative (-) jumper cable clamp to the negative (-) terminal of the helper vehicle’s good battery.
- Then, attach the other end of the black negative (-) jumper cable or jump starter to the remote negative (-) battery terminal on the vehicle with the dead battery. NEVER connect the black jumper or jump starter cable clamp directly to the dead battery’s negative terminal. Connecting to a remote negative terminal or a clean, unpainted metal part of the engine block or chassis (away from moving parts and fuel lines) on the dead vehicle provides a safe ground connection and reduces the risk of sparks near potentially explosive battery gases.
- Start the Helper Vehicle: Double-check that all jumper cables are clear of any moving engine parts (belts, fans, pulleys). Start the engine of the helper vehicle and let it run for approximately five to ten minutes. This allows its alternator to charge the dead battery slightly. During this time, you might gently rev the helper vehicle’s engine to around 1500-2000 RPMs to increase the charging rate.
- Attempt to Start the Dead Vehicle: After the charging period, turn off any non-essential accessories in the disabled vehicle (like headlights or radio). Attempt to start the vehicle with the dead battery. If it starts, leave the cables connected to the helper car or jump starter for another 30 seconds to a minute to allow the newly started vehicle’s charging system to take over. If it doesn’t start after a few attempts, turn off the helper vehicle’s engine, recheck all cable connections for looseness or corrosion, wait five minutes, and try again. Persistent failure may indicate a severely dead battery, a problem with the starter motor, or another electrical issue requiring professional attention.
Critical Disconnection Sequence
The sequence for removing the jumper cables is just as vital as the connection sequence to prevent sparks and potential damage. It’s absolutely critical to remove the cables in the exact reverse order of connection:
- First, carefully remove the negative (-) cable from the vehicle that was dead (connected to its remote negative terminal or chassis ground).
- Next, remove the negative (-) cable from the helper vehicle’s negative battery terminal.
- Then, remove the positive (+) cable from the helper vehicle’s positive battery terminal.
- Finally, remove the positive (+) cable from the vehicle that was dead (connected to its remote positive terminal).
Once the cables are removed, allow the newly started vehicle to run for at least 15-20 minutes, or drive it for a similar duration, to allow the alternator to sufficiently recharge the battery. If the vehicle struggles to start again soon after, the battery may need replacement, or there could be an issue with the charging system.
Troubleshooting Common Jump-Starting Issues
Sometimes, even with remote terminals, a car won’t jump-start. Here are a few common issues and troubleshooting tips:
- No Click or Crank: If there’s no sound or just a single click when you try to start the dead car, the battery might be completely depleted, or the connections are poor. Re-check all cable connections for tightness and cleanliness. Ensure the clamps have a good metal-to-metal contact.
- Slow Crank: A slow cranking sound indicates that the battery is receiving some power but not enough. Allow the helper vehicle to charge the dead battery for a longer period (up to 10-15 minutes). Ensure the helper vehicle’s engine is running at a slightly elevated idle.
- Lights On, No Crank: If your dashboard lights come on but the engine doesn’t crank, it could point to a faulty starter motor rather than just a dead battery. In this case, jump-starting won’t help, and professional assistance will be needed.
- Corrosion: Heavy corrosion on terminals, even remote ones, can prevent a proper electrical connection. Clean them thoroughly before attempting to jump-start.
- Frozen Battery: A frozen battery will not accept a charge and attempting to jump-start it can be extremely dangerous. If the battery is swollen or has ice on it, do not proceed.
When to Seek Professional Assistance
While remote battery terminals simplify jump-starting, there are instances when it’s best to call a professional:
- If your vehicle doesn’t start after several jump-start attempts, even with clean connections and sufficient charging time.
- If you notice any signs of battery damage, such as swelling, cracks, or leaking fluid.
- If you are unsure about the location of your remote terminals or uncomfortable performing the procedure yourself.
- If you suspect a problem with your vehicle’s alternator, starter, or other critical electrical components.
Benefits of Using Remote Battery Terminals
Remote battery terminals offer several distinct advantages:
- Enhanced Safety: They provide an easily accessible and designated safe point for connecting jumper cables, minimizing the risk of accidental short circuits or sparks near the main battery.
- Convenience: No more struggling to reach a hidden battery located deep within the engine bay or under the trunk floor, especially in emergencies.
- Accessibility: Makes jump-starting feasible for individuals who might otherwise struggle to access the primary battery.
- Reduced Damage Risk: By providing clear, dedicated connection points, they reduce the chance of damaging other delicate engine components during a jump-start.
Mastering the use of remote battery terminals is a valuable skill for any car owner. By following these guidelines for locating, identifying, maintaining, and safely using them, you can confidently tackle a dead battery situation and get back on the road with minimal fuss.
