Mastering Woodworking with Essential DIY Jigs: Precision, Safety, and Efficiency in Your Workshop
In the world of woodworking, precision, repeatability, and safety are paramount. While skilled hands are crucial, even the most experienced woodworkers rely on well-designed jigs to elevate their craft. Jigs are indispensable tools that guide your cuts, simplify complex operations, and ensure consistent results, transforming challenging tasks into routine procedures. From crafting robust joinery to achieving flawless mitered frames and accurately placing hardware, homemade jigs not only save you money but also allow for custom solutions tailored to your specific needs. This comprehensive guide will walk you through building several essential jigs that will undoubtedly enhance your workshop capabilities, making your projects more enjoyable and professional.

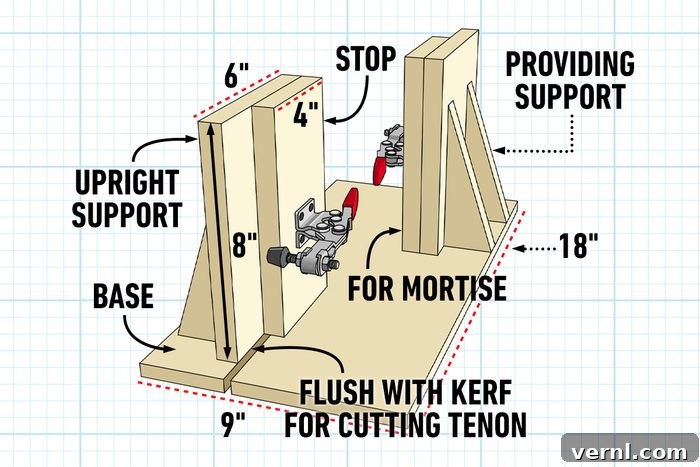

Build Your Own Precision Bridle Joint Jig
The bridle joint, a close relative of the traditional mortise-and-tenon joint, offers exceptional strength and an attractive appearance, particularly suited for frame construction and tabletops. Its defining characteristic is an open-ended mortise, meaning you cut a slot into the end of a board rather than chiseling out an internal recess. This design simplifies the cutting process significantly, especially when using a table saw. Our custom-designed bridle joint jig is specifically engineered to make both the tenon and mortise cuts for 3/4-inch material with remarkable accuracy and allows for crucial micro-adjustments to accommodate slight variations in stock thickness, guaranteeing a perfect fit every time.
Cutting the Initial Kerf in the Base

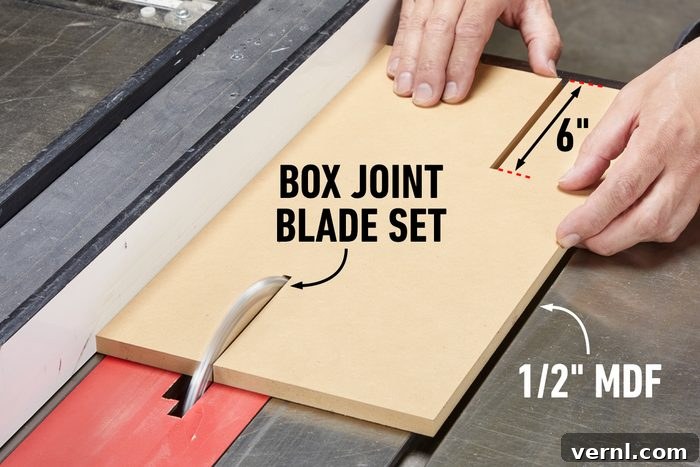

The foundation of this jig’s accuracy lies in the initial kerf cut into its base. Begin by setting your table saw fence precisely three inches from the blade. It’s vital to use a reliable tape measure for this measurement, as the saw’s built-in gauge may not be sufficiently accurate for the fine tolerances required here. Create a slot approximately six inches long on both sides of the base. For optimal results, consider using a box joint blade set, which typically cuts a perfect 1/4-inch slot, ideal for consistent joint thickness. Alternatively, a dado blade set can also achieve excellent results.
Precisely Gluing the Upright Supports

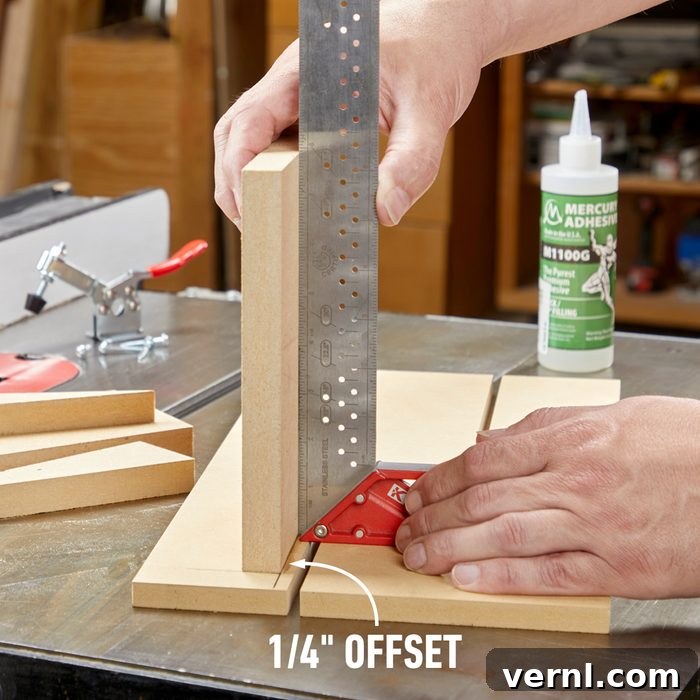

The upright supports are critical for guiding your material accurately. Carefully glue one support flush with the edge of one of the previously cut slots. This side will be used for cutting the tenons. For the opposing support, apply glue and position it with extreme precision, ensuring it is exactly 1/4-inch offset from the slot. This offset creates the necessary space for cutting the mortise. Throughout this step, use a reliable square to ensure both supports remain perfectly perpendicular to the base, as any deviation will compromise the joint’s accuracy.

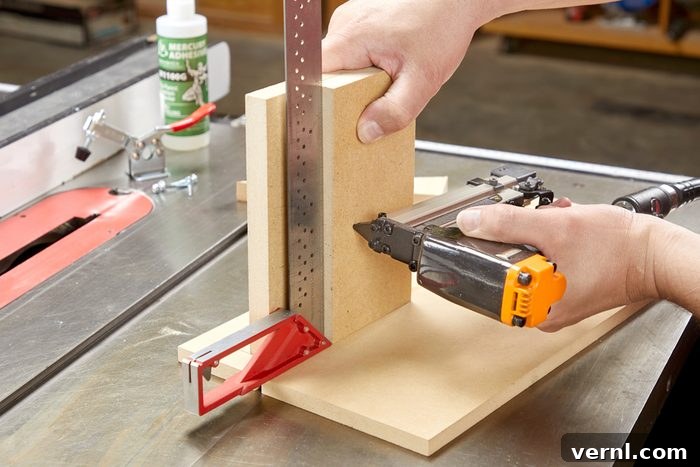

Attaching the Essential Back Stop
The back stop is fundamental for ensuring repeatable cuts and preventing workpiece slippage. Securely attach the back stop to the upright support. For precise alignment, position a speed square against the leading edge of the upright support while tacking the stop into place with 23-gauge pins. While you could add glue for extra reinforcement, the screws used for mounting the toggle clamps in the subsequent step will provide ample structural integrity, firmly locking the stop in position.
Installing Robust Toggle Clamps

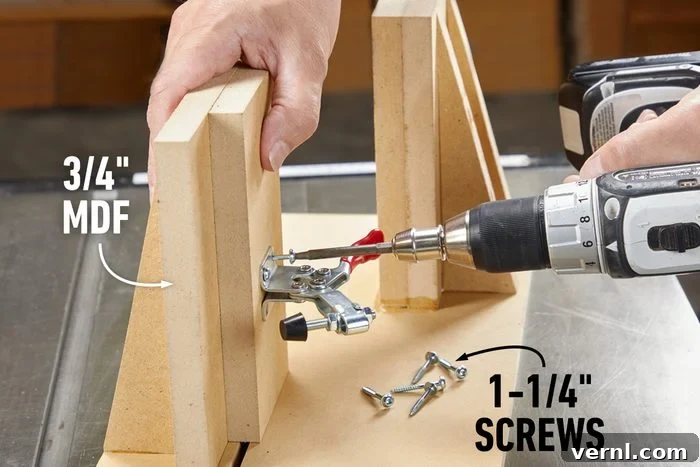

Toggle clamps are the workhorse of many jigs, offering quick, firm, and reliable clamping action. Position two toggle clamps three inches up from the base of the jig. Securely attach them using 1-1/4-inch washer-head screws. Although not strictly necessary, using a self-centering bit to predrill the mounting holes can greatly assist in achieving precise placement and preventing screw wander, ensuring the clamps hold your material consistently without shifting.
Adding Critical Support Braces

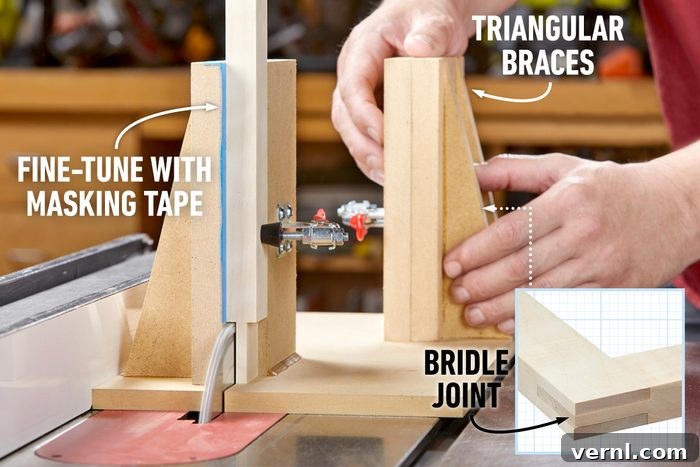

To ensure the upright supports remain perfectly plumb and can withstand repeated clamping pressure, triangular braces are essential. Cut several triangular pieces of wood and attach them to the base and upright supports using a generous amount of CA (cyanoacrylate) glue. As the glue sets, use a square to press against the upright supports, guaranteeing they remain perfectly perpendicular to the base. This added support significantly enhances the jig’s durability and long-term accuracy.
Pro Tip: Fine-Tuning for Material Thickness
It’s a common misconception that all “3/4-inch” stock is precisely 0.75 inches thick; variations are frequent. This jig accounts for that. For a perfectly centered slot, apply masking tape to one side of the jig’s fence. Make a test cut, then add or remove tape as needed until the slot is perfectly centered on your workpiece. Once the mortise is dialed in, apply the exact same amount of tape to the opposite side of the jig. This simple adjustment ensures the tenon you cut will be just the right size to snugly fit the mortise, creating a strong, gap-free bridle joint.
Revolutionize Miter Joints with a Splining Jig

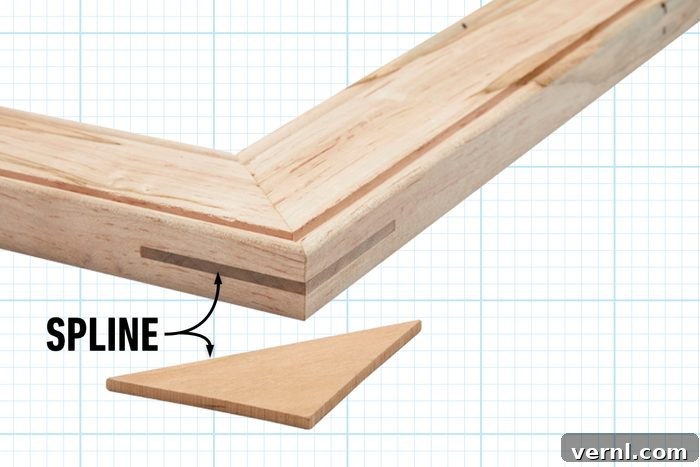

Mitered joints, while aesthetically pleasing, can sometimes lack the structural integrity required for heavy-duty applications. This is where splines come into their own. Splines are thin strips of wood inserted into matching slots cut across the miter joint, significantly reinforcing the joint and preventing it from opening up under stress. Our custom splining jig provides a safe and highly effective method for cutting these crucial spline slots into the corners of various projects, such as picture frames, boxes, and small cabinet carcasses. When paired with a ripping blade featuring a flat-top grind (FTG), this jig ensures clean, precise slots ready to accept your reinforcing splines.

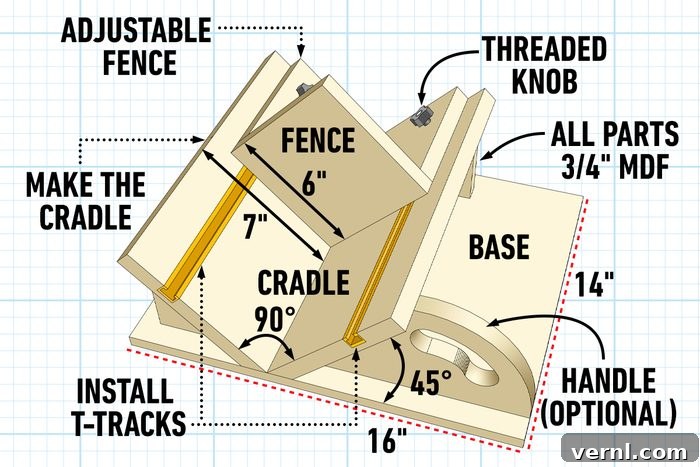

Crafting the Cradle Base

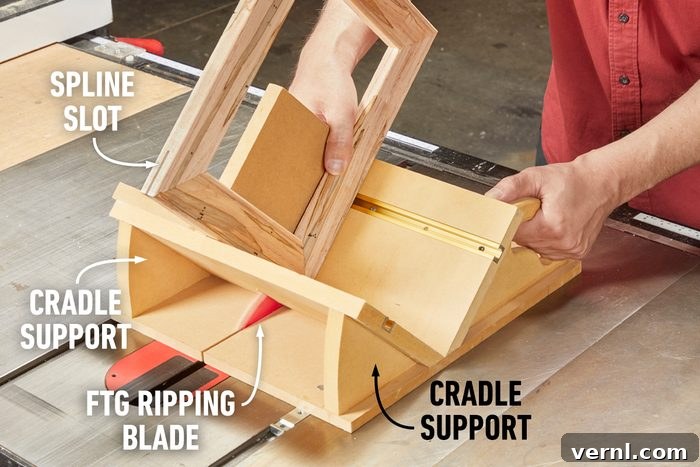

The core of the splining jig is its cradle, designed to securely hold your mitered workpieces at the correct angle. Begin with an 8- x 24-inch piece of medium-density fiberboard (MDF). MDF is an excellent choice due to its stability and smooth surface. Carefully cut the necessary bevels and dado slots into this single piece. Once these cuts are made, precisely cut the board in half to form the two symmetrical sides of the cradle. This method ensures perfect mirror images, which is vital for consistent spline slot alignment.
Integrating T-Tracks for Adjustability
To provide versatile and secure clamping, T-tracks are integrated into the cradle design. These tracks allow for quick and easy adjustment of the fence, accommodating various workpiece sizes and angles. Install the T-tracks firmly into the dado slots you cut in the previous step. Use 1/2-inch No. 6 screws, ensuring they are flush or slightly recessed to avoid interfering with your workpiece or fence movement. The T-tracks become the backbone for securing the adjustable fence, making the jig highly adaptable.
Constructing the Adjustable Fence
The adjustable fence is key to safely guiding your material through the blade and making precise spline cuts. Create the fence from three separate parts, designed to articulate along the T-tracks. Drill holes in the fence components to accommodate T-bolts, which will slide within the T-tracks. This multi-part, adjustable design allows you to firmly clamp your workpiece at the desired angle, keeping your fingers safely away from the spinning blade while achieving consistent and accurate spline cuts.
The Custom Door and Drawer Pull Jig: Drilling with Confidence
Achieving perfectly aligned door and drawer pulls can be a frustrating task, especially when dealing with larger, non-standard hardware. While commercial jigs exist for marking drill points, they often fall short for larger pulls or require an additional, error-prone transfer step. This custom-built jig bypasses the marking stage entirely, serving as a direct drilling guide. By designing it for drilling rather than marking, you eliminate a potential source of error and guarantee that every pull aligns perfectly with the door or drawer edge, every single time, giving your cabinetry a professional, polished look.

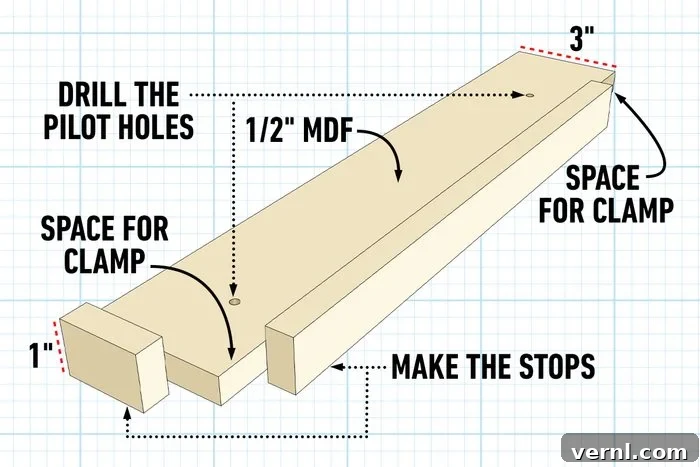

Fabricating and Attaching the Stops
The stops are the alignment mechanism for this jig, ensuring precise placement on your cabinet components. Attach these stops to the main jig body using a small amount of CA glue for initial positioning. For enhanced strength and durability, reinforce these connections with 23-gauge pins. Design the edge guide with a slight overhang on both sides; this thoughtful detail makes the jig reversible and equally usable on both right-hinged and left-hinged doors, maximizing its versatility. Remember to leave sufficient space at the corner and along the top edge to comfortably accommodate two spring clamps, which will hold the jig securely in place during drilling.

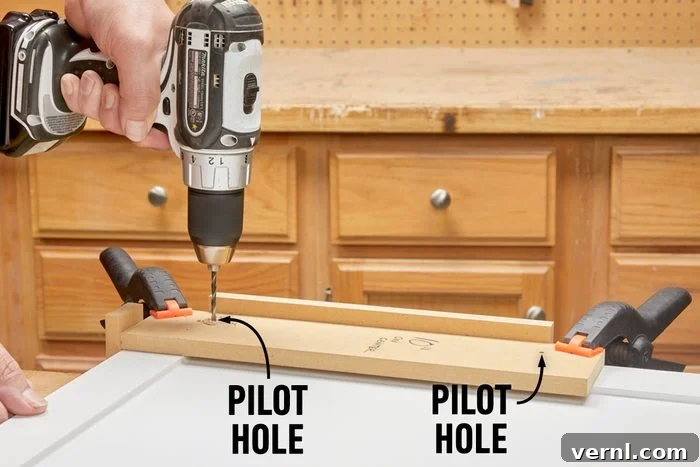

Drilling Precise Pilot Holes
Accuracy in this jig’s construction translates directly to accuracy in your hardware installation. Begin by carefully marking the required hole spacing on the jig using a combination square. Precision here is non-negotiable. Then, drill 7/32-inch holes. If available, use a drill press for this task. A drill press ensures that the holes are perfectly perpendicular to the jig’s surface, which is absolutely critical for straight screw insertion and perfectly aligned pulls on your finished projects. Avoid hand-drilling if possible, as it introduces a higher risk of angled holes.

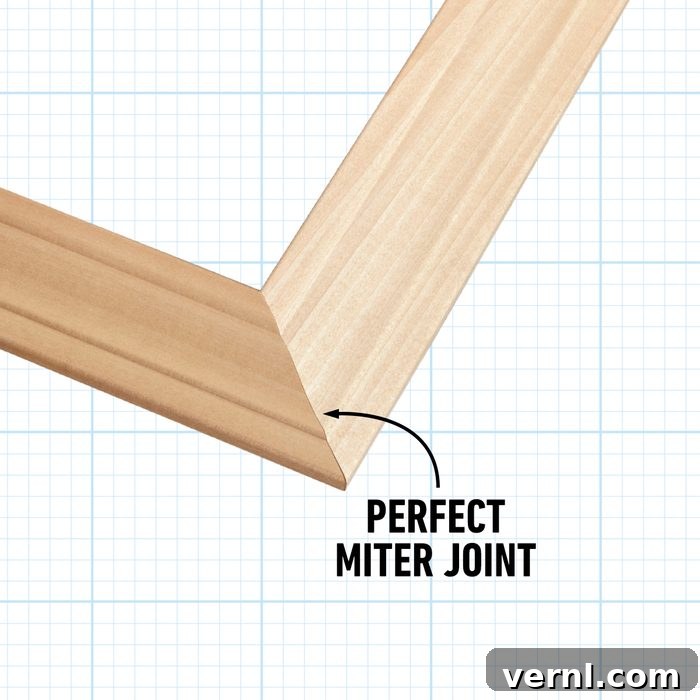

The Ultimate Picture-Framing Jig: Repeatable Miter Cuts

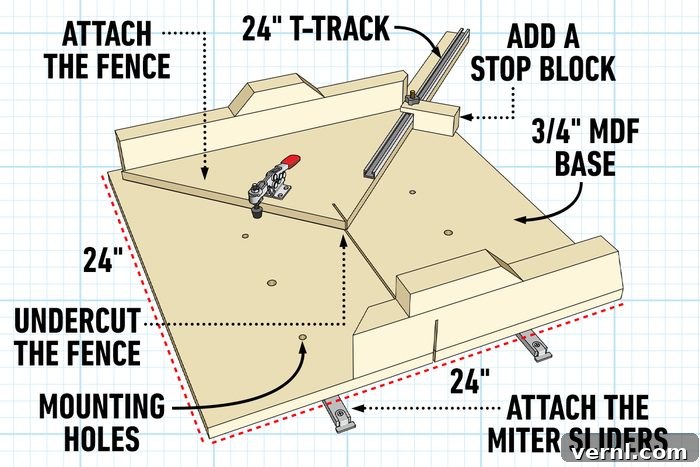

Crafting perfect picture frames demands unparalleled accuracy and repeatability in miter cuts. This dedicated picture-framing jig is designed to achieve just that on your table saw. Similar in concept to a robust DIY Crosscut Sled, this specialized version features a permanent 45-degree fence, eliminating the need for constant angle adjustments. The innovative design incorporates a toggle clamp to firmly hold the stock for the initial miter cut. For the second cut, which forms the opposing miter, the workpiece is moved to the left side of the jig. A precisely positioned stop block ensures that the opposing sides of your frame are exactly the same length, resulting in flawlessly joined corners and a professional finish for every frame you build.
Attaching Precision Miter Sliders
The smooth and accurate movement of this jig is dependent on high-quality miter sliders. Attach INCRA miter sliders to the underside of the base using bolts inserted from the top. When drilling the holes for these bolts, intentionally make them slightly oversized. This crucial detail allows for minute adjustments to the slider’s position, enabling you to dial in the jig’s alignment perfectly with your saw blade and fence, which is essential for achieving razor-sharp 45-degree angles.

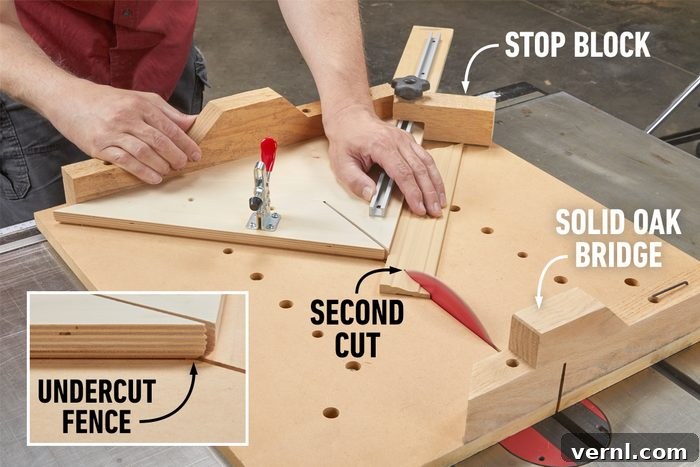

Undercutting the Fence for Flawless Cuts
This seemingly small detail can make a significant difference in the accuracy of your cuts. Take the extra step to undercut the bottom edge of your fence material. By creating a slight relief angle, you prevent sawdust and small debris from getting trapped between the workpiece and the fence. This ensures that your stock always sits perfectly flush against the fence, eliminating inaccuracies caused by trapped particles and contributing to consistently clean, precise miter joints.
Securely Attaching the Fence System
Once your miter sliders are precisely attached and adjusted, you can move on to securing the fence. Cut a kerf approximately halfway into the base of the jig. This kerf will serve as a guide for your permanent fence. Carefully glue the triangular fence piece at a perfect 45-degree angle to this kerf. To complete the clamping system, add a sturdy toggle clamp to the left side of the fence, providing quick and firm hold-down power. On the right side, install a T-track, which will later be used with a stop block for repeatable length cuts.
Implementing a Custom Stop Block
Unlike standard flip stops, this jig requires a custom-designed stop block. The reason lies in the cutting direction: when the workpiece is on the right side of the jig, the miter cut angles away from the fence, rendering a conventional flip stop ineffective. Our solution is a solid oak stop block, three inches wide, designed to be robust and precise. This custom block works in conjunction with the T-track to ensure that your frame components are cut to exact, matching lengths, guaranteeing tight-fitting miter joints for every corner.

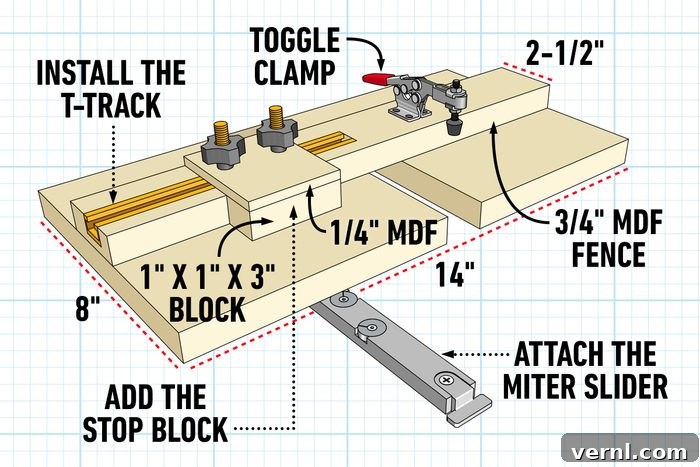

The Half-Lap Jig: Efficiency for Production Runs

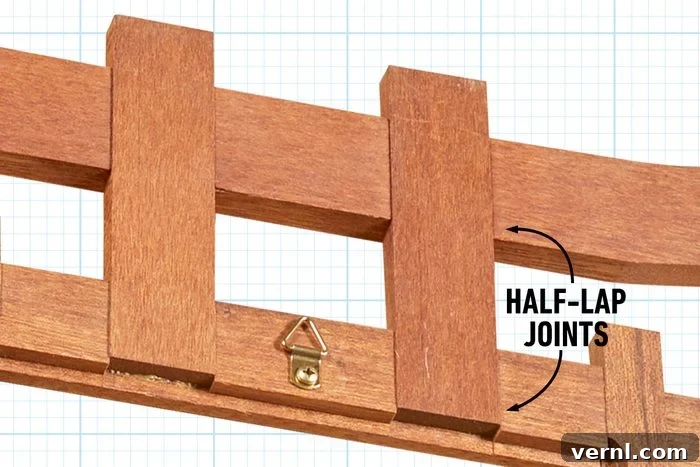

Half-lap joints are renowned for their strength, simplicity, and versatility, making them a popular choice for frames, shelving, and countless other woodworking applications. They allow two pieces of wood to overlap and join with a smooth, flush surface, creating a strong mechanical connection. This particular half-lap jig was born out of necessity during a production run of custom frames for local karate dojos. Inspired by the clean lines of Japanese architecture, each frame demanded 20 perfectly aligned half-lap joints. This jig transformed what could have been a tedious and error-prone process into a smooth, efficient operation, ensuring every joint lined up flawlessly and making the extensive production run a breeze.

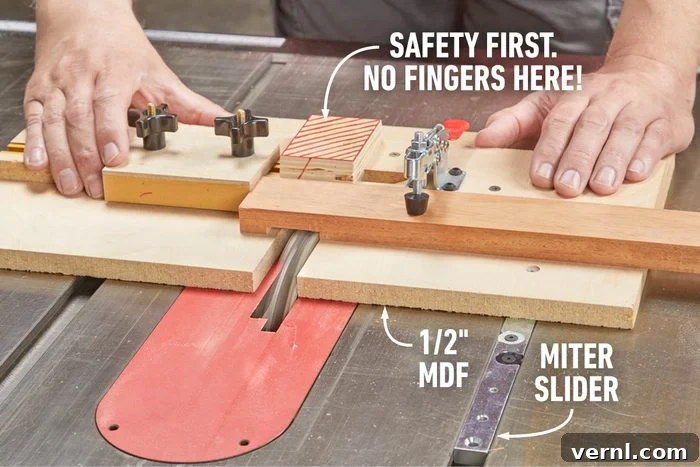

Attaching the Miter Slider
Just like many other table saw jigs, a miter slider forms the backbone of the half-lap jig, allowing it to glide smoothly and accurately in your table saw’s miter slot. For this specific jig, an INCRA miter slider was chosen, known for its precision and durability. However, given the relatively small size and light-duty nature of this jig, a less heavy-duty slider could also perform adequately, offering flexibility in material choice depending on your budget and existing workshop supplies. Ensure it’s securely attached to the jig’s base for wobble-free operation.
Installing the T-Track System
The T-track integrated into the fence of this jig is crucial for its adjustability and functionality. Begin by cutting a dado slot into the fence material, precisely sized to accept the T-track. The accuracy of this dado does not need to be absolute, as long as the T-track sits snugly within it. Once installed, this T-track will provide the sliding channel for the stop block, allowing for quick and precise adjustments to the length of your half-lap cuts, ensuring consistency across multiple workpieces.
Constructing and Adding the Stop Block
A robust and stable stop block is essential for repeatable half-lap cuts. To prevent any lateral wobbling and ensure maximum stability, this stop block design utilizes two T-bolts and corresponding knobs. Construct the stop block by gluing two pieces of wood together, creating a thicker, more substantial block. After the glue has thoroughly dried, carefully mark the center line for the T-track and drill two 1/4-inch holes, precisely spaced, to accommodate the T-bolts. This dual-bolt configuration locks the stop block firmly in place, guaranteeing consistent cut lengths every time.
The Essential Sacrificial Fence: Protecting Your Investment

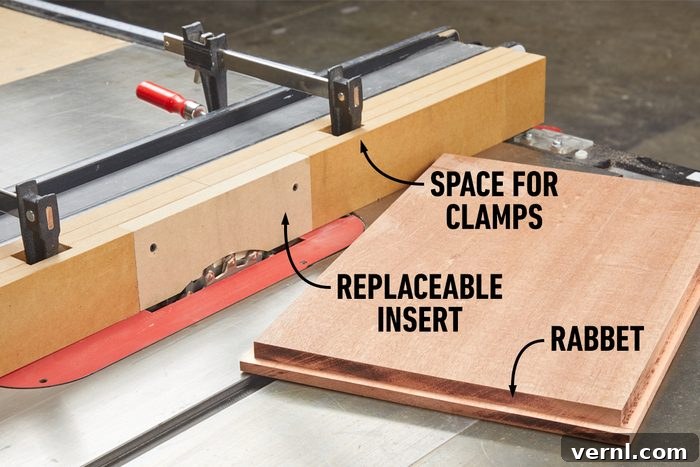

When performing specialized cuts like a rabbet cut on your table saw, the last thing any woodworker wants is to accidentally cut into the valuable and often expensive factory fence. A sacrificial fence is a simple yet indispensable jig that protects your primary fence from saw blade damage while also providing excellent support for your workpiece. This straightforward jig is constructed from three layers of MDF, strategically designed with integrated spaces to firmly accommodate two clamps. It’s an easy-to-build solution that offers peace of mind and extends the life of your table saw equipment.

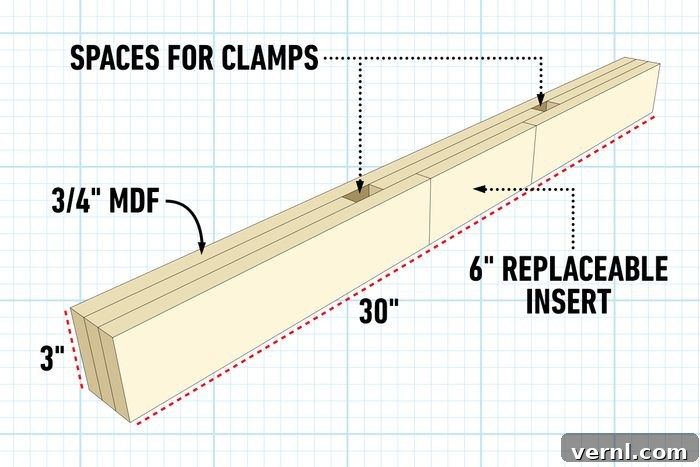

Incorporating a Six-Inch Replaceable Insert
Sacrificial fences, by their very nature, are designed to absorb blade cuts and inevitably get “used up” over time. This design takes longevity a step further by incorporating a replaceable insert. Instead of discarding the entire fence when it becomes chewed up, you can simply replace the six-inch insert. This innovative feature not only extends the overall life of your sacrificial fence significantly but also proves to be a more economical and sustainable approach in the long run, saving you both time and materials.
Designing Spaces for Versatile Clamping
The effectiveness of a sacrificial fence relies on its secure attachment to your main table saw fence. This jig is designed with specific spaces to accommodate two clamps, ensuring a rock-solid connection. While various types of clamps will work with this design, you might need to adjust the thickness of the middle layers of the MDF construction to perfectly fit the specific clamps you intend to use. This adaptability ensures that the jig can be customized to your existing clamp collection, making it a truly versatile addition to your workshop.
The Humble Yet Powerful Story Stick: Precision Marking Redefined
Often overlooked, the story stick is arguably the simplest yet most revolutionary jig in any woodworking shop. This unassuming tool can fundamentally change the way you approach measuring and marking, drastically reducing errors and increasing accuracy. Instead of repeatedly measuring with a tape measure or ruler, a story stick captures all your critical dimensions and layouts directly on a strip of wood. For instance, when marking mortise locations on door stiles, simply clamp the story stick to your workpiece, and then directly transfer the lines onto your parts. This eliminates cumulative errors, ensuring perfect consistency across multiple components.
Utilizing Workshop Scraps
One of the many virtues of the story stick is its resourcefulness. It can be made from virtually any long, straight strip of wood you have lying around your shop. Plywood scraps, often discarded, are perfect candidates for this purpose. Their stability and readily available nature make them ideal for creating multiple story sticks for different projects, transforming waste into an invaluable precision tool.

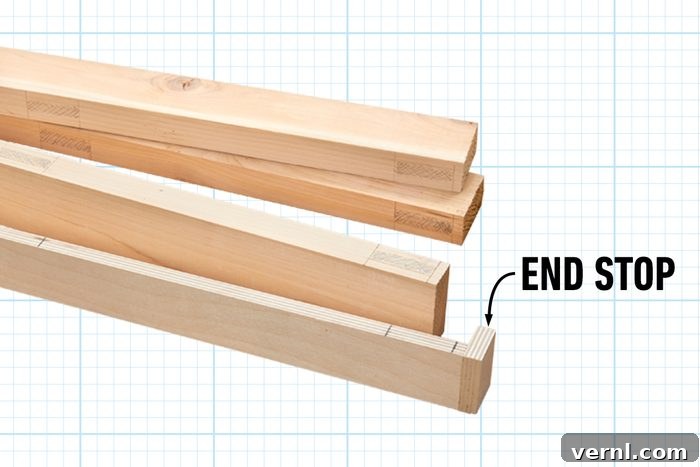

Enhancing Marking Accuracy
To maximize the precision of your story stick, consider adding a simple stop block to one end. This allows for consistent indexing against your workpiece. When combined with a strong spring clamp, the stop block helps keep the story stick firmly stable and perfectly aligned on your part as you transfer your markings. This stability is crucial for ensuring that every mark is exactly where it needs to be, contributing to the overall accuracy of your project.
Making Your Mark with a Knife

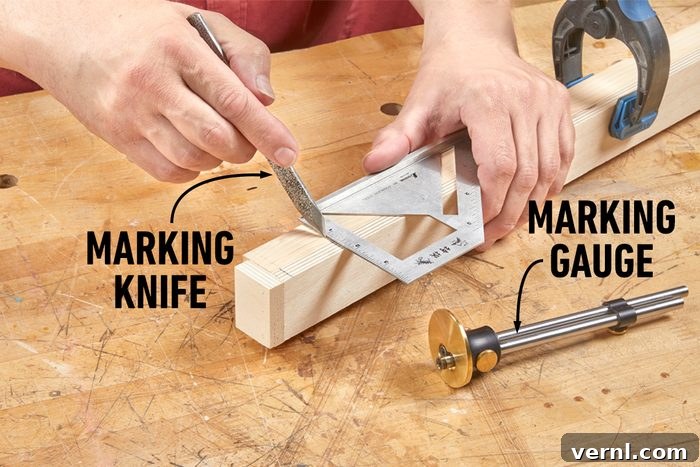

For the highest level of accuracy, especially when marking for critical joinery like mortises, abandon the pencil in favor of a marking knife. A marking knife creates a fine, crisp line that is far more precise than any pencil lead. To use it, simply set the knife blade precisely into the mark you’ve made on the story stick. Then, slide your square up to the knife and score your final mark directly onto the workpiece. This technique ensures that your blade will register exactly with your layout line, offering unmatched precision.
Jay’s Essential Jig Kit: Tools for Crafting Precision

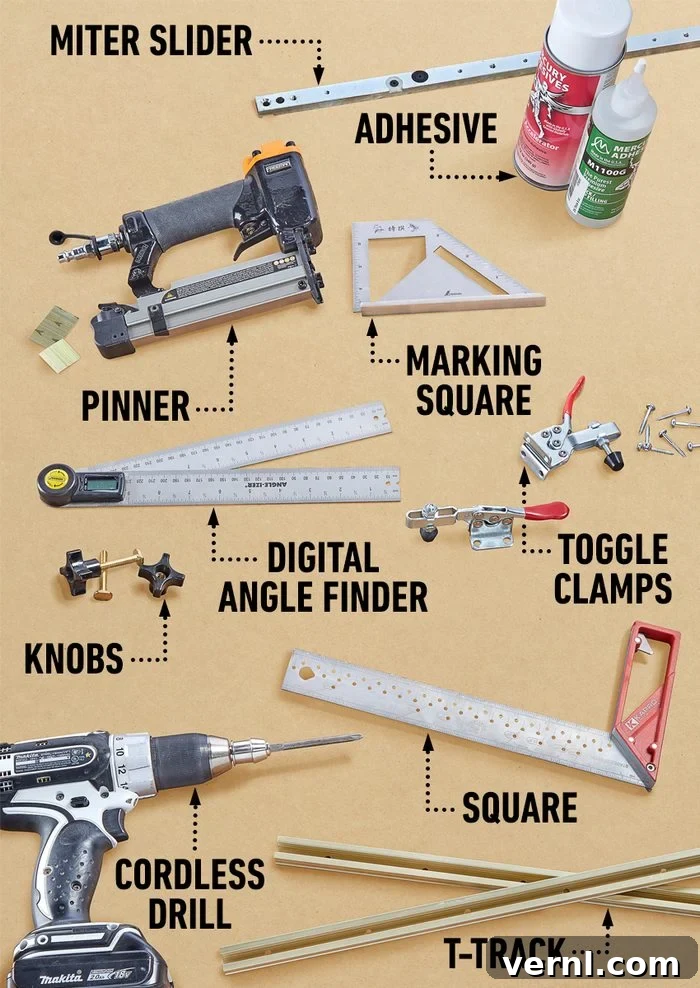

No woodworking shop is truly complete without the necessary tools and supplies to create your own custom jigs. These foundational items are what empower a woodworker to go beyond off-the-shelf solutions and craft precision tools that perfectly suit their unique needs and projects. Here’s a curated list of essential items that will help you at every step of your jig-making journey, ensuring accuracy, durability, and efficiency in every creation.
Miter Sliders
INCRA miter sliders are renowned for their exceptional quality and precision. Crafted from durable steel, they are available in convenient 18-inch and 24-inch lengths, providing a stable and smooth glide for any table saw jig.
Pinner
A 23-gauge pinner is an invaluable tool for jig construction. It works in perfect harmony with CA glue, providing instant clamping pressure to hold parts in place while the adhesive sets, preventing slippage and ensuring precise alignment.
Marking Square
For the most delicate and accurate marking tasks, a high-quality marking square is indispensable. Tools like the ones found at japanwoodworker.com offer the precision required for fine layout work on your jigs.
Adhesive
Thick CA (cyanoacrylate) glue, paired with an accelerator, is a go-to adhesive for jig making. It offers incredibly strong bonds and rapid setting times, allowing for quick assembly and robust construction of your custom tools.
Digital Angle Finder
When your projects demand angles other than a standard 90 degrees, a digital angle finder becomes an essential accuracy check. It ensures precise settings for complex jig geometries, guaranteeing accurate cuts every time.
Knobs
For adjustable fences, stop blocks, and clamping mechanisms, threaded knobs are vital. You can find a wide variety of sizes and styles, often 1/4-20 threaded, at reputable woodworking suppliers like Rockler or Woodcraft.
Square
An accurate square is the cornerstone of precision woodworking. Whether it’s a combination square, framing square, or speed square, having a reliable square is absolutely essential for verifying 90-degree angles and ensuring your jigs are built true.
Cordless Drill
A versatile and reliable cordless drill is every woodworker’s trusted companion. From pre-drilling holes to driving screws, a good cordless drill will assist you in countless jig construction tasks, making assembly efficient and effortless.
T-Track
While many T-track options are available, the INCRA brand is highly recommended for its quality and durability. T-tracks provide versatile channels for attaching and adjusting various jig components, enhancing functionality and adaptability.
Shopping for Materials
For all your essential jig-making components, including knobs, handles, T-tracks, and other specialized hardware, leading woodworking retailers like Rockler and Woodcraft offer the best selections. These stores are invaluable resources for acquiring the quality materials needed to construct robust and reliable jigs.
Investing your time in building these essential woodworking jigs will undoubtedly transform your workshop experience. Not only will you achieve greater precision and consistency in your projects, but you’ll also enhance your safety and efficiency, allowing you to tackle more complex tasks with confidence. Embrace the satisfaction of creating your own tools and unlock a new level of craftsmanship in your woodworking journey.
