Adaptive Work Vise

Transform Your Metalworking Vise into a Woodworking Essential: The Ultimate Benchtop Vise Hack

Every dedicated woodworker or DIY enthusiast understands the critical role a reliable benchtop vise plays in a well-equipped workshop. While a robust metalworking vise is undeniably essential for heavy-duty tasks such as metal fabrication, grinding, or shaping, its unyielding, often serrated steel jaws pose a significant threat to the delicate surfaces of woodworking projects. Marring, denting, and leaving unsightly marks are common frustrations that can compromise the integrity and aesthetics of your meticulously crafted pieces. The conventional wisdom often dictates investing in a separate, dedicated woodworking vise – a solution that frequently comes with a hefty price tag and demands precious workshop space.

However, what if there was an ingenious, budget-friendly hack that could bridge this functional gap, enabling your existing metalworking vise to perform double duty with precision and care? As cleverly demonstrated by Rich Knight, the solution is surprisingly simple yet profoundly effective: the benchtop vise wooden pad hack. This brilliant, cost-effective modification transforms your rugged metalworking companion into a gentle giant, perfectly suited for all your woodworking needs. This comprehensive guide will delve into the rationale, methodology, and myriad benefits of this essential workshop upgrade. We’ll explore why this simple adaptation is a game-changer, provide a step-by-step guide to crafting your own custom wooden vise pads, and share expert tips for maximizing their utility. Say goodbye to marred workpieces and welcome seamless transitions between metal and wood projects, all without straining your finances or cluttering your workspace. Prepare to unlock unprecedented levels of versatility and protection for your intricate woodworking endeavors.

The Workshop Dilemma: Specialized Vises for Diverse Materials

Before exploring the solution, it’s vital to grasp the inherent differences and specific requirements of vises engineered for metalwork versus those designed for woodworking. Metalworking vises are built for extreme durability and an unyielding grip. Their jaws are typically forged from hardened steel, often featuring aggressive knurling or serrations. This design allows them to firmly bite into metal, preventing any slippage during demanding operations such as filing, cutting with a hacksaw, or hammering. While this formidable robustness is a blessing for metal fabrication, it becomes a distinct disadvantage when working with softer materials like wood.

Conversely, woodworking vises are meticulously designed with the preservation of the workpiece as their paramount concern. They typically feature broad, flat jaws made either entirely from wood or equipped with removable wooden or padded liners. These softer jaws are crucial for distributing clamping pressure evenly across the wooden surface, thereby significantly minimizing the risk of dents, scratches, or compression marks. Additionally, woodworking vises often boast a greater clamping depth and may incorporate quick-release mechanisms for enhanced efficiency. The persistent challenge for many home workshops, constrained by both budget and space, is effectively accommodating both specialized tools without compromise.

The Ingenious Solution: Wooden Pads for Your Metalworking Vise Jaws

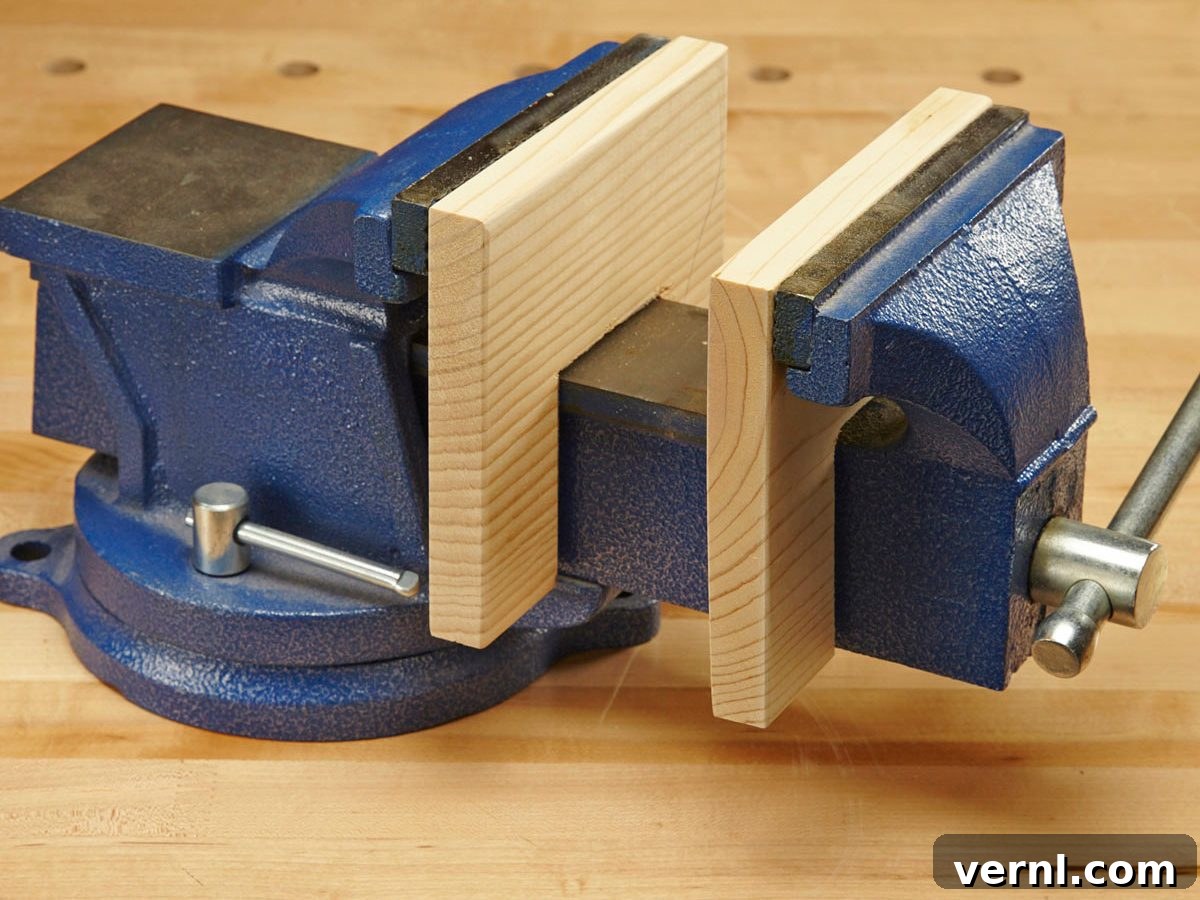

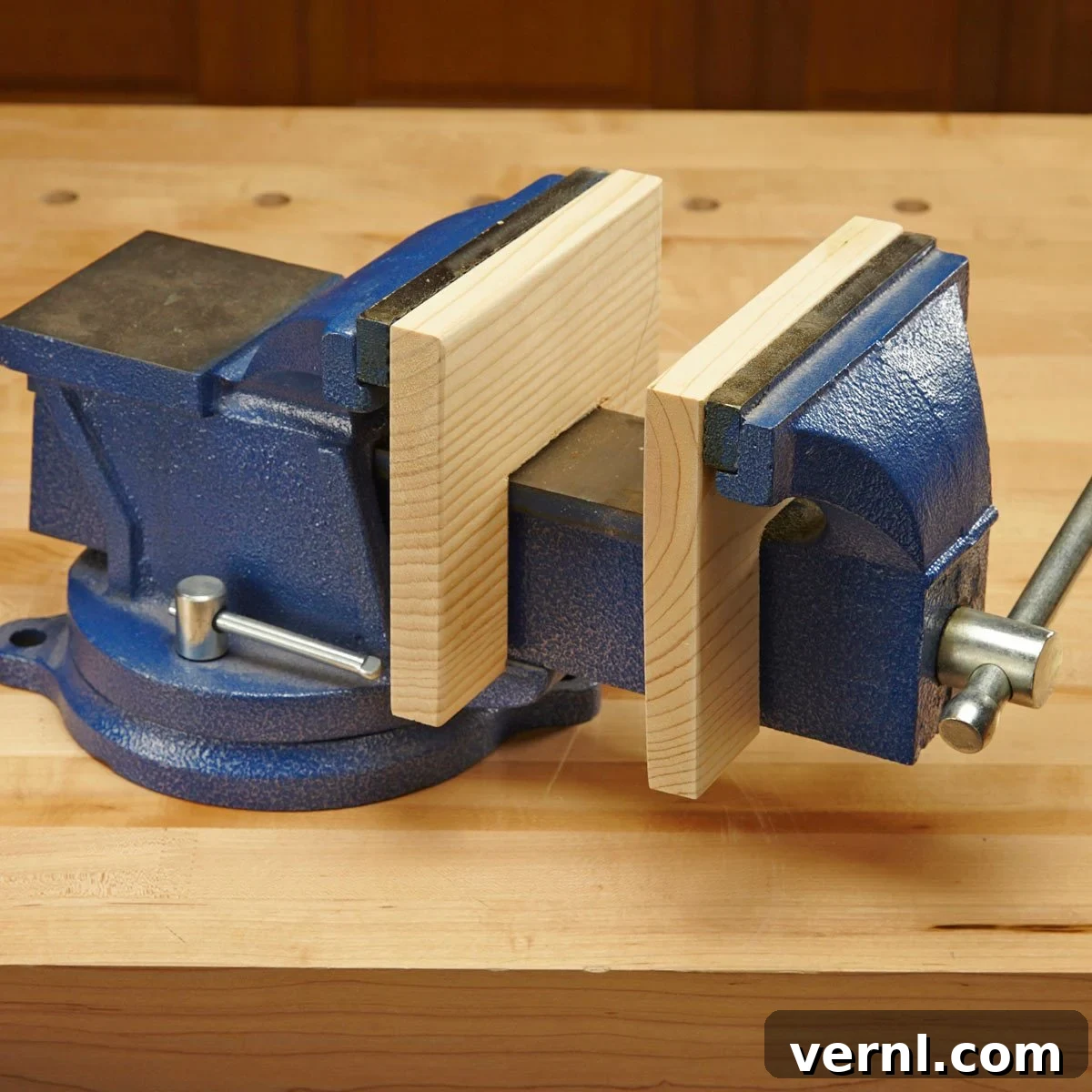

The core principle of this transformative hack is elegantly straightforward: attach protective wooden pads to the unyielding steel jaws of your metalworking vise. As brilliantly proposed by Rich Knight, this simple modification immediately resolves the fundamental problem: shielding delicate woodworking pieces from the abrasive grip of bare metal. These wooden pads serve as a soft, yet durable, sacrificial barrier, ensuring that your precious timber, intricate joints, or meticulously finished surfaces remain pristine and unblemished throughout your work.

Beyond the primary benefit of surface protection, these custom wooden pads offer a multitude of significant advantages that elevate your vise’s capabilities:

• Superior Surface Protection: This is the most immediate and critical benefit. The wood acts as a protective cushion, effectively preventing dents, scratches, and unsightly marks that would otherwise be inflicted by the metal jaws. This is particularly crucial when working with softwoods, veneers, or pieces that have already received a delicate finish.
• Even Pressure Distribution: Wooden pads, being inherently softer and often designed to be broader than the vise’s bare jaws, excel at distributing clamping pressure uniformly across the workpiece. This uniform pressure significantly reduces the risk of localized damage or crushing, ensuring a more secure and stable hold for your woodworking projects.
• Enhanced Grip for Wood: While it might seem counter-intuitive, wood-on-wood contact often provides a superior, non-marring grip for woodworking applications compared to smooth steel. The natural friction of the wood allows for a firm hold without necessitating excessive clamping force, thereby reducing stress on the workpiece.
• Increased Clamping Area: Depending on their design and dimensions, the wooden pads can effectively extend the functional clamping surface of your vise. This expanded area allows you to securely hold wider or irregularly shaped workpieces that might otherwise be difficult to stabilize.
• Remarkably Cost-Effective: Compared to the substantial investment required for a dedicated woodworking vise, crafting a set of wooden pads is incredibly inexpensive. This project often utilizes scrap wood, making it a highly sustainable and budget-friendly upgrade.
• Significant Space-Saving: Eliminating the need for a second, bulky vise frees up valuable benchtop real estate and reduces workshop clutter, transforming your single benchtop vise into a versatile all-rounder.
• Highly Customizable: The design of these pads is inherently flexible. You can tailor them to specific needs – adding layers of leather or cork for enhanced grip, shaping them to accommodate unique project requirements, or designing them with a quick-release mechanism for ultimate convenience.

DIY Guide: Crafting Your Custom Wooden Vise Jaws

Creating these protective wooden pads is an accessible and rewarding project, suitable even for those new to woodworking. Here’s a detailed, step-by-step guide to help you build your own custom vise jaws:

Materials You’ll Need:

• Wood Selection: For optimal durability and longevity, hardwoods such as maple, oak, or cherry are excellent choices due to their inherent strength and resistance to wear. Softer woods can be used but will likely require more frequent replacement. Plywood can also serve as a viable option for temporary or less demanding applications. Salvaging scrap pieces from previous projects is an economical and eco-friendly approach.
• Attachment Method Components:
  • For Magnetic Attachment: Neodymium magnets (available as discs or blocks), paired with a suitable strong adhesive such as epoxy or robust super glue. This method offers unparalleled convenience for quick changes.
  • For Screw Attachment: Small wood screws, potentially combined with T-nuts if you prefer a flush, recessed mounting for a more permanent fixture.
  • For Clamp Attachment: Small spring clamps or C-clamps can be used to hold the pads in place, although this method can sometimes be cumbersome for frequent adjustments.
• Optional Additions: Thin sheets of leather, cork, or rubber can be applied to the clamping faces of the pads for enhanced grip and an even softer cushioning effect.

Tools You’ll Need:

• Measuring tape or precision ruler
• Pencil for marking
• A reliable saw (miter saw for accuracy, table saw for efficiency, or even a sharp hand saw for simplicity)
• Drill and appropriate drill bits (essential for pilot holes if using screws, or for recessing magnets)
• Assorted sandpaper (various grits, e.g., 80-grit for shaping, 120-grit for smoothing, and 220-grit for a fine finish)
• Woodworking clamps (for securely holding wood during cutting, shaping, or gluing processes)
• Essential personal protective equipment: safety glasses and hearing protection.

Step-by-Step Construction Process:

1. Accurately Measure Your Vise Jaws:

   Begin by meticulously measuring the height and width of your metalworking vise’s existing steel jaws. Based on these dimensions, decide on the desired coverage for your wooden pads. For most general-purpose woodworking, pads that match the height of the steel jaws and are slightly wider (to provide a small overhang for supporting larger workpieces) are ideal. You will need to cut two identical pieces of wood for this purpose.

2. Precisely Cut Your Wood Blanks:

   Using your chosen saw, carefully cut two pieces of wood to the exact dimensions determined in the previous step. Ensure all cuts are perfectly square and precise. If you anticipate needing pads thicker than approximately 1/2 inch, consider ripping them from a larger board to ensure greater stability and structural integrity.

3. Prepare the Vise-Side Surface for Attachment:

   This critical step varies depending on your chosen method for attaching the pads to the vise:

   • For Magnetic Attachment (Recommended for Convenience): This method offers unparalleled ease for quick installation and removal.
     1. Strategically determine the optimal placement for your magnets. Typically, two to three evenly distributed magnets per pad are sufficient to ensure a secure hold.
     2. Using a drill bit slightly larger than the magnet’s diameter (or a Forstner bit for block magnets), drill shallow recesses into the back face of each wooden pad. The depth of these holes should allow the magnet to sit flush or slightly recessed once glued in place.
     3. Securely glue the magnets into these recesses using a strong adhesive like epoxy. Before gluing, ensure the polarity is correct so that the magnets will attract the steel jaws of your vise. Allow the adhesive to cure completely according to the manufacturer’s instructions.
   • For Screw Attachment (More Permanent and Secure): This method provides a very robust, albeit less quickly changeable, hold.
     1. Mark the precise locations for pilot holes on the back of your wooden pads. These points should align with where you intend to secure the pads to the vise jaws. For a non-destructive approach to the vise itself, you can create a small “lip” on the top edge of the wooden pad that hooks over the top of the metal jaw. Then, a small set screw from the bottom or side of the wooden pad can be used to press against the metal jaw, securing it firmly. Alternatively, if your vise jaws have existing holes or if you are willing to modify the vise, you can drill and tap holes directly into the vise jaws for machine screws, ensuring a very permanent attachment.
   • For Friction/Clamp Fit (Simplest, but Less Secure):

     You can simply cut the wood to size and rely solely on the vise’s clamping pressure to hold them in place. For a marginal improvement in security, you can create a small lip that hooks over the top edge of the vise jaw, allowing the pad to hang in position before clamping down on your workpiece.

4. Refine and Finish the Wooden Pads:

   Once your chosen attachment mechanism is integrated, the next step is to refine the working surfaces of the pads:

   • Thorough Sanding: Sand all surfaces of the wooden pads, paying particular attention to the clamping faces, to achieve a perfectly smooth finish (e.g., progressive sanding from 80-grit to 120-grit, then 220-grit). This meticulous sanding prevents any stray wood fibers from marking your delicate workpieces. Gently ease all sharp edges and corners to prevent them from digging into your project.
   • Optional Cushioning Layer: For exceptionally delicate work or enhanced grip, consider gluing a thin layer of material like leather, cork, or even firm rubber to the clamping face of your wooden pads. Use a reliable adhesive such as contact cement or spray adhesive to ensure a strong and lasting bond.
5. Attach and Thoroughly Test:

   Carefully mount your newly crafted wooden pads onto your metalworking vise. Perform a series of tests using a scrap piece of wood to ensure they provide a secure, non-marring grip. Observe how they hold and make any necessary adjustments to their fit or attachment.

Maximizing the Utility of Your Modified Vise: Beyond the Basics

With your new wooden jaws securely in place, your benchtop vise has been dramatically transformed into a far more versatile and indispensable tool. Here are some advanced tips to help you get the absolute most out of its enhanced capabilities:

• Apply Appropriate Clamping Pressure: Remember that wood requires significantly less clamping pressure than metal. Always apply only enough force to securely hold the workpiece without causing any deformation, crushing, or marking.
• Regular Maintenance of Your Pads: Over time, even durable wooden pads can become dented, worn, or accumulate glue residue. Periodically sand them smooth to refresh their surfaces or replace them entirely if they become too damaged or lose their effectiveness. If using magnetic pads, ensure the magnets and contact surfaces remain clean.
• Innovate with Specialized Jaws: Do not restrict yourself to simple flat pads. Consider crafting specialized jaws for unique applications:
  • Curved Jaws: Ideal for securely holding round stock, pipes, or other irregularly shaped components.
  • Tapered Jaws: Perfect for clamping specific angles, wedges, or very small, delicate parts that require focused pressure.
  • Notched Jaws: Designed with specific cutouts or grooves for holding dowels, small diameter pipes, or slender rods firmly without slippage.
  • Jaws with Integrated Dog Holes: If your workbench is equipped with bench dog holes, you can design pads that extend beyond the vise body and incorporate corresponding dog holes. This creates an expansive clamping surface for larger panels, doors, or cabinet components.
• Embrace Quick-Change Capability: For workshops where your vise is frequently switched between metal and woodworking tasks, magnetic pads are an invaluable asset. Their quick-release design allows for swift transitions. Keep a separate set of dedicated metalworking jaw inserts readily available for when you require the full, uncompromising gripping power of the bare steel jaws.

Beyond the Basics: Advanced Customizations and Innovations

Once you’ve mastered the fundamental wooden pad hack and are comfortable with its basic implementation, you might find yourself inspired to explore even more advanced customizations to further enhance your vise’s functionality and integrate it more deeply into your workflow:

• Integrated Storage Solutions: Design your magnetic pads with small, strategically placed recessed pockets on their non-clamping face. These convenient compartments can be used to store frequently used small tools, drill bits, pencils, or other workshop essentials when the pads are detached from the vise, keeping them within easy reach.
• Modular Vise Jaw System: Consider developing a modular system. This could involve creating a set of base wooden pads that attach permanently (or semi-permanently) to the steel jaws. Then, various specialized inserts – such as curved faces, tapered profiles, leather-faced pads, or even soft rubber liners – can be quickly and easily attached to these base pads as needed, providing ultimate flexibility.
• Built-in Bench Dog Extension: For those with larger woodworking benches, extending the wooden jaws significantly past the main body of the vise and incorporating precisely drilled bench dog holes can create an incredibly expansive and versatile clamping surface. This allows you to clamp larger panels, doors, or casework securely in conjunction with bench dogs, transforming a standard vise into a powerful holding solution for oversized projects.

Conclusion: A Simple Hack for Maximum Workshop Versatility

The benchtop vise wooden pad hack, eloquently demonstrated by Rich Knight, stands as a testament to the enduring power of simple, intelligent problem-solving within the workshop environment. It elegantly resolves the common dilemma faced by many craftsmen: the need for specialized tools without the prohibitive costs or the demand for excessive space. By transforming your robust metalworking vise into an incredibly versatile, wood-friendly clamping station, you unlock a new realm of possibilities for your woodworking projects, ensuring unparalleled precision, superior protection, and invaluable peace of mind.

This easy-to-implement modification not only represents a significant cost-saving measure but also substantially enhances the overall efficiency, capability, and adaptability of your workshop. So, gather some scrap wood, procure a few strong magnets, and apply a touch of ingenuity. Elevate your existing benchtop vise to unprecedented heights of functionality. Your delicate woodworking projects – and your budget – will undoubtedly thank you for this wise and practical upgrade.
