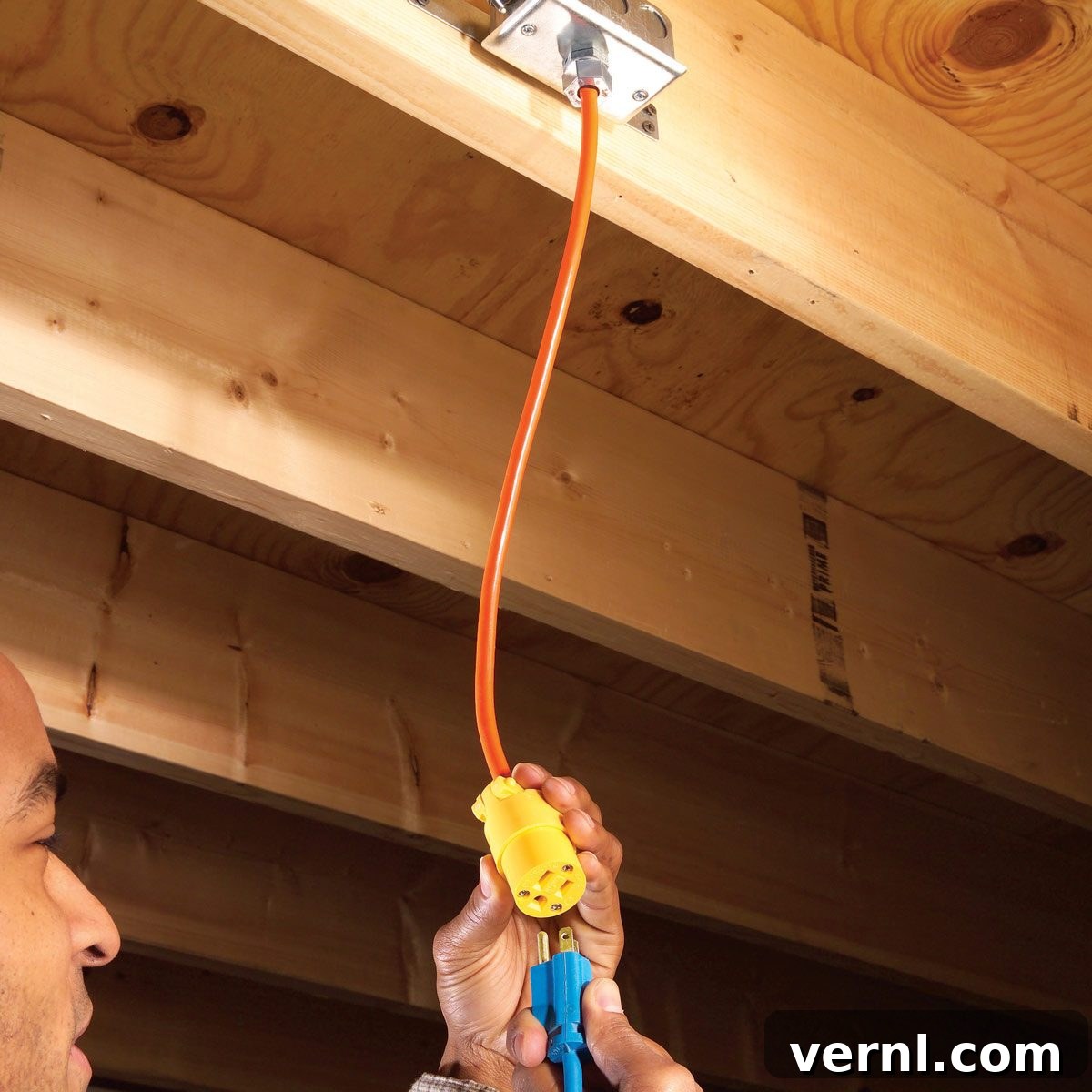

Overhead Electrical Outlets: A Practical Guide to Safer Power Access

Tired of tripping hazards and tangled extension cords cluttering your workspace? An innovative solution offers a cleaner, safer, and more convenient way to power your tools and appliances: overhead electrical outlets. This guide delves into the benefits of this smart setup and provides a step-by-step approach to installing them in your workshop, garage, or any space where you need reliable access to electricity.

Imagine a workspace free of tripping hazards, where power tools are instantly accessible without the hassle of searching for an outlet or untangling cords. Overhead outlets provide just that, offering a neat and efficient way to manage your electrical needs. This straightforward installation enhances both safety and functionality, transforming your space into a more organized and productive environment.

The Advantages of Ceiling-Mounted Outlets

Choosing to install overhead outlets provides several key benefits:

Enhanced Safety: By eliminating floor-level cords, you significantly reduce the risk of tripping, a common cause of accidents in workshops and garages. This setup is particularly beneficial in areas with heavy foot traffic or where cords could be damaged by machinery.
Improved Convenience: Place outlets exactly where you need them. This immediate access streamlines workflow and saves time, whether you’re using power tools, vacuums, or other electrical devices.
Optimized Space: Overhead outlets keep cords off the floor, maximizing the usable space in your workshop or workspace. This is especially helpful in smaller areas where floor space is at a premium.
Increased Efficiency: With power readily available, you can work more efficiently. No more searching for outlets or managing cumbersome extension cords.
Neat and Organized Appearance: Properly installed overhead outlets contribute to a cleaner, more organized workspace, enhancing its overall aesthetics and functionality.

The total cost for each outlet is typically around $18, making it an affordable upgrade with significant returns in safety, convenience, and productivity. This makes it an attractive investment for any homeowner or professional seeking to improve their workspace.

Step-by-Step Guide to Installing Overhead Electrical Outlets

Installing overhead electrical outlets is a manageable DIY project with the right preparation and knowledge. Here’s a comprehensive guide to help you through the process:

What You’ll Need

Gather these essential components before you begin:

Metal Electrical Box: This box houses the electrical components and provides a secure mounting point for the outlet. Choose a size appropriate for the number of circuits and wires you will be connecting.
Metal Box Cover with Center Knock-Out: This cover protects the electrical connections and provides a point for the cord connector. The center knock-out allows you to easily connect the cord.
Strain-Relief Cord Connector: This crucial component secures the electrical cord to the box, preventing strain on the wires and ensuring a safe and reliable connection. Select a size suitable for your electrical cord.
Electrical Connectors: Use these to join wires securely, ensuring proper electrical connections. Choose wire connectors designed for your wire gauge and application.
Cord Receptacle (Outlet): This is the component into which you will plug your appliances and tools. Select a receptacle rated for the appropriate amperage of your circuit.
Stranded-Wire Electrical Cord: The correct gauge of wire is essential for safety and performance. Use 12-3 stranded wire for 20-amp circuits and 14-3 for 15-amp circuits. This type of wire is flexible and durable, making it suitable for this application.
Wire Strippers/Cutters: Used to safely strip the insulation from the wires.
Screwdriver: To tighten screws and secure the electrical components.
Voltage Tester: A critical safety tool to ensure the power is off before you begin working with electrical wires.
Drill with appropriate drill bits For mounting the electrical box.
Safety Glasses and Gloves: Essential protective gear when working with electricity.

Installation Instructions

Safety First: The most important step. Before doing anything, turn off the breaker or remove the fuse that controls the circuit you’ll be working on. Double-check that the power is off using a voltage tester. A voltage tester is crucial to confirm that the power is completely off.
Plan Your Layout: Decide where you want to place your overhead outlets. Consider the placement of your tools and equipment and how you use your workspace. Ensure the chosen location offers adequate support for the box and allows easy access to the outlet.
Prepare the Electrical Box: Install the strain-relief cord connector into the knock-out on the metal box cover. This will secure the electrical cord.
Mount the Electrical Box: Securely mount the metal electrical box to the ceiling. Ensure it is firmly attached to a stud or other structural support, capable of handling the weight of the outlet and any cords that may be plugged in. Use screws of appropriate length and gauge to secure the box. Position the receptacles at least an inch above your head to prevent accidental bumps.
Prepare the Electrical Cord: Feed the electrical cord through the strain-relief connector. Strip the insulation from the ends of the wires, exposing the copper conductors. Follow the manufacturer’s instructions for stripping the wire.
Wire the Cord Receptacle: Connect the wires to the cord receptacle. Match the black wire to the brass screw (hot), the white wire to the silver screw (neutral), and the green or bare copper wire to the ground screw. Tighten the screws securely.
Connect the Wires in the Electrical Box: Connect the wires from the cord to the existing electrical wiring in the ceiling. Match the wire colors (black to black, white to white, and ground to ground) using wire connectors. Make sure all connections are secure.
Secure the Box Cover: Attach the metal box cover with the cord receptacle to the electrical box. Ensure all wires are neatly tucked inside the box and that the cover is securely fastened.
Test the Outlet: After all connections are made and the cover is in place, restore power to the circuit. Use a device, such as a lamp or a power tool, to test the new outlet and confirm that it is working correctly.

Important Safety Note: If you are not comfortable working with electricity, it is advisable to consult a qualified electrician. Improper electrical work can be dangerous. Always prioritize safety.

This method provides a more streamlined, safe, and efficient power solution. This seemingly minor improvement can significantly enhance your work environment. By following these steps and prioritizing safety, you can successfully install overhead electrical outlets and transform your workspace.

Thanks to Tom Dybas for the original tip.
