Mastering Central Air Installation

In the United States, comfort is a cornerstone of modern living, and it’s no surprise that nearly all homes are equipped with some form of air conditioning. Often, this vital cooling system is integrated into a larger HVAC (Heating, Ventilation, and Air Conditioning) setup, frequently paired with a furnace or a heat pump. Heat pumps, in particular, have gained significant traction, not only for their dual heating and cooling capabilities but also due to governmental incentives designed to promote energy-efficient central air systems. These systems provide year-round climate control, ensuring your home remains comfortable regardless of the season.

Whether you’re embarking on a new construction project, upgrading an aging unit, or considering a central air installation for the first time in an existing home, the decision can feel daunting. This significant investment brings with it a multitude of questions, from system types and sizing to installation complexities and costs. This comprehensive guide aims to demystify the process, offering essential background information and expert insights to help you navigate your central air installation journey with confidence.

Understanding the Essentials: Key Definitions in Central Air Conditioning

Before delving into the intricacies of central air installation, it’s beneficial to establish a common understanding of key terminology. Familiarizing yourself with these definitions will empower you to have more informed conversations with HVAC professionals and make better decisions for your home.

Central Air Conditioner

A central air conditioner is designed to cool your entire home from a single point. Unlike localized cooling solutions such as window units, wall air conditioners, or mini-split systems that cool individual rooms or small zones, a central AC system uses a network of ducts to distribute cooled air throughout every corner of your house. In most U.S. single-family homes, this typically involves a “split system,” which comprises two main components:

The Evaporator Coil: Located indoors, usually within the furnace plenum, this component absorbs heat and humidity from your home’s air.
The Condenser Unit: Situated outdoors, this unit releases the heat collected from inside your home into the surrounding environment.

These two units work in tandem, circulating refrigerant to continuously cool and dehumidify your indoor air. While heat pumps are indeed a type of central air conditioning system, they also provide heating by reversing the refrigerant flow. For the purpose of this article, our primary focus will be on conventional central air conditioning systems that connect to an existing furnace for air distribution. If you are considering a heat pump, be aware that pricing and installation steps may differ.

Sizing Your System: More Than Just Physical Dimensions

When HVAC professionals discuss “sizing” an air conditioning unit, they are not referring to its physical dimensions. Instead, “sizing” refers to the cooling capacity or power of the unit, which is crucial for optimal performance and efficiency. An improperly sized unit can lead to discomfort, inefficiency, and premature system wear.

The cooling power of an AC unit is measured in British thermal units (Btu). One Btu represents the amount of energy required to lower the temperature of one pound of water by one degree Fahrenheit. In the HVAC industry, 12,000 Btu is equivalent to one “ton” of cooling capacity. Therefore, a 2.5-ton air conditioner, for example, would have a cooling capacity of 30,000 Btu. Choosing the correct tonnage is paramount for maintaining consistent indoor temperatures and managing humidity effectively.

Understanding Efficiency: The Seasonal Energy Efficiency Ratio (SEER)

Efficiency in central air conditioning is quantified by the Seasonal Energy Efficiency Ratio (SEER). The SEER rating indicates how much cooling an air conditioner provides per watt of electricity consumed over an average cooling season. A higher SEER rating signifies greater energy efficiency, meaning the unit will use less electricity to achieve the same amount of cooling, thereby lowering your utility bills.

Modern, high-efficiency units often feature technologies such as two-stage compressors or variable-speed blowers. A two-stage compressor can operate at a lower capacity on milder days, only kicking into full power when temperatures soar. Variable-speed blowers, similarly, can adjust their fan speed to precisely meet cooling demands. Both technologies allow the air conditioner to run longer cycles at lower, more efficient settings, leading to better dehumidification, more consistent temperatures, and reduced energy consumption when cooling loads are lighter. Investing in a higher SEER unit, while often having a higher upfront cost, can result in substantial long-term savings and a more comfortable home environment.

Central Air Installation: Is DIY an Option?

While the spirit of do-it-yourself (DIY) projects is often admirable, some endeavors are best left to seasoned professionals. Central air installation is unequivocally one such project. The complexities involved, the necessity for specialized tools and training, and the high stakes of potential failure make it unsuitable for the vast majority of homeowners.

HVAC professional Tim David emphasizes this point, stating, “It is technically possible for a homeowner to replace an HVAC system themselves, but I don’t recommend it. HVAC systems are complex, require permits and specialized tools, and involve safety hazards. Improper installation can result in poor performance, higher energy bills, and safety hazards for homeowners and their families.” Beyond performance and safety, there’s a critical warranty consideration: most HVAC manufacturers stipulate that their systems must be installed by licensed HVAC contractors for the warranty to remain valid. Attempting a DIY installation could void your warranty, leaving you responsible for costly repairs should issues arise.

For those homeowners with a strong desire to be involved, David warns that attempting significant DIY portions may ironically lead to higher overall costs due to “mistakes, safety hazards, and the need to hire a professional to fix any issues that arise.” Furthermore, specific tasks, such as handling refrigerants, are legally restricted to licensed professionals due to environmental regulations and safety concerns. In many jurisdictions, connecting the electrical components to the service panel also requires a licensed electrician. While you might be able to handle minor preparatory tasks, such as clearing the installation area or perhaps even installing a new thermostat (after the system is operational), the core installation work necessitates expert intervention to ensure safety, compliance, and optimal system performance.

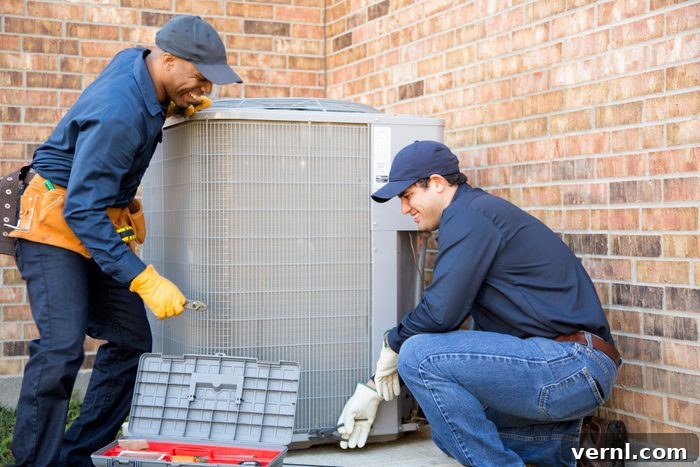

Navigating the Process: Working With Professional HVAC Installers

Engaging with professional HVAC installers is a critical step in ensuring a successful central air conditioning project. When consulting with contractors, asking informed questions and paying attention to their inquiries will help you gauge their expertise and ensure your preferences are meticulously reflected in their estimate and the final installation.

Comprehensive Planning for a Seamless Installation

Central air installation is a substantial undertaking that demands thorough planning. A reputable contractor will outline their process clearly, ensuring all necessary steps are covered. Key aspects to discuss during the planning phase include:

Permits and Paperwork: Verify that the contractor will handle all required local permits and inspections. This is crucial for compliance and ensuring the installation meets safety standards.
Energy Efficiency vs. Upfront Cost: Discuss your priorities. Do you prefer a system with a lower initial cost but potentially higher operating expenses, or are you willing to invest more upfront for a higher energy efficiency rating and long-term savings? This conversation will help guide system recommendations.
Condenser Unit Placement: Strategize the optimal location for the outdoor condenser unit. Factors such as proximity to living areas (for noise considerations), exposure to sunlight, clear airflow, and code-required distances from property lines or other utilities should be considered.
Thermostat Selection: Explore options for your new thermostat. Discuss programmable, smart, or zoning-capable thermostats that can enhance comfort and energy management.
Ductwork Assessment: If it’s an existing home, the contractor should inspect your current ductwork for leaks, blockages, or inadequate sizing, as these can significantly impact efficiency.

Effective planning minimizes unforeseen issues, ensures compliance, and ultimately leads to a more satisfactory and efficient central air conditioning system.

Accurate Sizing: The Foundation of Efficiency and Comfort

One of the most critical responsibilities of your contractor is to determine the precise size of the central air conditioner required for your home. This is not a task for guesswork. An undersized unit will struggle to cool your home adequately, running almost continuously and leading to high energy bills and poor comfort. Conversely, an oversized unit will cool the house too quickly, frequently cycling on and off. This rapid cycling, known as “short-cycling,” is detrimental to the system for several reasons:

It places undue stress on the compressor, shortening the unit’s lifespan.
It prevents the system from running long enough to effectively remove humidity from the air, leaving your home feeling clammy and uncomfortable.
It can cause the evaporator coil to freeze over, leading to restricted airflow and even less effective cooling.

To accurately determine the appropriate size, a professional HVAC installer will perform a meticulous calculation known as a “Manual-J” load calculation. This comprehensive assessment takes into account a multitude of factors specific to your home, including:

The square footage of conditioned space.
Ceiling heights.
Insulation levels in walls, ceilings, and floors.
Number and type of windows, including their direction (e.g., southern-exposure windows admitting more solar heat gain).
Local climate data and average temperatures.
Number of occupants.
Heat-generating appliances and lighting.
Ductwork integrity and sealing.

While the Manual-J calculation is the gold standard, many homeowners desire a preliminary estimate. A very rough “back-of-the-napkin” calculation can be made by multiplying your home’s conditioned square footage by 25 to get an approximate Btu requirement, then dividing by 12,000 to convert it to tonnage. However, remember this is a highly simplified approximation and should never replace a professional’s detailed assessment. Factors like exceptionally high ceilings or extensive glass will dramatically alter the true cooling load, underscoring the necessity of a Manual-J calculation for precise sizing.

Obtaining and Reviewing Estimates

Once you’ve discussed the basic plan and explored various model options, your contractor should provide a detailed estimate. As a general rule, always obtain written estimates from multiple reputable vendors. The only exception might be for a new build, where your general contractor will typically handle the HVAC subcontractor. Ensure the estimate is clear, itemized, and includes:

Specific equipment models (indoor and outdoor units) with SEER ratings.
Labor costs for installation, including any necessary modifications to ductwork or electrical systems.
Costs for refrigerant, line sets, and other materials.
Permit fees and removal/disposal of old equipment (if applicable).
Warranty information for parts and labor.
Payment schedule and terms.

Whether dealing with a builder or an independent HVAC contractor, do not hesitate to ask clarifying questions about any line item. A transparent contractor should be willing to communicate openly and provide enough detail to make you comfortable with the entire process and its associated costs. Be wary of estimates that are significantly lower than others, as they might indicate shortcuts, hidden fees, or inexperienced labor.

The Central Air Installation Process: Step-by-Step Overview

A typical central air conditioning installation usually takes about one to two days to complete, depending on the complexity of the project. Here’s a breakdown of the main steps involved:

Ductwork Installation or Modification
- Existing Homes: If your home already has a furnace, the existing ductwork system will likely be utilized. Modifications are usually minimal, perhaps involving the addition of a new return line or minor adjustments to accommodate the evaporator coil. The contractor will inspect the existing ducts for leaks or blockages and ensure they are appropriately sized for the new AC unit.
- New Ductwork: For homes without existing ductwork, new ducts will need to be installed. Work closely with your contractor to strategically place these ducts and conceal them in closets, soffits, or utility areas to minimize the need for extensive drywall repairs. Proper sealing and insulation of all ductwork are critical for energy efficiency and preventing air loss.
- New Builds: In new construction, ductwork installation is typically completed before the drywall is hung, allowing for easier routing and integration into the home’s structure.
Interior Unit Installation (Evaporator Coil)
- The evaporator coil, a key component of the indoor unit, is installed within the furnace plenum.
- The plenum is the large chamber that connects the furnace to the ductwork, serving as the main air distribution point. It has two sections: the supply plenum (where conditioned air flows out into the house) and the return plenum (where air is drawn back into the system).
- The evaporator coil is typically placed in the supply plenum, located on the “outflow” side of the furnace, allowing cooled air to be distributed efficiently throughout the duct system. Proper sealing of the coil within the plenum is vital to prevent air leaks and ensure optimal performance.

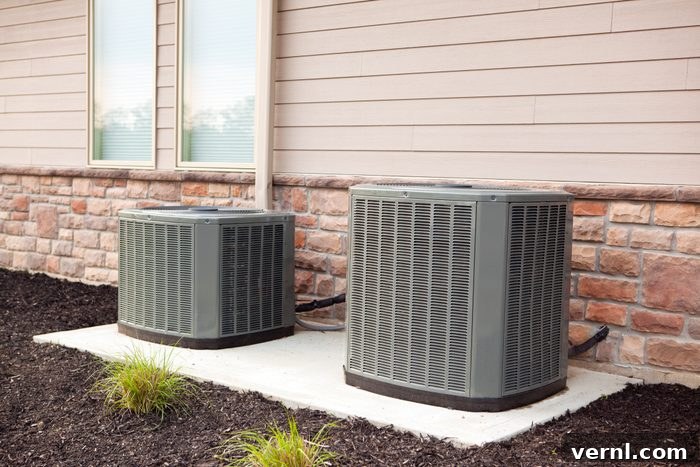

Exterior Unit Placement (Condenser)
- The placement of the outdoor condenser unit is determined by several important factors to ensure optimal operation, minimize noise, and comply with local codes:
  - Proximity: The length of the refrigerant line set to the interior unit and the electrical service panel should be as short and direct as possible to maximize efficiency and minimize installation costs.
  - Level Ground: The unit must be installed on a sturdy, level concrete pad or foundation to prevent vibrations, ensure proper drainage, and prolong its lifespan.
  - Noise Considerations: Place the unit away from windows, doors, or outdoor living areas (patios, decks) to minimize noise disturbance.
  - Clearance and Airflow: Ensure adequate clearance around the unit for proper airflow and future maintenance access.
  - Code Requirements: Local building codes dictate minimum distances from gas meters, water meters, property lines, and other structures for safety and accessibility.
  - Sunlight Exposure: While often unavoidable, minimizing direct, prolonged sun exposure can slightly improve efficiency.
Connecting the Line Set
- The indoor evaporator coil and the outdoor condenser unit are linked by a “line set,” which consists of a pair of insulated copper pipes. These pipes form a closed loop through which the refrigerant cycles, transferring heat between the indoor and outdoor units.
- The routing of the line set will generally follow the most direct path from the evaporator to the condenser. If you have any concerns about the proposed route, discuss them with your contractor as early as possible.
- Once routed, the penetration point through the exterior wall must be thoroughly sealed with appropriate caulking and flashing to prevent water infiltration, pest entry, and air leaks, which could compromise the home’s insulation and structural integrity.
- The line set itself must be properly insulated to maintain refrigerant temperature and prevent energy loss.
Connecting the Electrical Supply
- The condenser unit requires a dedicated electrical circuit and an exterior shutoff switch installed nearby for safety and maintenance purposes.
- A heavy-gauge electrical line will run from the condenser unit to this exterior shutoff, and then from the shutoff to a dedicated breaker in your home’s main electrical service panel.
- It’s crucial to confirm that your circuit panel has sufficient capacity to handle the additional load of the air conditioner. If your panel is already maxed out, an upgrade may be necessary, which should be identified and included in the project estimate during the planning phase.
- Additionally, a low-voltage control wire connects the condensing unit to the furnace. This allows the thermostat to communicate with both the heating and cooling components, orchestrating their operation.
Condensate Drain Line Installation
- All air conditioners generate condensation as they remove humidity from the air, similar to how moisture forms on a cold glass of water. This condensation must be properly drained away to prevent water damage and the growth of mold or mildew.
- Units installed in basements or utility rooms typically have their condensate lines routed to a nearby floor drain, laundry tub, or utility sink.
- For units located in attics or upper levels, the condensate may be piped outside (often requiring a secondary safety drain pan with a float switch to detect overflows) or directed to a condensate pump that evacuates the water to an appropriate drainage point. Ensuring the drain line has a proper slope and is free of obstructions is vital to prevent clogs and potential water overflow, which can cause significant damage.
Thermostat Installation or Upgrade
- For new central air conditioning installations in homes without existing cooling, a new thermostat capable of controlling both heating and cooling functions will be installed.
- In existing homes where a furnace is present, you may need to upgrade your current thermostat if it only controls heating. The new thermostat must be compatible with your new AC system.
- This is one stage of the installation process where a moderately skilled DIYer can potentially contribute. Many homeowners opt to have a basic thermostat installed by the professionals during the initial setup and then upgrade to a more advanced programmable or smart thermostat on their own. This can offer greater control, energy monitoring features, and integration with smart home systems.

Central Air Installation Cost: What to Expect

The cost of installing a central air conditioning system can vary significantly based on regional market rates, the specific equipment chosen, and the complexity of the installation. A typical split-system central air installation that utilizes existing furnace ductwork generally ranges between $3,000 and $5,500, encompassing both labor and materials. On average, this cost is often split roughly 60% for labor and 40% for materials, reflecting the specialized skills and time required for proper installation. For a heat pump system, which offers both heating and cooling, HVAC expert Tim David estimates the cost to be higher, typically between $5,000 and $8,000, due to more complex components and installation requirements.

While it might seem tempting to purchase the AC system components yourself and then hire an HVAC professional for installation, this approach often doesn’t lead to significant savings. Contractors usually receive commercial discounts on equipment that homeowners cannot access, meaning you might end up paying full retail price, making the overall cost comparable to or even higher than the contractor’s bundled estimate. Furthermore, if you source the equipment yourself, you bear the sole responsibility for accurate sizing and any issues or defects with the components, which can quickly erase any perceived savings.

If you are replacing an existing central air conditioning system, anticipate an additional charge, typically in the $150 to $200 range, for the safe removal and environmentally compliant disposal of the old unit and its refrigerant. In situations where you are installing both a new furnace and an air conditioning system concurrently, contractors often offer a discounted package price for the combined components, even though the total project cost will naturally be higher than installing just one system. Always request a detailed breakdown of costs and understand what is included in the estimate to avoid any surprises.

Conclusion

Investing in a central air conditioner is a decision that offers numerous benefits, from significantly enhancing your home’s comfort levels to actively boosting its market value. While the installation of a central air system is a complex and highly specialized process best handled by qualified professionals, understanding the various stages and considerations can empower you as a homeowner.

This overview has aimed to provide clarity on key definitions, the critical importance of proper sizing, the benefits of professional installation, and a step-by-step guide to the installation process. By arming yourself with this knowledge, you can engage more effectively with your HVAC installer, ask pertinent questions, and ensure that your new central air conditioning system is installed to the highest standards. A well-installed system will deliver years of efficient, reliable cooling, providing a consistently comfortable environment for you and your family. Don’t hesitate to communicate openly with your contractor throughout the journey to ensure a smooth and successful central air conditioner installation!

About the Expert

Tim David is a retired HVAC technician with 25 years of extensive experience in the field. He holds multiple certifications in air purification technologies and continues to share his vast knowledge and insights through his HVAC advice blog at AirLucent.com.
