Chainsaws are incredibly versatile and powerful tools, essential for a wide range of tasks from precise light pruning and limbing to efficiently cutting up firewood and even felling trees. Their utility makes them indispensable for homeowners, arborists, and construction workers alike. However, with consistent use, even the most durable components will eventually require replacement. Chief among these are the chainsaw bar and chain – the primary cutting elements.
Before embarking on the crucial task of purchasing replacements, it is absolutely vital to know the exact specifications of each component. Correctly measuring a chainsaw bar and chain isn’t just a matter of convenience; it is paramount to the safe, efficient, and long-term operation of your tool. As hardware store proprietor Vince Christofora wisely cautions, “Using the wrong size bar or chain can damage the chainsaw and injure the chainsaw operator.” The implications of an ill-fitting bar or chain range from accelerated wear and tear on the saw’s engine and components to dangerous kickback incidents and potential personal injury.
This comprehensive guide will walk you through the precise procedures for accurately measuring your chainsaw’s bar and chain. Mastering these simple steps will not only save you valuable time and frustration at the hardware store but also ensure you make informed decisions that protect both your investment and your safety. Forget the hassle of lugging a dirty, sawdust-caked, oil-soaked, and gas-smelling chainsaw into the store just to ask for help, as Christofora humorously advises: “Not a good way to start things off!” Instead, empower yourself with the knowledge to select the perfect fit every time, ensuring optimal performance and safety for all your cutting projects.
Understanding and Measuring a Chainsaw Bar

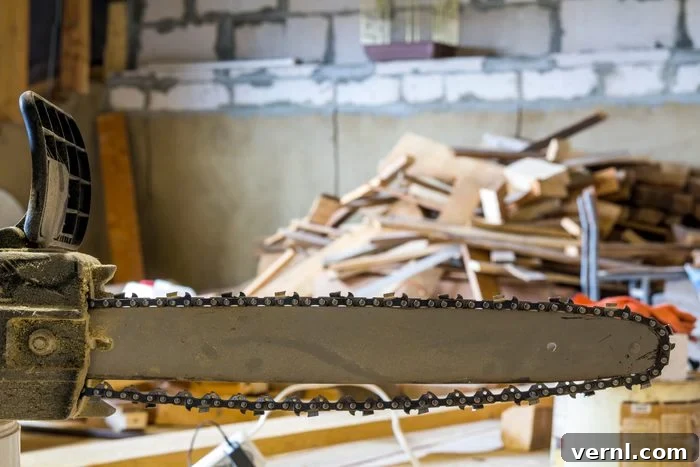

The chainsaw bar, sometimes colloquially referred to as a chainsaw blade, is the robust metal “arm” that extends from the chainsaw body. Its primary function is to guide, support, and tension the cutting chain as it rotates at high speeds. Chainsaws are typically marketed and sold based on the length of this bar, usually in even-numbered increments. For instance, when you purchase a “16-inch chainsaw,” you are primarily referring to the length of its guide bar.
Accurately measuring your chainsaw bar is the first critical step in ensuring you acquire the correct replacement. There are two primary methods for determining bar length, each serving a slightly different purpose, though one is far more common for everyday replacements.
Method 1: Effective Cutting Length (Most Common)
According to Vince Christofora, the most frequently used and practical method for determining bar size for general replacement purposes is by measuring the effective cutting length. This measurement reflects the usable portion of the bar that extends beyond the chainsaw’s powerhead, indicating the maximum cutting diameter achievable with that specific bar. This is the length that manufacturers typically advertise and users refer to when discussing chainsaw sizes.
To precisely measure a chainsaw’s effective cutting length (often simply referred to as its “length”), follow these steps:
- Position Your Tool: Lay the chainsaw down on a flat, stable surface for ease of measurement.
- Start at the Tip: Place the end of a tape measure at the very tip of the bar. Ensure it’s flush with the furthest point of the bar.
- Measure to the Body: Extend the tape measure straight back along the length of the bar to the point where the bar disappears into the chainsaw’s powerhead or body. This is the operational cutting length.
- Round Up to the Nearest Even Number: Because chainsaw bars are almost exclusively manufactured and sold in even-numbered lengths, you will need to round your measurement up to the nearest even whole number. For example, if your measurement is 15 inches, your saw is considered a 16-inch chainsaw. If you measure 18-3/4 inches, it’s a 20-inch saw. This rounding ensures compatibility with standard replacement bars available on the market.
Method 2: True Bar Length (Less Common, More Precise)
While less commonly used for routine replacements, understanding the true bar length can be essential in specific situations, especially when dealing with specialized bars or if you need an exact, unrounded dimension for cross-referencing with highly technical specifications. This measurement provides the total physical length of the metal bar itself, from one end to the other, regardless of how much of it is encased within the saw body.
If you need this precise measurement to ensure a perfect fit for a specialized replacement bar, here’s how to do it:
- Loosen the Bar Bolts: Carefully loosen the bolts or nuts that secure the bar to the chainsaw body. This will allow the bar to be removed.
- Remove the Bar: Gently slide the bar off the studs and away from the chainsaw body. Place it on a clean, flat surface.
- Measure End-to-End: Using your tape measure, measure the entire length of the bar, from one end to the other. This is its true, unadulterated physical length.
The true bar length is a precise measurement; unlike the effective cutting length, do not round this number up or down. This exact figure is crucial for highly specific parts matching.
What if My Chainsaw Bar Appears to Be a Non-Standard Length?
It is highly improbable that you will encounter a chainsaw bar that deviates significantly from standard lengths, as manufacturers adhere to industry norms for interoperability. However, in the extremely rare event that your measurements (especially the true bar length) don’t align with common standards, or if you possess a vintage or highly specialized saw, your best course of action is to contact the original equipment manufacturer (OEM) or a certified dealer. Provide them with your chainsaw’s make, model number, and any existing bar markings. They will be able to provide accurate information on compatible replacement bar and chain sizes, or guide you toward suitable aftermarket alternatives.
The Dangers of Using a Chainsaw Bar Longer Than Recommended
Resist the temptation to fit a longer bar onto your chainsaw than what the manufacturer explicitly recommends. While a longer bar might seem appealing for tackling larger cuts, it introduces several significant risks and drawbacks:
- Engine Strain and Premature Wear: A longer bar, especially when paired with a longer chain, significantly increases the torque requirements on the chainsaw’s engine. The engine must work much harder to drive the longer, heavier chain, leading to increased stress, higher operating temperatures, and accelerated wear on critical components such as the clutch, sprocket, and engine itself. This will undoubtedly shorten the lifespan of your saw.
- Reduced Performance: The saw’s power-to-weight ratio will be compromised. You’ll experience a noticeable drop in cutting speed and efficiency, making tasks more arduous and frustrating.
- Increased Kickback Risk: A longer bar inherently has a larger “kickback zone” – the upper quadrant of the bar tip that, if it contacts wood, can violently thrust the saw back towards the operator. A longer bar extends this zone further from your body, reducing control and increasing the likelihood and severity of kickback, which can cause serious injury or even death.
- Loss of Control and User Fatigue: A longer bar shifts the balance point of the chainsaw forward, making it more unwieldy, harder to control, and significantly increasing user fatigue. This loss of control further elevates the risk of accidents.
- Incompatible Components: The oil pump, chain tensioner, and drive sprocket are all designed for a specific range of bar lengths. A longer bar might not receive adequate lubrication or tension, leading to rapid component failure.
Always adhere to the manufacturer’s recommended maximum bar length for your specific chainsaw model to ensure optimal performance, durability, and, most importantly, user safety.
Determining Chainsaw Bar Groove Gauge
Beyond length, another critical dimension for your chainsaw bar, particularly when purchasing a new one, is the groove gauge. This refers to the width of the groove along the edge of the bar into which the drive links of the chain fit. A precise match between the bar groove gauge and the chain drive link gauge is absolutely essential for proper chain guidance, stability, and tension, preventing the chain from derailing or binding.
Here’s a practical, albeit approximate, method for determining the gauge:
- Gather Common Coins: Collect a penny, a dime, and a quarter.
- Insert Coins into the Groove: Carefully insert each coin into the bar groove, one at a time.
- Identify the Best Fit: Determine which coin provides the snuggest fit without forcing it.
As Vince Christofora explains for these close approximations: “For close approximations, you can use a quarter for .063 inch, a dime for .058 inch and a penny for .043 inch.”
While the coin method offers a quick estimate, for absolute precision and versatility, consider purchasing an inexpensive, dedicated gauge. These multi-purpose tools are specifically designed to accurately measure chain pitch, chain gauge, and often even help determine the correct file size for sharpening. Investing a few dollars in such a tool will ensure you get precise measurements and avoid costly errors.
Mastering Chainsaw Chain Measurement
The chainsaw chain is the heart of the cutting operation, a sophisticated loop of sharp teeth designed to rapidly carve through wood. Selecting the correct replacement chain is just as critical as choosing the right bar, if not more so, as its dimensions must precisely match those of your bar and the drive sprocket on your saw. An incorrectly sized chain can lead to poor cutting performance, premature wear on components, chain derailment, and dangerous kickback scenarios.
The simplest and most reliable method when purchasing a new chainsaw chain is to consult your chainsaw’s manufacturer and model number. Most chainsaws have this information prominently displayed on a label or stamped into the casing. With this data, you can easily cross-reference it with the specifications provided on chain packaging or manufacturer websites, ensuring you get an exact match for your specific saw.
As Christofora emphasizes, precision is paramount here. “Most times when a customer comes into the store they just try to buy a chain the same length,” he observes. “But chains, even the same length, vary by chainsaw manufacturer.” This highlights the importance of not just length, but also the finer details like pitch and gauge. These crucial numbers – chain pitch, the number of driver links, and the chain link gauge – are often listed on the chainsaw bar itself, near the saw’s body, or in your owner’s manual. It’s an excellent practice to write these numbers down or even engrave them directly onto the bar for easy reference. If these markings are worn off, illegible, or simply unavailable, you can manually measure each dimension to determine the correct size.
How to Measure Chain Pitch
Chain pitch is a fundamental measurement that refers to the average distance between three consecutive rivets on the chain, divided by two. It dictates how the chain meshes with the drive sprocket on the saw and the sprocket at the tip of the bar. An incorrect pitch will lead to improper engagement, rapid wear, and potential damage to the sprocket and chain.
Here’s how to accurately measure chain pitch:
- Locate Rivets: Lay a section of your chain flat and identify three consecutive rivets. These are the small metal pins that hold the chain links together.
- Measure Between Rivets: Using a precise ruler or measuring tape, measure the exact distance from the center of the first rivet to the center of the third rivet.
- Calculate Pitch: Divide that measurement by two. The resulting figure is your chain pitch.
Common chain pitches (in inches) include .25 (1/4), .325, .375 (3/8), and .404. It’s crucial that the chain pitch matches the sprocket pitch on your chainsaw.
How to Measure the Number of Driver Links
The number of driver links determines the overall length of the chain and ensures it fits correctly around your guide bar and drive sprocket. This is a straightforward count:
- Identify Driver Links: Driver links are the small, triangular or fin-like projections on the underside of the chain that sit within the bar’s groove and engage with the saw’s drive sprocket.
- Count Them All: Go around the entire chain and accurately count every single driver link. This number is unique to your chain’s length.
Every chain length corresponds to a specific number of driver links. An accurate count is vital for getting a chain that is neither too long (which would be loose and dangerous) nor too short (which wouldn’t fit).
How to Measure the Chain Link Gauge
The chain link gauge refers to the thickness of the driver links – the part that sits inside the bar’s groove. A perfect match between the chain link gauge and the bar groove gauge is essential for the chain to fit snugly, operate smoothly, and prevent wobbling or derailing. If the gauge is too thick, the chain won’t fit; if it’s too thin, it will rattle and wear out quickly.
You can measure this critical dimension using a caliper or an inexpensive multi-purpose gauge:
- Position Your Tool: Place your caliper or the specific gauge prong along the groove of the bar where the chain’s drive links are meant to sit. Alternatively, you can measure the thickness of an individual driver link on the chain itself.
- Read the Measurement: Carefully read the measurement displayed on your caliper or gauge.
Common drive link gauges (in inches) are .043, .050, .058, and .063. Ensuring this gauge matches your bar’s groove gauge is non-negotiable for safe and effective chainsaw operation.
Chainsaw Sizing Guide: Matching the Tool to the Task
Choosing the right size chainsaw for the specific job at hand is paramount for both efficiency and safety. A chainsaw that is too small for a task will be underpowered and potentially dangerous, while one that is excessively large can be unwieldy, fatiguing, and also pose unnecessary risks. The most commonly purchased chainsaw bar sizes for general homeowner use range from 12 to 20 inches, suitable for a wide variety of tasks. However, specialized professional saws can boast impressive bar lengths up to 72 inches, designed for felling enormous timber. Generally, the longer the bar, the heavier and more powerful the chainsaw needs to be.
A good rule of thumb when selecting a chainsaw bar length for cutting wood is to choose a bar that is at least two inches longer than the thickness (diameter) of the material you intend to cut. This allows for clean, single-pass cuts without having to dangerously bind the bar or make multiple passes. Here’s a breakdown of common chainsaw types and their ideal applications:
- Gas-Powered Chainsaws: These powerful machines typically start with bar lengths of 16 to 18 inches and can extend up to a massive 72 inches for professional logging.
- 16 to 18 inches: Ideal for felling medium-sized trees (up to 14-16 inches in diameter), bucking logs, and processing a significant amount of firewood. They offer a great balance of power and maneuverability for most homeowner tasks and light professional use.
- 20 inches and larger: Designed for cutting down large trees, processing very thick firewood, and demanding professional applications. These saws require more experience and physical strength to operate safely.
Gas chainsaws provide the most power and run-time, making them suitable for remote work without access to power outlets, but they require fuel mixing, more maintenance, and produce more noise and emissions.
- Electric Chainsaws (Corded): Generally smaller and lighter, electric chainsaws are commonly found with bar lengths of 14 to 16 inches.
- 14 inches: Best suited for lighter tasks such as felling small trees (up to 12 inches in diameter), pruning branches, and occasional light firewood cutting. They are easy to start and maintain.
- 16 inches: Capable of handling medium-sized trees (up to 14 inches in diameter) and more substantial cutting tasks around the home.
Electric corded saws are excellent for tasks close to a power source, offering consistent power without the need for fuel, but their range is limited by the extension cord.
- Battery-Operated Chainsaws: These saws have significantly advanced in power and run-time, with common bar lengths ranging from 16 to 18 inches.
- 16 to 18 inches: Highly effective for bringing down medium-sized trees, limbing, and processing a moderate amount of firewood. They offer the convenience of cordless operation with respectable power, making them a popular choice for homeowners.
Battery saws offer portability and quiet operation with zero emissions, but their run-time is limited by battery life, and they typically have less raw power than comparable gas models. Extra batteries are often a good investment.
- Small Battery-Operated Saws (Pruning Saws): A newer category, these compact saws typically feature six- to nine-inch bars, such as the Milwaukee M12 Fuel Hatchet Six-Inch Pruning Saw.
- 6 to 9 inches: Specifically designed for precision pruning of small limbs, clearing brush, and detailed carving work. Their lightweight and compact nature make them incredibly easy to maneuver for delicate tasks or reaching tight spaces.
Beyond bar length and power source, consider your physical strength, experience level, and the frequency of use. A larger, more powerful chainsaw demands more physical exertion and advanced handling skills. Always prioritize safety features and comfort when making your selection. When in doubt, it’s often better to opt for a slightly smaller, more manageable saw that you can operate safely and comfortably, especially if you are not a professional.
Understanding and accurately measuring your chainsaw’s bar and chain is a fundamental skill for any chainsaw owner. It ensures not only the correct selection of replacement parts but also contributes significantly to the safe and efficient operation of your equipment. By following the detailed instructions provided in this guide, you can confidently maintain your chainsaw, extending its lifespan and maximizing its performance for years to come. Remember, the right fit is key to avoiding costly damage and, more importantly, preventing potential injuries.
[dam-video dam-id=”40139″ type_of_player=”jw” /]
About the Expert
- Vince Christofora is the owner of Woodstock Hardware in Woodstock, New York. His extensive experience in the hardware industry makes him a trusted source for practical advice on tools and home maintenance.
