The mortise-and-tenon joint stands as a testament to enduring craftsmanship, offering a connection renowned for its strength, stability, and longevity. This iconic woodworking joint has graced structures and furnishings for millennia, from the monumental Neolithic stonework of ancient civilizations and the intricate artistry of architectural marvels like the Notre Dame Cathedral in Paris, to the practical and accessible designs of modern flat-pack furniture. Its widespread adoption across diverse eras and applications underscores its fundamental effectiveness and versatility, making it a cornerstone of traditional and contemporary joinery alike.
Understanding the Mortise-and-Tenon Joint: A Foundation of Joinery
At its core, a mortise-and-tenon joint is elegantly simple in concept, often likened to an “insert tab A into slot B” mechanism. This fundamental connection consists of two primary components, each meticulously crafted to interlock with the other:
- The Mortise: This is the receiving element – a precisely cut cavity or slot fashioned into the thickness of one piece of material. Think of it as the pocket or hole designed to accept the opposing component.
- The Tenon: This is the inserting element – a projection or tab carefully shaped at the end of the second piece of material. Crucially, the tenon is slightly reduced in size compared to the original stock from which it’s formed. This reduction creates a distinct “shoulder” where the tenon begins. This shoulder plays a vital role in the joint’s stability, providing a broad surface that bears against the face of the mortised material, offering robust resistance against racking, twisting, and other forces from multiple directions.
The success of a mortise-and-tenon joint hinges on the precision of its fit. The tenon should slide snugly into the mortise, creating a tight, friction-fit bond even before any additional reinforcement. This inherent tightness is often sufficient for many applications, but for enhanced durability and structural integrity, the joint can be further secured. This can be achieved through the application of wood adhesives, which fill any microscopic gaps and chemically bond the wood fibers, or by employing mechanical fasteners such as pins, wedges, or dowels. This combination of mechanical fit and additional reinforcement contributes to the joint’s renowned strength and longevity.
While the basic principle remains constant, mortise-and-tenon joints exhibit variations in their presentation. Some designs feature an “open” mortise, allowing the tenon to pass completely through the receiving material and be visible on the other side. Other applications utilize a “blind” mortise, where the end of the tenon is concealed within the mortise pocket, offering a clean, uninterrupted aesthetic. This adaptability allows the mortise-and-tenon joint to be incorporated into a vast array of woodworking projects, ranging from the rustic charm of heavy timber framing and general carpentry to the refined elegance of bespoke fine furniture making.
Exploring the Diverse Types of Mortise-and-Tenon Joints

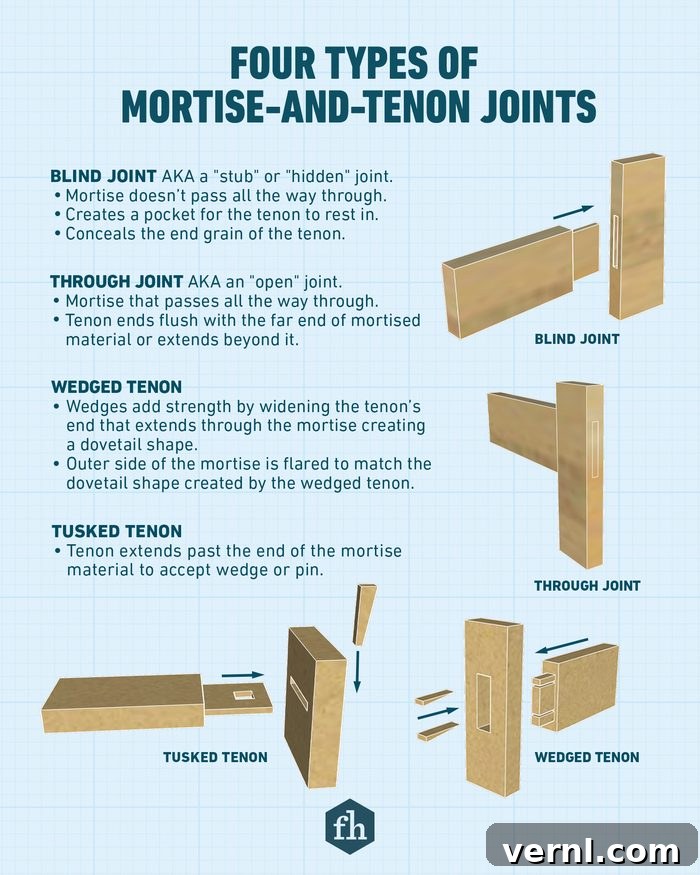

The rich history of woodworking has given rise to numerous variations of the mortise-and-tenon joint, each tailored for specific structural, functional, or aesthetic requirements. While terminology can sometimes vary regionally or between individual woodworkers, certain variations are widely recognized. Here’s an overview of some of the most common types that a budding woodworker is likely to encounter:
- Blind Joint (or Stub/Hidden Joint): As its name suggests, in a blind joint, the mortise does not extend all the way through the thickness of the material. Instead, it forms a pocket, effectively concealing the entire tenon within the receiving member. The primary advantage of this type is aesthetic, as it hides the end grain of the tenon, presenting a clean and continuous surface on the exterior. This makes it a popular choice in fine furniture, cabinet doors, and frame construction where a seamless look is desired. The depth of the blind mortise is crucial; typically, it should be deep enough to provide ample glue surface and structural integrity without unduly weakening the mortised material.
- Through Joint (or Open Joint): Conversely, a through mortise-and-tenon joint features a mortise that passes entirely through the material, much like the eye of a needle. This allows the tenon to extend beyond the outer face of the mortised piece. Through joints are often chosen for their inherent strength and visual appeal. The tenon can be cut to end flush with the surface, or it can protrude slightly, creating an exposed design element that highlights the craftsmanship. This variation is common in timber framing, rustic furniture, and any application where the joint’s robust nature and honest expression of construction are valued.
- Wedged Tenon: This is a sophisticated and exceptionally strong variation of the through joint. In a wedged tenon, the end of the tenon that extends through the mortise is intentionally expanded or flared to create an even tighter, virtually inseparable mechanical lock. This expansion is typically achieved by cutting one or more kerfs (thin saw cuts) into the end of the tenon. Small wooden wedges are then driven into these kerfs after the joint is assembled. As the wedges are driven in, they force the tenon to widen, creating a dovetail-like shape that presses against the inside faces of the mortise. The outer face of the mortise is often cut to accommodate this widening. Alternatively, wedges can be glued along the edges of the tenon before insertion. This technique significantly enhances the joint’s resistance to withdrawal and racking, making it ideal for high-stress applications or knock-down furniture where immense strength is required.
- Tusked Tenon: With roots in antiquity, the tusked tenon is another form of through tenon prized for its immense strength and unique aesthetic. In this design, the tenon extends well past the mortised material. A hole is drilled or cut through the extended portion of the tenon, perpendicular to its length. A separate wedge, pin, or “tusk” is then driven into this hole. This pin acts much like a cotter pin, mechanically locking the tenon in place and effectively preventing it from ever slipping out of the mortise. Tusked tenons were historically used in heavy timber construction and large assemblies. Today, they are often seen in custom furniture designs where their distinctive, exposed hardware adds a decorative touch while providing exceptional structural integrity, sometimes even allowing for the joint to be disassembled.
- Haunched Tenon: While not listed in the original, it’s worth a brief mention. A haunched tenon is a type of blind tenon where a small portion of the tenon is removed from one side (the ‘haunch’), allowing the joint to be used where a groove or rebate runs into the mortised piece, maintaining strength without blocking the groove. This demonstrates the continuous evolution and adaptation of the mortise-and-tenon.
Mortise-and-Tenon Joint: Advantages and Disadvantages
Like all wood joinery techniques, the mortise-and-tenon joint, while exceptionally robust, is not a universal solution for every woodworking scenario. Understanding its strengths and limitations is key to successful project planning.
Key Advantages
- Unrivaled Strength and Durability: This is perhaps the most significant advantage. The interlocking nature of the mortise and tenon creates a mechanical bond that is incredibly resistant to racking, twisting, and shear forces. When reinforced with quality wood glue, the joint often becomes stronger than the surrounding wood itself. The large surface area provided by the tenon shoulders and sides offers ample space for glue adhesion, creating an incredibly stable and long-lasting connection that can literally endure for centuries. This inherent strength is why it has been a staple in structural elements for millennia.
- Classic and Versatile Design: The mortise-and-tenon joint offers significant aesthetic flexibility. Blind mortise-and-tenon joints, by concealing the tenon’s end grain, allow the natural beauty and continuous grain of the wood to be the focal point, creating a clean, elegant appearance perfect for high-end furniture. Conversely, through mortise-and-tenon joints, especially those that are wedged or tusked, possess a distinct, honest charm. Their exposed elements can be meticulously finished to a high standard, clearly communicating the quality of craftsmanship and adding a rustic or architectural design element. This versatility allows the joint to adapt to a wide spectrum of styles, from traditional to contemporary.
- Exceptional Versatility Across Projects: The adaptability of the mortise-and-tenon joint is one of its greatest assets. It can be found in a vast range of applications, including:
- Furniture Construction: Chairs, tables, beds, cabinets, and chests.
- Architectural Elements: Doors, windows, gates, and timber frames.
- Structural Components: Post-and-beam construction, pergolas, and outdoor structures.
Once a woodworker masters the techniques involved, they will discover countless opportunities to employ this joint, making it an indispensable skill in their repertoire.
- Excellent for Joinery Repair: The robust nature of this joint means that when it does fail (often due to environmental stress rather than joint failure itself), it can often be effectively repaired or rebuilt, unlike some simpler, less resilient joints.
Potential Disadvantages
- Initially Intimidating for Beginners: Many newcomers to woodworking find the concept and execution of mortise-and-tenon joints daunting. The need for precision, the multi-step process, and the potential for visible mistakes can be off-putting. However, with clear instruction, patience, and practice, this perceived difficulty quickly diminishes. Breaking the process down into manageable steps and focusing on accurate marking makes it much less intimidating.
- Not Ideal for Thin Materials: The design of the mortise-and-tenon joint requires a certain minimum thickness of material to maintain its strength and integrity. Attempting to cut a mortise into very thin stock (e.g., less than 3/4 inch) can severely weaken the material, leading to splitting or breakout around the mortise. Similarly, creating a tenon on a toothpick-thin piece of wood becomes impractical and offers negligible strength. While there’s no hard-and-fast rule for the absolute minimum thickness, it generally becomes impractical and structurally unsound for materials too thin, making other joinery methods like dovetails or biscuits more suitable in such cases.
- Time-Consuming and Demanding Precision: Compared to simpler butt joints or biscuit joints, creating accurate mortise-and-tenon joints requires more time for layout, cutting, and fitting. Any inaccuracies can lead to a loose joint (weak) or a joint that won’t assemble (frustrating). This demands a high degree of precision and attention to detail throughout the entire process.
- Specialized Tooling Can Be Required: While possible with basic hand tools like chisels and saws, achieving high levels of accuracy and efficiency, especially for multiple joints, often benefits from specialized tools like mortising machines, dedicated tenoning jigs for table saws, or plunge routers, which can represent an investment.
Optimizing Mortise-and-Tenon Joint Dimensions for Strength
Proper sizing of a mortise-and-tenon joint is critical to its structural integrity and aesthetic appeal. The dimensions of the mortise typically dictate the dimensions of the tenon, ensuring a proportional and strong connection.
- Mortise Hole Width: A widely accepted guideline is that the width (or thickness) of the mortise should be no more than one-third the thickness of the material into which it’s being cut. For example, if you are mortising a 1×4 board (which is typically 3/4-inch thick after planing), the mortise hole should be approximately 1/4-inch thick. This ensures that sufficient material remains on either side of the mortise to maintain the strength of the receiving piece, preventing it from splitting or weakening excessively. For optimal balance and strength, the mortise is usually centered within the material’s thickness, leaving an equal amount of wood on both sides (e.g., 1/4-inch of material on either side of a 1/4-inch mortise in 3/4-inch stock). In some advanced joinery situations, an offset mortise might be necessary for specific design or structural reasons, but for beginners, centering is best.
- Mortise Hole Lengths: The length of the mortise hole is also important for strength and preventing racking. A good rule of thumb is that the length should typically be between one and four times its width. This range accommodates everything from a nearly square joint to a more elongated rectangular shape, or a circular to an oval shape when using certain bits. If a joint requires a connection longer than this ratio, it is generally better practice to design it with multiple, smaller tenons rather than one excessively long tenon, as a very long tenon can be more prone to twisting or breaking, and a very long mortise can weaken the receiving member too much.
- Mortise Hole Depth (for Blind Mortises): For a blind mortise, the depth of the pocket is crucial. It should typically range from one-half to two-thirds of the total depth (or thickness) of the mortised material. This ensures adequate glue surface for strength while leaving enough material on the back face to prevent breakthrough and maintain the integrity of the piece. Naturally, for a through mortise, by its very definition, there is no specific depth, as it passes completely through the material.
- Tenon Sizing: Once the mortise dimensions are established, the tenon’s sizing is determined directly from these measurements to ensure a perfect fit. The tenon’s thickness must match the mortise’s width precisely, and its length should correspond to the mortise’s depth (for blind joints) or extend beyond it as desired (for through joints). It’s essential to carefully check the tenon measurements against the dimensions of the stock you are using. If you’re joining materials of the same size, the process is straightforward. However, if the tenon material is smaller than the mortise material, you’ll need to adjust the tenon’s shoulders or overall dimensions accordingly. For example, mortising a 4×4 post (actual size around 3.5×3.5 inches) for a standard 1/3 thickness mortise would result in a mortise approximately 1.16 inches wide. Clearly, attempting to insert a tenon from a 1×4 board (actual thickness 3/4 inch) into such a mortise would result in a very loose and weak joint. Always plan your material sizes in conjunction with your joint dimensions.
Many woodworking guides recommend creating the mortise first, followed by the tenon. While experienced woodworkers may develop their preferred order, for beginners, adhering to the “mortise first” approach is often best. This is primarily because mistakes happen, especially during the learning phase. Repairs or adjustments to a tenon are typically simpler to execute and far less noticeable than attempts to fix an incorrectly sized or damaged mortise hole, which can compromise the structural integrity or visual appeal of the larger, receiving member.
Essential Tools for Crafting Mortise-and-Tenon Joints
The beauty of woodworking lies in its flexibility, and the mortise-and-tenon joint can be created using a variety of tools, ranging from traditional hand tools to modern power equipment. DIYers and professionals alike have their favored methods, each with its own advantages. Here are some of the most common tools and techniques:
- Chisels: The venerable chisel is arguably the most fundamental tool for mortise-and-tenon joinery. High-quality bench chisels, and particularly specialized mortise chisels with their thicker blades for leverage and strength, can accomplish the entire joint from start to finish. They are used for chopping out the bulk of the waste wood within the mortise and then for paring away material to fine-tune the fit. Even when power tools are used for the initial cuts, chisels are indispensable for squaring corners, cleaning up the mortise walls, and achieving that perfectly snug fit.
- Drills (with Forstner Bits): For many beginners, a drill is a practical choice for removing the majority of the waste material from a mortise. A standard drill bit can be used, but a Forstner bit is often preferred because it creates a flat-bottomed hole with clean, sharp edges, making it easier to square up the mortise with a chisel afterwards. For enhanced precision and repeatability, various mortising jigs are available for both handheld drills and drill presses, which help guide the bit straight and consistently.
- Plunge Routers: Plunge routers are excellent for quickly and accurately cutting mortises. Equipped with a straight bit, they can plunge directly into the workpiece to create a mortise of a precise depth. The key to success with a router is to take multiple shallow passes rather than attempting to remove too much material in a single pass, which can strain the tool, burn the wood, or lead to tear-out. Router mortising jigs (both commercial and shop-made) are highly effective for guiding the router and ensuring straight, parallel mortise walls.
- Hand Saws (e.g., Tenon Saws): For cutting tenons, hand saws are a traditional and highly effective choice, especially if working on a budget or making precise cuts on thinner material. Specialty backsaws, such as a tenon saw, are designed with a stiff spine for rigidity and fine teeth for accurate rip and crosscuts, making them ideal for shaping the tenon’s cheeks and shoulders. Accurate marking and careful sawing technique are paramount for a good fit.
- Table Saws: When cutting multiple tenons, a table saw can significantly speed up the process while maintaining high accuracy. A dedicated tenoning jig or a crosscut sled combined with a dado stack (a set of blades that cuts a wider kerf) can be used to efficiently cut the cheeks and shoulders of the tenon. Safety is crucial when using a table saw for tenoning; always use appropriate jigs, push sticks, and maintain proper blade height and fence settings.
- Mortising Machines: For professional shops or those frequently making mortise-and-tenon joints, a dedicated mortising machine (either hollow chisel mortiser or chain mortiser for timber framing) provides the ultimate in speed, accuracy, and repeatability. These machines are designed specifically to cut perfectly square mortises with minimal effort.
- Marking Gauges: Accurate layout is the foundation of a successful mortise-and-tenon joint. Marking gauges, especially those with double pins, are invaluable tools for laying out the precise outline for your mortise and tenon cuts. They allow you to consistently score parallel lines for the cheeks of the mortise and the shoulders of the tenon, ensuring that both components are accurately sized and aligned for a perfect fit. A sharp marking knife can also be used for even greater precision, creating a cut line that helps prevent tear-out when chiseling or routing.
Crafting the Perfect Mortise-and-Tenon: A Step-by-Step Overview
While specific techniques may vary depending on the tools chosen, the general process for creating a robust mortise-and-tenon joint follows a logical sequence:
- Planning and Layout: Begin by carefully measuring and marking the exact location and dimensions of both the mortise and the tenon on your workpieces. Accuracy at this stage is paramount. Use a sharp pencil or, ideally, a marking knife and marking gauge for crisp, precise lines. This is where you decide on the joint type (blind, through) and its specific size based on the material thickness.
- Cutting the Mortise: Securely clamp the mortise workpiece. Depending on your chosen tools, you might:
- Chisel: Chop out the waste by driving the chisel vertically, then pare the walls clean.
- Drill: Drill a series of overlapping holes (often with a Forstner bit) to remove most of the waste, then square the corners with a chisel.
- Router: Use a plunge router with a straight bit, guided by a fence or jig, to rout out the mortise in multiple shallow passes.
The goal is clean, straight walls and a flat bottom (for blind mortises) that precisely match your layout lines.
- Cutting the Tenon: Next, tackle the tenon on the mating piece. This typically involves two sets of cuts:
- Shoulder Cuts: These define the length of the tenon and the transition from the full stock. They are usually crosscuts made with a hand saw or on a table saw.
- Cheek Cuts: These define the thickness of the tenon. They are typically rip cuts made with a hand saw, a table saw (often with a tenoning jig), or sometimes a router.
The aim is to create a tenon whose thickness precisely matches the width of your mortise, and whose shoulders are perfectly square to the tenon’s face.
- Test Fitting the Joint: This is a crucial step. Gently attempt to assemble the joint. It should slide together with firm hand pressure but without requiring excessive force or hammering. If it’s too tight, carefully pare small amounts of material from the tenon cheeks with a sharp chisel. If it’s too loose, the joint’s strength will be compromised; this often requires remaking one or both pieces for optimal results. A perfectly fitted joint is snug and gap-free at the shoulders.
- Assembly and Finishing: Once a perfect fit is achieved, apply a high-quality wood glue evenly to all mating surfaces of the tenon and inside the mortise. Assemble the joint, ensuring the shoulders are tightly seated against the mortised piece. Clamp the joint firmly until the glue cures, wiping away any excess squeeze-out immediately. For added strength or decorative effect, pins or wedges can be driven through the assembled joint (for wedged or tusked tenons, or as reinforcement for blind joints) after the glue has partially set.
Common Pitfalls and How to Avoid Them in Mortise-and-Tenon Joinery
Even experienced woodworkers can encounter issues when cutting mortise-and-tenon joints. Being aware of common mistakes can help beginners avoid frustration and achieve better results:
- Inaccurate Layout: The most frequent cause of problems. If your marking lines are not precise or are not transferred accurately from one piece to the other, the joint will not fit.
- Solution: Invest in high-quality marking tools (marking gauge, sharp knife). “Measure twice, cut once” is an understatement; verify your layout lines multiple times. Consider using a story stick or direct transfer methods.
- Too Loose a Fit: A tenon that slides too easily into the mortise indicates insufficient material removal or an oversized mortise. This significantly weakens the joint’s structural integrity, as the glue alone cannot compensate for a poor mechanical fit.
- Solution: When cutting the tenon, aim for it to be slightly oversized. Then, carefully pare or sand down the cheeks incrementally during test fitting until a perfect, snug fit is achieved. If the mortise is too large, it may be necessary to remake the mortised piece or try an advanced technique like gluing in thin veneer shims (though remaking is often best).
- Too Tight a Fit: Forcing a tenon into a mortise that is too small can split the mortised material, especially at the ends.
- Solution: Never force a joint. If it doesn’t slide together with firm hand pressure, stop and identify where the interference is. Use a sharp chisel to remove small amounts of material from the tenon cheeks until the fit is just right.
- Tear-Out: Ragged or splintered edges around the mortise or tenon shoulders can ruin the aesthetic and compromise the glue surface.
- Solution: Use sharp tools. When chiseling, score the perimeter deeply before chopping out waste. When routing, use sharp bits and take shallow passes. Back up your cut with a sacrificial board when sawing tenons or routing to prevent exit-side tear-out.
- Uneven Mortise Walls or Tenon Cheeks: Crooked cuts or inconsistent thickness will lead to a weak, gappy joint.
- Solution: Focus on maintaining consistent pressure and angles with hand tools. Use jigs and fences consistently with power tools. Regularly check for squareness and evenness with a reliable square.
- Glue-Up Problems: Insufficient glue, uneven glue spread, or not enough clamping pressure can lead to joint failure.
- Solution: Apply glue to both the mortise walls and tenon cheeks for maximum coverage. Use enough glue to see a slight squeeze-out, but not so much that it creates a hydraulic lock, preventing full assembly. Apply firm, even clamping pressure until the glue is fully cured.
Conclusion: The Enduring Legacy of the Mortise-and-Tenon Joint
The mortise-and-tenon joint remains one of the most fundamental and revered connections in woodworking. Its rich history, from ancient civilizations to modern-day manufacturing, is a testament to its unparalleled strength, adaptability, and aesthetic appeal. While it may initially present a challenge to beginners, the rewards of mastering this classic joinery technique are immense. It instills a deep understanding of wood mechanics, precision craftsmanship, and the satisfaction of creating truly durable and beautiful pieces that can last for generations.
By carefully planning dimensions, selecting the right tools, employing meticulous techniques, and avoiding common pitfalls, any woodworker can successfully incorporate the mortise-and-tenon into their projects. Whether you’re constructing a sturdy table, a delicate cabinet, or a robust timber frame, the mortise-and-tenon joint provides a foundation of strength and elegance that will elevate your work and stand the test of time. Embrace the challenge, enjoy the process, and discover the enduring power of this magnificent woodworking tradition.
