Mastering the Earth: Building a Robust Retaining Wall That Stands the Test of Time
When you envision a new landscaping project featuring a retaining wall, your thoughts might first drift to its aesthetic appeal — how impeccably it will define your garden space or support a vibrant new raised garden bed. However, the true strength and longevity of any retaining wall lie not just in its visible facade, but in the meticulous planning and construction that addresses the hidden forces acting behind and beneath it. A poorly designed or inadequately built retaining wall is a ticking time bomb, susceptible to leaning, cracking, separating, or even catastrophic failure. Understanding the physics of soil pressure is paramount to constructing a structure that not only looks great but also endures for decades.
Understanding Soil Mechanics: The Invisible Forces at Play

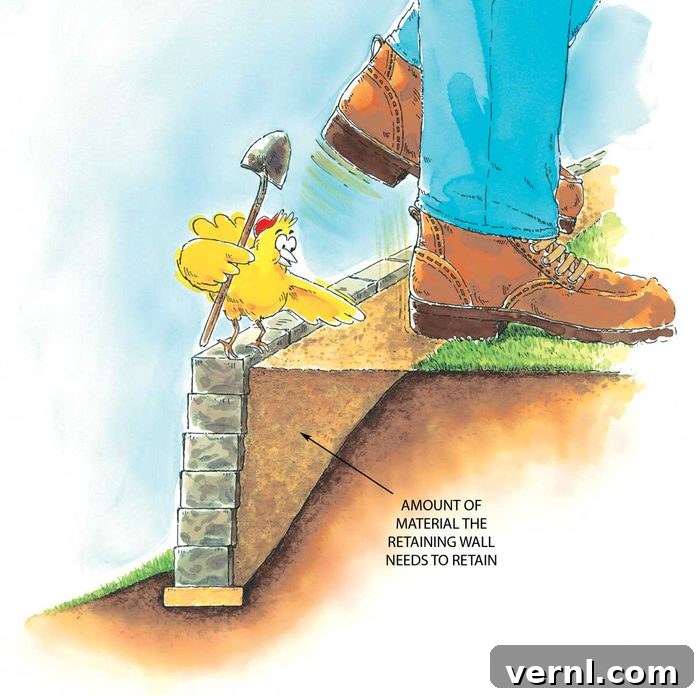

Many homeowners mistakenly believe a retaining wall must hold back the entirety of the vast amount of soil in the yard behind it. This is a common misconception. In reality, a retaining wall primarily needs to retain a specific “wedge” of soil — often an elongated, triangular section — that would otherwise slide downhill due to gravity. The concept of the “failure plane” is central to this understanding. Undisturbed soil, naturally compacted over countless years, possesses an inherent maximum slope beyond which it cannot maintain its integrity. This critical angle defines the failure plane. Soil situated behind this plane will largely remain stable on its own. However, the soil directly in front of this plane — whether it’s native earth or new fill material — exerts considerable pressure as it constantly attempts to slide down this natural slope.
Gravity, combined with the slope, directs the immense weight and pressure of this soil wedge towards the lower sections of your retaining wall. Given that soil can weigh a formidable 100 pounds or more per cubic foot, countering this force requires robust materials and precise installation techniques. Whether you opt for large retaining wall blocks, natural boulders, durable timbers, or poured concrete, the material choice must be matched with foundational engineering principles. Ignoring these principles is an invitation for structural compromise. Here are three fundamental tenets for constructing a truly solid and long-lasting retaining wall:
- Anchor the Base Deeply: Burying the bottom course, or several courses, of the retaining wall is crucial. A general rule of thumb is to bury at least one-tenth of the wall’s total height. This foundational embedment acts as a critical counter-force, preventing the soil behind from pushing the entire base of the wall outward and compromising its stability. A deeply anchored base resists the lateral forces that can lead to buckling and collapse.
- Embrace the Step-Back (Batter): Constructing your wall with a slight step-back, or “batter,” means each successive course of blocks, rocks, or timbers is set back slightly from the one below it. This subtle lean works harmoniously with gravity, effectively pushing the wall into the earth behind it. Walls built perfectly vertical are inherently less stable; any minor outward lean immediately allows gravity to work against them, exacerbating instability. Most modern concrete retaining wall block systems are ingeniously designed with built-in lips or pin mechanisms that automatically create this essential step-back as you build, simplifying the process and enhancing structural integrity.
- Build on a Solid, Level Foundation: The base material upon which your retaining wall rests must be meticulously prepared and compacted to an exceptionally solid and level state. A perfectly level foundation ensures that each modular block, stone, or timber makes maximum surface contact with the courses above and below it. Greater contact translates directly to increased friction and a tighter, more cohesive structure. This enhanced friction is vital for distributing the immense loads evenly and preventing individual units from shifting or rotating. Applying these three rules rigorously forms the bedrock of a strong and resilient retaining wall. However, even the most expertly built wall can be undermined by two relentless adversaries: uncontrolled water and improperly compacted soil.
The Silent Destroyer: How Uncontrolled Water Weakens Retaining Walls
Water is arguably the greatest threat to a retaining wall’s longevity. It can inflict damage in several ways: by eroding and washing out the critical base material that supports the wall, or, more commonly and devastatingly, by accumulating behind the wall. When water saturates the soil, it dramatically increases its weight and applies immense hydrostatic pressure against the wall structure. This is the primary reason why walls begin to lean, bulge, crack, and ultimately topple. A well-engineered retaining wall is designed with sophisticated drainage systems to prevent water from building up and to provide efficient escape routes for any moisture that inevitably infiltrates the soil.

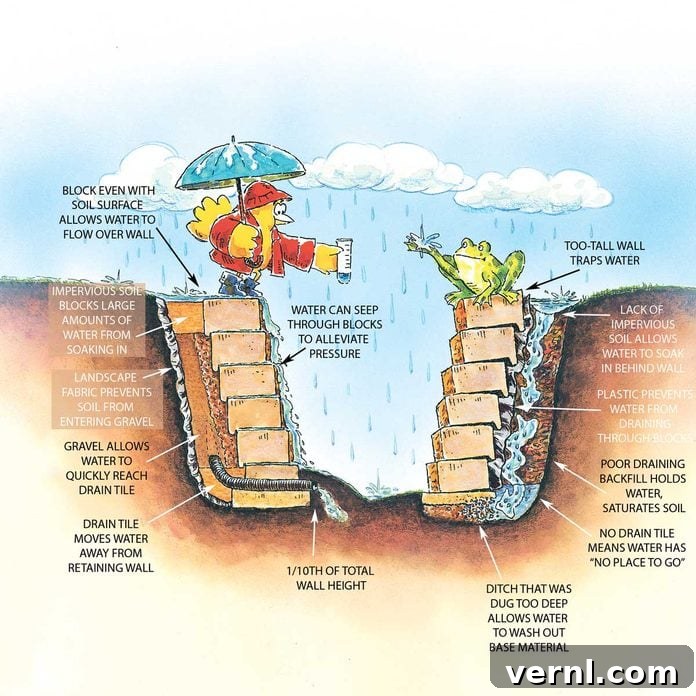

Consider the principles embodied in a well-drained retaining wall, as often depicted in optimal designs. The sod and topsoil directly above the wall are meticulously graded to be almost flush with the top course of blocks. This subtle but critical grading encourages surface water to flow harmlessly over the top of the wall rather than pooling and seeping behind it. Immediately below this topsoil, an 8 to 12-inch layer of densely compacted impervious soil acts as a barrier, further preventing surface water from penetrating deep behind the wall. Beneath this impervious layer lies a substantial bed of gravel, offering an expedient pathway for any water that does manage to infiltrate. This gravel layer funnels water directly to a perforated drain tile, typically installed at the base of the wall. This drain tile efficiently collects the water and directs it away from the wall’s foundation, escorting it out through open ends or into a dedicated drainage system. Furthermore, allowing for small gaps or porous materials between the face of the blocks themselves provides additional avenues for drainage, preventing water from being trapped. Often, a porous filter fabric is strategically placed between the soil and the gravel backfill to prevent fine soil particles from clogging the drainage system. This comprehensive approach results in a well-drained wall built to last for generations.
In stark contrast, a poorly drained wall is a recipe for disaster. Imagine a scenario where there’s a noticeable dip or depression in the lawn near the top of the wall, creating a natural basin that collects rainwater. Without a protective layer of impervious soil, this trapped water relentlessly seeps downwards, progressively water-logging and significantly increasing the weight and pressure of the soil packed behind the wall. Adding to the woes, some inexperienced builders might place plastic sheeting directly against the back of the wall, intending to prevent soil from oozing through cracks. While it might stop soil, it critically traps water, exacerbating the hydrostatic pressure. The absence of a drain tile at the base means this trapped water has nowhere to go; it saturates, softens, and gradually erodes the crucial base material supporting the wall. An excavated trench extending below the wall’s base can also funnel water directly into the foundation, further weakening it. Such a wall is forced to bear the burden of not just tons of soil, but also tons of saturated water — a situation that becomes exponentially worse in winter when this trapped water freezes and expands, exerting immense forces that can utterly destroy the wall structure.
The Hallmarks of a Well-Built Retaining Wall

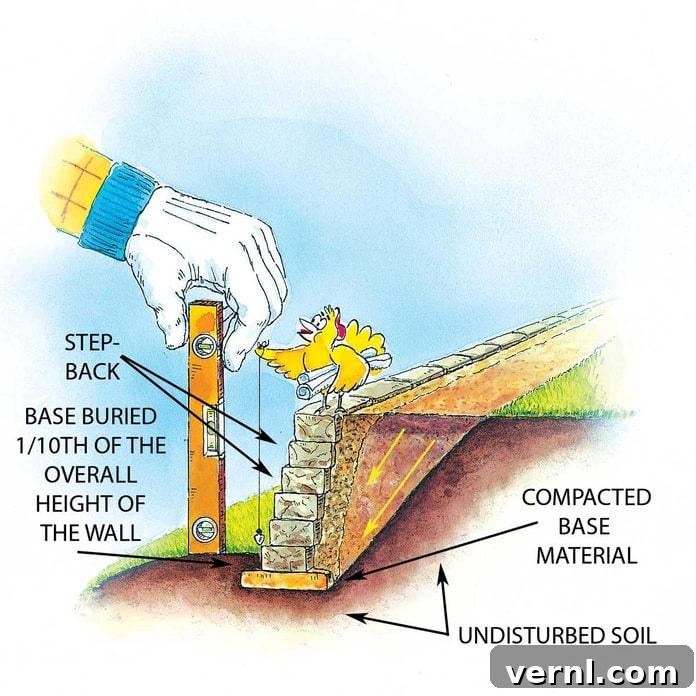

A strong and durable retaining wall design incorporates several key structural elements. These include a meticulously compacted base material that provides an unyielding foundation, robustly compacted material in front of the wall to counteract any potential “kick-out” from the soil pressure behind, and the essential stepped-back (battered) construction of the wall materials. Each of these elements works in concert to distribute forces and ensure the wall’s long-term stability.
Understanding the Pitfalls: A Poorly Built Wall

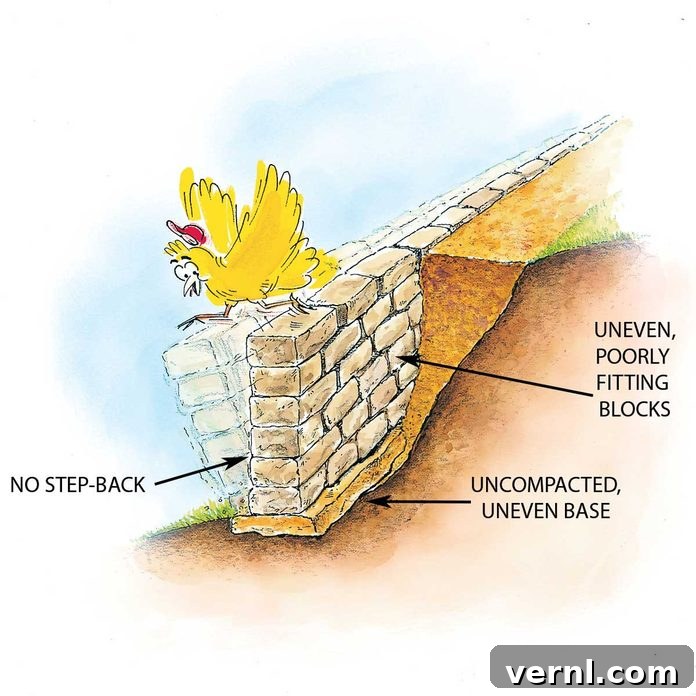

Conversely, a retaining wall lacking fundamental construction principles is destined for failure. Key indicators of a poorly constructed wall include an uneven or inadequately compacted base, the absence of compacted material at its toe to resist outward movement, and a design that neglects the crucial step-back in its courses. Walls built without these critical components will inevitably succumb to the relentless forces of soil pressure and moisture over time, leading to premature deterioration and collapse.
The Power of Density: Why Proper Compaction is Non-Negotiable

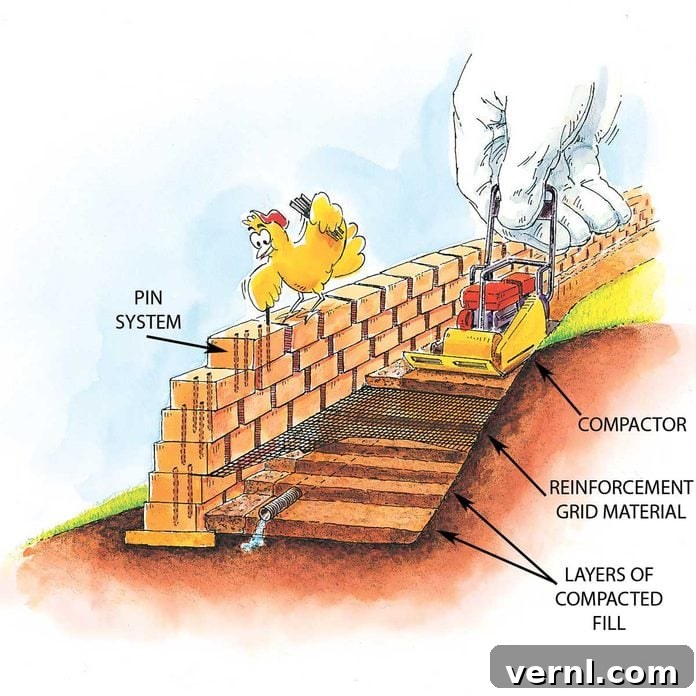

Even for retaining walls holding back a relatively small wedge of soil, proper compaction of the backfill material is fundamentally important. When the failure plane is farther back, meaning your wall must retain a larger volume of fill and thus significantly more weight and pressure, compaction, along with the potential inclusion of a reinforcing grid (geogrid), becomes absolutely critical. These two elements dramatically enhance the internal friction within the soil mass and redirect the immense pressure of the added fill material primarily downwards, rather than at an acute angle pushing horizontally against the wall.
Achieving “good compaction” is far more involved than simply dumping several feet of fill material behind the wall and then jumping on it in your work boots. True, effective compaction entails adding backfill material in thin layers, typically no more than 3 or 4 inches at a time. Each layer must then be thoroughly compacted using heavy, specialized equipment such as a vibrating plate tamper, which can be rented from most equipment rental yards. This meticulous process of adding thin layers and compacting each one individually must be repeated over and over until the desired height is reached. For taller walls or those retaining significant loads, your landscape supplier or modular block manufacturer can provide specific guidance on whether a reinforcing grid (geogrid) is necessary, and if so, at what intervals it should be installed. Generally, the taller the wall, the more likely geogrid will be required to provide the necessary tensile strength and stability.
When selecting backfill material, it is imperative to avoid using or compacting topsoil. Topsoil is rich in organic matter, which will inevitably break down and settle over time, creating undesirable voids and a trench-like depression behind your wall — an ideal conduit for water accumulation. Instead, opt for granular, free-draining materials such as sandy or gravelly soils, which compact far more effectively and provide superior drainage. Finally, exercise caution during compaction: always ensure you don’t become overzealous and accidentally push or compact the wall itself outward, compromising its initial alignment and structural integrity.
Beyond the Basics: Timber Walls, Tall Walls, and Building Codes

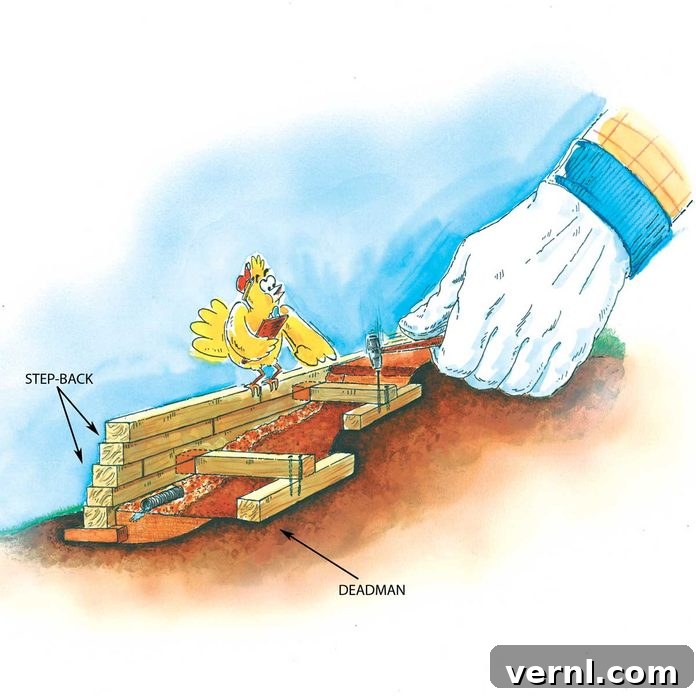

While aesthetically pleasing, landscape timbers and railroad tie retaining walls typically lack the sheer weight required to independently hold back significant soil masses. To imbue these types of walls with the necessary strength, they often require the incorporation of “dead men.” These are structural anchors, typically timbers or heavy blocks, embedded horizontally deep into the soil behind the wall and connected to the wall itself. The very soil pressure that pushes against the wall also pushes down on these dead men, effectively locking them — and consequently the entire wall — securely in place. It’s crucial to remember that the core principles of stepping back, installing robust drainage, and thorough compaction remain equally vital for timber retaining walls as they do for modular block or concrete structures.
For retaining walls of any material that exceed a height of 4 feet, the engineering challenges intensify significantly. At these greater heights, the wedge of soil becomes too large and heavy to be adequately retained by the weight of the wall materials alone. Many municipalities now enforce specific building permits and require detailed construction plans and engineering specifications for walls exceeding this 4-foot threshold. This regulatory oversight is a sensible measure, ensuring safety and structural integrity. Fortunately, most reputable modular block manufacturers can readily provide printed sheets detailing structural information, load-bearing capacities, and recommended installation guidelines for their products when used in taller applications.
When confronting particularly tall slopes, a series of tiered retaining walls often presents a more stable and aesthetically pleasing alternative to a single, monolithic tall wall. However, even with tiered systems, careful planning is essential. An upper tier, if positioned too close to a lower tier, can inadvertently transfer its soil pressure to the wall below, defeating the purpose. The widely accepted rule of thumb for tiered retaining walls is to set back the upper wall a distance equivalent to at least twice the height of the lower wall. This spacing ensures that the upper wall’s failure plane remains safely behind the lower wall, allowing each tier to function independently and effectively support its allocated soil mass. By adhering to these comprehensive guidelines, you can confidently construct a retaining wall that is not only visually appealing but also structurally sound, offering lasting stability and peace of mind.
