Birdsmouth Joint: A Comprehensive Guide for Roofers and DIY Enthusiasts

Roofing, while often perceived as a complex undertaking, is achievable for the dedicated DIY enthusiast. Understanding the terminology, methods, and tools is key. One of the most fundamental techniques you’ll encounter is the “birdsmouth joint.” This tried-and-true method has been a staple in roofing for generations, providing a robust solution for connecting rafters to wall plates. Let’s explore the birdsmouth joint in detail, its significance, and how to execute it effectively.

What is a Birdsmouth Joint? A Detailed Explanation

A birdsmouth joint is a specific type of cut made in the bottom edge of a rafter. This precisely crafted cut allows the rafter to sit flush and securely on the wall top plate, forming a critical component of a stable and durable roof structure. Imagine it as a custom-made notch, or a “mouth,” that provides a secure resting place and ensures the rafter aligns correctly with the wall.

Key Components of a Birdsmouth Joint

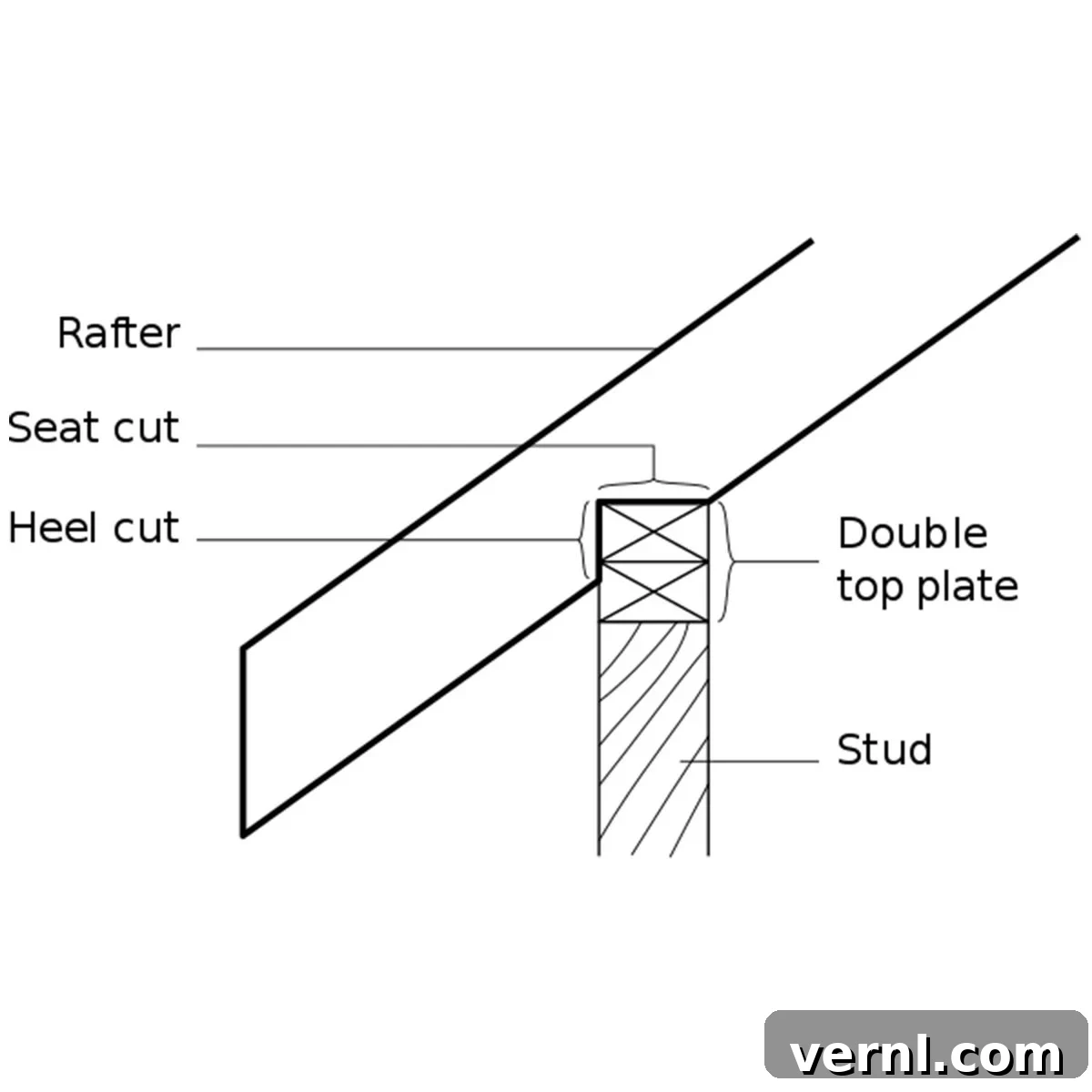

The birdsmouth joint, while seemingly simple, is composed of two critical cuts, each serving a specific purpose:

• Seat Cut: This is the horizontal portion of the cut. It’s the surface where the rafter rests directly on the wall top plate. Think of it as the bird’s perch, providing a solid and level base. The precision of the seat cut is crucial for ensuring the roof’s levelness and weight distribution.
• Heel Cut: The vertical component of the birdsmouth. This cut aligns with the exterior side of the wall, creating a snug and tight fit. The heel cut ensures that the rafter sits flush against the wall, contributing to the overall structural integrity and weather resistance of the roof.

Why are Birdsmouth Joints Important in Roofing? Benefits and Advantages

The birdsmouth joint is more than just a cut; it’s a fundamental element in distributing the roof’s weight evenly across the supporting walls. This uniform distribution is crucial for several reasons:

• Weight Distribution: The primary benefit is the even distribution of the roof’s weight. By having the rafter bear down directly on the wall plate across a wide area, the stress is spread out, preventing excessive load on any single point.
• Structural Integrity: By spreading the load, the birdsmouth joint enhances the overall structural integrity of the roof system. This added stability contributes significantly to the roof’s ability to withstand various environmental stresses, including wind, snow, and rain.
• Longevity: Proper weight distribution and structural stability translate to a longer lifespan for the roof. A roof constructed with birdsmouth joints is less susceptible to premature failure, reducing the need for costly repairs and replacements over time.
• Simplified Construction: The design of the birdsmouth joint, while requiring precision, simplifies the overall roofing construction process. It provides a straightforward and reliable method for attaching rafters, streamlining the building process and reducing potential errors.

How to Cut a Perfect Birdsmouth Joint: Step-by-Step Guide

Cutting a birdsmouth joint accurately is essential for the roof’s structural integrity. Here’s a guide to help you achieve the perfect cut:

1. Measure and Mark: Accurately measure the rafter’s length and the required depth of the birdsmouth. Use a framing square to mark the seat cut (horizontal) and the heel cut (vertical) on the rafter. Ensure these marks are precise as they’ll dictate how the rafter rests on the wall.
2. Consider Rafter Depth: A crucial aspect to consider is the rafter’s depth. As a general rule, never remove more than one-third of the depth of the rafter. Over-cutting weakens the rafter, compromising its structural strength.
3. Make the Cuts: Use a circular saw or hand saw to carefully make the seat and heel cuts along your marked lines. Ensure your saw blade is correctly angled for both cuts.
4. Check the Fit: After making the cuts, test the fit of the rafter on the wall top plate. It should sit flush and level. Make any necessary adjustments to the cuts to achieve a perfect fit.
5. Safety First: Always prioritize safety when using power tools. Wear safety glasses, hearing protection, and gloves. Be mindful of your surroundings and the tool’s operation to avoid accidents.

Securing the Rafters: Methods for Attaching Birdsmouth Joints

Once you’ve cut your birdsmouth joint, the next step is to secure the rafter to the wall top plate. Several methods are available, each offering varying levels of security and ease of installation:

1. Toenails: This traditional method involves driving nails (typically 8d or 10d nails) at an angle through the birdsmouth cut and into the wall top plate. These nails provide a strong mechanical connection, securing the rafter in place. Drive nails at opposing angles for increased holding power.
2. Metal Rafter Tie Down Plates: For added security, especially in areas with high winds or seismic activity, metal rafter tie-down plates are an excellent choice. These plates are fastened with nails or screws to the rafter and the wall top plate, creating a robust connection.
3. Combination of Methods: It’s common practice to use a combination of toenailing and metal tie-down plates for maximum security and structural integrity. This approach provides a redundant system, ensuring the rafters are firmly attached and can withstand significant forces.

Birdsmouth Joints and Manufactured Trusses: Understanding the Differences

While birdsmouth joints are the standard for stick-built roofs, manufactured trusses present a different scenario. Understanding the differences is critical for ensuring proper construction and avoiding potential structural issues.

Manufactured Trusses: These pre-engineered components are designed to bear loads in a specific way, relying on their internal design and connections for structural support. Because of their engineering and design, they typically don’t require birdsmouth cuts. Modifying these trusses by adding birdsmouth cuts can compromise their engineered strength and load-bearing capacity.

Stick-Built Roofs: This method uses individual rafters cut on-site to create the roof structure. The birdsmouth joint is essential in stick-built roofs, providing a secure and stable connection between the rafters and the wall top plate. The flexibility and customization of stick-built roofs make the birdsmouth joint a crucial element of the construction.

It’s important to differentiate between these two methods and to avoid making birdsmouth cuts into manufactured trusses. Always consult the truss manufacturer’s specifications and guidelines for proper installation.

Birdsmouth Joint: A Timeless Roofing Solution

The birdsmouth joint is a testament to the enduring ingenuity of roofing techniques. It’s a reliable, time-tested solution that continues to be essential in both residential and commercial construction. Whether you’re planning a roofing project yourself or simply appreciate the craftsmanship of a well-built home, understanding the birdsmouth joint provides valuable insight into the principles of structural engineering and the art of building.

By understanding the birdsmouth joint, from its components to its crucial role in weight distribution and stability, both DIY enthusiasts and seasoned professionals can appreciate the design and construction of solid structures. The birdsmouth joint, along with other roofing techniques, highlights the meticulous planning and precision that goes into building safe, reliable structures.
