Wood studs form the very backbone of residential and commercial structures, providing crucial strength and stability as the primary framework. Beyond their foundational role, the inherent design of stud-framed walls offers practical benefits, particularly the creation of empty cavities between studs. These vertical channels act as an ideal, protected “freeway” for routing essential utilities such as plumbing pipes, ventilation ducts, drainage lines, electrical wires, and various types of ductwork. Understanding how to safely and effectively utilize these spaces, including drilling into a stud when necessary, is fundamental for any construction or remodeling project.
However, the convenience of these vertical pathways often meets a challenge when utility lines, particularly larger pipes or extensive ductwork, need to traverse horizontally. This frequently necessitates modifying the wood studs themselves through notching or drilling holes. While seemingly straightforward, arbitrarily cutting into studs can compromise the structural integrity of a wall, creating unsafe conditions. Therefore, adhering to strict building codes and established best practices for drilling and notching studs is not merely a suggestion; it’s a critical requirement. These regulations serve dual purposes: first, to safeguard the structural soundness of your building, ensuring the walls can adequately bear their intended loads, and second, to protect the vital pipes and wires housed within, preventing costly and dangerous damage from fasteners driven into the wall.
Navigating Building Codes: Rules for Notching and Boring Studs
The modification of wall studs, whether for running new utilities or rerouting existing ones, is meticulously governed by local and national building codes. These codes are in place to prevent weakening the structural framework of a building, which could lead to compromised load-bearing capacity, warping, or even catastrophic failure over time. A key distinction made in these regulations pertains to the type of wall being modified: load-bearing versus non-load-bearing walls. This distinction is paramount because load-bearing walls carry the weight of the roof, upper floors, and other structural elements, making their integrity non-negotiable. Non-load-bearing walls, on the other hand, primarily serve to define spaces and support finishes, allowing for slightly more lenient modification rules.
Understanding and strictly adhering to these technical rules is essential for ensuring both safety and code compliance. Ignoring them can lead to project delays, costly rework, or, more importantly, long-term structural issues. Here are the precise regulations regarding the size and placement of holes and notches in wood studs:
- Holes in Bearing Wall Studs: In walls designated as load-bearing (those supporting the weight of the roof and/or any stories above, whether exterior or interior), drilled holes may not exceed 40 percent of the actual width of the stud. For instance, a standard 2×4 stud, which typically measures 1.5 inches by 3.5 inches, has an actual width of 3.5 inches. Therefore, a hole in a 2×4 bearing wall stud cannot be larger than 1.4 inches (40% of 3.5 inches). This limitation is crucial for maintaining sufficient wood fiber to carry the structural load.
- Notches in Bearing Wall Studs: When it comes to notching (cutting into the edge of a stud), the restrictions for bearing walls are even stricter. Notches in bearing wall studs are limited to a maximum of 25 percent of the stud’s width. For a 2×4 stud, this means a notch can be no deeper than approximately 0.875 inches (25% of 3.5 inches). Notches inherently remove more continuous wood fiber than holes, especially near the edges, making them more impactful on structural strength.
- Holes in Non-Bearing Walls: In contrast to load-bearing walls, non-bearing walls (which do not support significant structural weight beyond their own finishes) offer greater flexibility. Holes drilled in non-bearing wall studs can be larger, up to 60 percent of their width. For a 2×4 stud, this allows for a hole up to 2.1 inches in diameter (60% of 3.5 inches), accommodating larger pipes or conduit runs.
- Notches in Non-Bearing Walls: Similarly, notches in non-bearing wall studs can be deeper, up to 40 percent of their width. For a 2×4, this translates to a notch depth of up to 1.4 inches (40% of 3.5 inches). While more lenient, these limits still prevent excessive weakening that could lead to stud bowing or inadequate support for drywall.
- Edge Distance for Holes: Regardless of whether a wall is load-bearing or non-load-bearing, a critical rule for hole placement dictates that the edge of any drilled hole must be at least 5/8 inch from the nearest edge of the stud. This minimum distance ensures that sufficient wood material remains on the edges to resist splitting and maintain the stud’s overall integrity, particularly when fasteners are driven into the wall nearby.
Recognizing the practical challenges posed by plumbing, particularly for drain, waste, and vent (DWV) pipes which often require larger diameters, building codes have made a notable exception for bearing walls. To facilitate the installation of necessary plumbing runs, you are permitted to bore holes up to 60 percent of the stud’s width in bearing walls, provided specific reinforcement measures are taken. This exception allows you to run a short section of larger DWV pipe (like a 2-inch drain line) through a standard 2×4 wall without requiring a complete upgrade to 2×6 framing. The crucial conditions for this exception are that you must double up the studs where such large holes are made, effectively creating a reinforced “post,” and you must not drill into more than two successive pairs of these doubled-up studs. This strategic reinforcement distributes the load and maintains structural integrity despite the larger material removal.
Beyond these precise measurements and structural limitations, several less specific yet equally important guidelines contribute to safer and more durable framing practices:
- Optimal Notch Placement: When notching is unavoidable, always aim to locate the notch near the top of the stud rather than the bottom. This is because the top portion of a stud, especially in vertical compression, typically experiences less critical stress than the bottom, which is often anchored and subject to greater localized forces.
- Avoid Knots: Never locate holes or notches near large or loose knots within the wood. Knots represent inherent weaknesses and grain irregularities in the timber. Drilling or notching through or adjacent to a knot can severely compromise the stud’s strength, making it prone to splitting, cracking, or bowing under load.
- Prevent Over-Concentration: Avoid grouping too many holes or notches in the same localized area of a single stud. Concentrating material removal in one section creates a critically weakened zone, increasing the risk of structural failure. Distribute modifications as evenly as possible along the stud’s length.
- Prioritize Holes Over Notches: When faced with the choice, always opt to drill a hole rather than cut a notch. Holes generally weaken a stud less than notches of comparable size. This is because holes remove material from the interior of the stud, preserving the continuous wood fibers along the top and bottom edges, which are crucial for compressive and tensile strength. Notches, by their nature, interrupt these critical fibers at the edges, making the stud more susceptible to bending and splitting.
In regions susceptible to severe weather events such as high winds, earthquakes, or tornadoes, maintaining the maximum possible wall strength is of paramount importance. Overzealous notching and boring, which significantly reduce the “meat” of the stud, not only compromise structural integrity but also make the studs more prone to bowing, twisting, and warping over time. Building inspectors are rigorously trained to identify and enforce compliance with these rules precisely because they understand the long-term implications for structural stability and occupant safety. Your adherence to these regulations is a direct reflection of your commitment to building a safe and durable structure.
While outright structural collapse from an excessive number of holes and notches in everyday conditions is rare, the most common and immediate dangers arise from inadequate protection of the utilities themselves. Numerous incidents involve unprotected or improperly protected pipes and wires being nicked, punctured, or severed by errant screws, nails, or other fasteners driven into the wall during subsequent construction phases or even years later by homeowners. Any experienced plumber or electrician will emphatically tell you that ensuring the protection of these vital lifelines within the walls is truly what you need to watch out for, as such damage can lead to electrical fires, water damage, or gas leaks, posing significant safety hazards and incurring substantial repair costs.
Essential Strategies for Protecting Wires and Pipes Within Walls
Beyond maintaining the structural integrity of the studs, a primary concern in wall modification is safeguarding the utilities installed within. The National Electrical Code (NEC) provides stringent requirements to protect electrical cables from damage by fasteners. Specifically, holes containing non-metallic sheathed cable (commonly known as Romex) or flexible metal-clad cable (the type purchased with wires pre-installed, often referred to as MC cable) must be set back a minimum of 1-1/4 inches from the nearest edge of the stud. This critical 1-1/4-inch setback distance is designed with foresight: standard screws and nails used to secure 1/2-inch drywall typically penetrate studs by approximately 3/4 inch. By maintaining a 1-1/4-inch clearance, the cables are positioned safely beyond the reach of these common fasteners, significantly reducing the risk of accidental puncture or severing.
Professional electricians, aiming for efficiency and guaranteed code compliance, often adopt a best practice for drilling. For a standard 3-1/2 inch wide stud, they will typically drill 3/4-inch diameter holes dead center. This strategic placement ensures maximum protection: a 3/4-inch hole in the center of a 3-1/2-inch stud leaves exactly 1-3/8 inches of protective wood on each side (calculated as (3.5 – 0.75) / 2 = 1.375 inches). This not only exceeds the minimum 1-1/4-inch setback requirement, keeping inspectors satisfied, but also provides ample space to comfortably run two electrical cables. Should more wires be required, electricians will drill additional holes directly above or below the initial ones, maintaining the central alignment and protective wood buffer. However, if a drilled hole, by intent or accident, comes any closer than the prescribed 1-1/4 inches from the stud edge, the electrical inspector will mandate the installation of a 1/16-inch thick protective metal plate. These plates are specifically designed to cover the exposed area, acting as a barrier against errant fasteners and preventing potential damage to the wiring.
Similarly, the mechanical codes governing plumbing and heating, ventilation, and cooling (HVAC) systems enforce analogous protection measures for pipes. Just as with electrical cables, holes containing plumbing pipes or HVAC lines must be set back a minimum of 1-1/4 inches from the edge of a stud to protect the pipes from fasteners. This requirement applies to various pipe materials, including copper, PEX, and PVC, all of which are susceptible to damage from nails and screws. Any pipes that are routed closer than this 1-1/4-inch threshold must also be adequately covered by protective metal plates. For larger diameter pipes, it is imperative to use longer, more robust protective plates to ensure the entire vulnerable section is shielded. The financial and environmental consequences of a punctured water pipe (leaks, mold, structural damage) or a damaged refrigerant line are significant, underscoring the importance of these preventative measures.
Given the frequent necessity of drilling numerous, often large, holes through studs, experienced electricians and plumbers have developed a repertoire of tips and techniques to streamline the process, enhance efficiency, and sometimes even avoid extensive drilling altogether. These professional insights can save significant time, effort, and potential structural headaches.
Smart Strategies and Tips for Minimizing Drilling and Notching in Wall Studs
Effective planning and the adoption of smart techniques can significantly reduce the amount of drilling and notching required in your framing, thereby preserving structural integrity and simplifying utility installations. Here are invaluable tips to consider for your next project:
- Comprehensive Project Planning: Before making any cuts or drills, meticulously plot out the exact routing of all large pipes, ducts, and utility lines. Determine their origin, destination, and the most efficient and least intrusive pathway. This involves sketching layouts, consulting blueprints, and visualizing the entire system before physical work begins. Proper planning helps identify potential conflicts and allows for pre-emptive adjustments to avoid unnecessary stud modifications.
- Prioritize Vertical Utility Runs: Whenever feasible, route large pipes and ducts vertically into unfinished attics or basements. Once in these open spaces, install appropriate elbows and run the pipe or duct horizontally either below the floor joists or above the ceiling joists. This strategy completely bypasses the need for extensive horizontal drilling or notching through wall studs, significantly preserving their strength and simplifying installation.
- Consider 2×6 Stud Walls for Large DWV Pipes: For areas where large diameter drain, waste, and vent (DWV) pipes are unavoidable and exceed the permissible limits for a standard 2×4 wall, proactive planning by building 2×6 stud walls is highly recommended. A 2×6 stud (actual dimensions typically 1.5 inches by 5.5 inches) offers greater depth, allowing for larger holes (up to 60% of 5.5 inches = 3.3 inches in non-bearing, or 40% of 5.5 inches = 2.2 inches in bearing walls) without compromising structural integrity. This ensures code compliance and long-term stability for critical plumbing runs.
- Utilize Specialized Right-Angle Drills and Bits: For boring large diameter holes, especially in confined stud bays, rent or invest in a right-angle drill. These tools are specifically designed to fit into tight spaces and allow you to drill holes perfectly square to the face of the stud. Pair this with Selfeed bits or hole saw bits, which are engineered for efficient and clean boring through wood. Drilling holes at an angle, without a right-angle drill, will inevitably result in oval-shaped holes, which are not only difficult to fish wires or pipes through but also effectively larger than intended, removing more material and potentially weakening the stud more than a clean, round hole.
- Maintain Centered and Consistent Hole Placement: Always aim to drill holes dead center on the studs and maintain a consistent height off the floor throughout a run. Centering the holes maximizes the protective wood buffer on all sides, enhancing the safety of the housed utilities. Consistent height simplifies wire pulling, pipe routing, and future identification or modification, making the overall installation process more streamlined and professional.
- Oversize Holes for Hot Water Pipes: When installing hot water pipes, drill holes at least 1/4 inch larger than the pipe’s actual diameter. Hot water pipes expand and contract significantly with temperature changes. If the holes are too snug, the pipes will rub against the wood studs during thermal cycling, producing annoying creaking and ticking sounds. An oversized hole provides the necessary clearance, allowing the pipes to move freely and silently within the wall cavity, preventing both noise and potential long-term wear on the piping or studs.
- Explore Stud Reinforcer Plates: In situations where existing studs have been inadvertently over-notched or over-bored, or where additional reinforcement is desired due to unique structural demands, inquire with your building inspector about the permissibility of joist hanger manufacturers’ wrap-around stud reinforcer plates. These metal plates are designed to restore a degree of structural integrity to compromised studs. Always obtain inspector approval before installing them, as their use may be restricted to specific scenarios.

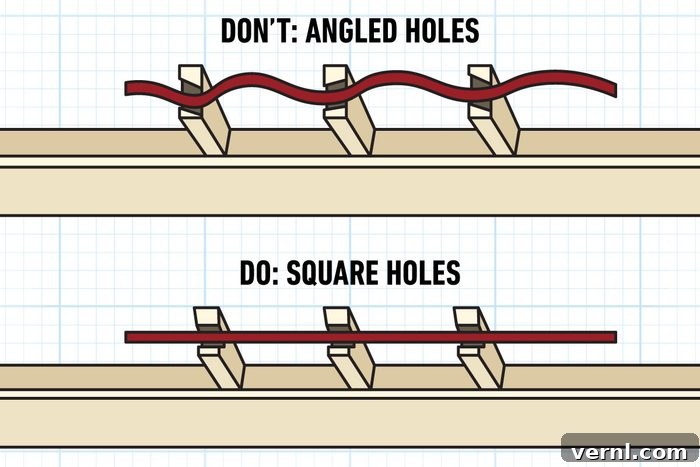

- Ensure Square Electrical Holes for Easier Wire Pulling: While it might seem like a minor detail, drilling electrical holes perfectly square to the stud face (i.e., straight through, not angled) makes a substantial difference during wire installation. Angled holes create friction points that can “catch” the wire, making it incredibly difficult to pull wires through more than two or three studs at a time. Conversely, a series of straight, aligned holes allows for smooth wire pulling through an entire wall length of studs in a single pass, saving considerable time and effort for electricians.
By integrating these principles into your construction workflow, you not only ensure compliance with critical safety codes but also contribute to the creation of a more robust, efficient, and professionally built structure. Diligent planning and careful execution in stud modification are investments in the long-term safety and functionality of any building.
