DIY Refrigerator Compressor Troubleshooting: Your Step-by-Step Guide
Is your refrigerator making unusual noises, or worse, is it failing to keep your food properly chilled? While a completely “blown” compressor is a serious and expensive problem, often the issue lies with smaller, more easily replaceable components. Learning how to test these parts yourself can prevent unnecessary service calls and empower you with valuable appliance repair skills.
Beyond these compressor-related fixes, discover a range of DIY appliance repairs you can tackle without a pro, ensuring your home runs smoothly on a budget.
Understanding Your Refrigerator’s Cooling System: Key Components
Before diving into diagnostics, it’s helpful to understand the basic function of your refrigerator’s cooling system. The compressor is often referred to as the heart of the refrigeration cycle. It compresses refrigerant gas, increasing its temperature and pressure, which then circulates through the condenser coils (releasing heat), then expands through an evaporator (absorbing heat from the fridge interior), and finally returns to the compressor. For this crucial cycle to begin and operate efficiently, two smaller but vital components play a significant role:
- The Compressor Overload Protector: This is a safety device designed to protect the compressor from overheating or drawing too much current. If the compressor struggles to start or runs too hot, the overload protector will temporarily cut power to prevent damage. Think of it as a circuit breaker for your compressor.
- The Compressor Start Relay: This component provides a temporary boost of power to the compressor’s start winding, helping it overcome initial inertia and begin its operation. Once the compressor is running, the relay disconnects the start winding. Without a functioning start relay, the compressor will either fail to start or make a clicking sound as it attempts to engage.
A refrigerator that makes a buzzing or humming sound but doesn’t keep the food cold may indicate a problem with one of these components or, in the worst-case scenario, the compressor itself:
- A blown compressor (a very costly repair or replacement);
- Or just a bad overload protector or compressor start relay (a much more affordable fix).
We encountered this exact problem with a refrigerator and sought advice from appliance expert Costas Stavrou. His insights proved invaluable in troubleshooting and saving money. For more in-depth knowledge, explore these comprehensive refrigerator repair tips.
Safety First: Essential Precautions for Appliance Repair
Before attempting any diagnostic tests or repairs on your refrigerator, safety must be your absolute top priority. Working with electrical appliances carries inherent risks, but by following proper precautions, you can minimize them:
- Always Unplug the Refrigerator: This is the most critical step. Ensure the appliance is completely disconnected from the power source before touching any internal components. Do not rely solely on turning it off at the control panel.
- Wear Protective Gear: Gloves can protect your hands from sharp edges and grease. Safety glasses are crucial to shield your eyes from any debris or unexpected events.
- Be Mindful of Capacitors: Some refrigerator models, particularly older ones, may have capacitors that can store an electrical charge even after being unplugged. While less common with modern compressor relays, it’s wise to be aware and avoid touching bare terminals.
- Work in a Well-Lit Area: Good visibility helps prevent mistakes and ensures you can clearly see the components you’re working with.
- Gather the Right Tools: A multimeter for electrical testing, screwdrivers, pliers, and a clean rag are usually sufficient. Using the correct tools prevents damage to parts and reduces the risk of injury.
- Consult Your Appliance Manual: If available, your refrigerator’s owner’s manual or service manual can provide specific diagrams and instructions for your model.
- When in Doubt, Call a Pro: If you’re uncomfortable at any point or suspect a complex issue beyond your skillset, don’t hesitate to contact a qualified appliance technician. Your safety and the integrity of your appliance are paramount.
Initial Troubleshooting Steps: Avoid an Expensive Service Call
Before you even think about replacing parts, sometimes a simple reset can resolve intermittent issues. Our expert, Costas, suggested an initial, easy diagnostic step to potentially avoid a service call. This method can sometimes reset internal electronics or allow an overheated compressor to cool down and restart:
- Pull the Refrigerator Away from the Wall: This provides access to the rear of the unit and allows for better air circulation.
- Unplug the Refrigerator: Disconnect it completely from the electrical outlet.
- Remove the Service Panel: Locate the access panel at the bottom rear of the fridge (typically held by screws) and remove it.
- Wait for Approximately 20 Minutes: This allows sufficient time for the compressor to cool down if it was overheated, and for any onboard control boards or computers to fully reset.
- Plug it Back In and Observe: After 20 minutes, reconnect the power and listen carefully. Does the compressor start? Does the refrigerator begin cooling?
In our case, when we plugged it back in, the problem returned almost immediately. This indicated that a simple reset wasn’t enough, and a component failure was more likely. Beyond this reset, also consider these basic checks:
- Check the Thermostat Settings: Ensure it’s not accidentally set too warm.
- Clean the Condenser Coils: Located at the bottom or back of the fridge, dusty coils can severely impede cooling efficiency, causing the compressor to overwork and overheat. Use a vacuum cleaner and a brush to gently clean them.
- Inspect Door Seals: Leaky door seals allow cold air to escape, forcing the compressor to run constantly.
Locating and Identifying Your Refrigerator’s Compressor Components
Once you’ve completed the initial troubleshooting and ensured safety, your next step is to locate the components you’ll be testing. These are typically found at the bottom rear of your refrigerator. After unplugging the unit and removing the service panel (as described above), you should see the large, usually black, spherical or cylindrical compressor.
Attached to the side of the compressor, often by two or three electrical pins, you will find the overload protector and the start relay. They are usually housed together in a plastic or metal casing that simply slides or clips onto the compressor’s electrical terminals. It’s common for them to be combined into a single unit or be two separate, but adjacent, components.
- Overload Protector: This is generally a small, disc-shaped component that sits on one of the compressor’s pins.
- Start Relay: This component can vary in appearance. Many modern refrigerators use a Positive Temperature Coefficient (PTC) relay, which is a small, rectangular ceramic or plastic device. Older models might use a current relay (a small coil) or a potential relay (a larger, more complex electrical component).

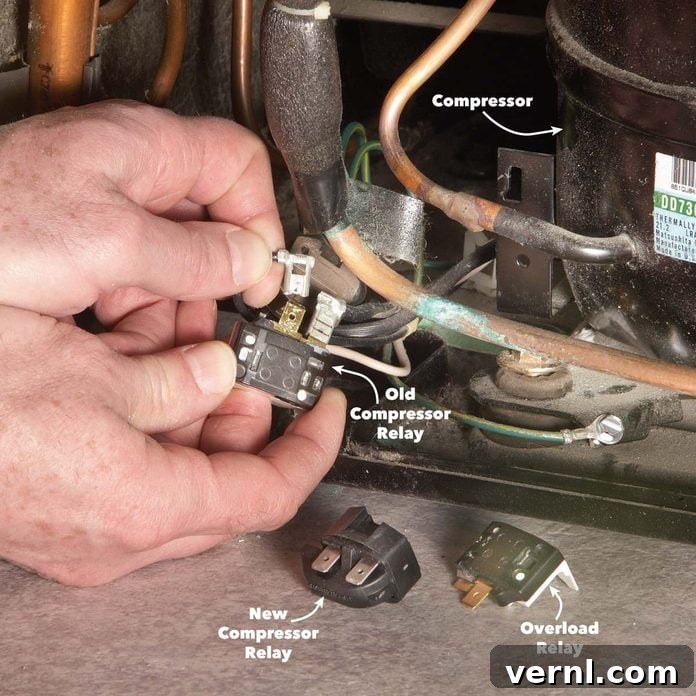

Carefully pull or unclip the combined relay/overload assembly from the compressor. Note how it’s attached, as you’ll need to reassemble it later. Take a photo if you’re unsure. With the assembly removed, you can now proceed with testing each component.
Testing the Overload Protector with a Multimeter
The overload protector is a straightforward component to test for continuity, which indicates whether an electrical path exists through it. A lack of continuity means the overload has tripped permanently or is faulty and needs replacement.
- Ensure Power is Disconnected: Double-check that the refrigerator is unplugged.
- Remove the Overload Protector: If it’s separate from the relay, gently pull it off the compressor terminal. If it’s part of a combined unit, you’ll be testing the appropriate terminals on the assembly.
- Set Your Multimeter to Continuity Mode: This setting typically emits a beep or shows “0” or a very low resistance reading when a complete circuit is detected.
- Test for Continuity: Place one multimeter probe on each terminal of the overload protector.
- Interpret the Reading:
- Beep/Low Resistance (0-1 Ohm): This indicates good continuity, and the overload protector is functioning correctly.
- No Beep/”OL” (Open Line)/Infinite Resistance: This means there is no continuity. The overload protector is open, faulty, or has tripped and not reset. It needs to be replaced.
If your overload protector tests bad, replacing it is a simple and inexpensive fix. Make sure to get a replacement part that is compatible with your refrigerator model.
Testing the Compressor Start Relay
Testing the start relay can be slightly more involved depending on its type. We’ll focus on the common PTC (Positive Temperature Coefficient) relay, which is prevalent in many modern refrigerators.
- Ensure Power is Disconnected: Always start by unplugging the refrigerator.
- Remove the Start Relay: Detach it from the compressor’s electrical pins. For PTC relays, you’ll typically see two or three pins that connect to the compressor.
- Shake a PTC Relay: Gently shake the PTC relay. If you hear a rattling sound, it’s often an indication that the internal ceramic disc has broken, and the relay is faulty. A good PTC relay should not rattle.
- Test PTC Relay Resistance (Optional but Recommended):
- Set your multimeter to the Ohms (resistance) setting, usually in the range of 10-100 Ohms.
- Locate the two terminals that connect to the compressor’s run and start windings.
- Place one probe on each of these terminals.
- A functioning PTC relay should show a low resistance reading (typically between 2-20 Ohms, but consult your specific relay’s specifications if possible).
- If the reading is “OL” (Open Line) or infinite, the relay is open and faulty. If the reading is extremely high or fluctuates wildly, it’s also likely bad.
- Other Relay Types: If you have a current relay (often cylindrical with a wire coil inside), you might test the coil for continuity. For potential relays (larger, often with an external capacitor), testing is more complex and might involve checking the capacitor and coil for specific resistance values, which might be best left to a professional if you’re unsure.
If your start relay tests faulty, replacing it is usually a straightforward process. Ensure you purchase the correct part number for your refrigerator model. Often, the overload and relay are sold together as a kit.
The Moment of Truth: Determining if Your Compressor is “Toast”
If you’ve tested both the overload protector and the start relay, and both appear to be in good working order, but your refrigerator still isn’t cooling, the unfortunate conclusion is that your compressor itself is likely the problem. A failed compressor is the most expensive component to replace in a refrigerator, often costing as much as a new entry-level appliance.
Here are signs that point to a “toast” compressor, even after replacing the relay and overload:
- Compressor Does Not Start: It remains silent, or only hums momentarily before shutting off, even with new overload and relay components.
- Compressor Trips Breaker: The compressor attempts to start but immediately trips the household circuit breaker.
- Compressor Runs Hot But Doesn’t Cool: The compressor may run, feeling very hot to the touch, but the refrigerator interior remains warm. This indicates internal mechanical failure.
- Clicking Noise Persists: If the clicking sound (usually the overload tripping) continues even with new parts, it means the compressor is drawing too much current because it’s seized or faulty.
- No Continuity on Compressor Windings (Advanced Test): For experienced DIYers, a multimeter can test the internal windings of the compressor directly (between the run, start, and common terminals). Lack of continuity or a short to ground indicates a severe internal failure.
In our experience, after replacing the relay and overload, our compressor noise returned, confirming it was indeed “toast.” While this meant we had to buy a new refrigerator, the crucial takeaway was that we didn’t waste money on an expensive service call just to be told what we already knew. Instead, we applied that saved money directly toward the purchase of our new fridge.
Sourcing and Installing Replacement Parts
If your diagnostic tests reveal a faulty overload protector or start relay, the good news is that these parts are relatively inexpensive and simple to replace. You can often find a suitable overload protector and a compressor relay (or even a universal 3-in-1 relay kit) from appliance parts stores or online retailers. When purchasing, always ensure the part number matches your refrigerator’s model to guarantee compatibility.
Installation is typically a breeze:
- Ensure Power is Off: Unplug the refrigerator.
- Remove Old Parts: Gently pull the old overload and relay assembly off the compressor pins.
- Install New Parts: Align the new overload and relay (or the combined kit) with the compressor’s electrical pins. They usually slide or clip firmly into place. Ensure a snug connection.
- Replace Service Panel: Reinstall the rear service panel.
- Restore Power and Test: Plug the refrigerator back in and listen. With new, functional components, the compressor should start up smoothly, and you should begin to feel cold air returning to the freezer and refrigerator compartments.
If this simple fix does the trick, you’ve just saved yourself potentially hundreds of dollars on a professional service call or the premature purchase of a new appliance, all for the cost of a few inexpensive parts, often around $15-$30!
Empower Your Appliance Maintenance Skills
By learning these essential diagnostic steps, you’ve not only potentially saved a significant amount of money but also gained valuable insight into how your refrigerator works. Troubleshooting common issues like a non-cooling fridge due to a bad overload or relay is a highly empowering DIY skill. Remember, while a compressor failure is costly, diagnosing it yourself allows you to make informed decisions about repair versus replacement, without unnecessary technician fees.
Up next, broaden your DIY horizons by learning all the simple fixes for a wide range of common appliance problems around your home. Keep your appliances running smoothly and your budget intact!
