If you’ve ever tackled a DIY electrical project around your home, chances are you’ve encountered wire nuts. These small, colorful, twist-on connectors are indispensable for safely joining two or more electrical wires together, forming the backbone of your home’s electrical circuits. From powering a simple light switch to ensuring the safe operation of major appliances, reliable electrical connections are paramount, and wire nuts play a critical role in achieving this.
The need for an efficient and secure method to connect and extend electrical circuits has existed since the dawn of widespread electricity. In earlier days, before the advent of the convenient twist-on wire nut, electricians laboriously joined wires with solder and then insulated them with tape. This method, while functional, was notoriously messy, time-consuming, and often resulted in bulky, less-than-ideal connections. Imagine untangling a literal “plate of spaghetti” inside your junction box – that was often the reality of older wiring techniques, as evidenced by the cumbersome soldered and taped connections sometimes found in historic homes.
The landscape of electrical connections significantly improved in the 1920s when a forward-thinking electrician, weary of the archaic soldering process, patented an “electric wire connecter.” This innovation paved the way for modern, user-friendly electrical splices. A few years later, Ideal Industries, a prominent manufacturer of electrical products in the United States, further revolutionized the field. Their proprietary product, the “Wire-Nut,” became so ubiquitous and effective that its brand name transcended its origin. Much like “Kleenex” is often used to refer to any facial tissue, “wire nut” has become a universal, generic term commonly used to describe virtually any twist-on wire connector, regardless of the actual manufacturer. This guide will delve into the essential aspects of these common electrical components, providing a comprehensive understanding for both novice DIYers and seasoned professionals.
What Are Wire Nuts and Why Are They Essential?

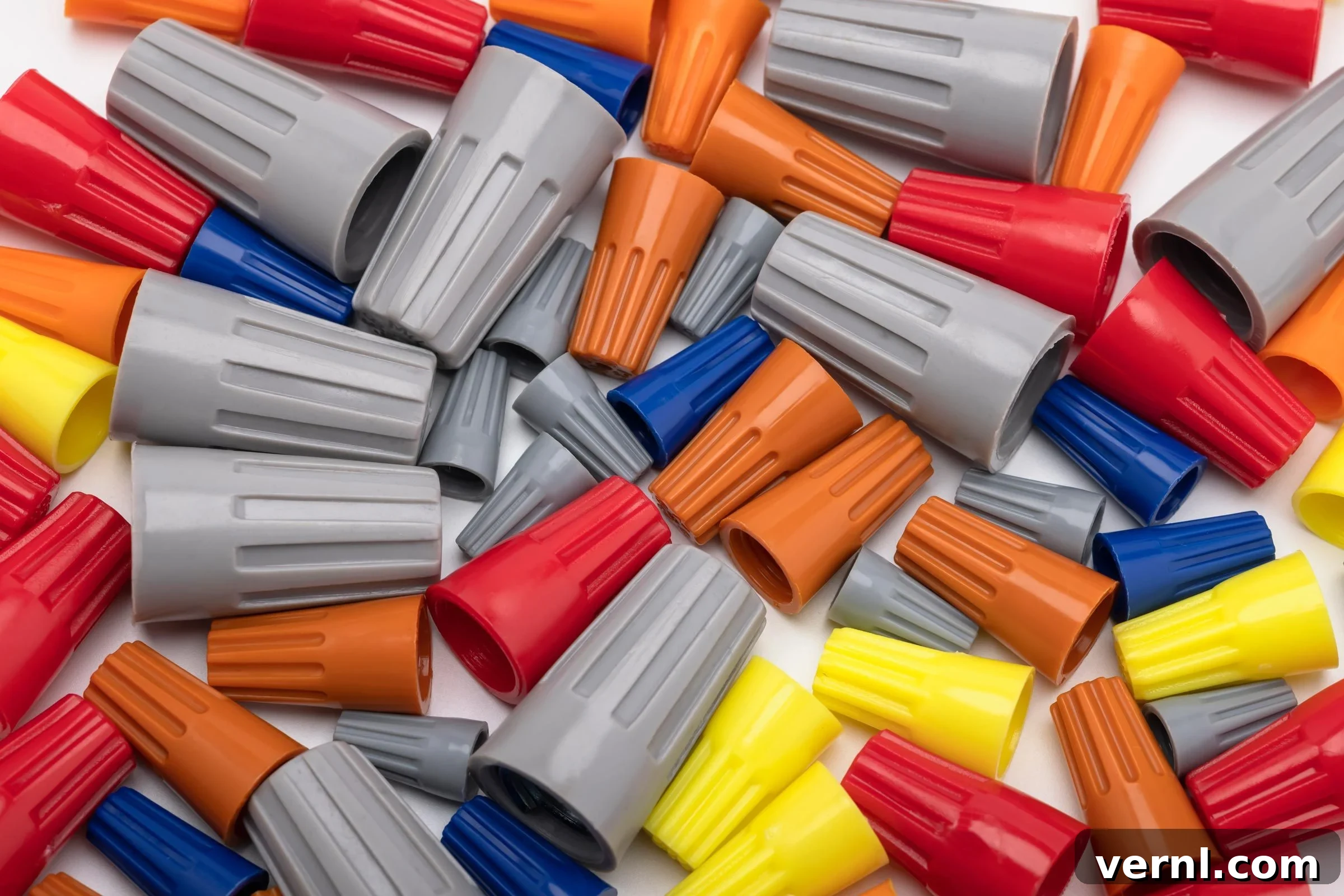

Wire nuts are compact, conical, twist-on caps meticulously designed to join two or more bare electrical wires within an electrical connection, commonly referred to as a splice. Every single electrical point in your home – from a simple light fixture and electrical receptacle to complex appliances – relies on securely made splices. Therefore, ensuring these connections are not only robust but also exceptionally strong and safe is non-negotiable for preventing electrical hazards such as short circuits, arcing, and even fires. Beyond their primary function of joining wires, wire nuts are also invaluable for capping the end of a single live wire. This crucial safety measure protects the exposed conductor from accidental contact, thereby preventing shocks or unintended electrical contact.
While the term “wire nuts” predominantly refers to the traditional twist-on variety due to their historical prevalence and widespread use, the market also offers other types of wire connectors. Push-in connectors, for instance, offer an alternative method for joining electrical wires. These innovative connectors typically feature internal springs or clamping mechanisms that securely hold wires in place once they are simply inserted. Another popular option is the Wago lever nut, which, despite including “nut” in its name, operates more like a push-in connector by utilizing small levers to clamp down on inserted wires, providing a tool-free and often reusable connection. While these alternatives offer their own distinct advantages, our focus throughout this comprehensive guide will remain primarily on the traditional, highly reliable, and widely used twist-on wire nuts.
The Mechanics Behind Wire Nuts: How They Work
Understanding the simple yet ingenious mechanism of a wire nut is key to appreciating its effectiveness. Each wire nut comprises two fundamental sections: an outer cap and an interior metal spring. The outer cap is typically molded from a robust, non-conductive plastic material, such as polypropylene or nylon. This plastic casing provides vital electrical insulation, preventing accidental contact with energized wires and protecting the connection from external damage. Its conical shape is designed to guide and compress the wires as the nut is twisted.
The real magic, however, lies within the interior of the cap: a precisely engineered, coiled metal spring. This spring, usually made from a square-cut or conical spring steel, acts as the gripping mechanism. When a wire nut is twisted clockwise over the stripped ends of electrical wires, the internal spring engages with the conductors. Its tapered design progressively tightens around the wires, twisting them together into a secure bundle. As the nut is tightened, the spring compresses and simultaneously threads onto the wires, applying continuous, inward radial pressure. This pressure ensures that the wires are held tightly and form a stable, low-resistance electrical connection. This secure mechanical grip prevents the cap from falling off and, more critically, ensures that individual wires cannot slip out of the splice, thereby maintaining electrical continuity and reducing the risk of arcing or overheating.
Diverse Applications: Types of Wire Nuts
While the core function of wire nuts remains consistent, various types are specifically engineered for different applications and environments. Choosing the correct type is as critical as choosing the correct size.
- Standard Wire Nuts: These are the most common variety you’ll find in virtually every residential and commercial building. They come in an array of shapes and sizes, often identifiable by color coding (though colors vary by manufacturer). Some feature “wings” or ridges on the exterior for enhanced comfort and grip during installation, making them easier to twist securely by hand, particularly for repetitive tasks. These standard connectors are designed for dry, indoor applications where they are protected from moisture and extreme temperatures. Common colors like gray, blue, orange, yellow, and red typically correspond to different wire gauge ranges and the number of wires they can safely connect.
- Outdoor/Waterproof Wire Nuts: Engineered for environments exposed to moisture or humidity, such as outdoor lighting, landscape features, and pool equipment, these weather-resistant connectors are essential. They typically feature a pre-filled silicone sealant or a special rubber gasket within the cap that encases the connection, preventing water ingress and protecting the conductors from corrosion. This added layer of defense is crucial for maintaining a safe and lasting connection in damp conditions.
- Aluminum-to-Copper (AL/CU) Wire Nuts: Splicing between dissimilar metals, specifically aluminum and copper wiring, presents a unique challenge due to galvanic corrosion. When these two metals come into direct contact, especially in the presence of moisture, they can react chemically, leading to increased resistance, overheating, and potential fire hazards. Specialized AL/CU connectors, often purple in color, are designed with an anti-oxidant compound that inhibits this corrosive reaction. These purple wire connectors are absolutely critical when working with older aluminum wiring that needs to be safely connected to modern copper circuits.
- Underground/Direct Burial Wire Nuts: For electrical connections that must be installed underground, such as for outdoor power lines or sprinkler systems, specialized direct burial rated wire nuts are required. These connectors feature extremely robust, often epoxy-filled or heavily sealed designs that are impervious to moisture, soil chemicals, and physical abrasion. They ensure the integrity and safety of the splice even when directly exposed to the harsh underground environment.
- High-Temperature Wire Nuts: While less common in standard residential applications, high-temperature wire nuts are designed for circuits that generate significant heat, such as certain lighting fixtures or heating elements. These nuts are constructed from materials that can withstand elevated temperatures without degrading or compromising the connection’s integrity.
Selecting the Right Wire Nut Size: A Critical Decision
Choosing the correct size of wire nut is arguably one of the most critical aspects of electrical wiring. An improperly sized wire nut can lead to catastrophic failures. If it’s too small for the wire combination, it won’t securely grip the conductors, risking loose connections, arcing, and potentially falling off, leaving live wires exposed. If it’s too large, it may not adequately compress and twist the wires, resulting in poor electrical contact, increased resistance, and the same risks of arcing and overheating. Electrical codes and safety standards heavily emphasize proper sizing for this very reason.
Fortunately, manufacturers make this selection process straightforward. All wire nut packaging clearly states the permissible range of conductor sizes (typically in AWG – American Wire Gauge) and the maximum number of wires the specific wire nut can safely accommodate. This information is usually presented as a broad range, offering flexibility for various common wiring scenarios. For instance, yellow wire nuts from Ideal Industries, as an example, might be rated to handle dozens of different wire combinations, from two 18 AWG wires up to three 12 AWG wires, depending on the specific model.
It is crucial to understand that there is no universal color scheme across all wire nut manufacturers. While certain colors often correspond to similar size ranges (e.g., red for larger gauges, yellow for medium), this is not a standardized rule. Always read the manufacturer’s label on the packaging before purchasing or using any wire nuts. This label will provide the definitive specifications for the wire gauge combinations, minimum and maximum wire count, and the specific application ratings (e.g., dry location, wet location, AL/CU) for that particular product. Relying solely on color can lead to dangerous misapplications.
Mastering the Installation: How To Use Wire Nuts Properly
The safety and reliability of any electrical connection ultimately hinge on proper installation. A wire nut, no matter how well-designed, is only as good as the technique used to apply it. Following these steps meticulously will ensure your wire nuts create strong, safe, and lasting connections:
(Before handling any electrical wires, always prioritize safety. Ensure the power to the circuit is completely OFF by switching off the corresponding breaker at your service panel. Double-check that the circuit is de-energized using a reliable non-contact voltage tester.)
- Choose the Correct Nut: Begin your project by ensuring you have the appropriate type and size of wire nuts for the specific wires and environment. Refer to the packaging label for gauge and wire count compatibility. Using the wrong nut can compromise safety and connection integrity.
- Make a Fresh Cut: Using sharp wire strippers or diagonal cutters, snip off the very ends of the wires you intend to splice. A fresh, clean cut removes any oxidation, bent sections, or damaged insulation, ensuring a pristine conductor for optimal electrical contact and a superior splice.
- Strip the Wires Accurately: Carefully use your wire strippers to remove approximately one-half to three-quarters of an inch (12-19mm) of insulation from each wire end. The key is to use the correct slot on your strippers that matches the wire’s gauge and type (solid or stranded). Avoid nicking the copper conductor, as this weakens the wire. Too little insulation removed will result in poor contact, while too much leaves exposed conductor after the nut is applied, creating a shock hazard.
- Hold the Ends Together: Gather the stripped ends of the wires into a neat bundle. For wires of the same type (all solid or all stranded), align the stripped ends flush with each other. When splicing wires of different types, such as solid and stranded, it’s generally best practice to hold them slightly offset, with the stranded wire’s bare end extending a fraction higher than the solid wire’s. This helps the stranded wire twist more effectively into the solid conductor during the nut application.
- Consider Pre-Twisting Solid Wires (Optional but Recommended): This step is a subject of ongoing debate among electricians. While some modern wire nuts are designed to twist wires effectively without pre-twisting, many professionals, including myself, find that pre-twisting solid wires together with lineman’s pliers creates a more robust mechanical connection before the wire nut is applied. This ensures a tighter, more uniform twist. This pre-twisting step is generally not necessary or recommended for stranded wires, as the wire nut’s internal spring is highly effective at twisting them together.
- Spin on the Wire Nut Firmly: Take the chosen wire nut and push the bundled wires all the way into it until they can’t go any farther. While maintaining inward pressure on the wires, twist the nut clockwise with one hand. You’ll feel the internal spring engage and begin to twist the wires together. Continue twisting firmly until the nut is secure, and you feel significant resistance. It should feel tight and unmoving, but avoid excessive force that could damage the wires or the nut itself.
- Perform a Critical Pull Test: This final, yet crucial, step confirms the integrity of your connection. Hold the wire nut firmly with one hand. With the other hand, gently but firmly pull on each individual wire extending from the splice, one at a time. Each wire should be securely seated and not come out of the splice. If any wire feels loose or pulls free, the connection is faulty. In such a case, do not proceed; take the splice completely apart, trim the wires, and start over from the stripping step to ensure a safe and reliable connection.
Understanding and correctly utilizing wire nuts is a fundamental skill for anyone undertaking electrical work. By selecting the right type and size, and meticulously following proper installation techniques, you can ensure safe, durable, and code-compliant electrical connections throughout your home, providing peace of mind for years to come.
