Understanding the Two Screw Holes on Your Storm Door Closer

Have you ever noticed that subtle yet ingenious design feature on your screen or storm door? We’re talking about the two distinct holes where the pneumatic closer attaches to the door itself. Far from being a manufacturing oversight, these seemingly simple holes are a testament to thoughtful engineering, designed to provide crucial seasonal adjustments. Understanding and utilizing these settings can dramatically improve your home’s comfort, energy efficiency, and the longevity of your storm door, preventing it from annoyingly banging shut or stubbornly remaining open when you swap between glass and screen panels.

A properly adjusted storm door closer ensures a smooth, controlled operation year-round. It’s a small detail that makes a big difference in daily convenience and overall home maintenance. This comprehensive guide will walk you through the nuances of adjusting your storm door closer for optimal performance, covering everything from seasonal pin placement to fine-tuning the closing speed. Get ready to transform your storm door from a potential nuisance into a seamlessly functioning gateway.

Understanding Your Storm Door Closer: The Unsung Hero

Before diving into adjustments, it’s helpful to understand the mechanism at play. A pneumatic door closer is a hydraulic or air-filled cylinder designed to control the speed and force with which a door closes. It prevents the door from slamming shut, protecting the door frame, the glass or screen panel, and most importantly, preventing potential injuries.

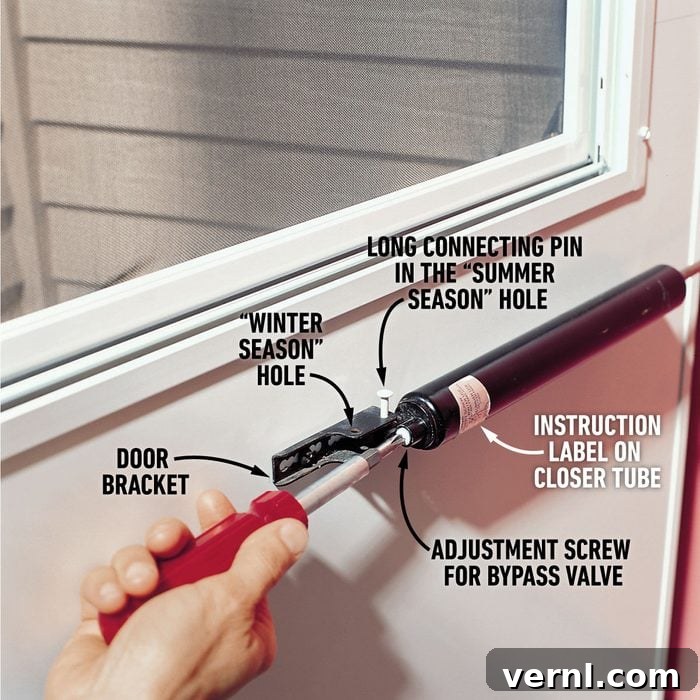

The Anatomy of a Closer:

Cylinder/Tube: The main body containing a spring and hydraulic fluid or air, which provides the dampening action.
Piston Rod: Extends and retracts from the cylinder, connected to the door.
Mounting Brackets: Secure the closer to both the door and the door frame.
Connecting Pin/Rod: This is the element you’ll be adjusting seasonally, linking the closer to the door bracket.
Adjustment Screw: Typically located at the end of the cylinder, this screw fine-tunes the closing speed by controlling the flow of fluid or air.
Seasonal Adjustment Holes: These are the two holes on the door bracket (or sometimes on the closer itself) where the connecting pin can be inserted, offering different leverage points for varying door weights.

The primary reason for these seasonal adjustments stems from the significant weight difference between your storm door’s glass panel and its screen panel. Glass is substantially heavier, requiring more force to close securely, especially against a latch. Screen panels, on the other hand, are much lighter. If the closer is set for the heavier glass panel, the lighter screen panel will slam shut with considerable force. Conversely, if it’s set for the screen, the glass panel might not close completely or latch properly, leading to drafts and security issues.

Beyond weight, ambient temperature also plays a role. Cold weather can make the hydraulic fluid in some closers thicker, affecting its operation, while warm weather can thin it out. Proper seasonal adjustment accounts for these variables, ensuring consistent performance regardless of the elements.

Preparing for Winter: Ensuring a Secure Seal and Maximum Efficiency

As the mercury begins its annual descent and chilly winds announce the arrival of winter, your home’s energy efficiency becomes a top priority. A properly sealed and latched storm door is crucial for preventing heat loss, reducing drafts, and keeping your heating bills in check. This is where the “winter season” adjustment for your pneumatic closer comes into play.

The Goal: A Firm, Reliable Latch

During colder months, the glass panel of your storm door will be in place, providing an essential barrier against the elements. Because glass is heavier than a screen, the door needs extra closing pressure to overcome its inertia and ensure the latch mechanism fully engages with the door frame. Without this additional force, the door might appear closed but fail to latch, leaving a small gap that allows cold air to infiltrate your home.

The “Front Hole” Advantage for Winter

To prepare your storm door for winter, you’ll need to adjust the connecting pin to the front hole of the closer tube, meaning the hole that is closest to the door bracket (the part of the closer mechanism attached directly to the door). This seemingly minor change significantly increases the closing pressure exerted by the closer, particularly in the final few inches of the door’s travel.

Increased Leverage: By shortening the distance between the pivot point (the door bracket) and the closer’s attachment, you create greater leverage. This allows the closer to apply more force, ensuring the heavier glass panel closes with authority.
Secure Latching: The amplified closing pressure provides the necessary “oomph” to push the door completely into its frame and engage the latch. This prevents the door from bouncing back or resting slightly ajar, which can be a common issue with improperly adjusted closers.
Draft Prevention: A fully latched storm door creates a tight seal, effectively blocking cold drafts from entering your living space. This directly translates to a warmer home and significant savings on your energy bills.
Enhanced Security: A properly latched storm door adds an extra layer of security to your main entry point.

Step-by-Step Winter Adjustment Guide:

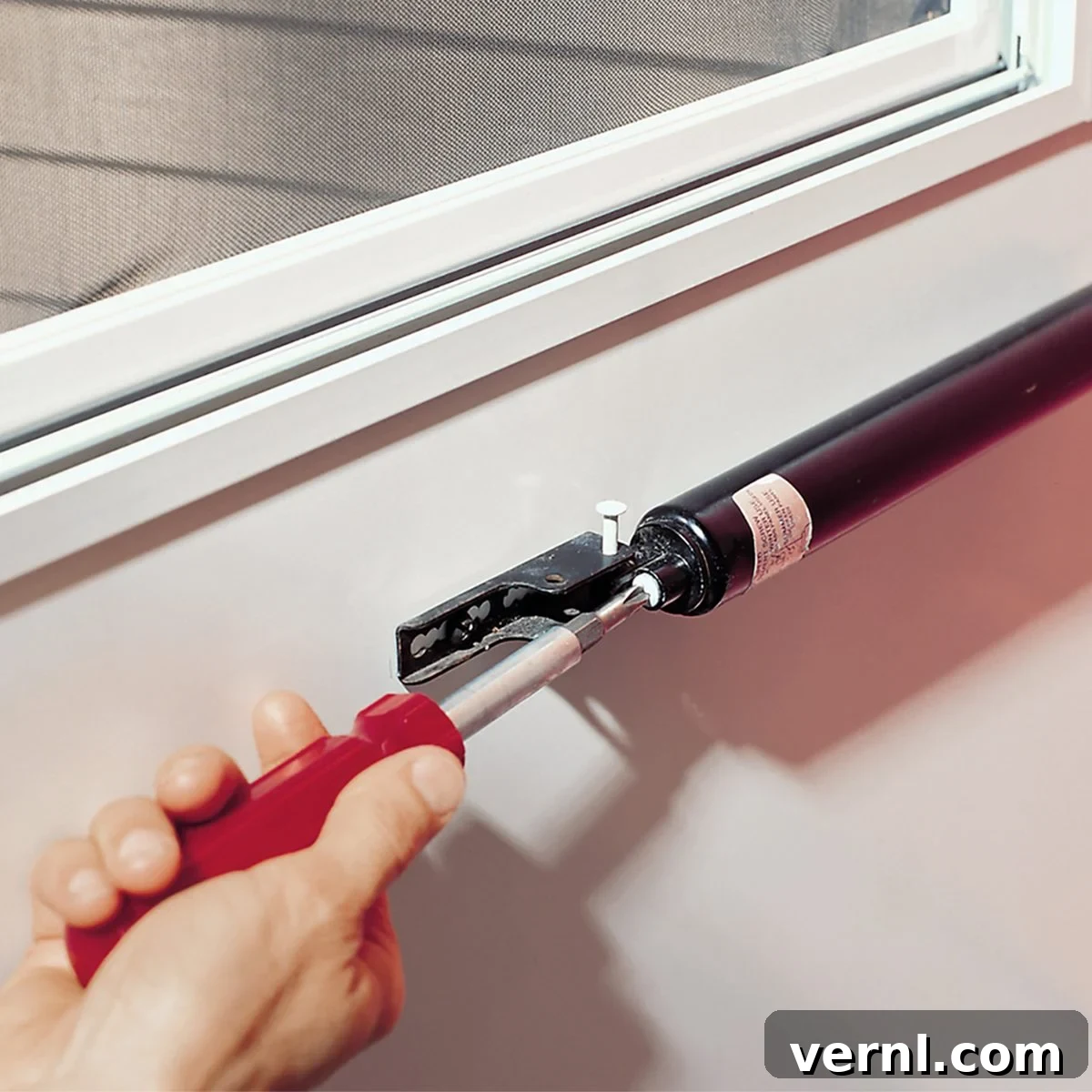

Identify the Connecting Pin: Locate the metal pin that connects the closer’s piston rod to the door bracket.
Locate the Front Hole: On the door bracket (or the end of the closer tube), you’ll see two holes. Identify the one closest to the door itself.
Adjust the Pin: Carefully remove the connecting pin from its current position. Reinsert it into the front hole, ensuring it’s securely in place. Some pins may require squeezing or pressing a button to release.
Test the Door: Open your storm door fully and release it. Observe its closing action. It should close firmly and latch completely without slamming. If it’s still not closing securely, you may need to make a minor adjustment to the speed control screw, as detailed in a later section.

Ignoring this crucial adjustment can lead to a drafty house, an uncomfortably cold interior, and unnecessarily high heating expenses. A few minutes of adjustment can save you a lot of hassle and money throughout the winter season.

Embracing Summer Breezes: A Gentle and Controlled Close

When spring gives way to the warmth of summer, it’s time to welcome fresh air into your home. This typically involves retracting or removing the glass panel and deploying the screen panel of your storm door. With the lighter screen in place, your door closer’s setting needs to be adjusted to prevent the door from slamming shut, protecting the screen and ensuring a pleasant experience.

The Goal: A Slow, Controlled Descent

For summer, the primary objective is to slow down the closing action. Since the screen panel is significantly lighter than the glass, the same closing force used for winter would cause the door to accelerate rapidly and slam against the frame, creating an unpleasant noise and potentially damaging the door, the closer, or the screen itself.

The “Rear Hole” Advantage for Summer

To achieve a gentle close for the summer season, you will need to move the connecting pin to the rear hole of the closer tube, which is the hole farthest from the door bracket. This adjustment effectively reduces the leverage and closing pressure, allowing the door to slow down gracefully as it approaches the door catch.

Reduced Leverage: By increasing the distance between the pivot point and the closer’s attachment, you decrease the leverage. This means the closer applies less force to the door during its closing cycle, ideal for the lighter screen panel.
Preventing Slamming: This is the most noticeable benefit. The door will no longer violently slam shut, eliminating jarring noises and potential damage.
Protecting Components: A controlled close reduces wear and tear on the door frame, the closer mechanism itself, and especially the delicate screen, which can be easily stretched or torn by repetitive, forceful impacts.
Enhanced Safety: A slowly closing door is safer, particularly for households with small children or pets, reducing the risk of pinched fingers or trapped tails.
Improved User Experience: A smooth, quiet closing action simply makes using your storm door more enjoyable.

Step-by-Step Summer Adjustment Guide:

Ensure Screen Panel is Active: Make sure your storm door’s screen panel is in use, and the glass panel is either raised, retracted, or removed.
Locate the Connecting Pin and Holes: Find the connecting pin and the two adjustment holes on the door bracket or closer tube.
Adjust the Pin: Remove the connecting pin and reinsert it into the rear hole (farthest from the door bracket). Ensure it clicks or slides securely into place.
Test the Door: Open the storm door and release it. It should now close slowly and gently, without slamming. If it’s still closing too quickly or too slowly, you may need to fine-tune the speed with the adjustment screw, as explained next.

Making this simple seasonal change will significantly extend the life of your storm door components and contribute to a more peaceful and functional home environment throughout the warmer months.

Fine-Tuning: Adjusting the Closer’s Speed and Pressure

Beyond the seasonal pin adjustments, most pneumatic closers offer an additional level of control: a fine-tuning screw that regulates the door’s closing speed and pressure. This is essential for achieving the perfect close, regardless of temperature fluctuations, door weight, or personal preference. If your door still slams after adjusting the pin for summer, or if it doesn’t quite latch after the winter adjustment, this screw is your next point of action.

The Adjustment Screw: Your Precision Control

Located typically at the end of the closer tube, this small screw (often a flathead or Phillips head) controls an internal bypass valve. This valve regulates the flow of hydraulic fluid (or air, depending on the closer type) within the cylinder. By turning this screw, you either restrict or allow more fluid/air to pass, thereby speeding up or slowing down the piston’s movement and, consequently, the door’s closing speed.

How to Adjust the Screw:

Clockwise Turn (Tightening): Turning the screw clockwise typically decreases the flow of fluid/air, causing the door to close slower and with more resistance. This is ideal if your door is slamming, even after the summer pin adjustment.
Counter-Clockwise Turn (Loosening): Turning the screw counter-clockwise typically increases the flow of fluid/air, causing the door to close faster and with less resistance. This is useful if your door is closing too slowly or failing to latch completely, even after the winter pin adjustment.

When to Adjust the Screw:

Door Still Slams: Even after setting the pin to the “rear hole” for summer, if the door closes too aggressively, a clockwise turn of the adjustment screw will slow it down further.
Door Closes Too Slowly: If the door takes an eternity to close, or struggles against a breeze, a counter-clockwise turn will speed it up.
Door Doesn’t Latch: After setting the pin to the “front hole” for winter, if the door consistently fails to latch, a slight counter-clockwise turn can give it the extra momentum needed to secure properly. Be careful not to make it slam, though.

Step-by-Step Speed Adjustment:

Locate the Screw: Find the adjustment screw at the end of the closer cylinder.
Make Small Turns: Turn the screw in small increments – typically a quarter-turn at a time. Overtightening or loosening can dramatically change the door’s behavior.
Test After Each Adjustment: After each small turn, open and close the door a few times to observe the change in closing speed.
Repeat Until Desired: Continue making small adjustments and testing until the door closes at your preferred speed and with the correct force to latch reliably.

Important Note: Always refer to the instructions printed on the pneumatic screen door closer label or the manufacturer’s manual. While most operate similarly, there can be slight variations in adjustment direction or recommended practices for specific models. Some closers may also have a separate adjustment for a “hold-open” feature if your storm door has one.

Troubleshooting Common Issues:

Door Doesn’t Stay Open: If your closer has a “hold-open” washer or mechanism and it’s not working, check if the washer is pushed far enough down the rod or if there’s a separate adjustment for the hold-open feature.
Leaking Fluid: If you notice oily residue around the closer, it’s a sign of a leaking seal. This usually means the closer is worn out and needs to be replaced. Adjustment will not fix a leak.
Uneven Movement: If the door moves erratically or has “dead spots” during closure, the closer may be failing internally.

By mastering both the seasonal pin placement and the fine-tuning adjustment screw, you can ensure your storm door operates flawlessly, providing comfort, energy efficiency, and peace of mind all year long.

Beyond Adjustment: Essential Maintenance Tips for Your Storm Door Closer

While proper adjustment is key, a little routine maintenance can significantly extend the life and performance of your storm door closer. These simple steps can prevent future headaches and ensure your door continues to operate smoothly for years to come.

Regular Cleaning: Dust and grime can accumulate on the closer tube and piston rod, especially in outdoor environments. Wipe down the closer regularly with a damp cloth to keep it clean. Avoid harsh chemicals that might damage the finish or seals.
Check Mounting Screws: Over time, the screws that attach the closer to the door and frame can loosen due to constant use. Periodically check these screws and tighten them if necessary. Loose screws can lead to instability, improper operation, and premature wear.
Inspect for Wear and Tear: Look for any visible signs of damage, such as bends in the piston rod, cracks in the brackets, or frayed wires (if it’s an electric closer, though most storm door closers are pneumatic). Pay attention to any unusual sounds during operation, which might indicate internal issues.
Lubrication (If Applicable): Some older pneumatic closers or specific models might benefit from a light application of silicone lubricant to the piston rod or pivot points. However, always check the manufacturer’s guidelines first. Many modern closers are sealed units and do not require external lubrication; applying the wrong type of lubricant could even damage internal components.
Address Leaks Promptly: As mentioned before, if you observe any hydraulic fluid leaking from the closer, it’s a clear sign that the internal seals have failed. At this point, adjustment will not help, and the closer will need to be replaced. Continuing to use a leaking closer can lead to inconsistent operation and eventually complete failure.
Avoid Forcing the Door: Do not manually push or pull the door against the resistance of the closer more than necessary. This can strain the internal mechanisms and lead to premature failure. Let the closer do its job.

By integrating these simple maintenance practices into your home care routine, you can ensure your storm door closer remains a reliable and efficient component of your home’s exterior, performing its crucial role in comfort and protection.

Conclusion: The Small Adjustment for Big Impact

The humble storm door closer, with its seemingly simple two-hole design, is a prime example of how small details in home engineering can yield significant benefits. Understanding and utilizing these seasonal adjustments for winter and summer, along with the fine-tuning capabilities of the speed adjustment screw, empowers you to take full control of your home’s entry points.

A properly adjusted storm door closer is more than just a convenience; it’s a guardian of your home’s energy efficiency, a protector against the elements, and a subtle enhancer of daily comfort. It prevents heat from escaping in winter and keeps cool air in during summer, all while safeguarding your door from the wear and tear of slamming, prolonging its lifespan and reducing maintenance costs. Furthermore, it ensures a safer environment for everyone, particularly preventing pinched fingers or startled pets.

So, the next time you switch out your storm door panels for the changing seasons, take a few extra minutes to make these simple adjustments. This small act of proactive maintenance will pay dividends in improved home comfort, reduced energy bills, and a more pleasant living experience. Your storm door, and your wallet, will thank you for it.
