Mastering Metal Bends: Build Your Own Precision Two-Board Bending Tool

Achieving perfectly crisp and accurate angles when working with sheet metal and flashing can often feel like a daunting task, especially for DIY enthusiasts and hobbyists. Traditional methods might involve complex machinery or result in imprecise, rounded bends that detract from the professional finish of a project. However, an ingenious and incredibly simple solution comes from reader Wayne Jung, who designed a brilliant two-board bending tool. This innovative, cost-effective, and easy-to-build device allows anyone to create sharp, professional-grade bends with minimal effort and without the need for expensive equipment. This comprehensive guide will walk you through everything you need to know about constructing and utilizing this essential DIY tool, transforming your sheet metal projects.

The Genius Behind the Two-Board Design: Simplicity Meets Precision

The beauty of Wayne Jung’s two-board bending tool lies in its elegant simplicity. At its core, the design leverages basic woodworking principles to create a highly effective metal-bending jig. Instead of relying on hydraulic pressure or intricate levers, this tool uses the combined strength of two boards and a carefully cut notch to firmly grip and bend sheet metal. This method ensures that the metal is held securely along the bend line, preventing slippage and allowing for a clean, sharp crease every time. The fundamental concept is to create a pivot point that forces the metal to fold precisely, resulting in angles that are not only crisp but also consistent.

This DIY approach significantly democratizes metal fabrication. It removes the barrier of entry often posed by the high cost and large footprint of commercial sheet metal brakes, making precision bending accessible to homeowners, crafters, and small workshop owners. Whether you’re working on HVAC ducting, custom flashing for your roof, artistic metal sculptures, or intricate model parts, this two-board tool offers a reliable and repeatable solution for achieving professional results right in your own garage or workshop.

Building Your Two-Board Bending Tool: A Step-by-Step Guide

Constructing this invaluable tool requires only a few common materials and basic woodworking tools. The process is straightforward, ensuring you can quickly assemble it and get to bending your sheet metal projects. Here’s a detailed breakdown of the materials you’ll need and the steps to follow:

Materials Required:

Two Short Boards: Opt for sturdy, straight-grained wood, ideally hardwood like oak, maple, or even a good quality pine. The length will depend on the maximum width of sheet metal you intend to bend. A common size might be 2 to 3 feet long, 4 to 6 inches wide, and 1 to 1.5 inches thick.
Wood Screws: A few robust wood screws, long enough to securely fasten the two boards together (e.g., 2.5-inch or 3-inch screws).
Table Saw: Essential for cutting the precise notch required for the bending mechanism.
Measuring Tape and Pencil: For accurate marking.
Safety Gear: Eye protection and hearing protection when operating the table saw.

Construction Steps:

Prepare Your Boards: Ensure both boards are cut to the desired length and have smooth, flat surfaces. Any warps or twists will compromise the accuracy of your bends.
Set Up the Table Saw: This is the most crucial step for precision. Adjust your table saw fence. You’ll need to slice a very specific notch: 1/16-inch wide by 2-inches deep. The 1/16-inch width is critical as it provides just enough space for the sheet metal to slide in, but not too much that it wobbles. The 2-inch depth ensures enough grip and leverage for bending various thicknesses of sheet metal.
Cut the Notch: Carefully push one of your boards edgewise through the table saw, creating that whisper-thin notch along one edge. Maintain steady pressure and a consistent feed rate for a uniform cut. This notched edge will be the heart of your bending tool.
Assemble the Boards: Take the notched board and the unnotched board. Place them face to face, ensuring the notched edge is perfectly aligned in the middle where the two boards meet. The notch should run along the entire length of the assembly.
Screw the Boards Together: Securely fasten the two boards together using your chosen wood screws. Drive screws at regular intervals (e.g., every 6-8 inches) along the length of the boards, making sure they penetrate both boards adequately to create a strong, stable unit. Pre-drilling pilot holes can prevent the wood from splitting, especially with hardwoods.

With these steps completed, your two-board bending tool is now ready for action! Its robust construction ensures it will withstand repeated use, providing reliable performance for numerous projects.

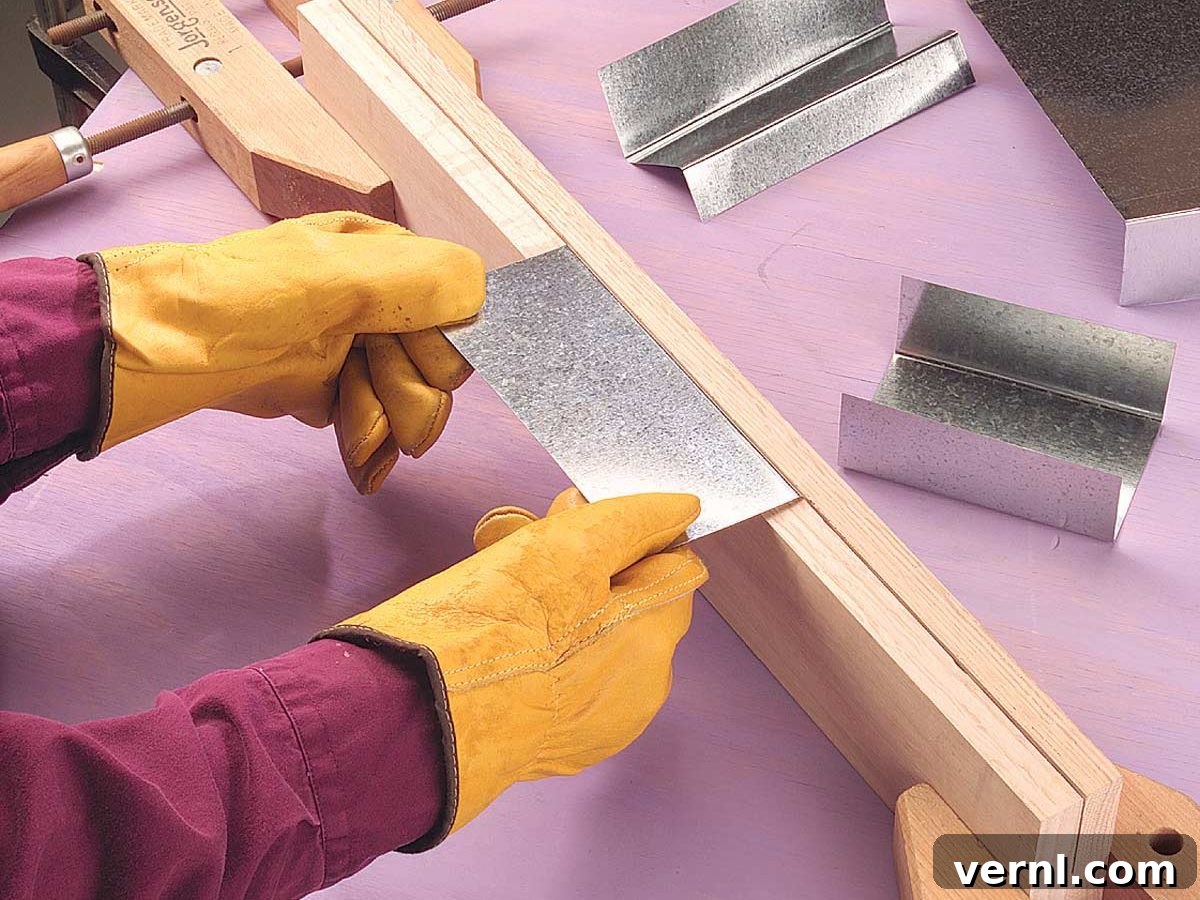

Using Your Two-Board Bending Tool for Crisp 90-Degree Angles

Once assembled, using the tool for precise 90-degree bends is incredibly straightforward. The design ensures that the bending action is intuitive and effective:

Secure the Tool: First, you need to firmly clamp your newly built two-board bending tool to a sturdy workbench or table. Use at least two C-clamps or quick-release clamps, one near each end, to prevent any movement during the bending process. Stability is key for accurate bends.
Prepare the Sheet Metal: Measure and mark your desired bend line on the sheet metal or flashing. A pencil or fine-tip marker works well for this. For highly visible projects, you might consider using painter’s tape to protect the metal surface.
Insert the Metal: Slide the sheet metal into the narrow opening created by the notch in your tool. Align your marked bend line precisely with the top edge of the tool. The depth to which you insert the metal determines the length of the flange you’ll create.
Clamp the Metal (Optional but Recommended): For longer pieces of metal or thinner gauges, it can be beneficial to use additional clamps directly on the sheet metal itself, pressing it against the top surface of the tool. This prevents the metal from lifting or shifting as you apply bending pressure.
Apply Pressure to Bend: Once the metal is securely in place, press down firmly and evenly on the overhanging portion of the sheet metal. You can use your hands, a mallet, or even a straight piece of wood to help distribute the pressure. Bend the metal until it forms a perfect 90-degree angle, flush against the side of the tool. The thin notch ensures a sharp, clean crease.
Inspect and Remove: Carefully unclamp the tool and remove your perfectly bent sheet metal. Inspect the bend for crispness and accuracy.

Achieving Custom Angles Beyond 90 Degrees

The versatility of Wayne Jung’s design doesn’t stop at 90-degree bends. With a simple modification, you can easily create angles other than a perfect right angle, expanding the range of projects you can tackle:

Modify the Unnotched Board: Before screwing the two boards together, or by carefully removing the screws and separating them, you will need to modify the unnotched board. Using your table saw or a miter saw, carefully cut the desired angle into one edge of this unnotched board. For example, if you need a 45-degree bend, cut a 45-degree angle along one long edge of this board. This creates your angled bending surface.
Reassemble (if necessary): If you disassembled the tool, re-screw the boards together, ensuring the newly angled edge of the unnotched board is accessible and aligned with the notched board.
Bending with the Angled Edge: Clamp the modified tool to your bench. Slide the sheet metal into the opening as before, aligning the bend line. Instead of bending until it’s 90 degrees, press the metal down until it lies completely flat against the newly cut angled edge of your tool. The metal will naturally conform to this angle, giving you a precise custom bend.

This ingenious modification allows for incredible flexibility, enabling you to create complex shapes and precise custom flashing elements for unique architectural details or intricate craft projects.

The Undeniable Advantages of This DIY Sheet Metal Bender

This two-board bending tool offers a multitude of benefits that make it an indispensable addition to any DIYer’s toolkit:

Cost-Effectiveness: Unlike professional sheet metal brakes that can cost hundreds or thousands of dollars, this tool can be built for under $20-$50, using readily available materials.
Exceptional Precision: The narrow, deep notch ensures a remarkably crisp and straight bend, rivaling the quality of bends from much more expensive equipment for light-gauge metals.
Simplicity of Construction: Anyone with basic woodworking skills and access to a table saw can build this tool in a short amount of time.
Versatility: Capable of producing both 90-degree bends and custom angles through a simple modification.
Portability: Being made of wood, it’s relatively lightweight and can be easily moved or stored, perfect for small workshops or on-site jobs.
Empowering for DIYers: It gives home renovators and hobbyists the ability to custom fabricate parts that would otherwise require professional services or compromise on design.
Reduced Waste: With precise bends, you minimize errors and material waste, saving both time and money.

Common Applications and Project Ideas

The uses for a precise sheet metal bending tool in a home workshop are extensive. Here are just a few applications where Wayne Jung’s tool shines:

HVAC Ductwork: Fabricating custom ducts, transitions, or connectors for heating, ventilation, and air conditioning systems.
Roof and Window Flashing: Creating custom flashing to prevent water intrusion around chimneys, skylights, windows, and roof valleys.
Crafts and Art Projects: Shaping metal for decorative items, jewelry, sculptures, or mixed-media art.
Model Making: Bending small metal parts for architectural models, robotics, or scale miniatures.
Appliance Repair: Creating custom brackets or replacement panels for household appliances.
Electrical Enclosures: Fabricating simple metal boxes or covers for electrical components.
Automotive Projects: Bending small patches or brackets for auto body repair or custom modifications (for thinner gauges).
Garden Edging and Planters: Shaping metal for durable and aesthetically pleasing garden elements.

Choosing the Right Materials for Longevity and Performance

While the design is simple, selecting the right materials for your bending tool can significantly impact its performance and lifespan:

Wood Type: For maximum durability and resistance to warping, hardwood like oak, maple, or even high-density plywood (birch plywood) is recommended. These woods are less likely to compress or deform under the pressure of bending metal. If using softwood like pine, choose knot-free, straight-grained pieces and understand they might show wear sooner.
Board Dimensions: The thickness of the boards (e.g., 1 to 1.5 inches) provides the rigidity needed for effective bending. Thinner boards may flex, leading to less precise bends. The width (4 to 6 inches) offers a stable surface for clamping and pressing.
Screw Quality: Use sturdy wood screws that are long enough to provide good engagement into both boards. Deck screws or construction screws are excellent choices due to their strength and corrosion resistance.

Essential Tips for Working with Sheet Metal Safely and Effectively

Working with sheet metal, even with a simple bending tool, requires attention to detail and safety. Here are some crucial tips:

Safety First: Always wear heavy-duty gloves to protect your hands from sharp edges and eye protection to guard against flying metal slivers.
Material Selection: Understand the properties of different sheet metals. Aluminum is softer and easier to bend, while steel is stiffer and may require more force. Copper and brass are also commonly used.
Gauge Matters: This DIY tool is ideal for lighter gauge sheet metal (typically up to 18-22 gauge steel or thicker aluminum). Attempting to bend very thick metal might damage the wooden tool.
Accurate Marking: Use a straight edge and a fine-tip marker or scratch awl to mark your bend lines precisely. Accuracy in marking translates directly to accuracy in bending.
Clean Cuts: Ensure your sheet metal is cut cleanly before bending. Burrs or uneven edges can affect the quality of your bend and pose safety hazards. Tin snips or aviation snips are commonly used for cutting sheet metal, and external resources like the one linked can provide guidance on their proper use.
Gradual Bending: For stiffer metals, you may need to apply pressure gradually, perhaps making a slight bend, checking it, and then increasing the angle until it’s fully formed.
Protecting Surfaces: If working with polished or finished sheet metal, place a thin piece of protective material (like felt or thin cardboard) between the metal and the bending tool to prevent scratches.

Comparing to Commercial Tools: When Does DIY Win?

While professional sheet metal brakes offer industrial-grade capacity, strength, and features for continuous heavy-duty use, Wayne Jung’s two-board bending tool holds its own in specific scenarios:

Budget Constraints: For homeowners or small businesses with limited budgets, the DIY tool is an unbeatable economic choice.
Small-Scale Projects: For occasional use, small to medium-sized pieces of sheet metal, or lighter gauge materials, the DIY tool performs exceptionally well without the overkill of a large machine.
Space Limitations: Commercial brakes are large and heavy. The two-board tool requires minimal storage space and can be quickly set up and put away.
Learning and Experimentation: It’s a fantastic tool for beginners to learn the fundamentals of sheet metal bending without a significant investment.

In essence, if your projects involve consistent, heavy-gauge bending across long spans, a commercial brake is likely more appropriate. However, for precision, affordability, and accessibility in a home or small workshop setting, this DIY two-board bending tool is a clear winner.

Maintenance and Longevity of Your Wooden Bender

To ensure your two-board bending tool lasts for many projects to come, a little care and maintenance go a long way:

Storage: Store the tool in a dry place to prevent the wood from warping or rotting.
Inspect for Wear: Regularly check the notched edge and the angled edge (if applicable) for signs of wear, compression, or damage. Over time, especially with harder metals, the wood might start to deform slightly.
Replace if Needed: If the critical edges become rounded or damaged, affecting bend quality, you can easily replace one or both boards. This modularity is another benefit of the DIY design.
Tighten Screws: Periodically check that all screws are tight and secure.

Troubleshooting Common Bending Issues

Even with the best tools, you might encounter minor challenges. Here’s how to troubleshoot common issues with your two-board bending tool:

Bends Not Crisp Enough:
- Cause: Metal slipping, not enough clamping pressure on the tool or metal, or the notch being too wide.
- Solution: Ensure the tool is clamped very securely. Add extra clamps directly on the metal against the tool’s surface. If the notch is too wide, consider rebuilding with a more precise 1/16-inch cut.
Metal Slipping During Bend:
- Cause: Insufficient grip on the metal, or the metal is too thin/flexible.
- Solution: Increase clamping pressure on the metal itself. For very thin metal, you might need a backing plate or a slightly rougher surface on the inside of the notch (e.g., fine-grit sandpaper glued within the notch, though this will wear).
Wood Damage/Compression:
- Cause: Bending metal that is too thick or too hard for the wood, or using softer wood.
- Solution: Use appropriate gauge metal for the tool. If damage occurs, replace the affected board. Consider using a harder wood type for future builds.
Inconsistent Angles:
- Cause: Uneven pressure during the bend, or the tool itself is not perfectly straight or stable.
- Solution: Apply steady, even pressure across the entire length of the bend. Ensure your initial boards were straight and that the tool is clamped firmly to a level surface.

Conclusion: Empowering Your Metal Fabrication Projects

Wayne Jung’s two-board bending tool is a testament to the power of simple, effective design. It provides an accessible, affordable, and highly accurate solution for anyone needing to bend sheet metal and flashing into crisp, precise angles. By following this detailed guide, you can easily build this essential tool and unlock a new level of professionalism and versatility in your DIY, crafting, or home improvement projects. Say goodbye to imprecise bends and embrace the satisfaction of perfectly formed metal components. Start building your own two-board bending tool today and transform your approach to metal fabrication!
