Mastering Lamp Wiring: A Comprehensive Guide to Plug Polarity and Electrical Safety

Ensuring your home’s electrical appliances are properly wired is not just about functionality; it’s fundamentally about safety. Lamps, ubiquitous in every household, are no exception. The seemingly simple task of wiring a plug or socket incorrectly can transform a harmless light source into a potential shock hazard. This comprehensive guide will walk you through the critical aspects of maintaining correct hot and neutral electrical paths from your wall outlet to your light bulb, providing detailed instructions, safety tips, and expert insights to keep your home illuminated and safe.

Understanding and applying proper electrical polarity is paramount when dealing with any lamp or electrical fixture. Polarity refers to the direction of electrical current flow, specifically distinguishing between the “hot” (live) wire and the “neutral” wire. When these are correctly connected, electricity flows predictably and safely. When reversed, the safety mechanisms designed into modern electrical systems can be bypassed, leading to dangerous situations, especially with older lamps or worn insulation.

The Critical Importance of Correct Polarity When Wiring a Plug

Wiring a new plug, whether for a vintage lamp or a simple cord replacement, is a common DIY task that shouldn’t be overlooked. While the process itself isn’t inherently complex, connecting the hot and neutral wires to their respective proper prongs is absolutely crucial. The primary concern with a miswired plug isn’t a fire hazard, but rather a significant and often underestimated shock hazard. Understanding this distinction is key to appreciating the safety measures we’re about to discuss.

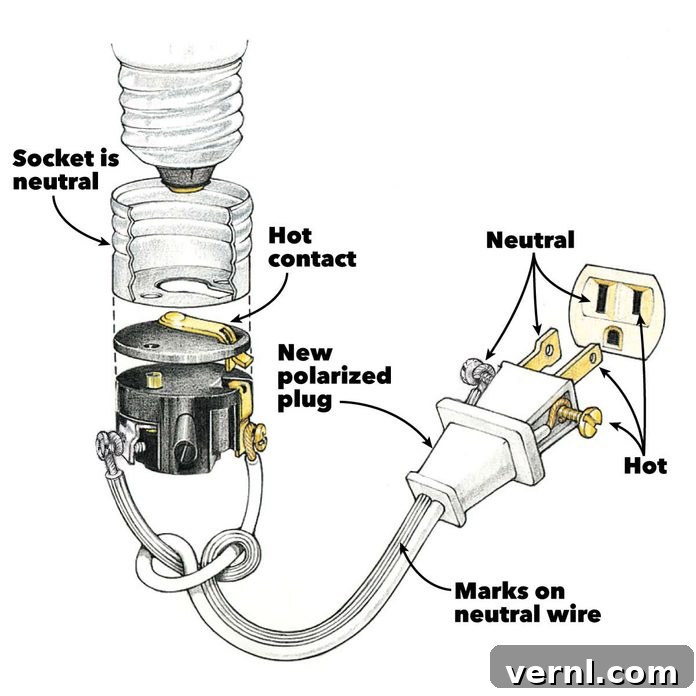

In a correctly wired system, the wider prong on a polarized plug connects to the neutral wire, which in turn links to the threaded base of the light bulb. The narrower, hot prong connects to the central contact in the light bulb socket. This design ensures that when the lamp is switched off, or even when the bulb is being changed, the threaded base of the bulb (the part most likely to be touched) remains de-energized or “neutral.”

Understanding the Shock Hazard of Reversed Polarity

The danger arises when the wires are reversed. If the hot side of the outlet (the side that carries live current and can deliver a shock) is inadvertently wired to the threaded base of the light bulb, a hazardous situation is created. Normally, a simple cardboard insulator separates the bulb’s base from its central contact, providing a basic layer of protection. However, on older lamps, this cardboard insulator can become worn, deteriorated, or even completely missing. When this happens, if the polarity is reversed, the entire metal casing of the lamp, including parts you might easily touch, could become “hot” or electrically charged.

Imagine this scenario: you’re changing a dead light bulb in a lamp with reversed polarity and worn insulation. If you simultaneously touch the metal parts of the lamp and are “grounded”—perhaps standing on damp concrete, touching a radiator, or leaning against another plumbing pipe—you could complete an electrical circuit. This can result in a dangerous and potentially fatal electrical shock. The current would pass through your body, seeking the path of least resistance to the ground, causing a severe jolt of electricity.

This risk is amplified by the fact that many older lamps lack the sophisticated internal insulation and safety features found in modern appliances. Therefore, proper wiring isn’t just a suggestion; it’s a critical safety imperative for anyone working with or using older electrical fixtures.

Identifying Wires for Correct Polarity: Hot, Neutral, and Ground

Before you begin wiring any plug, it’s essential to correctly identify the hot and neutral wires on your lamp cord. Modern lamp cords are designed with visual cues to help you distinguish between them. It’s always advisable to purchase a “polarized” replacement plug, which means it will have one wider prong and one narrower prong, making correct identification and connection easier.

Identifying the Neutral Wire

The neutral line on a lamp cord is typically the one that has a distinctive texture or marking. You might find:

• Ribbing: A series of raised ridges or ribs running along its length.
• Sharp Ridge: A single, pronounced ridge.
• Printing: Small print, such as brand names, specifications, or approval marks, along the insulation.
• Color (if translucent): If the cord’s insulation is translucent, the neutral wire conductor itself is often silver in color.

Identifying the Hot Wire

In contrast, the hot wire on the lamp cord will typically have:

• Smooth, Plain Surface: Its insulation will usually be smooth and unmarked.
• Color (if translucent): If the cord is translucent, the hot wire conductor will often be gold or copper in color.

Once identified, remember that the neutral (ribbed/marked/silver) wire always connects to the wide prong of the polarized plug, while the hot (smooth/gold) wire connects to the narrower prong.

For the safest and most reliable connections, buy a polarized plug from Home Depot right now.

Step-by-Step Guide: Wiring a Polarized Plug Correctly

Wiring a plug can be straightforward if you follow these steps carefully. Always ensure the lamp or cord is unplugged from the wall outlet before starting any work.

Tools You’ll Need:

• New polarized replacement plug
• Wire strippers
• Small screwdriver (flathead and/or Phillips, depending on the plug)
• Utility knife (optional, for outer jacket if applicable)
• Safety glasses

The Wiring Process:

1. Prepare the Cord End: Using wire strippers or a utility knife, carefully remove about 1/2 to 3/4 inch of the outer jacket (if your cord has one) to expose the two insulated wires. Then, strip approximately 1/2 inch of insulation from the end of both the hot and neutral wires. Twist the strands of each exposed wire tightly to prevent fraying.
2. Disassemble the Plug: Open your new polarized plug. Most plugs have screws that hold the two halves together, or they may simply snap apart. You’ll typically see two screw terminals inside, corresponding to the wide and narrow prongs.
3. Identify Terminals: Inside the plug, one terminal will be designed to connect to the wide prong (neutral) and the other to the narrower prong (hot). Often, the neutral terminal screw might be silver, and the hot terminal screw might be brass or copper-colored.
4. Connect the Neutral Wire: Take the identified neutral wire (ribbed/marked/silver conductor) and wrap the twisted bare end around the neutral terminal screw.
CAUTION: When connecting an electrical wire to a screw terminal, always wrap the wire clockwise around the screw. When wrapped correctly in a clockwise direction, the wire will be pulled tighter as you tighten the screw, creating a much more solid and safer connection. A counter-clockwise wrap can cause the wire to push out from under the screw head as you tighten, leading to a loose and dangerous connection.
5. Tighten Neutral Connection: Using your screwdriver, securely tighten the neutral terminal screw, ensuring that no stray wire strands are outside the screw head. Give a gentle tug on the wire to confirm it’s firmly seated.
6. Connect the Hot Wire: Now, take the identified hot wire (smooth/gold conductor) and wrap its twisted bare end clockwise around the hot terminal screw.
7. Tighten Hot Connection: As with the neutral wire, securely tighten the hot terminal screw, checking for stray strands and confirming a tight connection.
8. Reassemble the Plug: Carefully position the wires within the plug housing, ensuring they are not pinched or twisted. Close the plug halves, securing them with any screws or clips provided.
9. Inspect and Test: Visually inspect the completed plug. Ensure there are no exposed wires outside the plug housing and that it feels sturdy. Before plugging it into an outlet, you can use a multimeter to test for continuity and correct polarity if you are comfortable doing so. Otherwise, plug the lamp into an outlet and verify it functions correctly.

Beyond the Plug: Socket Polarity and Overall Lamp Safety

While correct plug wiring is paramount, the safety of your lamp also extends to the socket itself. The internal wiring of the lamp from the plug to the socket must also maintain correct polarity. A properly wired lamp socket will ensure that the threaded base of the light bulb is connected to the neutral wire, and the small metal tab at the bottom of the socket (the ‘hot’ contact) is connected to the hot wire.

Inspecting Old Lamps for Enhanced Safety

Older lamps, while charming, often come with hidden electrical hazards. Beyond the cardboard insulator mentioned earlier, other issues can compromise safety:

• Frayed Cords: Inspect the entire length of the lamp cord for cracks, cuts, or exposed wires. Frayed cords are a significant fire and shock risk.
• Loose Connections: Gently jiggle the base of the plug and where the cord enters the lamp. Any looseness can indicate poor connections.
• Damaged Sockets: Look for cracks, discoloration, or corrosion in the lamp socket itself. If the socket feels loose or flimsy, it should be replaced.
• Two-Prong Plugs: Many very old lamps have unpolarized two-prong plugs. While you can replace them with polarized plugs, the internal wiring of the lamp might not be designed with distinct hot/neutral paths, making comprehensive internal inspection or professional rewiring advisable.

If you encounter any of these issues, it’s best to either repair them correctly (if you have the expertise) or seek the help of a qualified electrician. Never use a lamp that exhibits obvious signs of electrical damage or wear.

The Benefits of Proper Wiring and Regular Maintenance

Taking the time to properly wire your lamp plugs and conducting routine inspections offers numerous benefits. Primarily, it significantly reduces the risk of electrical shock and potential fires, protecting your family and your home. Correct polarity also ensures that your appliances operate as intended, extending their lifespan and preventing unexpected electrical issues.

By following the guidelines in this article, you gain the peace of mind that comes from knowing your electrical fixtures are safe and functioning optimally. Regular maintenance, including visual checks of cords and plugs, can prevent minor issues from escalating into dangerous hazards. Empower yourself with this knowledge, and illuminate your home safely and confidently.
