Comprehensive Guide to Old Honeywell Thermostats: Understanding, Using, and Replacing Your Legacy Device

Honeywell has long been a household name in home climate control, synonymous with reliable thermostats that have graced walls for decades. Their journey began even before the company was formally known as Minneapolis-Honeywell, introducing innovative solutions that simplified temperature management for millions. Among their most recognizable contributions is “The Round,” an iconic thermostat launched in 1953. While often considered the quintessential old Honeywell thermostat, it wasn’t the company’s first foray into the market. That distinction belongs to “The Jewell,” a rather clunky, yet remarkably advanced, programmable round model released as early as 1906. This rich history underscores Honeywell’s commitment to evolving home comfort technology, even as many of their older, simpler models continue to function flawlessly in homes today.

Although Honeywell continues to manufacture mechanical thermostats, including modern iterations of “The Round” alongside various square and rectangular designs, the vast majority of their current product line consists of digital offerings. For homeowners encountering issues with an older Honeywell thermostat, it’s highly probable they are dealing with a digital model. Many of these digital thermostats, even older ones, possess programmable features that allow for greater control over energy consumption and comfort. However, even digital non-programmable thermostats are remarkably user-friendly, often as straightforward to operate as their mechanical predecessors.

Identifying whether your Honeywell thermostat is programmable is often a quick visual check. If your device features a “Prog,” “Set,” or “Menu” button prominently on its front panel, it’s almost certainly a programmable model. It’s worth noting that cutting-edge smart thermostats, while inherently programmable, typically forgo these traditional buttons in favor of touchscreens or app-based controls. However, there’s one notable exception that can sometimes cause confusion: The Round Smart Thermostat. Despite its advanced capabilities, its design strikingly resembles its classic mechanical counterpart. While this particular smart model has since been discontinued, a significant number of them are still in active use, blending modern functionality with a vintage aesthetic.

The Enduring Legacy of Honeywell Thermostats: From “The Jewell” to Modern Digital Controls

The journey of Honeywell thermostats is a testament to continuous innovation in home comfort. “The Jewell,” a pioneering programmable thermostat from 1906, showcased the company’s early vision for intelligent climate control. Decades later, “The Round” cemented Honeywell’s place in thermostat history, becoming an instantly recognizable symbol of reliable temperature regulation. While you won’t typically find Honeywell-made thermostats manufactured before 1953 in a contemporary home setting, models like “The Round” and other heat-only mechanical thermostats exemplify simplicity and effectiveness. Their operation is elegantly straightforward: a user simply rotates a dial or moves a lever to their desired temperature, and the thermostat manages the rest, maintaining that setting with dependable accuracy.

Beyond basic heating, many mechanical thermostats offer comprehensive control over a home’s climate system, including a cooling system and an integrated fan. These versatile models come equipped with intuitive levers designed for easily switching between heating and cooling modes, as well as toggling the fan between “On” (continuous operation) and “Auto” (running only when the heating or cooling system is active). This mechanical simplicity made them popular for generations.

The 1980s marked a significant transition with Honeywell’s introduction of digital thermostats. Initially, these digital models were non-programmable, essentially mimicking the function of their mechanical counterparts but with a digital display and push-button controls. However, the inherent potential of digital technology soon led to the inevitable integration of programmable functions. Many of these older programmable digital models remain widely used today, prized for their ability to create customized heating and cooling schedules. While specific features and interfaces may vary across different models and generations, the fundamental principle of programming room temperatures for designated times of the day—such as wake, leave, return, and sleep periods—remains largely consistent, offering both comfort and energy-saving benefits.

Decoding Your Old Honeywell Thermostat: Mechanical, Digital Non-Programmable, and Digital Programmable

When dealing with older Honeywell thermostats, it’s helpful to categorize them into three primary types: mechanical, digital non-programmable, and digital programmable. While Wi-Fi enabled and advanced smart thermostats represent much newer developments and fall outside the scope of “old” models, these three categories still encompass a vast array of devices. Pinpointing your specific model can be challenging given the sheer number produced over the years, but understanding its type is the first step toward effective use and troubleshooting.

To help illustrate the differences and give you a clearer picture, here are representative examples from each category, providing insight into their typical features and how they operate:

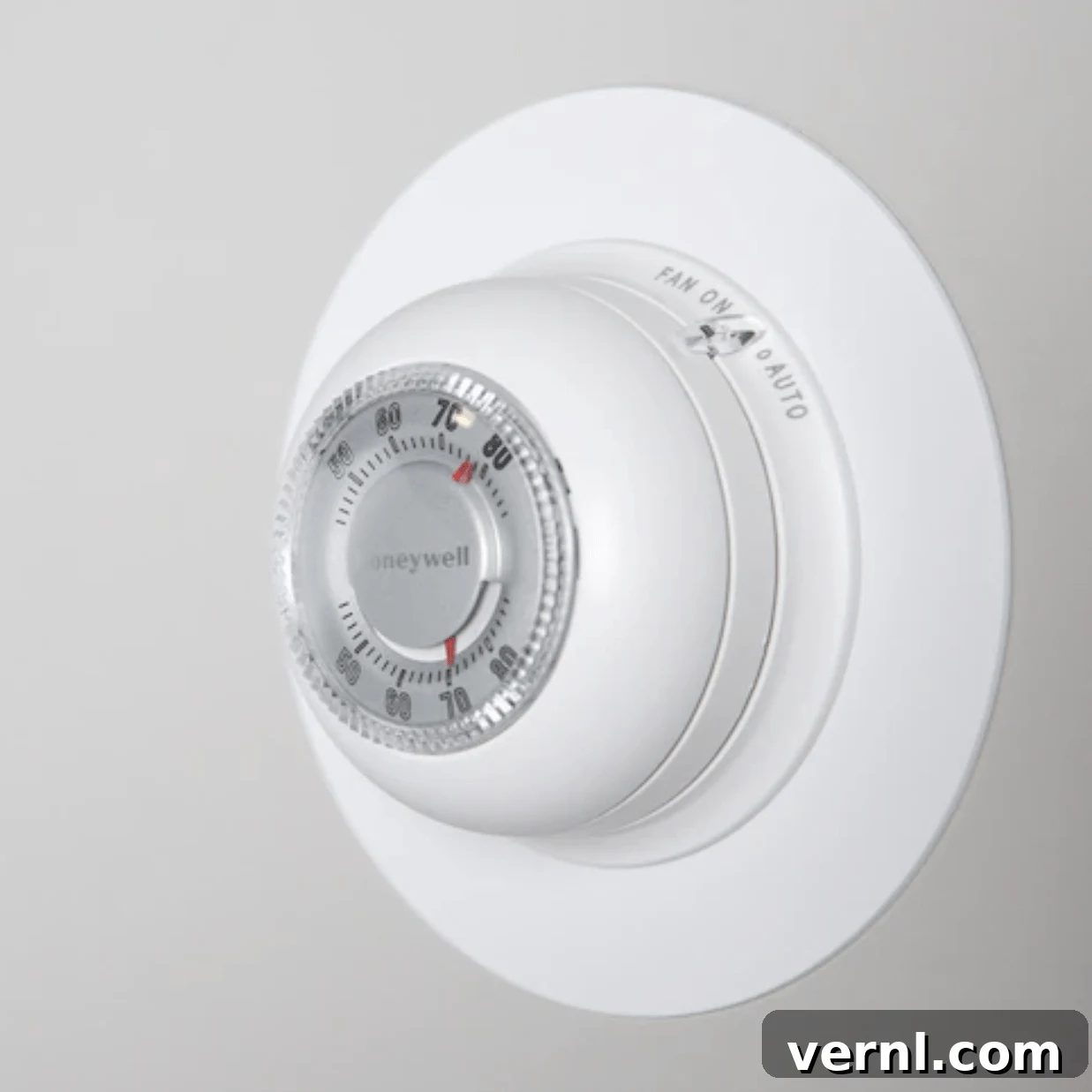

Mechanical Thermostat Example: CT87N1001/U1 (The Round): This specific version of “The Round” is designed for comprehensive heating and cooling systems. Its operation is purely analog, featuring a classic rotary dial for setting the desired temperature. In addition to temperature control, it includes two essential toggle switches. One switch manages the fan, allowing users to select between “On” for continuous airflow or “Auto” for fan operation only when the heating or cooling system is actively running. The other toggle switch controls the system mode, offering options for “Heat,” “Cool,” or “Off,” providing complete seasonal control over your indoor climate. Its simplicity and robust design have made it a timeless choice for many homes.
Digital Non-Programmable Thermostat Example: RTH111B: Representing a fundamental shift from mechanical designs, the RTH111B is a basic digital model that foregoes complex scheduling features. Temperature adjustment is handled via simple “up/down” arrow buttons, providing precise digital control. Similar to its mechanical counterparts designed for full systems, this model is equipped with a fan toggle switch (On/Auto) and a mode toggle switch (Heat/Cool/Off). Its straightforward interface makes it an excellent choice for those who prefer manual temperature adjustments but appreciate the accuracy and clear display of digital technology without the added complexity of programming.
Digital Programmable Thermostat Example: RTH221B: Building upon the digital foundation, the RTH221B introduces essential programming capabilities. It retains the familiar toggle switches for fan (On/Auto) and mode (Heat/Cool/Off), along with the intuitive up/down buttons for setting temperature. What distinguishes this model, however, are its dedicated programming buttons, typically labeled “Set,” “Hold,” and “Run.” These buttons unlock the thermostat’s ability to create custom heating and cooling schedules throughout the day, allowing users to automate temperature changes to match their daily routines and potentially achieve significant energy savings. Understanding these specific buttons is key to leveraging its full potential.

Mastering Your Old Honeywell Thermostat: A Step-by-Step Usage Guide

Operating an old Honeywell thermostat, regardless of its type, is generally quite intuitive. The core functions revolve around setting your desired temperature and controlling your HVAC system’s fan and mode. While specific interfaces might vary (a dial vs. buttons), the underlying principles remain consistent. Here’s a general guide to effectively use your Honeywell thermostat:

Setting the Temperature:
- For Mechanical Thermostats (like “The Round”): Simply turn the rotary dial or slide the lever to align with your desired temperature setting on the temperature scale.
- For Digital Thermostats (Non-Programmable or Programmable): Use the “up” and “down” arrow buttons, often labeled with an upward-pointing triangle and a downward-pointing triangle, to incrementally adjust the displayed temperature to your preferred comfort level. The digital display will show your chosen setpoint.
Controlling the Fan: Most Honeywell thermostats with fan control offer two primary settings:
- Auto (Automatic): This is the most common and energy-efficient setting. When set to “Auto,” the fan will only activate and run when your furnace (heating) or air conditioner (cooling) is actively engaged to reach the set temperature. Once the desired temperature is achieved, the fan will turn off, conserving electricity.
- On (Continuous): Selecting “On” will cause the fan to run continuously, regardless of whether your heating or cooling system is actively operating. This can be useful for improving air circulation, filtering air more frequently, or providing a constant ambient sound. Be aware that continuous fan operation will increase your electricity consumption.
To change the fan setting, locate the fan toggle switch and slide it to either “Auto” or “On.”
Selecting the System Mode: This switch dictates whether your thermostat will control your heating system, your cooling system, or remain inactive.
- Heat: Choose this mode during colder months when you want your furnace to maintain the set temperature.
- Cool: Select this mode during warmer months for your air conditioner to cool your home to the set temperature.
- Off: This setting disables both heating and cooling functions. It’s often used when the HVAC system isn’t needed, such as during mild shoulder seasons or when leaving the house for an extended period.
Move the mode toggle switch to your desired setting: “Heat,” “Cool,” or “Off.” Some models may also have an “Auto” mode here, which automatically switches between heating and cooling to maintain a comfortable range.

If your thermostat is a programmable model, there’s an additional crucial step before you can engage its scheduling features: you must set the current time. An accurate clock is vital for the thermostat to execute its programmed schedule at the correct intervals. After the time is set, you will typically use buttons like “Set,” “Prog,” or “Menu” to navigate through the various programming options for different times of the day. This allows you to define specific temperatures for periods such as when you wake up, leave for work, return home, and go to sleep, optimizing both comfort and energy efficiency.

Setting Your Programmable Honeywell Thermostat: A Detailed Schedule Setup

Setting a programmable Honeywell thermostat allows you to automate temperature changes throughout the day, aligning with your family’s schedule and potentially leading to significant energy savings. While the exact steps can vary slightly by model, the fundamental process for programming a schedule is quite similar across many older Honeywell programmable units. For this detailed example, we’ll use the RTH221B, a common programmable model. If you own a different model, always consult your specific product manual or search for it online using the model number for precise instructions.

To Set the Current Time:

Accurately setting the internal clock is the first and most critical step for any programmable thermostat, as all scheduled events rely on it.

Press the Set button once. You will typically see the current time flashing on the screen, indicating it’s ready for adjustment.
Use the up/down arrow buttons to adjust the time to the correct hour and minute. Many models will cycle through minutes quickly, then hours. Be mindful of AM/PM indicators if your thermostat uses a 12-hour format.
Once the correct time is displayed, press the Run button to save your changes and exit the time-setting mode. The thermostat will return to normal operation, displaying the current time and temperature.

To Program a Custom Schedule (e.g., for Heating):

Before you begin programming, ensure your system mode is set to either “Heat” or “Cool” using the mode toggle switch, depending on which schedule you wish to configure. Programmable thermostats often allow separate schedules for heating and cooling.

Press the Set button twice. The thermostat’s display should now show a message like “Set Schedule” or “Prog,” along with the start time of the first programming period (e.g., “Wake” or “Period 1”). This indicates you are entering the scheduling interface.
Use the up/down arrow buttons to adjust the start time for this first period. For instance, if this is your “Wake” period, set it to the time you typically wake up.
Press the Set button again. The temperature for that specific period will now flash on the screen, prompting you to define the desired comfort level.
Use the up/down arrow buttons to select the temperature you want your home to maintain during this first period. For a “Wake” period, you might set a comfortable temperature like 70°F (21°C).
Press the Set button once more. The thermostat will then advance to the start time for the next programming period (e.g., “Leave” or “Period 2”).
Repeat the procedure: Use the up/down buttons to set the start time for this new period, then press Set, adjust the temperature for this period with the up/down buttons, and press Set again to move to the subsequent period. Continue this process for all available programming periods (commonly “Wake,” “Leave,” “Return,” and “Sleep”).
Once you have successfully defined the start times and temperatures for all the periods available on your device for the chosen mode (Heat or Cool), press the Run button. This action will save all your programmed settings and return the thermostat to its normal operating mode, where it will now follow your customized schedule.

Remember that setting different temperatures for various periods, such as a lower temperature when you’re away or asleep, can significantly contribute to energy conservation without sacrificing comfort when you need it most. Familiarize yourself with your specific model’s manual to unlock all its programming potential.

Troubleshooting and Resetting Your Old Honeywell Thermostat

Even the most reliable old Honeywell thermostats can sometimes exhibit unexpected behavior, display errors, or become unresponsive. In many cases, a simple reset can resolve these issues, restoring the device to proper functionality or its factory default settings. The method for resetting can vary based on the specific model, especially between different generations of digital and programmable units.

For many programmable digital thermostats, there’s a specific procedure to unlock the device or restore its factory settings, which often involves a sequence of button presses or interacting with a touch screen if present. This can be particularly useful if you’ve forgotten a complex schedule, experienced a power surge, or the thermostat seems “stuck.” Because these procedures are model-specific, the most accurate and safe approach is always to consult your product manual. If the physical manual is lost, a quick online search for “Honeywell [Your Model Number] reset” will often yield digital versions of the manual or helpful tutorials.

However, if your digital thermostat is powered by batteries, there’s a widely applicable and often simpler method to perform a hard reset, which can effectively clear temporary glitches and return settings to their original state:

Remove the Batteries: Carefully open the battery compartment, typically located on the side or front of the thermostat, and remove all the batteries.
Reverse and Reinsert Batteries (for a few seconds): This is the key step for a hard reset. Take the batteries and intentionally reinsert them backward (reversing the polarity) into their slots. You might notice the screen flicker or not turn on at all – this is normal. Leave them in this reversed orientation for approximately 5 to 10 seconds. This action helps to completely drain any residual electrical charge within the thermostat’s circuits, effectively clearing its memory.
Remove and Reinsert Correctly: After 5-10 seconds, remove the batteries again. Then, reinsert them correctly, ensuring the positive (+) and negative (-) terminals match the markings inside the battery compartment.
Observe: The thermostat screen should now power on, and it will typically initiate a startup sequence. It might prompt you to set the time and date, indicating a successful reset to factory defaults. You will then need to re-program any desired schedules.

If, after a reset, your thermostat continues to malfunction, displays persistent error codes, or fails to control your heating and cooling system properly, it might indicate a more serious issue. In such cases, it could be a wiring problem, a sensor fault, or an internal component failure. At this point, it’s advisable to consider either replacing the thermostat or consulting a qualified HVAC professional for diagnosis and repair.

Upgrading Your Climate Control: Replacing an Old Honeywell Thermostat

Replacing an old thermostat, whether it’s a basic mechanical unit or an older digital programmable model, is a common home improvement project that can significantly enhance comfort and energy efficiency. The good news is that you can generally replace an old thermostat with virtually any modern equivalent, including smart thermostats, with one crucial consideration: power requirements.

Many older mechanical thermostats and some battery-powered digital models did not require a “common wire” (often abbreviated as “C-wire”). The C-wire, typically blue, provides continuous 24-volt power to the thermostat itself. Newer, more advanced thermostats, especially those with Wi-Fi connectivity, large backlit displays, or smart features, often demand this constant power supply. If your existing wiring lacks a C-wire and your chosen new thermostat requires one, you have two primary options: either an HVAC professional can install a new C-wire (which may involve running new wiring or utilizing an adapter), or you can opt for a new battery-powered thermostat that doesn’t rely on a C-wire for continuous operation. Always check the power requirements of your new thermostat before purchase.

Once you’ve ensured compatibility, the process of replacing your old thermostat is a relatively straightforward DIY task. Always prioritize safety by following these steps:

Shut Off Power Safely: This is the most critical step. Locate the circuit breaker that controls your heating and cooling system (furnace, air handler, or outdoor unit) and flip it to the “Off” position. Double-check that the power is indeed off by trying to adjust your old thermostat – nothing should happen. This prevents electrical shocks and damage to your HVAC system.
Document Wiring: Carefully remove the cover from your old thermostat. Before disconnecting any wires, take several clear photographs with your smartphone of how the wires are connected to the terminals. Pay close attention to the color of each wire and the specific terminal label (e.g., R, W, Y, G, C). This visual record will be invaluable when connecting the new thermostat.
Disconnect and Remove Old Thermostat: Once you have your photographic reference, loosen the terminal screws and carefully disconnect each wire. After all wires are free, unscrew and remove the old thermostat’s baseplate from the wall. You might want to gently coil the wires to prevent them from falling back into the wall cavity.
Install New Thermostat Baseplate: Follow the instructions provided with your new thermostat to install its baseplate onto the wall. Many new thermostats will come with a mounting plate and screws. Ensure it’s level and securely attached.
Connect New Wires: Refer back to the pictures you took in Step 2. Carefully connect each wire from the wall to the corresponding terminal on the new thermostat’s baseplate. Most new thermostats have clearly labeled terminals. If a C-wire is present and required, ensure it’s connected correctly. Double-check all connections to ensure they are snug but not overtightened.
Final Assembly and Power On: If your new thermostat requires batteries, install them now according to the polarity markings. Snap the new cover plate onto the baseplate. Return to your electrical panel and turn the circuit breaker that powers your HVAC system back to the “On” position.

After installation, your new thermostat should power on. Follow its initial setup prompts to set the time, date, and configure any new features or schedules. By carefully following these steps, you can successfully replace your old Honeywell thermostat with a modern unit, enhancing your home’s comfort, control, and energy efficiency for years to come.
